5042EP1441K1.3LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5042EP1441K1.3LF

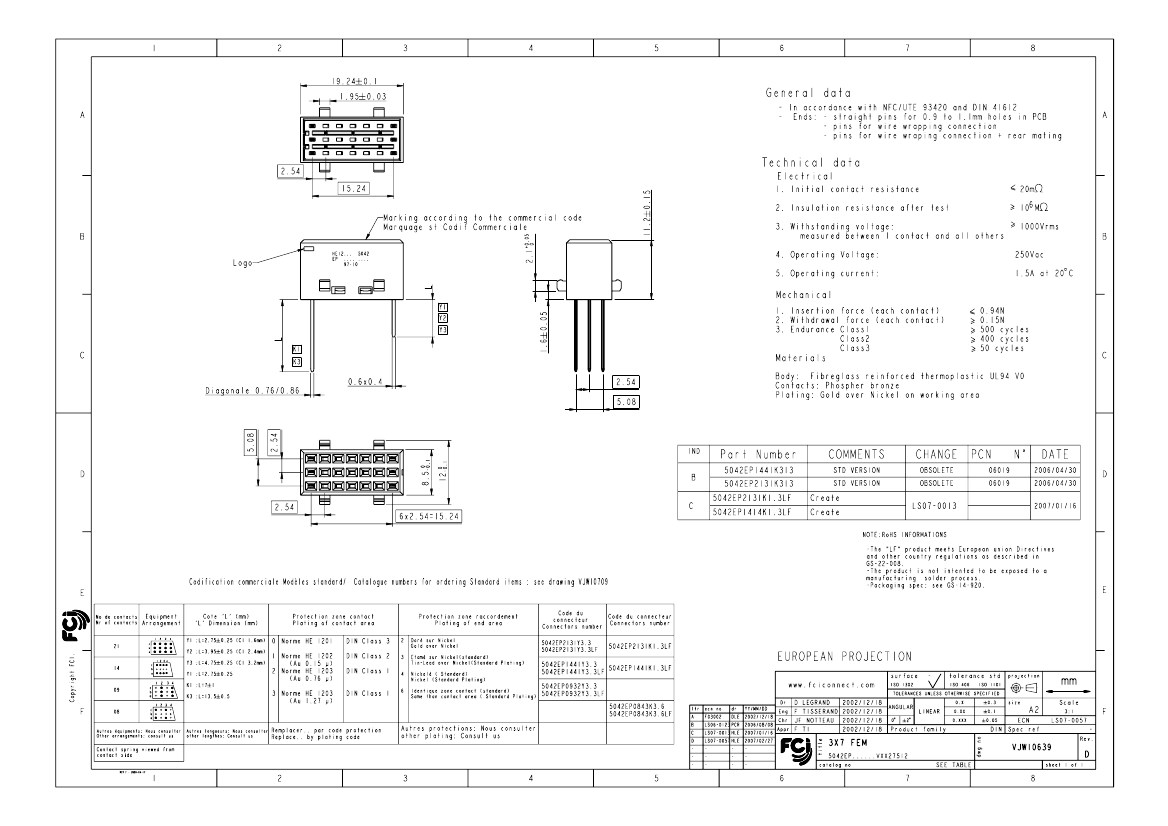

Preview

5042EP1441K1.3LF: DescriptionBoard Euro Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5042EP1441K1.3LF Overview

Board Euro Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE

5042EP1441K1.3LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	5042
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Oct 01, 2010

.

5042EP1441K1.3LF Related Products

	5042EP1441K1.3LF	5042EP0843K3.6LF	5042EP0843K3.6	5042EP0932Y3.3LF	5042EP0932Y3.3	5042EP2131Y3.3LF	5042EP2131Y3.3	5042EP1441Y3.3LF	5042EP1441Y3.3
Description	Board Euro Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 8 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 8 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 9 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 9 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 21 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 21 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Euro Connector, 14 Contact(s), 2 Row(s), Female, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5042	5042	5042	5042	5042	5042	5042	5042	5042
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	3	3	3	3	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	14	8	8	9	9	21	21	14	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	-	LEAD FREE	-	LEAD FREE	-
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	-	EAR99	EAR99
Contact completed and terminated	TIN LEAD OVER NICKEL	-	-	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
JESD-609 code	e0	-	-	e0	e0	e0	e0	e0	e0
