52018-6245 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52018-6245

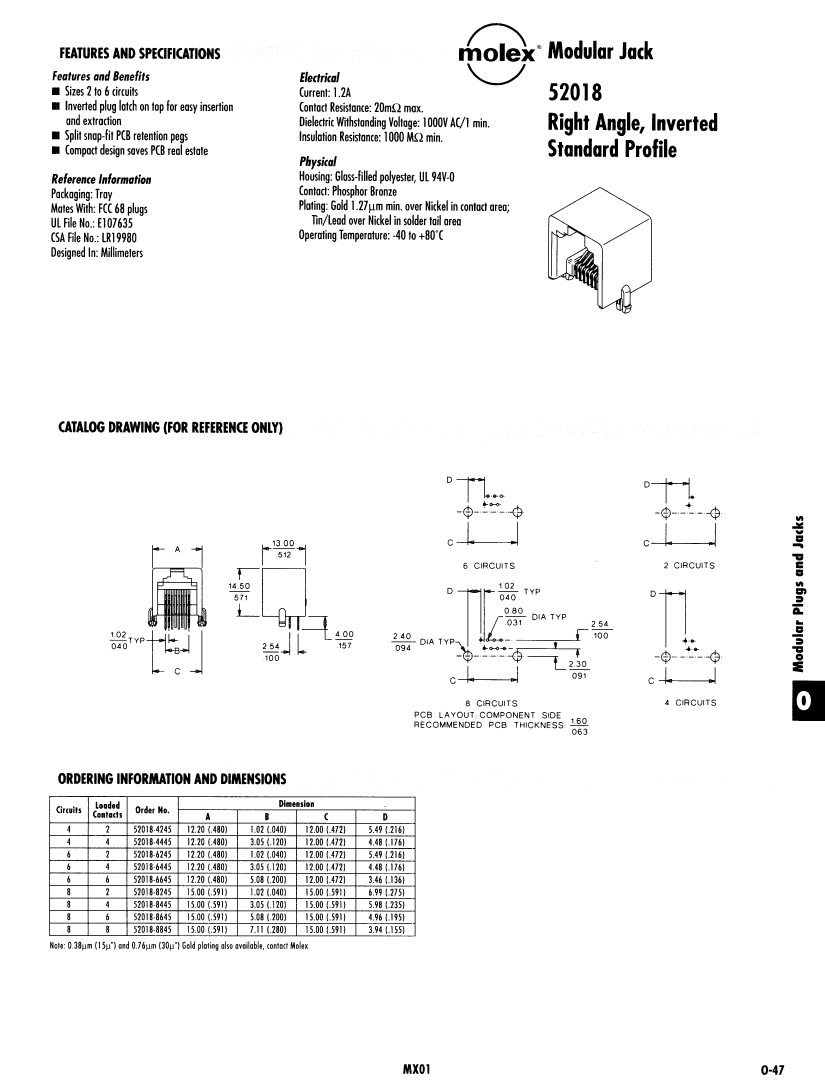

52018-6245: DescriptionTelecom and Datacom Connector, 2 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52018-6245 Overview

Telecom and Datacom Connector, 2 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack

52018-6245 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION, STANDARD PROFILE
Board mount options	SPLIT BOARD LOCK
body width	0.571 inch
subject depth	0.512 inch
body length	0.48 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	200 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	1.2 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYESTER
Terminal length	0.138 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	9.7856 N

Preview

Download Datasheet

View All

52018-6245 Related Products

	52018-6245	52018-8245	52018-8445	52018-4245	52018-8645
Description	Telecom and Datacom Connector, 2 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 2 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 2 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STAGGERED CONFIGURATION, STANDARD PROFILE	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION, STANDARD PROFILE	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch
subject depth	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch
body length	0.48 inch	0.591 inch	0.591 inch	0.48 inch	0.591 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	4.8928 N	4.8928 N	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch
Rated current (signal)	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A
Guideline	CSA, UL	UL, CSA	UL, CSA	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	2	4	2	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N
