Only One Name Means ProTek’Tion™
PLCDA03C-6 - PLCDA15C-6
500 WATT MULTI-LINE LOW CAPACITANCE TVS ARRAY
DESCRIPTION
The PLCDAxxC-6 Series are low capacitance multi-line transient voltage suppressor arrays that provides board level
protection for standard TTL and CMOS bus line applications against the damaging effects of ESD, tertiary lightning and
switching transients.
The PLCDAxxC-6 Series has a peak pulse power rating of 500 Watts for an 8/20µs waveshape. This device series meets
the IEC 61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.
SO-8 PACkAGE
FEATURES
• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-
Gnd) & Level 3(Line-Line)
• 500 Watts Peak Pulse Power per Line (tp = 8/20µs)
• Bidirectional Configuration
• Available in Multiple Voltages Ranging from 3V to 15V
• Protects Up to Six Lines
• Low Capacitance: 8pF
• RoHS Compliant
• REACH Compliant
APPLICATIONS
• Computer Interface Protection
• Ethernet - 10/100/1000 Base T
• Bluetooth & RF
MEChANICAL ChARACTERISTICS
•
•
•
•
Molded JEDEC SO-8 Package
Approximate Weight: 70 milligrams
Lead-Free Pure-Tin Plating (Annealed)
Solder Reflow Temperature:
Pure-Tin - Sn, 100: 260-270°C
• 12mm Tape and Reel Per EIA Standard 481
• Flammability Rating UL 94V-0
PIN CONFIGURATION
I/O
8
I/O
7
I/O
6
GND
5
1
I/O
2
I/O
3
I/O
4
GND
05102.R8 11/10
Page 1
www.protekdevices.com
05102
Only One Name Means ProTek’Tion™
PLCDA03C-6 - PLCDA15C-6
TYPICAL DEVICE ChARACTERISTICS
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified
PARAMETER
Operating Temperature
Storage Temperature
Peak Pulse Power (tp = 8/20µs) - See Figure 1
SYMBOL
T
L
T
STG
P
PP
VALUE
-55 to 150
-55 to 150
500
UNITS
°C
°C
Watts
ELECTRICAL ChARACTERISTICS PER LINE
@ 25°C Unless Otherwise Specified
PART
NUMBER
DEVICE
MARkING
RATED
STAND-OFF
VOLTAGE
MINIMUM
BREAkDOWN
VOLTAGE
@1mA
V
(BR)
VOLTS
4.5
6.0
8.5
13.3
16.7
MAXIMUM
CLAMPING
VOLTAGE
(Fig. 2)
@I
P
= 1A
V
C
VOLTS
7.0
9.8
13.4
19.0
24.0
MAXIMUM
LEAkAGE
CURRENT
@V
WM
I
D
µA
125
20
10
2
2
MAXIMUM
CAPACITANCE
(Note 1)
@0V, 1Mhz
C
pF
8
8
8
8
8
V
WM
VOLTS
PLCDA03C-6
PLCDA05C-6
PLCDA08C-6
PLCDA12C-6
PLCDA15C-6
NOTES
PRS
PRT
PRW
PRV
PRU
3.3
5.0
8.0
12.0
15.0
1. Capacitance between I/O pins and ground (pins 4 and 5) is typically 8pF. Capacitance between I/O pins is typically 4pF.
10,000
FIGURE 1
PEAk PULSE POWER VS PULSE TIME
P
PP
- Peak Pulse Power - Watts
1,000
500W, 8/20µs Waveform
100
10
0.1
1
10
100
t
d
- Pulse Duration - µs
1,000
10,000
05102.R8 11/10
Page 2
www.protekdevices.com
05102
Only One Name Means ProTek’Tion™
PLCDA03C-6 - PLCDA15C-6
TYPICAL DEVICE ChARACTERISTICS
FIGURE 2
PULSE WAVE FORM
t
f
Peak Value I
PP
TEST
WAVEFORM
PARAMETERS
t
f
= 8µs
t
d
= 20µs
120
I
PP
- Peak Pulse Current - % of I
PP
100
80
% Of Rated Power
FIGURE 3
POWER DERATING CURVE
Peak Pulse Power
8/20µs
100
80
60
40
20
0
0
5
e
-t
60
40
20
0
Average Power
t
d
= t/(I
PP
/2)
10
15
t - Time - µs
20
25
30
0
25
50
75 100 125
T
A
- Ambient Temperature - °C
150
16
FIGURE 4
TYPCIAL CLAMPING VOLTAGE VS PEAk PULSE CURRENT FOR PLCDA05C-6
V
C
- Clamping Voltage - Volts
12
8
4
0
0
2
4
6
8
10
12
I
PP
- Peak Pulse Current - Amps
14
16
18
05102.R8 11/10
Page 3
www.protekdevices.com
05102
Only One Name Means ProTek’Tion™
PLCDA03C-6 - PLCDA15C-6
TYPICAL DEVICE ChARACTERISTICS

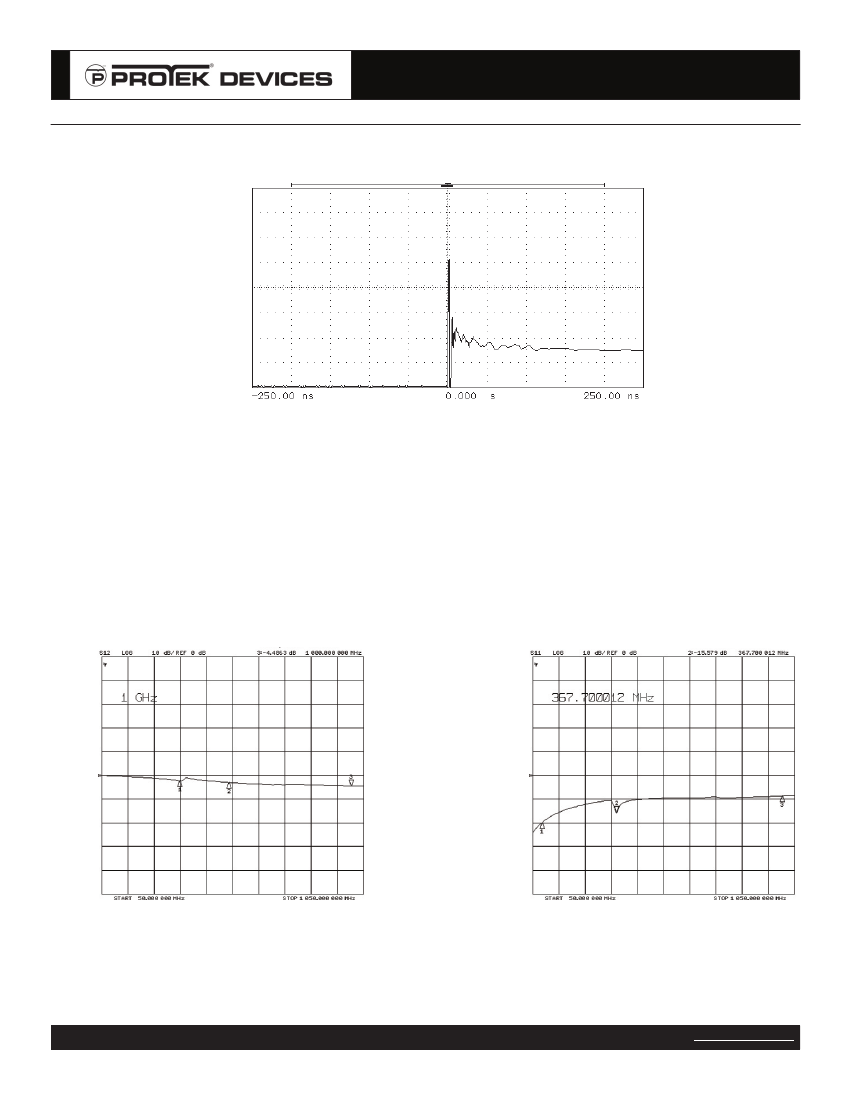

FIGURE 5
OVERShOOT & CLAMPING VOLTAGE FOR PLCDA05C-6
40
30
5 Volts per Division
20
10
0
ESD Test Pulse - 25 kilovolt, 1/30ns (Waveshape)
FIGURE 6
INSERTION LOSS - PLCDA05C-6
50
50
FIGURE 7
RETURN LOSS - PLCDA05C-6
10 db per Division
0
10 db per Division
20
20
0
-20
-20
-50
100 Mhz per Division
-50
100 Mhz per Division
05102.R8 11/10
Page 4
www.protekdevices.com
05102
Only One Name Means ProTek’Tion™
PLCDA03C-6 - PLCDA15C-6
SPICE MODEL
FIGURE 1
SPICE MODEL
I/O
ABD
LCRD
LCRD
Lg
0.6nH
ABD
ABD - Avalanche Breakdown Diode (TVS)
LCRD: Low Capacitance Rectifier Diode
Lg - Lead Inductance
TABLE 1 - SPICE PARAMETERS
PARAMETER
BV
IBV
C
jo
I
S
Vj
M
N
R
S
TT
EG
UNIT
V
µA
pF
A
V
-
-
Ohms
s
eV
ABD(TVS)
See Table 2
1
See Table 2
See Table 2
0.6
0.33
1
See Table 2
1E-8
1.11
LCRD
200
0.01
5
1E-13
0.6
0.33
1
0.31
1E-9
1.11
PART NUMBER
PLCDA03
PLCDA05
PLCDA15
TABLE 2 - ABD SPECIFIC SPICE PARAMETERS
I
S
(AMPS)
B
V
(VOLTS)
C
jo
(
p
F)
4.5
6.0
16.7
438
284
102
1E-11
1E-11
1E-13
R
s
(OhMS)
0.21
0.14
0.52
