531710-6: DescriptionCONNECTOR, 180 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE; CategoryThe connector The connector; File Size419KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531710-6 Overview

CONNECTOR, 180 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE

531710-6 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	531710
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	180

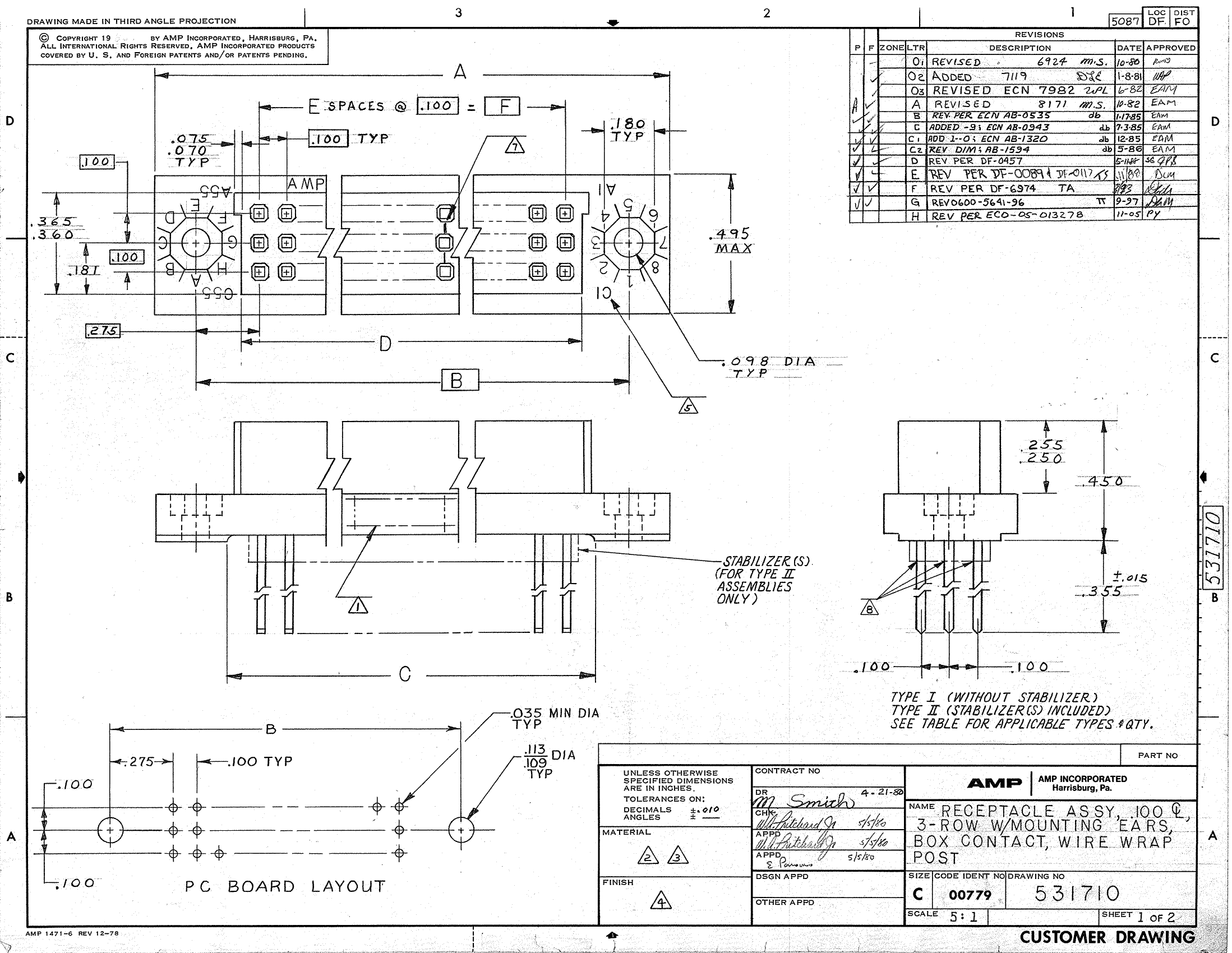

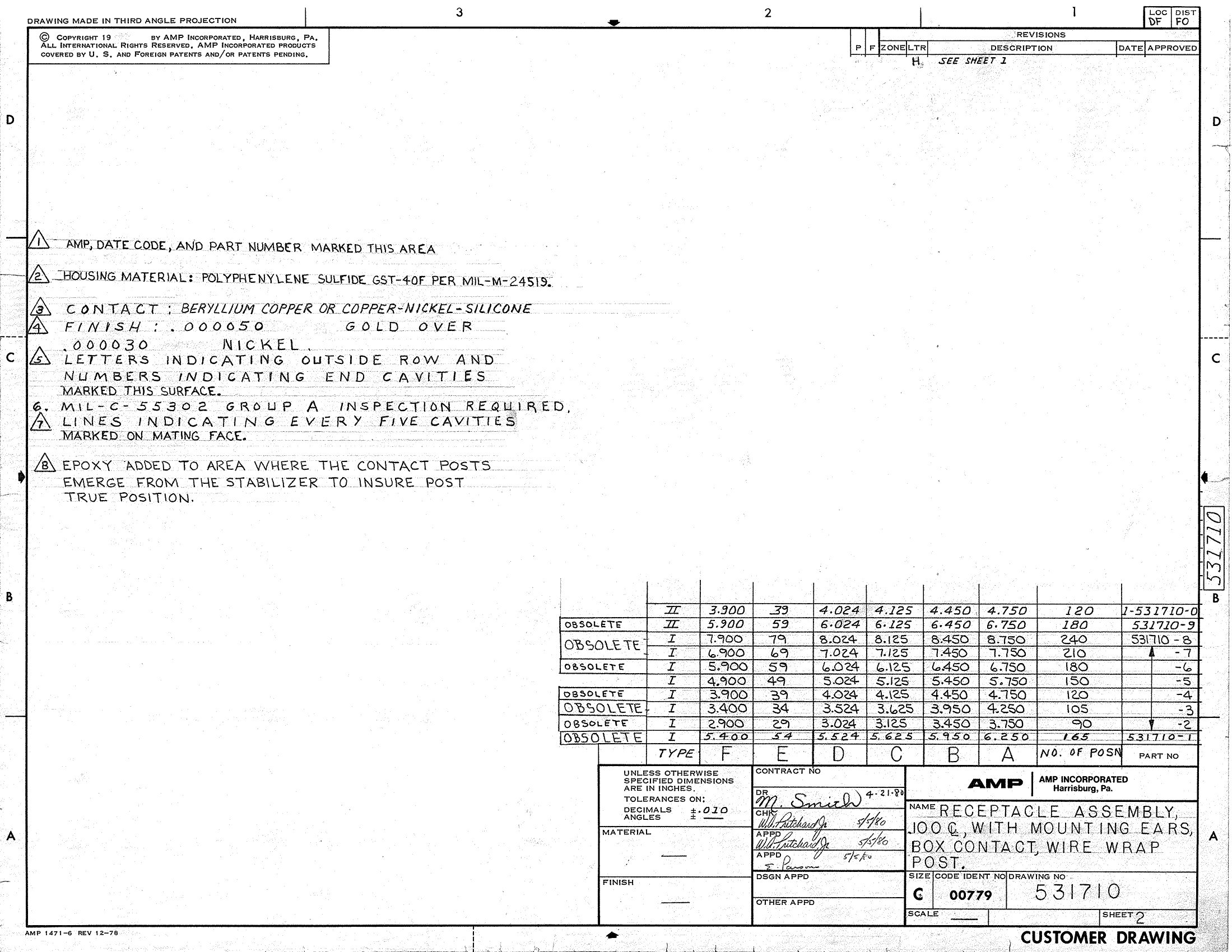

Preview

Download Datasheet

View All

531710-6 Related Products

	531710-6	SIP-U4789-12-2341-C-A-1	VI-RC1223-IVYX-CC	531710-1	531710-3	531710-4	531710-7	531710-8	531710-2	531710-9
Description	CONNECTOR, 180 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	Array/Network Resistor, Isolated, Thin Film, 0.04W, 2340ohm, 50V, 0.25% +/-Tol, -10,10ppm/Cel, 8007,	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, PACKAGE-20	CONNECTOR, 165 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 105 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 120 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 210 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 240 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 90 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE	CONNECTOR, 180 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, WIRE WRAP, RECEPTACLE
Reach Compliance Code	unknown	compliant	not_compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maker	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-	-
Body/casing type	RECEPTACLE	-	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	-	-	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL	-	-	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact point gender	FEMALE	-	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	-	-	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	-	-	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	-	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	-	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	-	-	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	531710	-	-	531710	531710	531710	531710	531710	531710	531710
Mixed contacts	NO	-	-	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	-	-	3	3	3	3	3	3	3
Options	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	-	-	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	180	-	-	165	105	120	210	240	90	180
