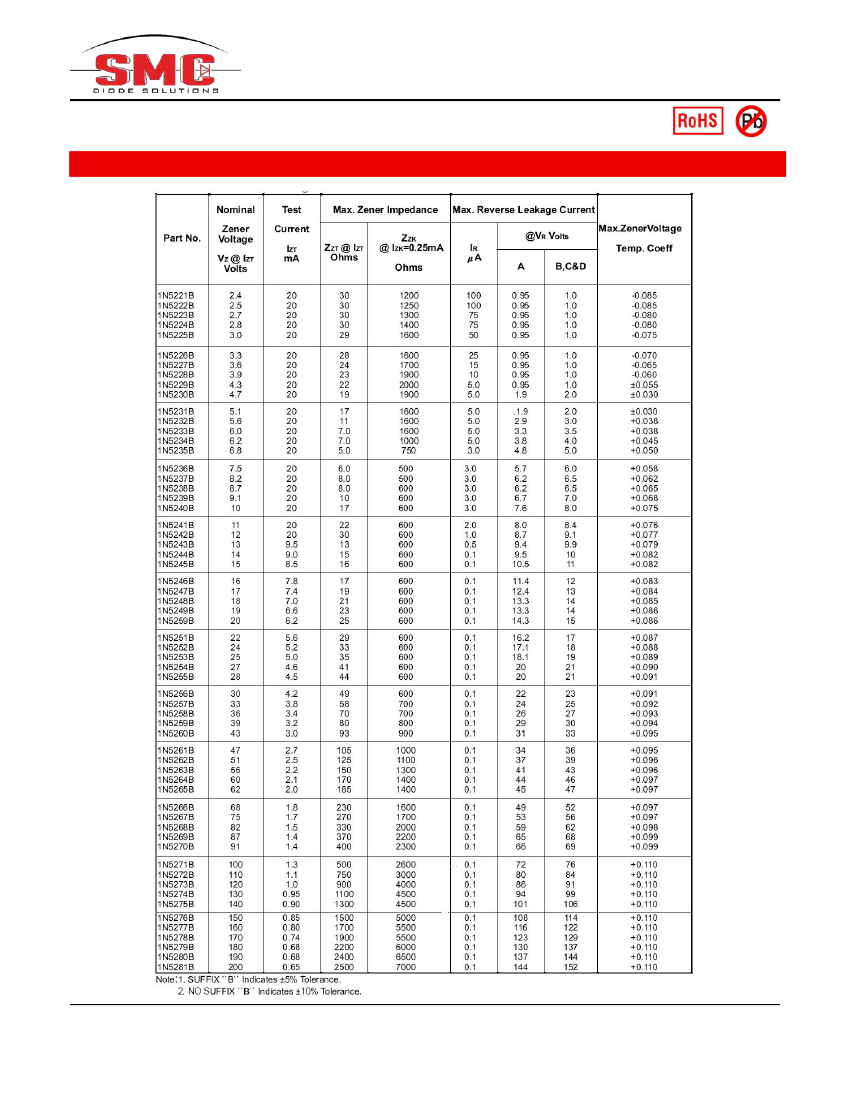

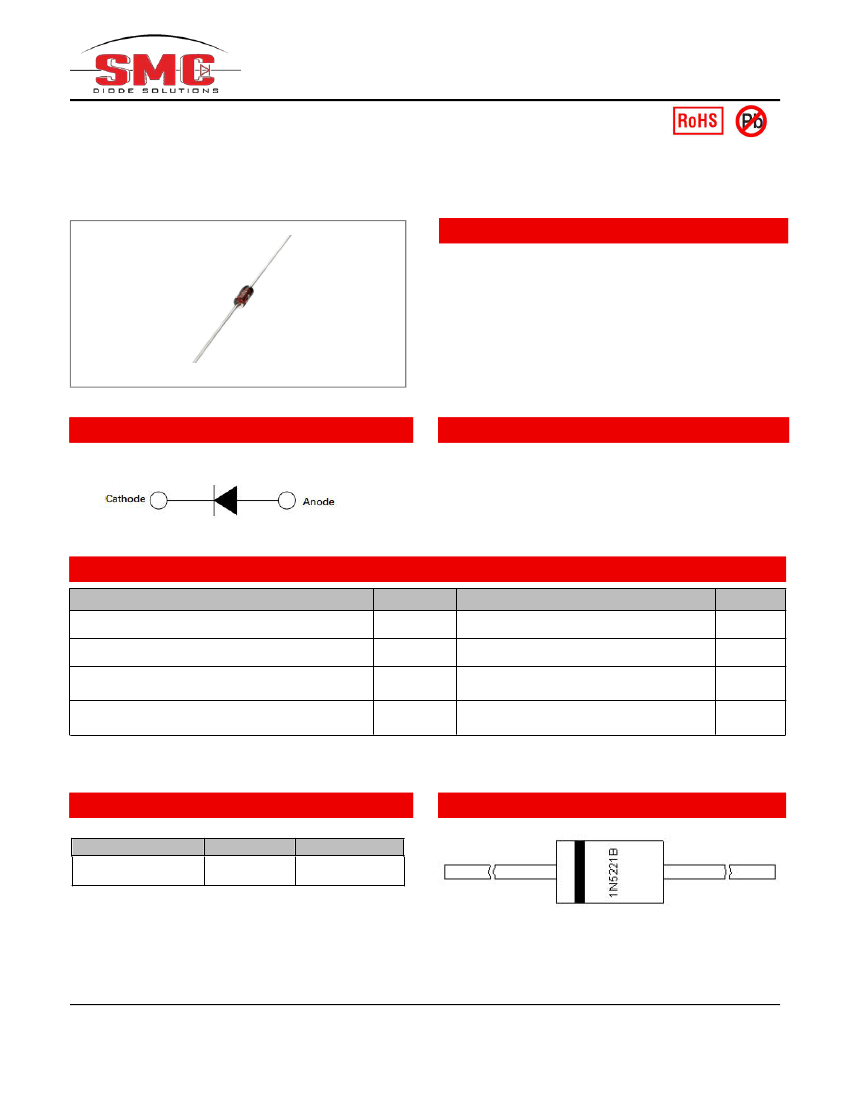

1N5221B-1N5281B
Technical Data
Data Sheet N0184, Rev. D
1N52-Series Zener Diode
Features
Low Reverse Leakage
Low Zener Impedance
Power Dissipation of 500mW
High Stability and High Reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
DO-35
Circuit Diagram
Mechanical Data
Case: DO-35 Glass Case
Polarity: Color band denotes cathode end
Mounting Position: Any
Maximum Ratings
@T
A
=25°C unless otherwise specified
Parameter
Power Dissipation
(Note 1)
Forward Voltage
@ I
F
= 200mA
Symbol
P
D
V
F
R
θJA
T
J
,T
STG
Value
500
1.1
0.3
-65 to 200
Units
mW
V
K/mW
°C
Typical Thermal resistance junction to Ambient Air
(Note 1)
Operating Junction and Storage
Temperature Range

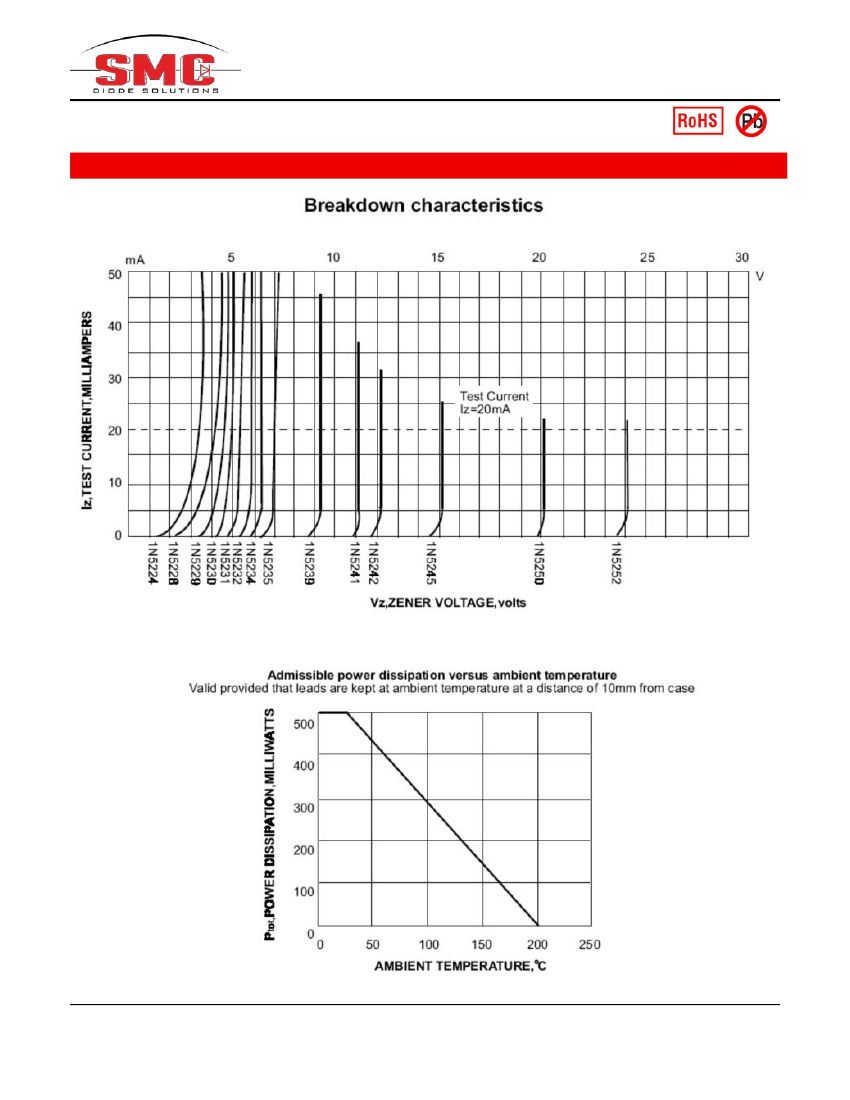

Notes: 1. Valid provided that leads are kept at ambient temperature at a distance of 8mm from case
Ordering Information
Device
1N5221B-1N5281B
Marking Diagram
Shipping
2500pcs / tape
Package
DO-35
(Pb-Free)

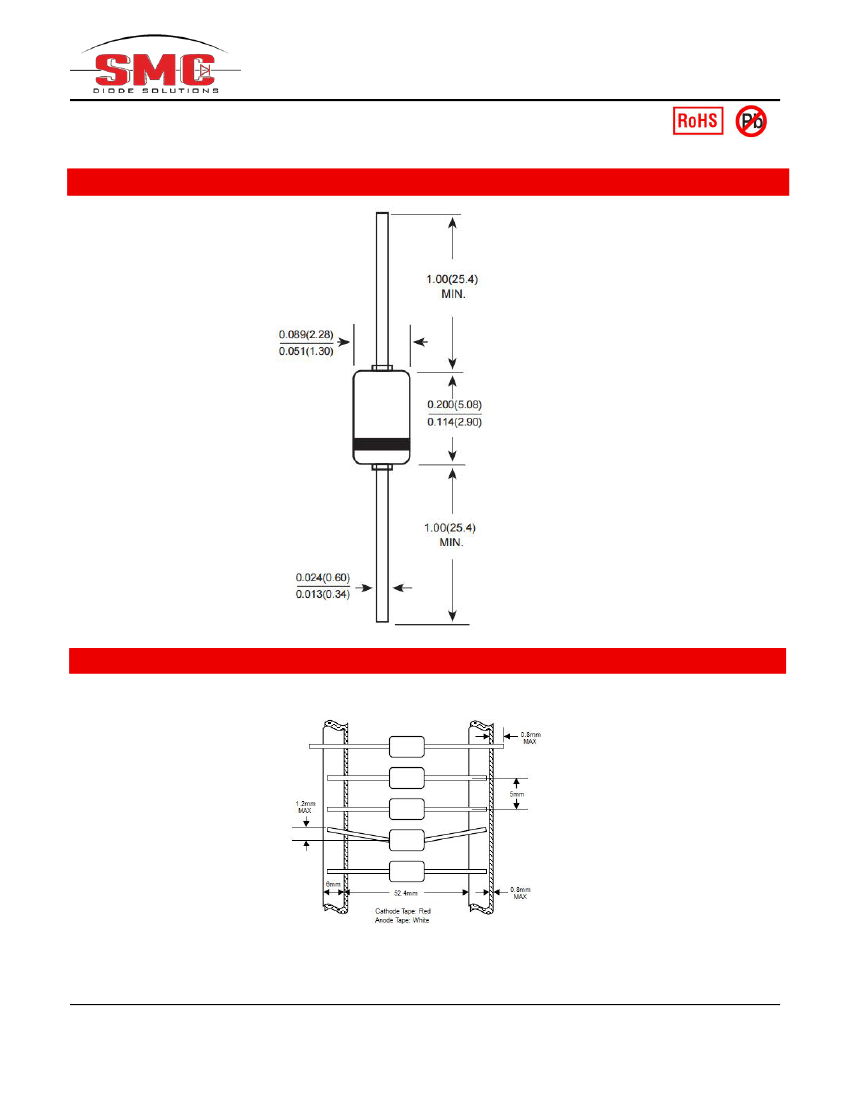

For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
1N5252B
= Part Name
