53647-1604: DescriptionBoard Stacking Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug; CategoryThe connector The connector; File Size300KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

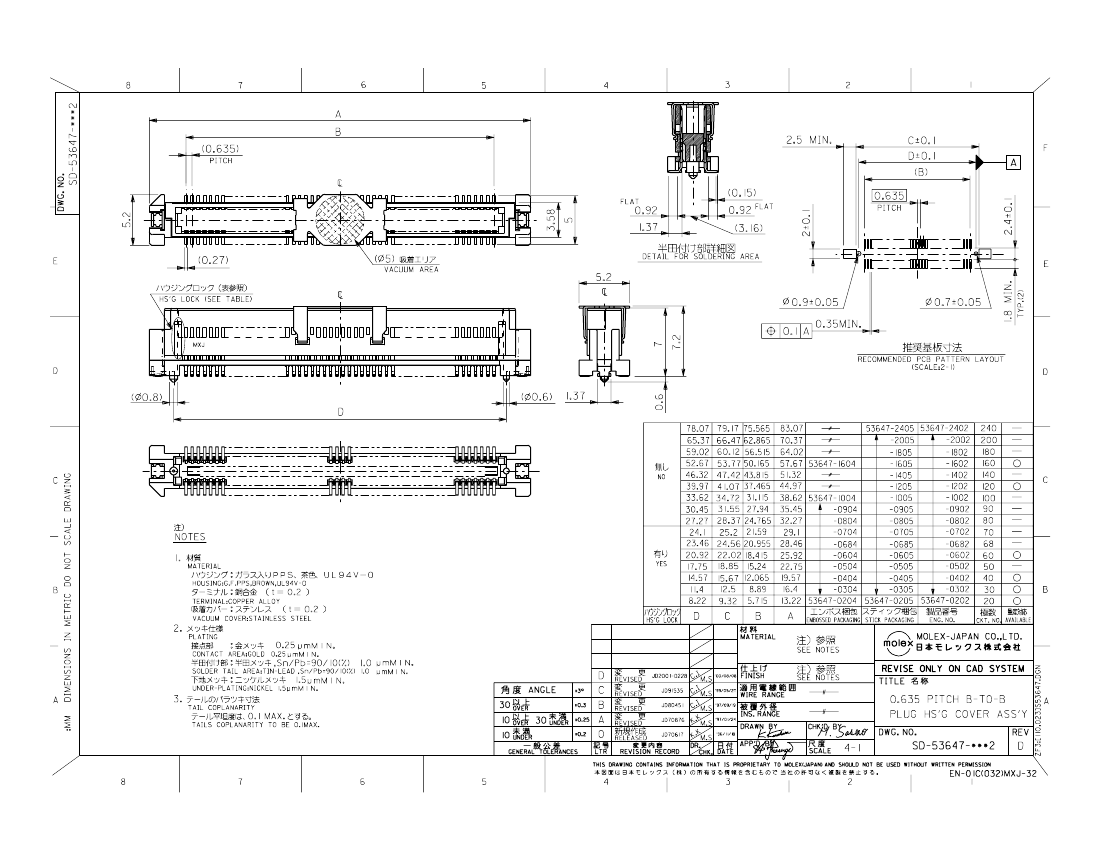

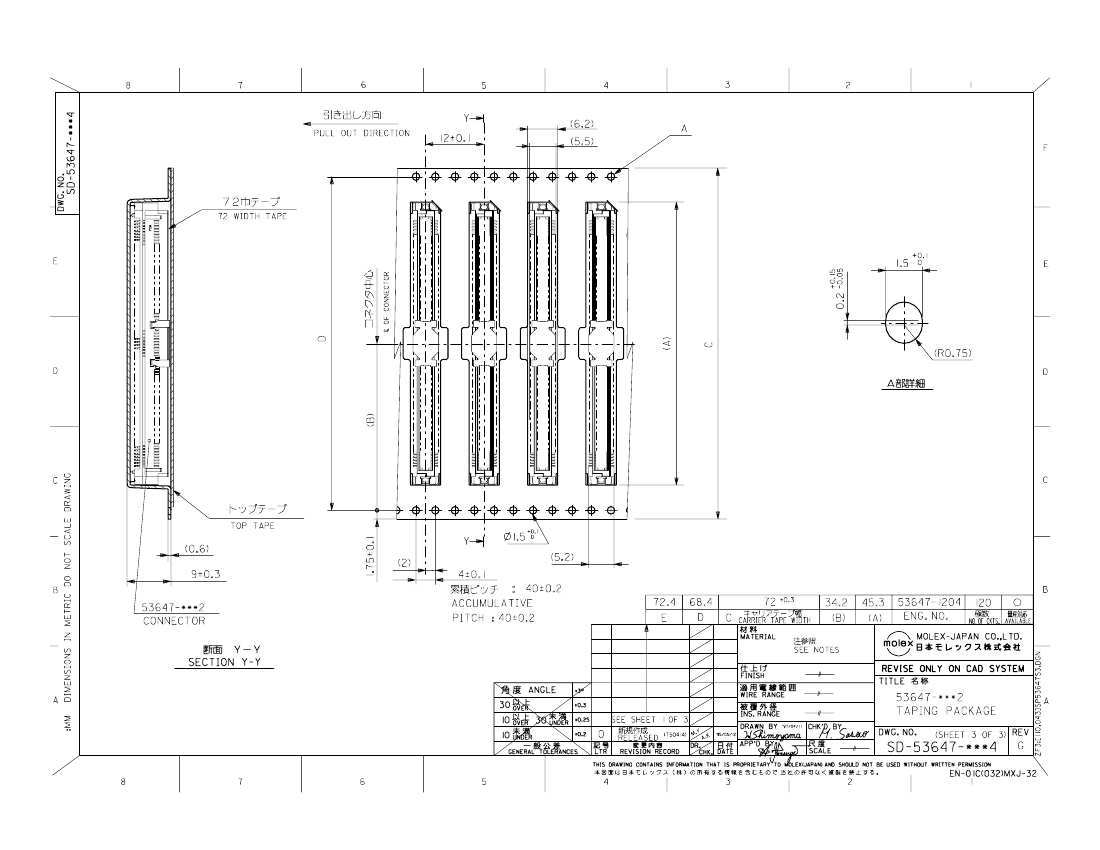

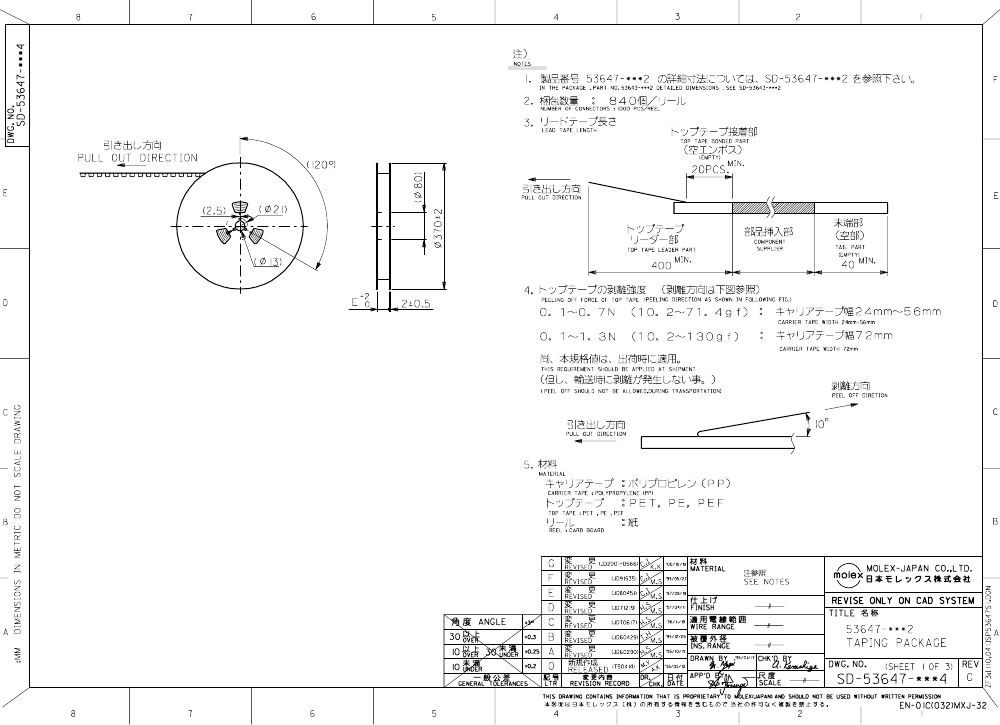

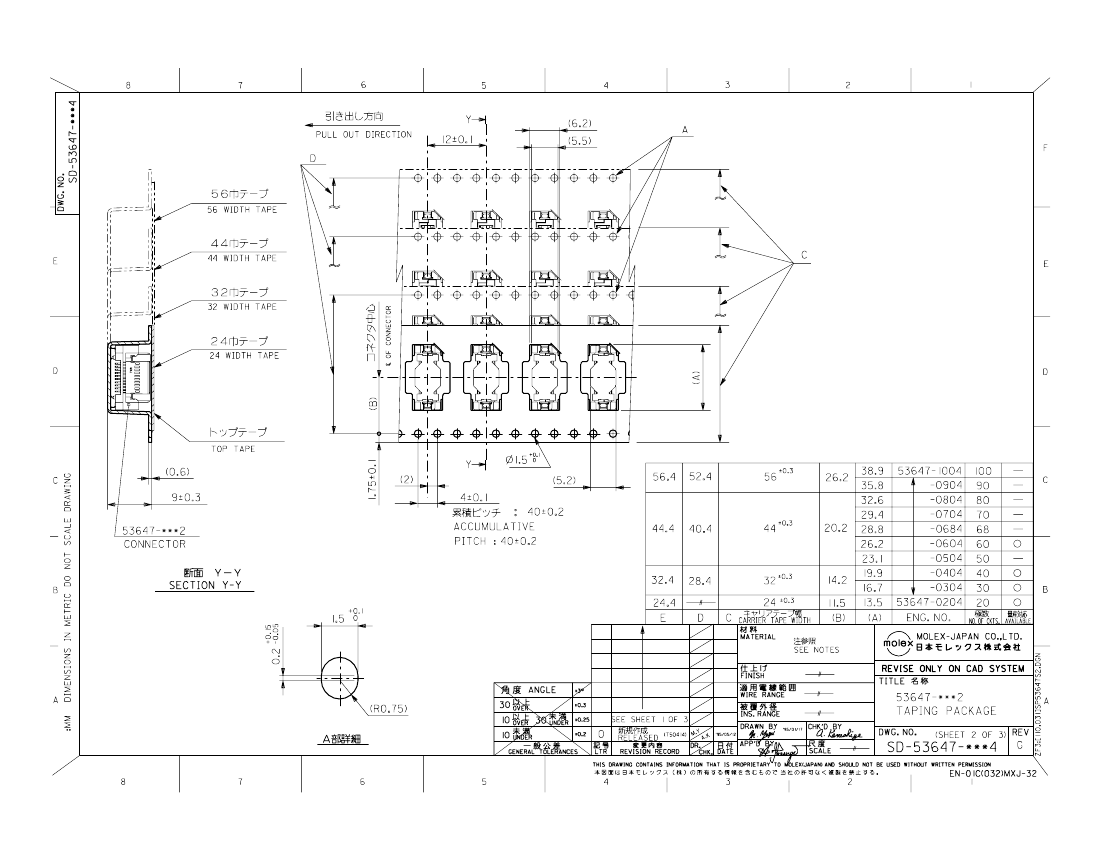

53647-1604 Overview

Board Stacking Connector, 160 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug

53647-1604 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZATION AVAILABLE
Board mount options	LOCATING POSTS
body width	0.205 inch
subject depth	0.276 inch
body length	2.27 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	53647
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	ENDS
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	160
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
