55535-001

Description
Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size105KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

55535-001 Overview

Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal

55535-001 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD FLASH (2) OVER NICKEL/TIN (80) OVER COPPER
Contact completed and terminatedTIN LEAD (100) OVER NICKEL
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number55535
Mixed contactsYES
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts51
UL Flammability Code94V-0

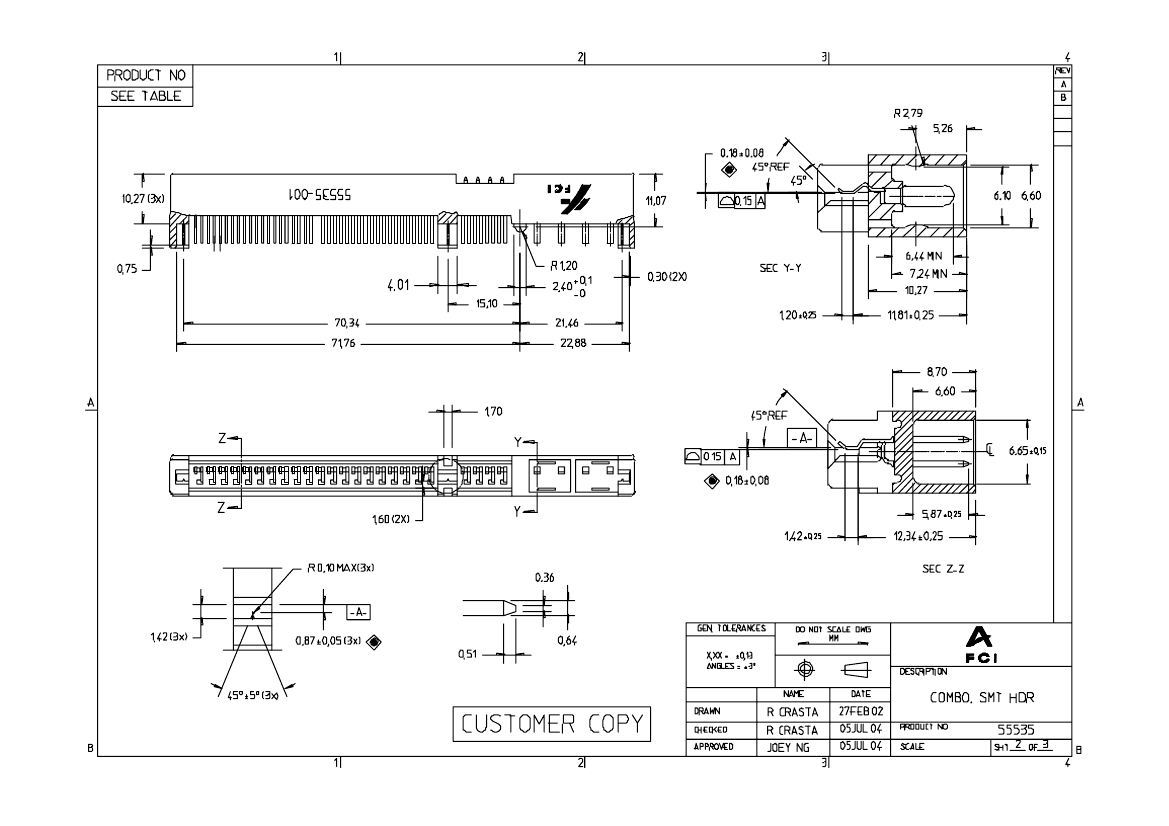

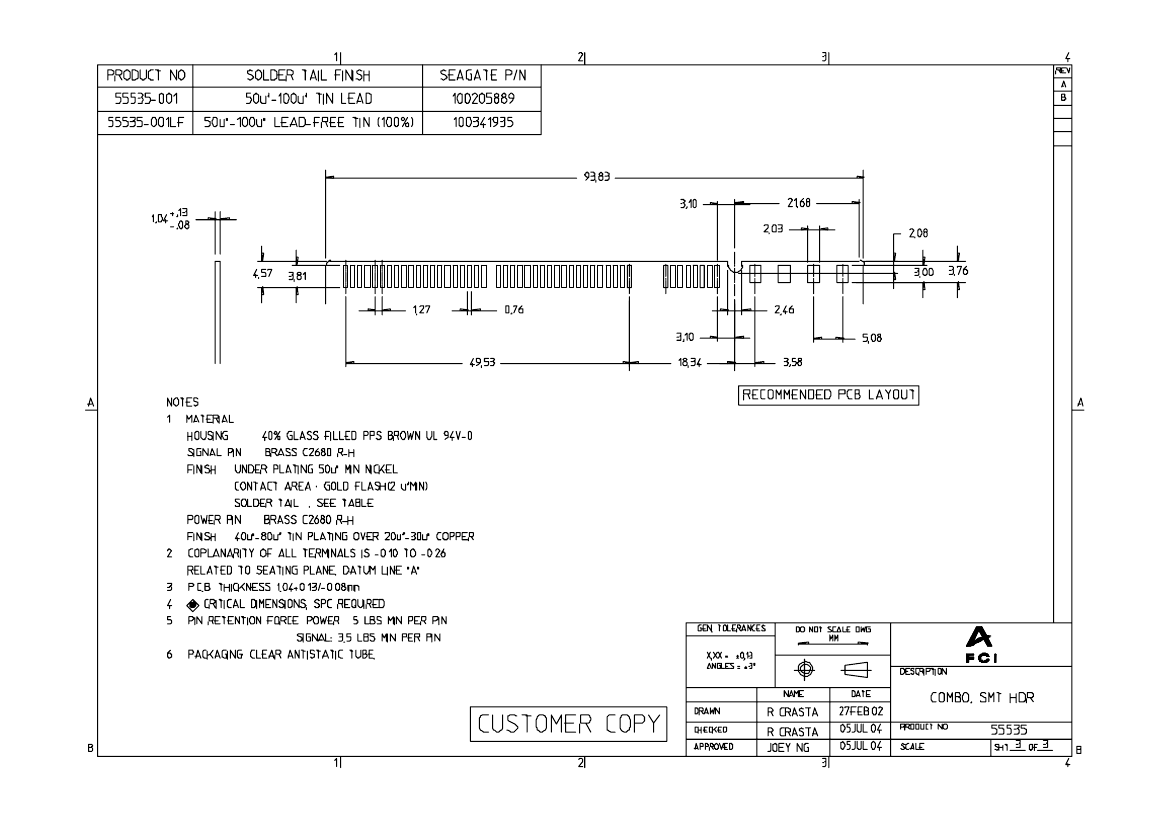

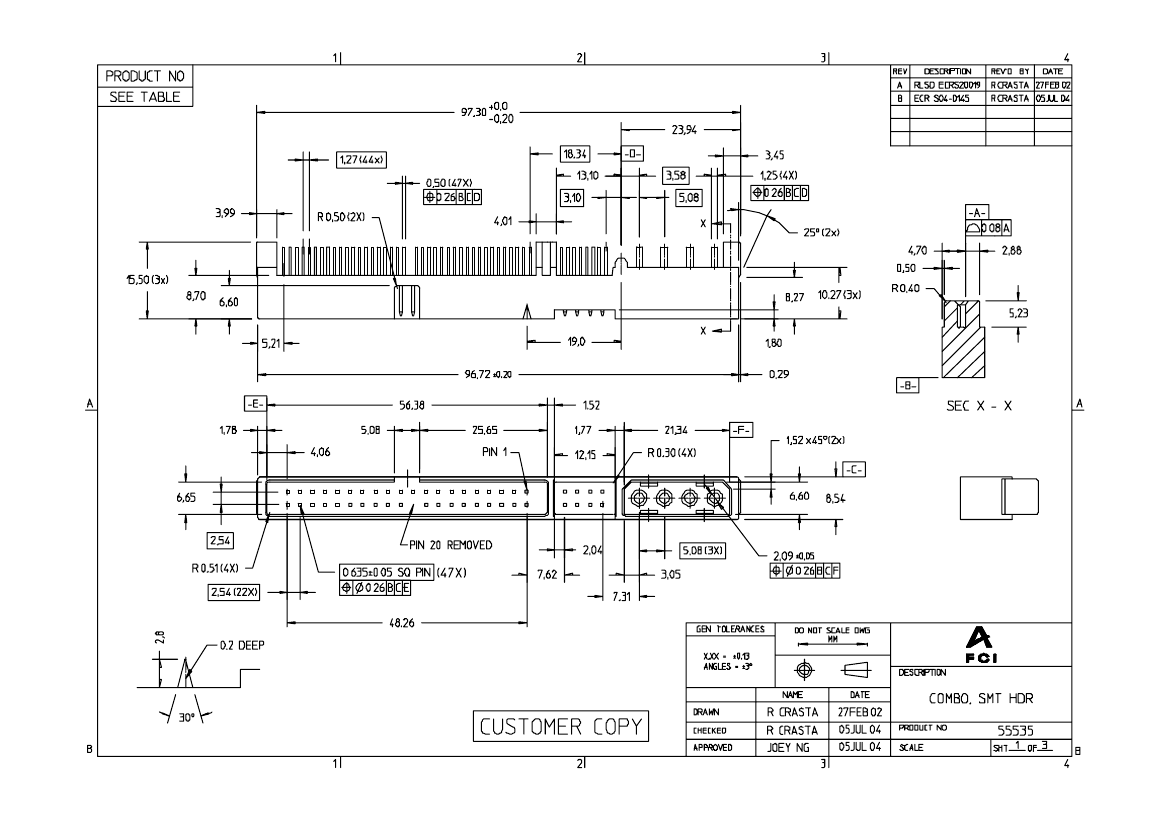

PDM: Rev:B
STATUS:
Released
Printed: Nov 27, 2009
.

55535-001 Related Products

55535-001 55535-001LF
Description Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal Board Connector, 51 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE
Maker Amphenol Amphenol
Reach Compliance Code unknown unknown
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD FLASH (2) OVER NICKEL/TIN (80) OVER COPPER GOLD FLASH (2) OVER NICKEL/TIN (80) OVER COPPER
Contact completed and terminated TIN LEAD (100) OVER NICKEL TIN (100) OVER NICKEL/TIN (80) OVER COPPER
Contact point gender MALE MALE
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
JESD-609 code e0 e3
MIL compliance NO NO
Manufacturer's serial number 55535 55535
Mixed contacts YES YES
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of rows loaded 2 2
Options GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 51 51
UL Flammability Code 94V-0 94V-0
