54071-0800 datasheet, PDF - EEWORLD Datasheet

54071-0800: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, White Insulator, Receptacle; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

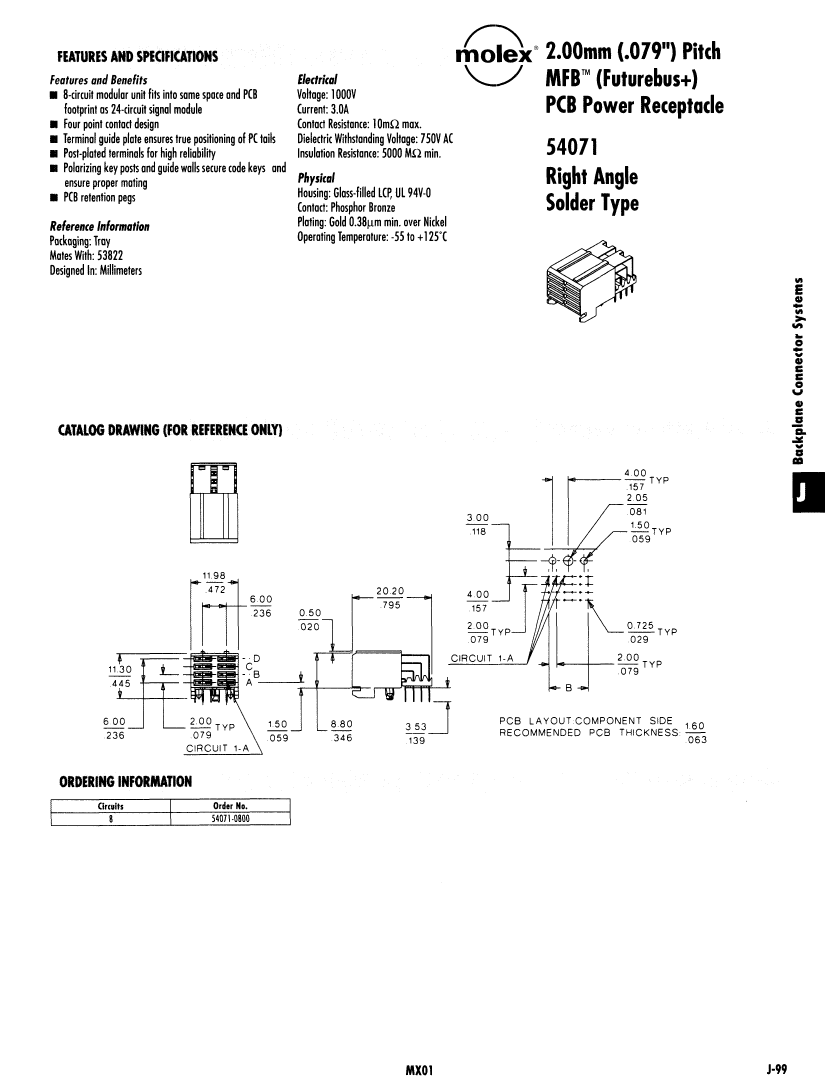

Download Datasheet Parametric View All

54071-0800 Overview

Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, 0.236 inch Pitch, Solder Terminal, White Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MFB, POLARIZED
Board mount options	PEG
body width	0.445 inch
subject depth	0.795 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	53956
Plug contact pitch	0.236 inch
Match contact row spacing	0.079 inch
Plug information	53822-0820
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
polarization key	POLARIZED KEY
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.139 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
