54167-0708: DescriptionBoard Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size829KB，14 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54167-0708 Overview

Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

54167-0708 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ANTI-FLUX DESIGN
body width	0.213 inch
subject depth	0.089 inch
body length	0.839 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54167
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

0.40 to 1.60mm (.016 to .063") Pitch

Features and Beneﬁts

Stacking height: 4.0mm

Sizes 20 to 70 circuits

Locking feature provides secure mating

High temperature housing

Durable blade on beam contact interface

Anti-ﬂux design

Reference Information

Packaging: Embossed tape

Mates With:

53916

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 60m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 100 M

Ω

min.

Physical

Housing: Black glass-filled LCP, UL 94V-0

Contact: Phosphor Bronze

Plating: Gold over Nickel

Operating Temperature: -40 to +105˚C

0.50mm (.020") Pitch

Board-to-Board

Receptacle

54167

SMT, Dual Row

Vertical Stacking

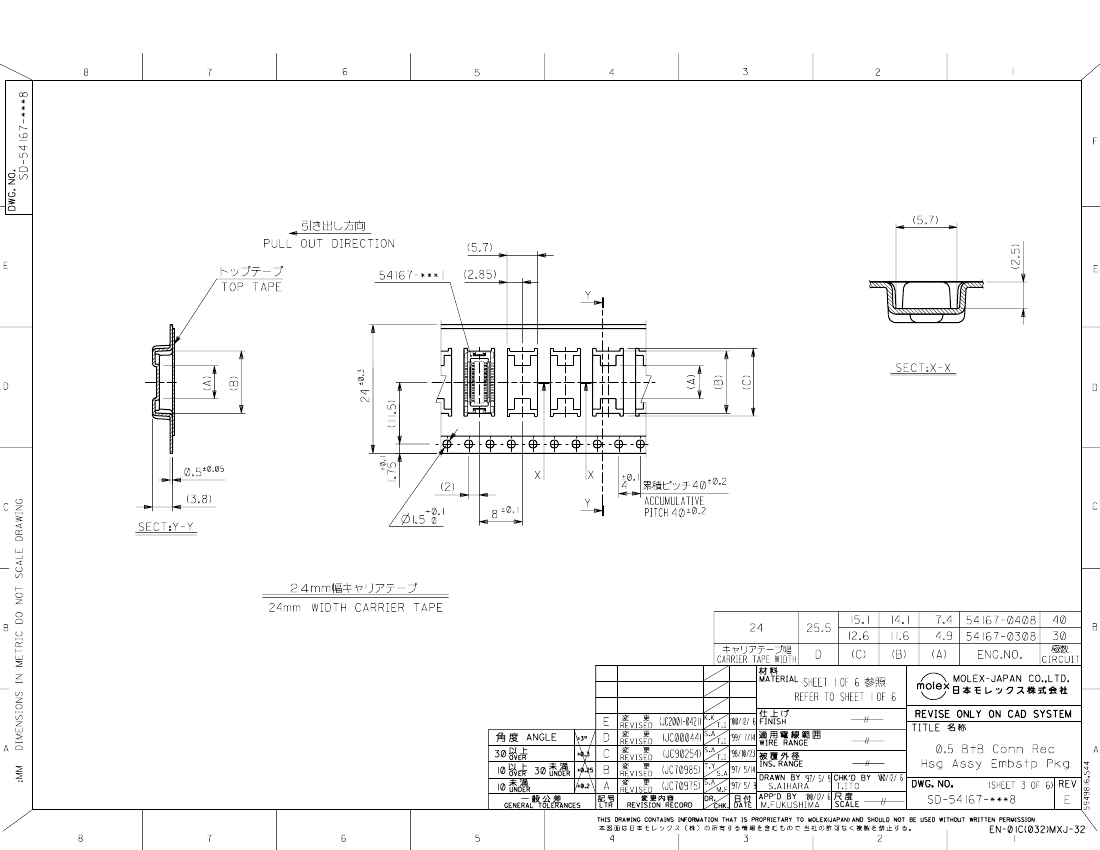

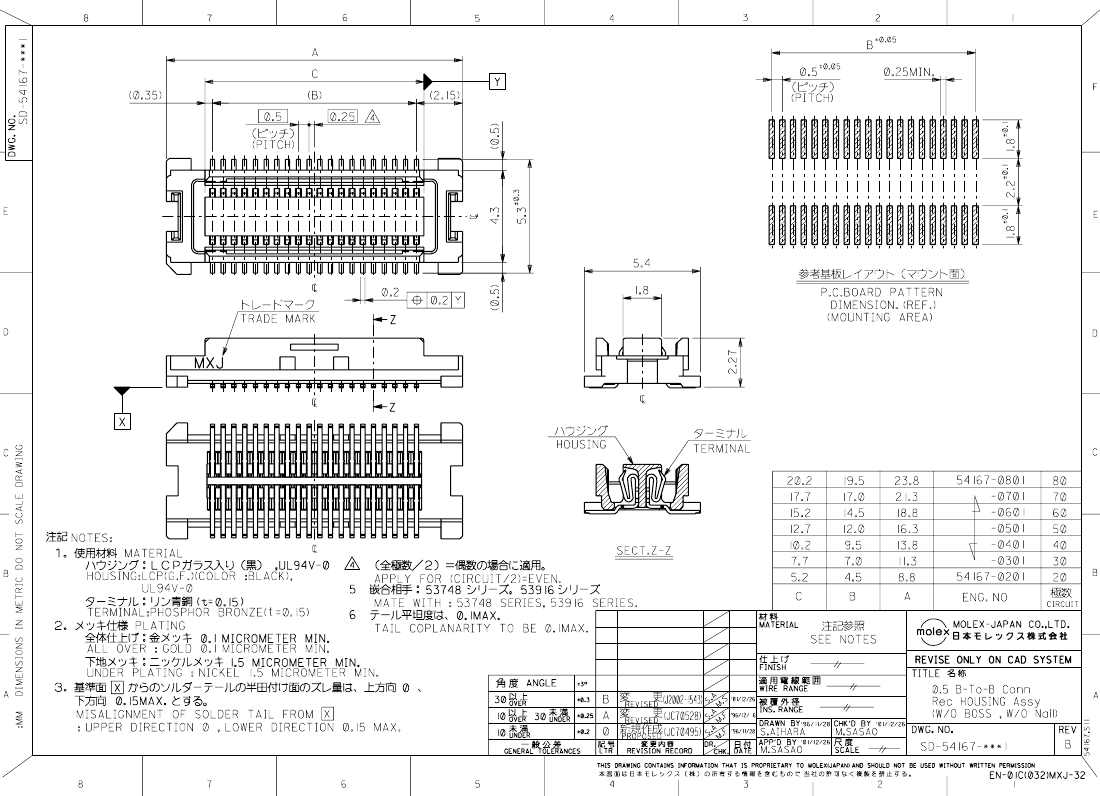

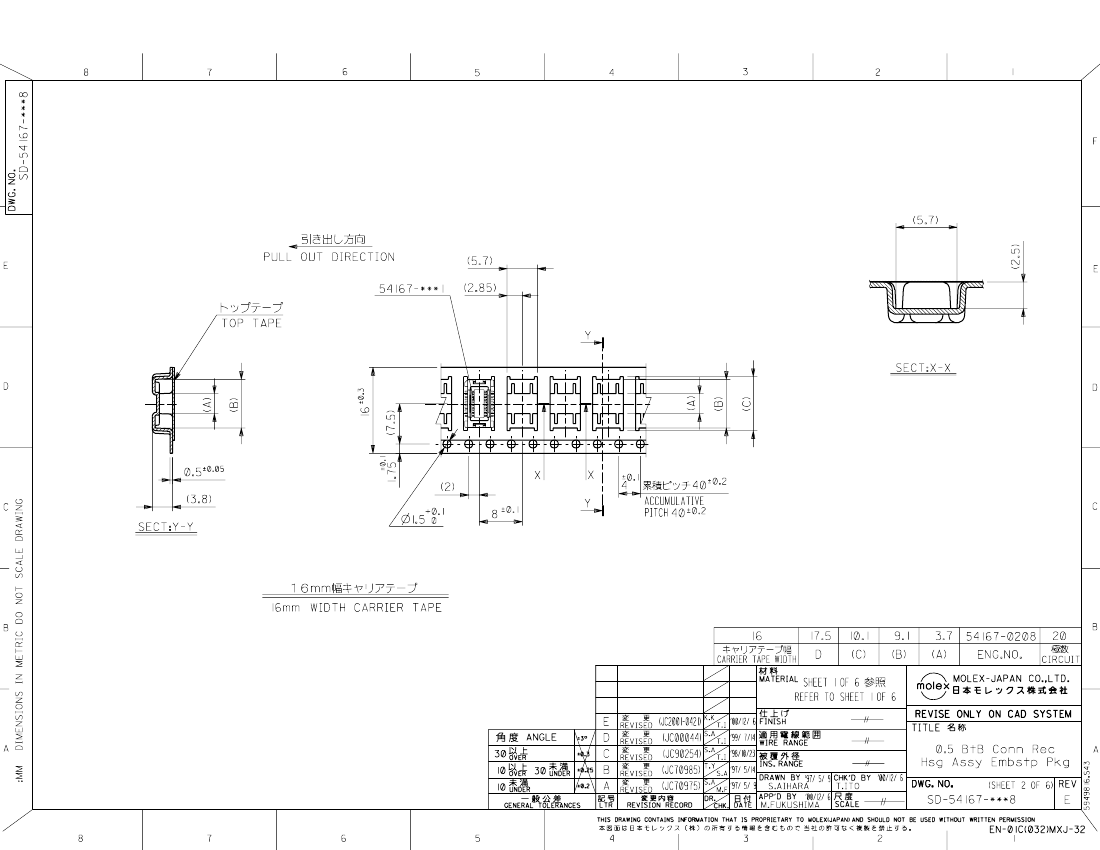

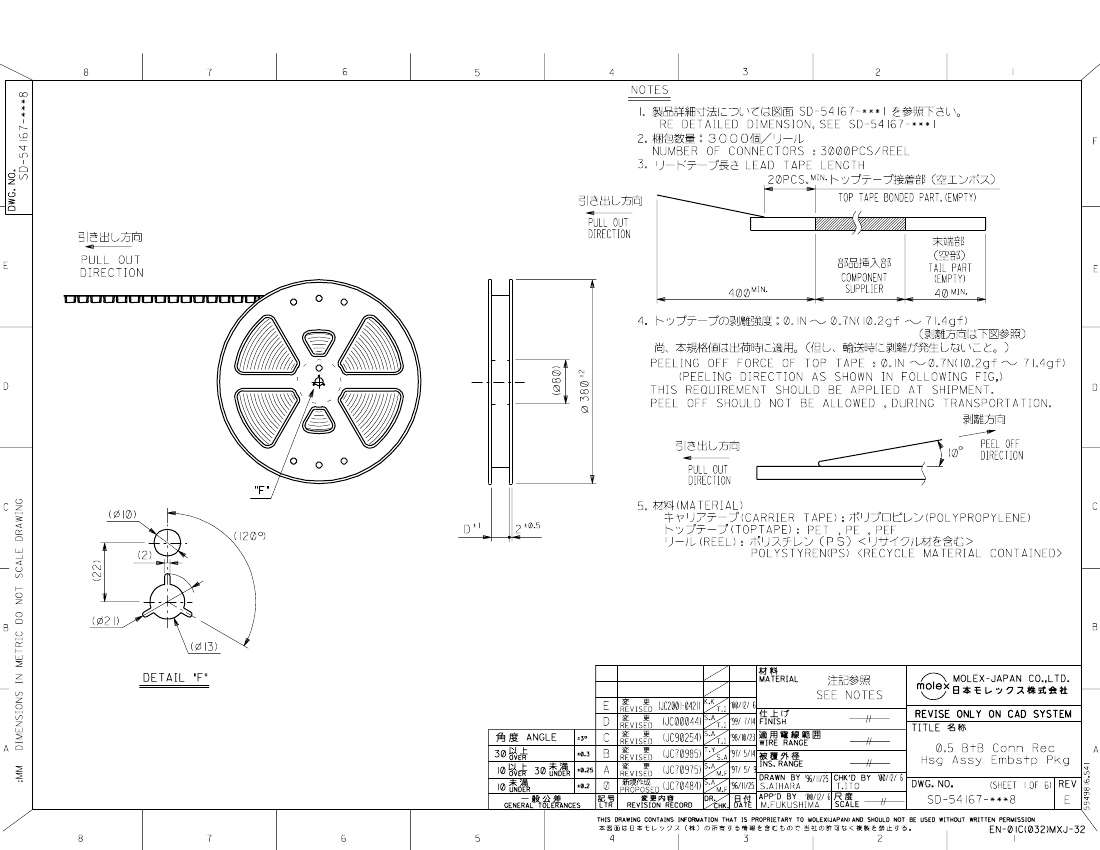

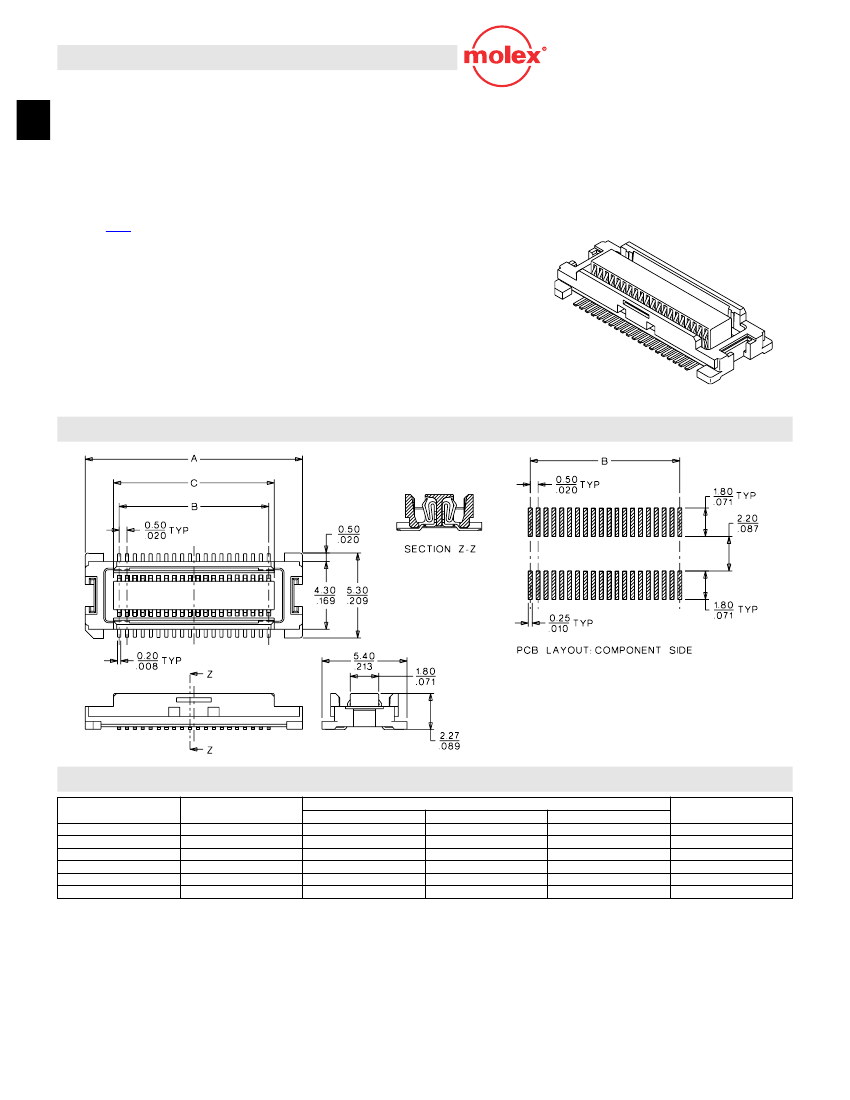

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

54167-0208

54167-0308

54167-0408

54167-0508

54167-0608

54167-0708

8.80 (.346)

11.30 (.170)

13.80 (.444)

16.30 (.641)

18.80 (.740)

21.30 (.839)

Dimension

4.50 (.177)

7.00 (.275)

9.50 (.374)

12.00 (.472)

14.50 (.570)

17.00 (.669)

5.20 (.204)

7.70 (.303)

10.20 (.401)

12.70 (.500)

15.20 (.598)

17.70 (.697)

Carrier Tape Width

16.00

24.00

32.00

(.630)

(.945)

(1.260)

Note: Contact Molex for embossed tape speciﬁcations

Note: Use only one connector per daughterboard in order to insure proper mating alignment

A-24

MX01
