54393-4592: DescriptionCard Edge Connector, 45 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size494KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

54393-4592 Overview

Card Edge Connector, 45 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

54393-4592 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EASY-ON, STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	45
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 21, 27, 33, 39 and 51 circuits

Ultra-low proﬁle of 2.05mm (.081")

Actuator rotates back 100 degrees for easy cable insertion

Staggered dual-row PCB layout provides space savings and

easy soldering

s

Contact design includes pre-hold cable feature to help facil-

itate FPC insertion

s

Electrical

Voltage: 50V

Current: 0.2A

Contact Resistance:

Odd circuits—80m

Ω

max.

Even circuits—40m

Ω

max.

Dielectric Withstanding Voltage: 250V AC/1 min.

Insulation Resistance: 50 M

Ω

min.

Physical

Housing: LCP, UL 94V-0

Actuator: PPS, UL 94V-0

Contact: Phosphor Bronze

Plating: Contact Area—Tin/Lead over Copper

Solder Tab Area—Tin/Lead over Copper

Operating Temperature: -20 to +85

˚

C

0.30mm (.012") Pitch

Easy-On

™

Type

FFC/FPC Connector

54393

Right Angle, SMT, ZIF

Bottom Contact Style

G

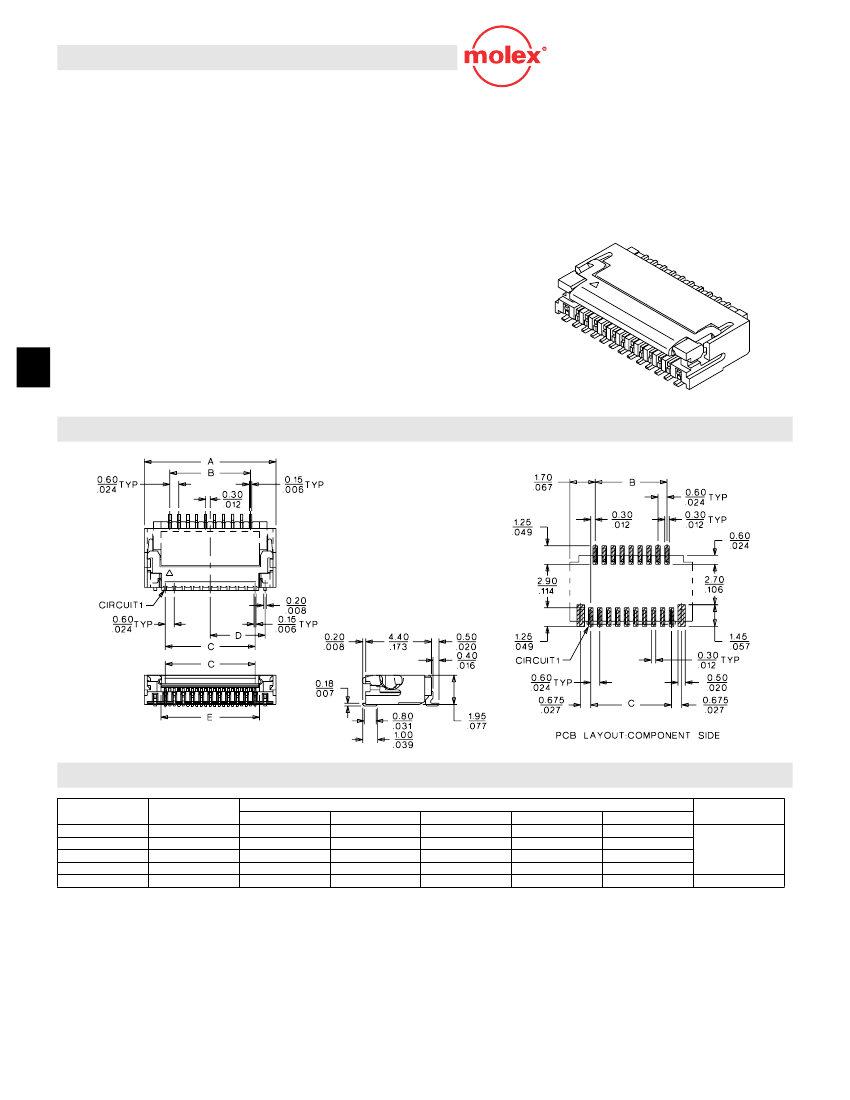

CATALOG DRAWING (FOR REFERENCE ONLY)

FFC/FPC Connectors

Reference Information

Product speciﬁcation: PS-54393-018

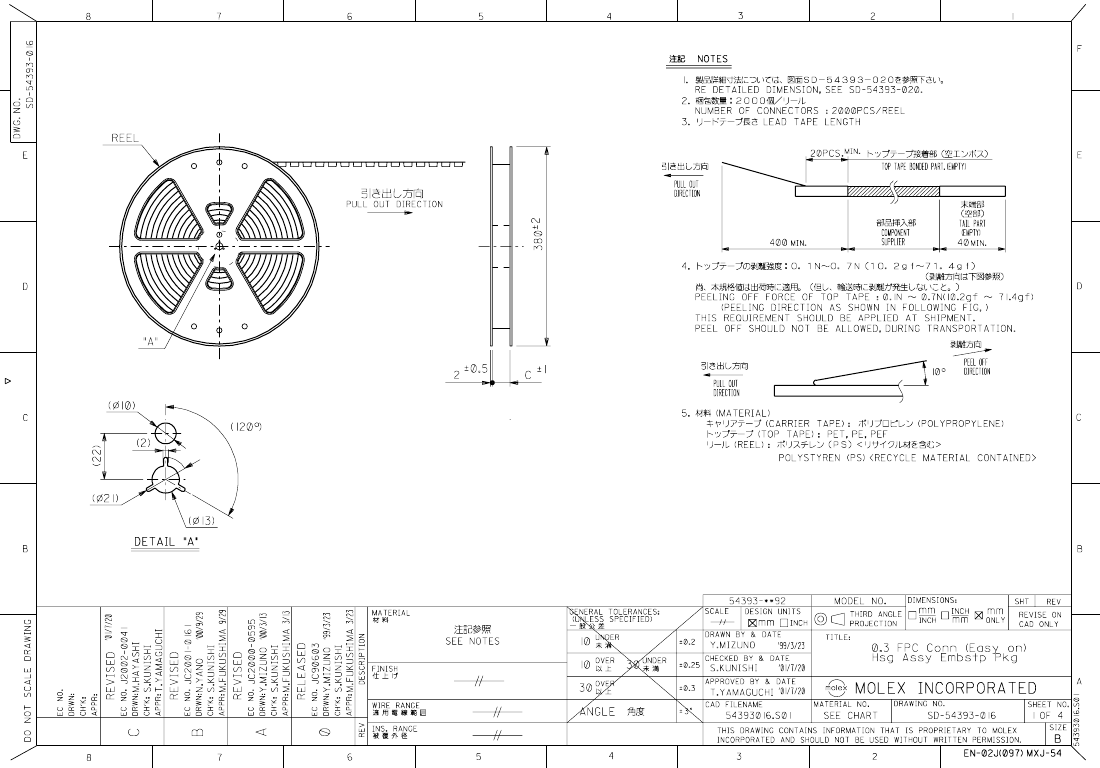

Packaging: Embossed tape

Designed In: Millimeters

ORDERING INFORMATION AND DIMENSIONS

Circuits

21

27

33

39

51

Order No.

54393-2192

54393-2792

54393-3392

54393-3992

54393-5192

A

8.80 (.346)

10.60 (.417)

12.40 (.488)

14.20 (.559)

17.80 (.701)

B

5.40 (.213)

7.20 (.283)

9.00 (.354)

10.80 (.425)

14.40 (.567)

Dimension

C

6.00 (.236)

7.80 (.307)

9.60 (.378)

11.40 (.449)

15.00 (.591)

D

3.675 (.145)

4.575 (.180)

5.475 (.216)

6.375 (.251)

8.175 (.322)

E

6.60 (.260)

8.40 (.331)

10.20 (.402)

12.00 (.472)

15.60 (.614)

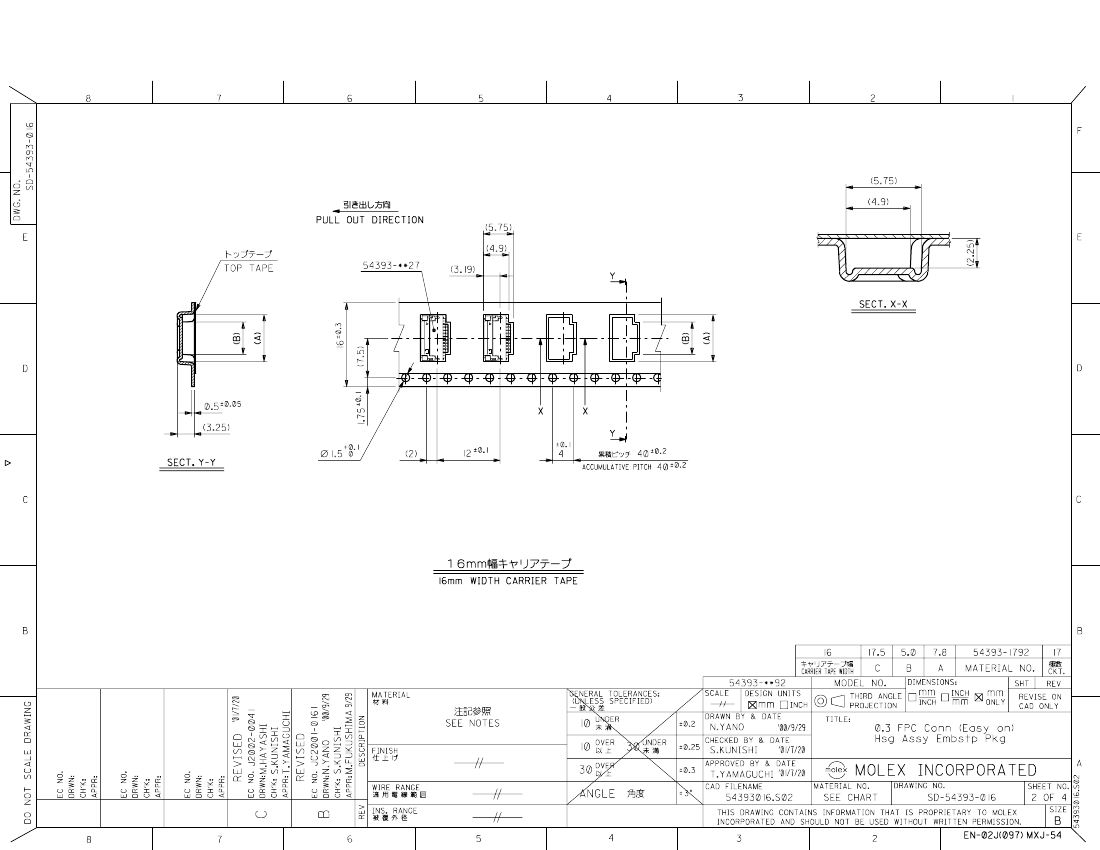

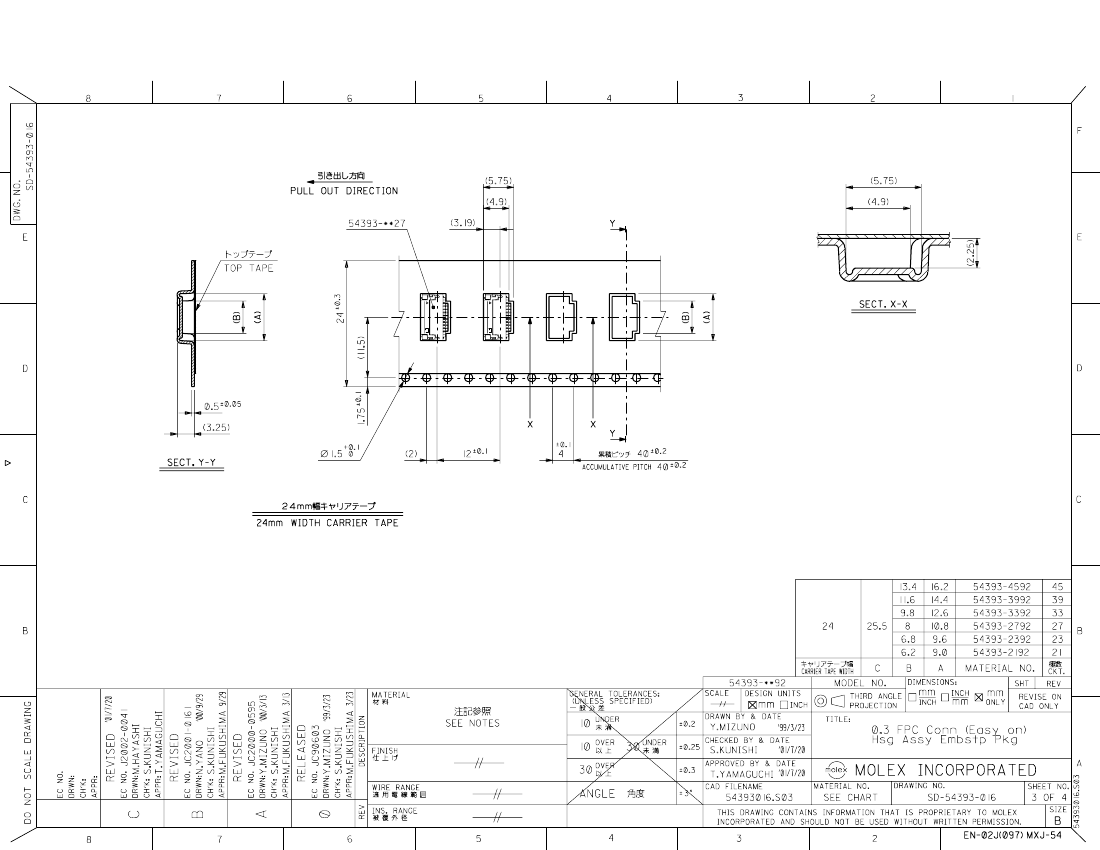

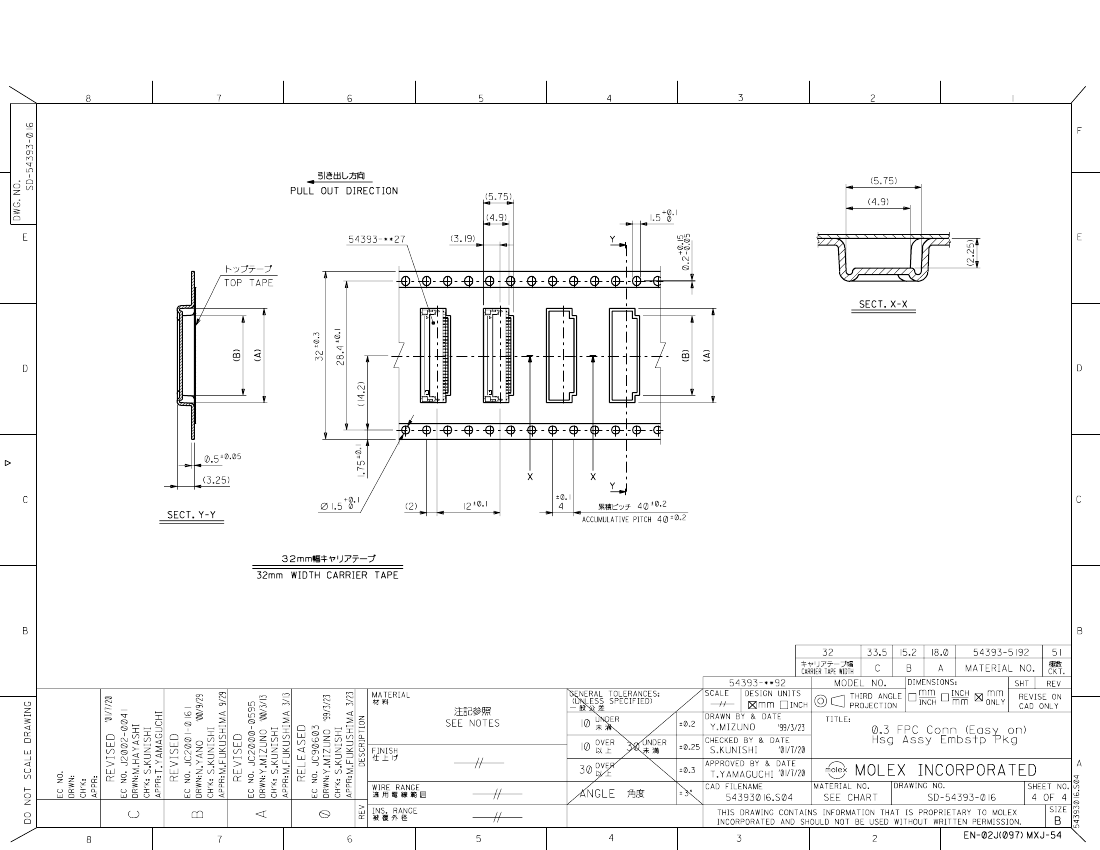

Carrier Tape Width

24.00 (.945)

32.00 (1.260)

G-4

MX01
