54546-3690: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size350KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54546-3690 Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

54546-3690 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54546
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.2 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0

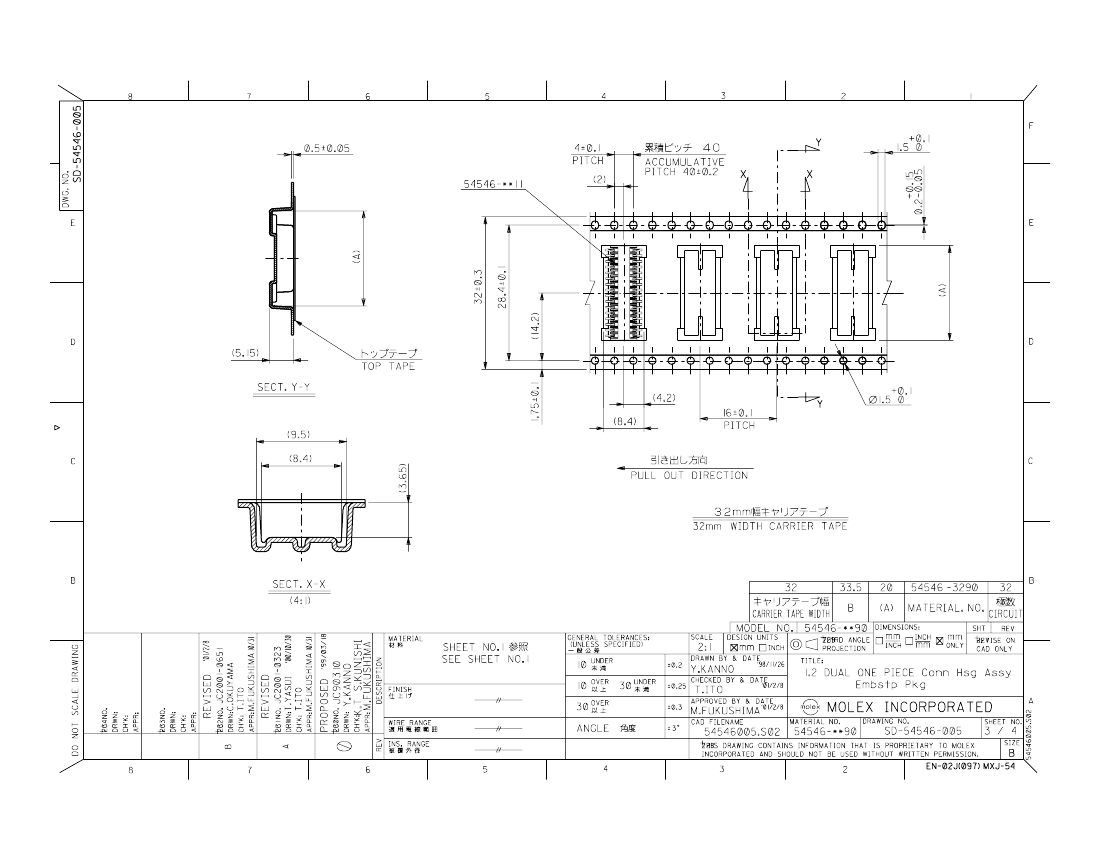

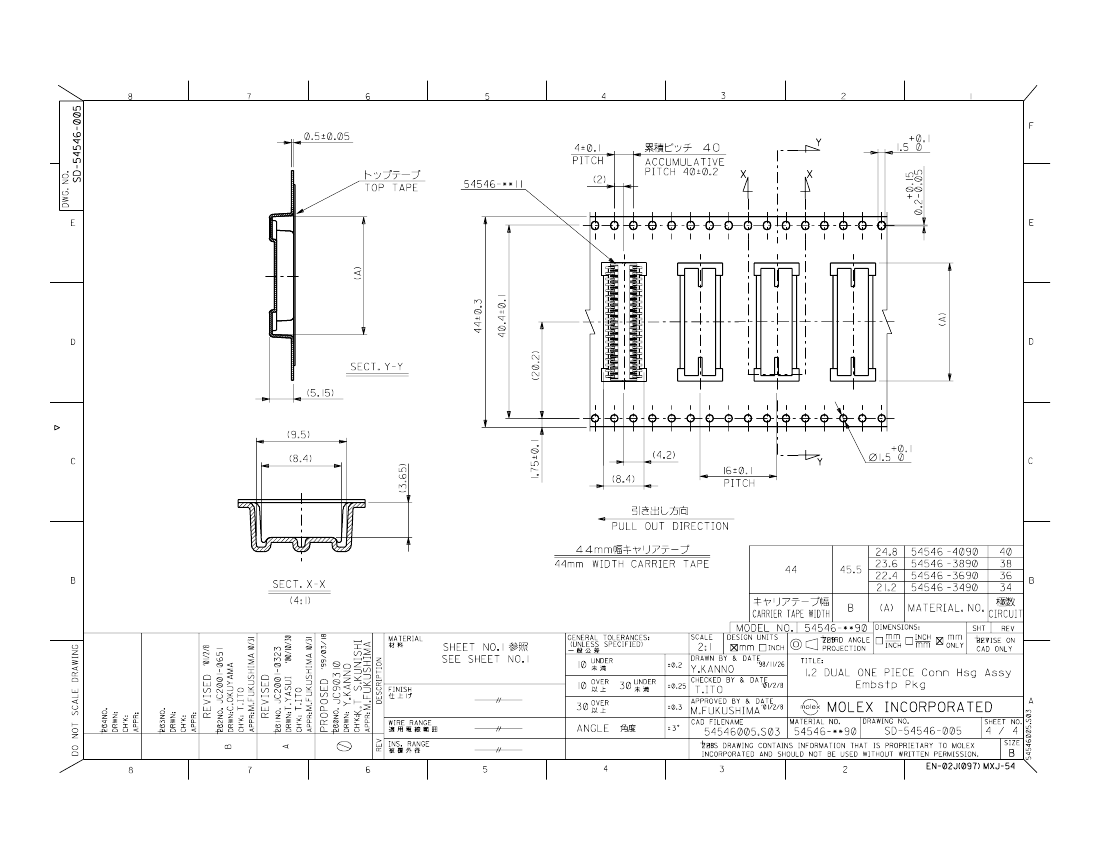

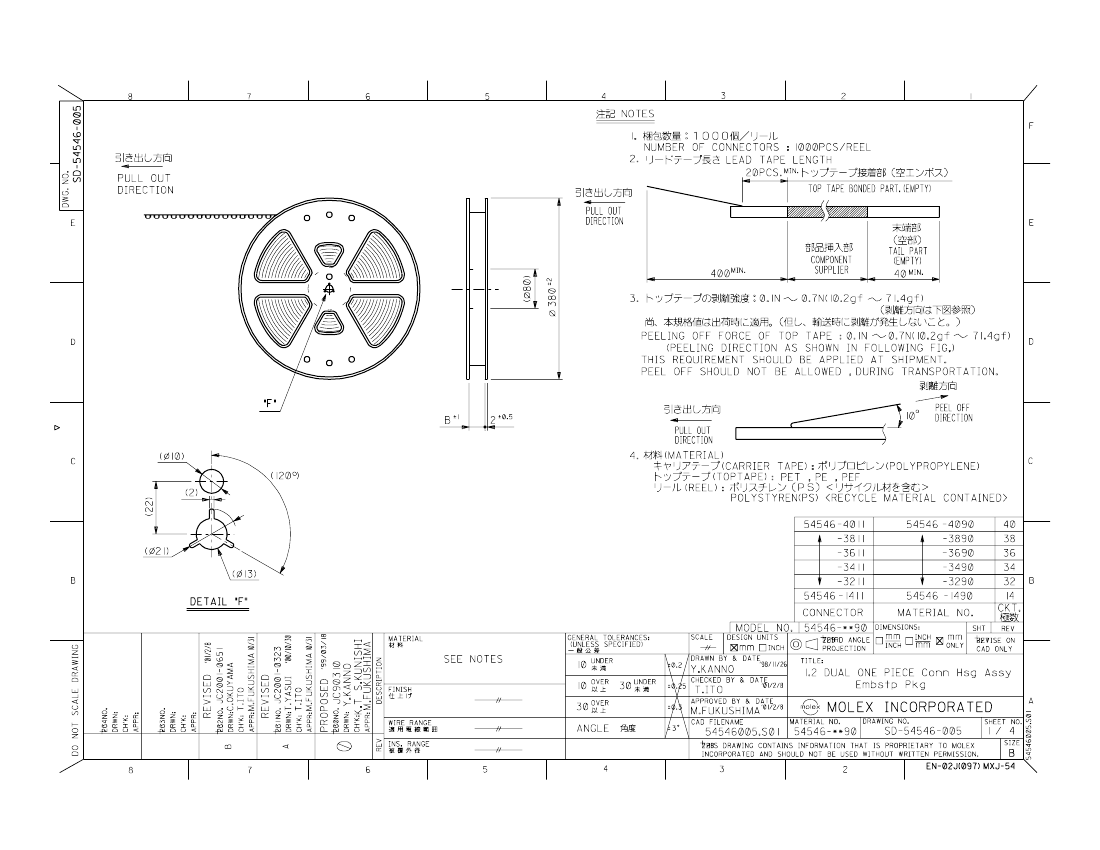

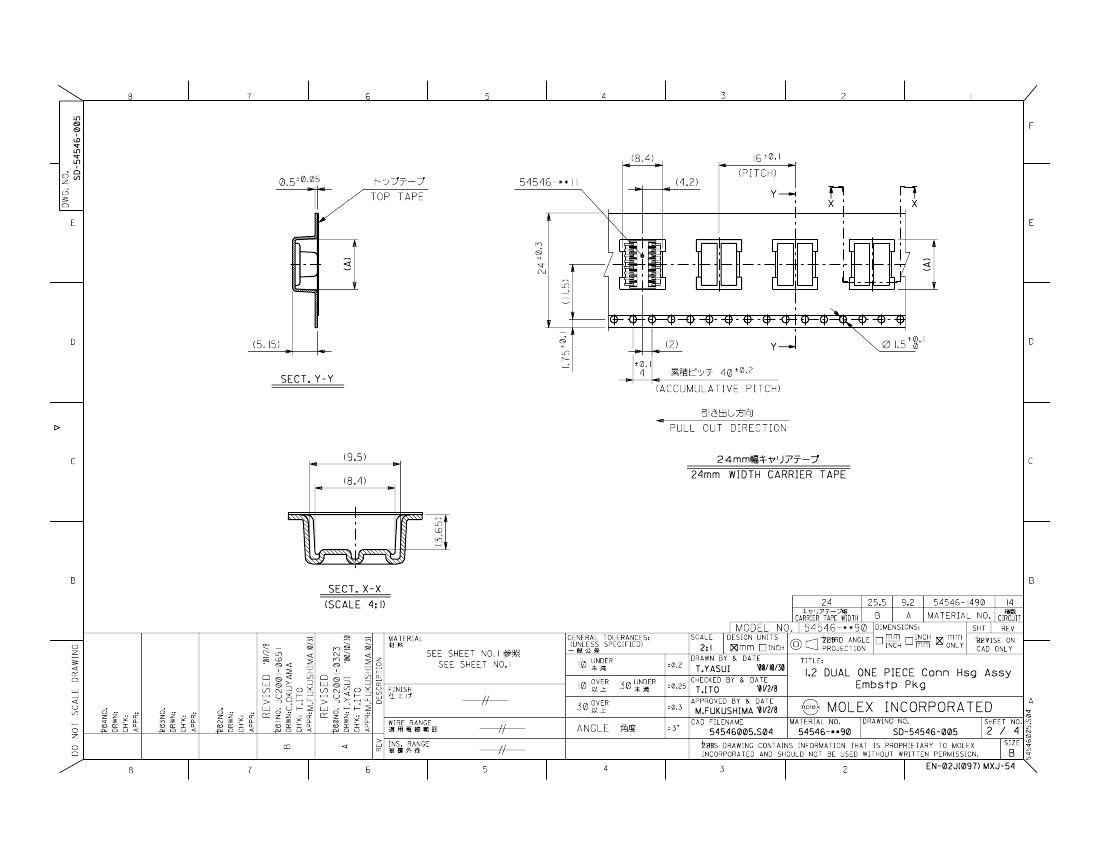

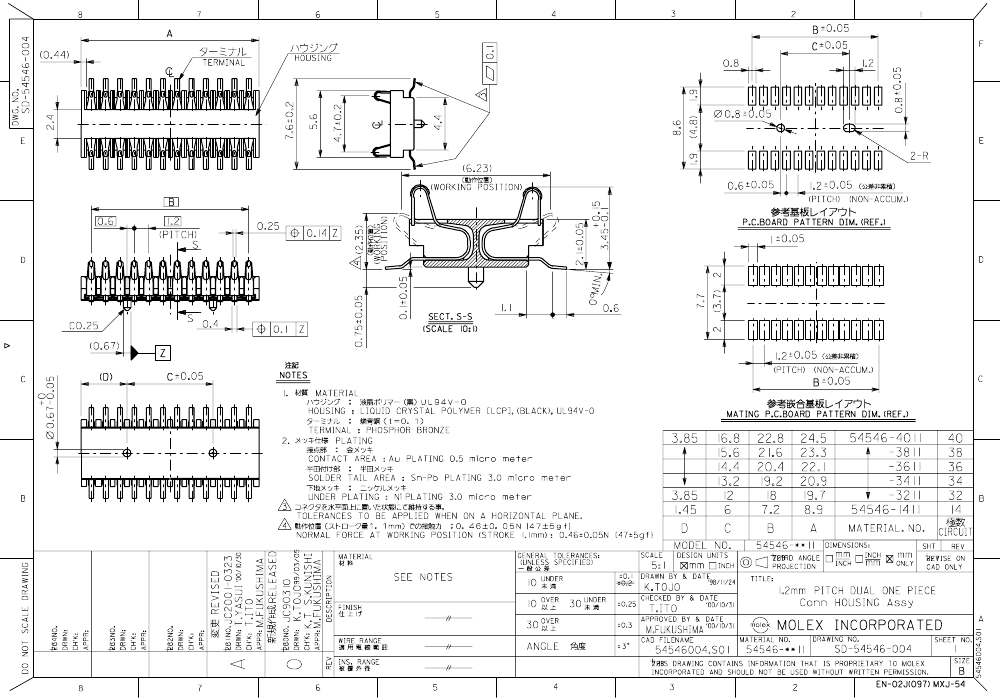

Preview

Download Datasheet

View All

54546-3690 Related Products

	54546-3690	54546-4090	54546-3890	54546-3290	54546-3490
Description	Card Edge Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 38 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 32 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 34 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (20) OVER NICKEL (118)	GOLD (20) OVER NICKEL (118)	GOLD (20) OVER NICKEL (118)	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	54546	54546	54546	54546	54546
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	36	40	38	32	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	Molex	-	Molex	Molex
Contact completed and terminated	-	TIN LEAD (118) OVER NICKEL (118)	TIN LEAD (118) OVER NICKEL (118)	TIN LEAD (118) OVER NICKEL (118)	-
JESD-609 code	-	e0	e0	e0	-
