53319-0509 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53319-0509

53319-0509: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size212KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53319-0509 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

53319-0509 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53319
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

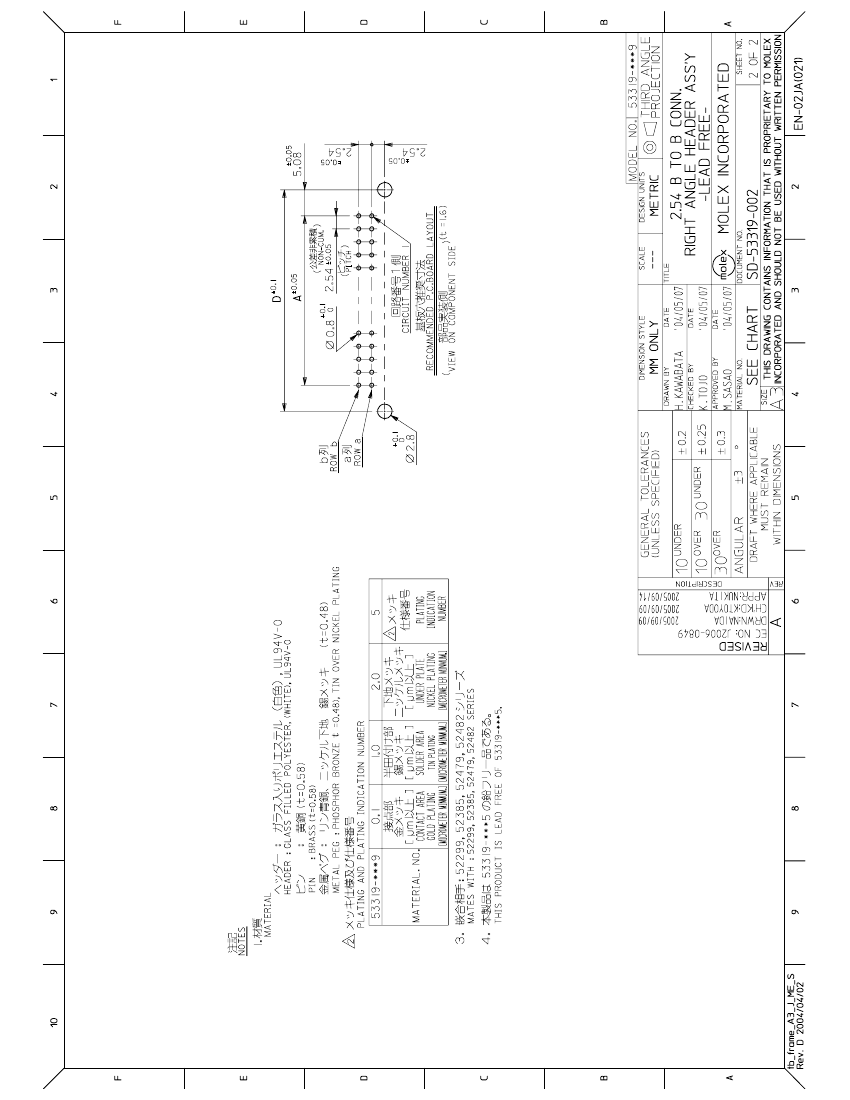

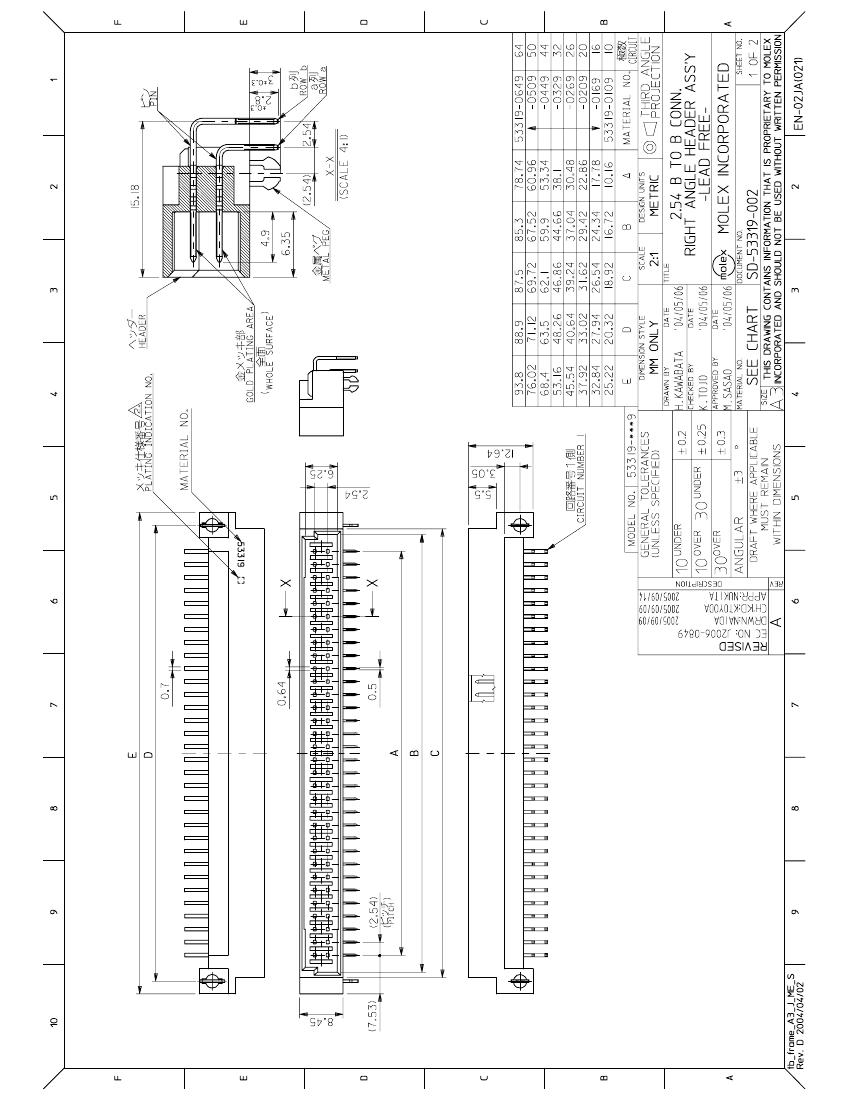

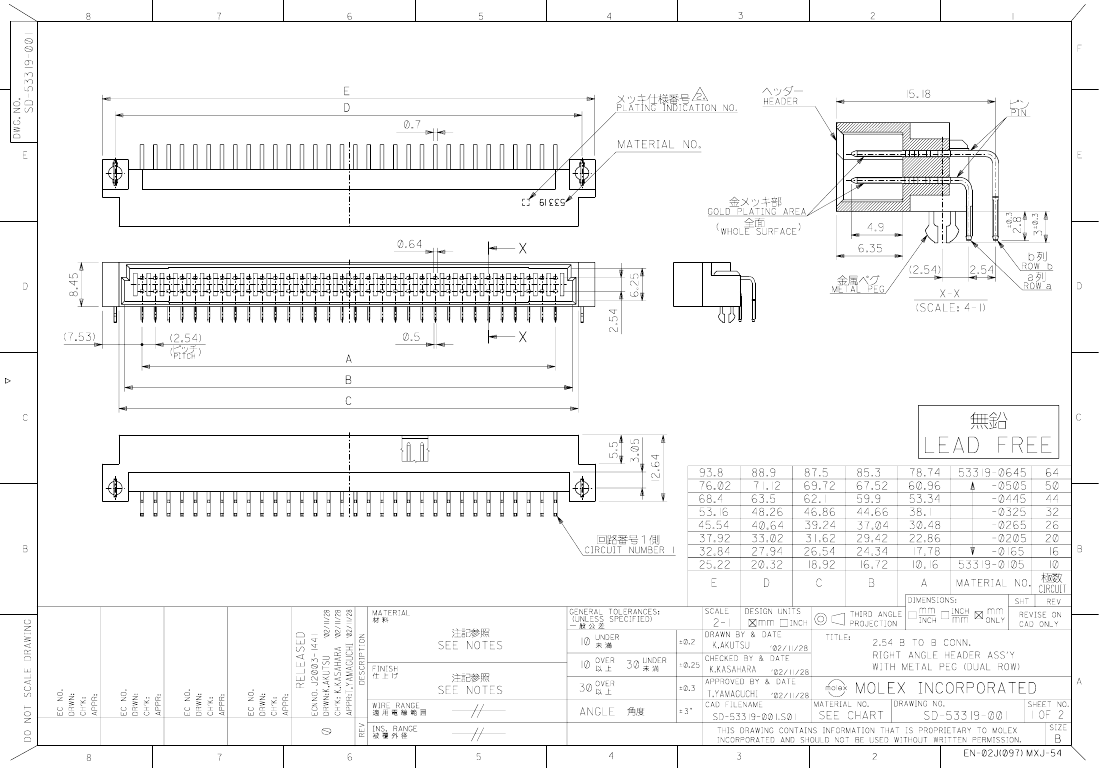

Preview

Download Datasheet

View All

53319-0509 Related Products

	53319-0509	53319-0649	53319-0329	53319-0109	53319-0209	53319-0169	53319-0269	53319-0449
Description	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	compliant	unknown	compliant	unknown	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	53319	53319	53319	53319	53319	53319	53319	53319
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	64	32	10	20	16	26	44
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
