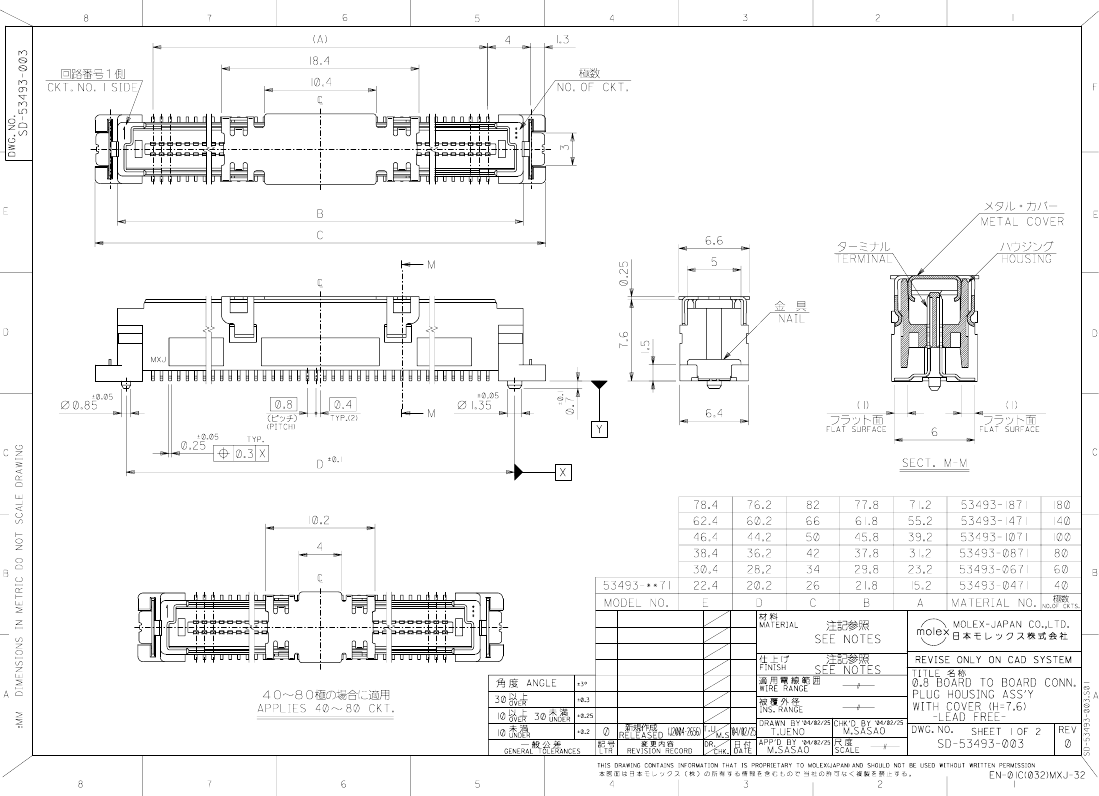

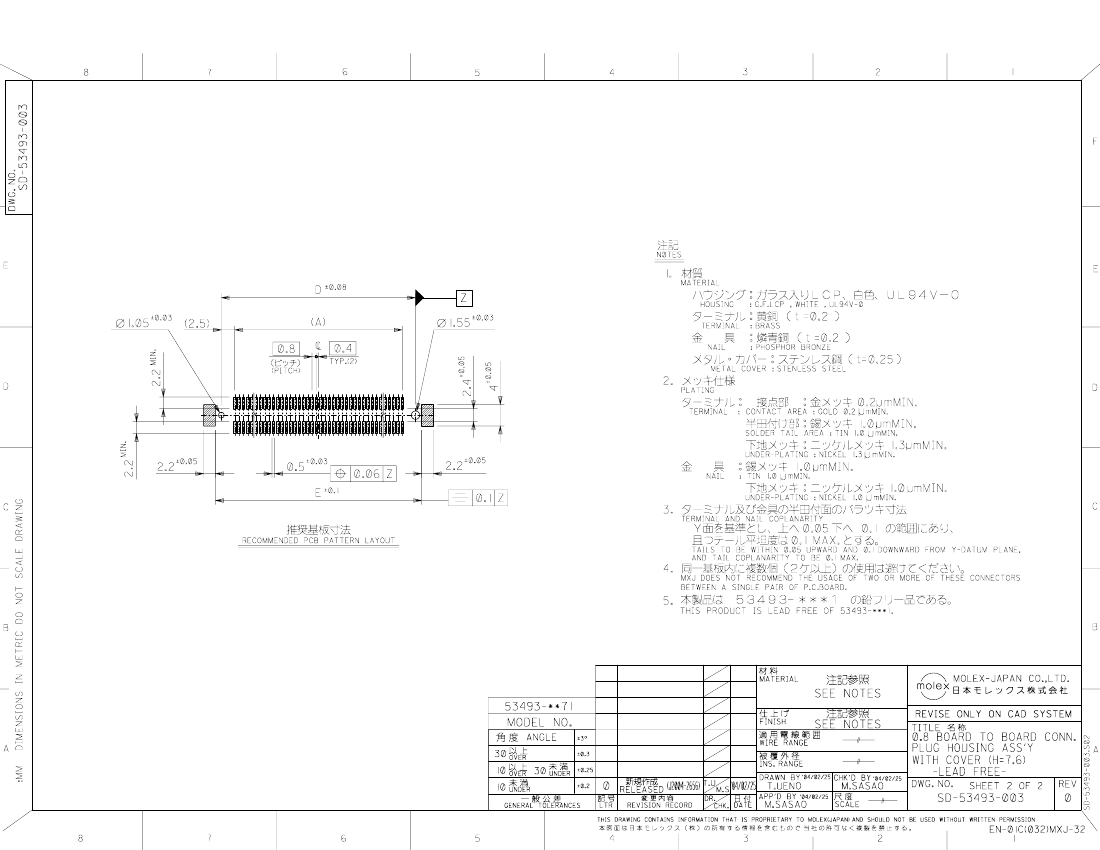

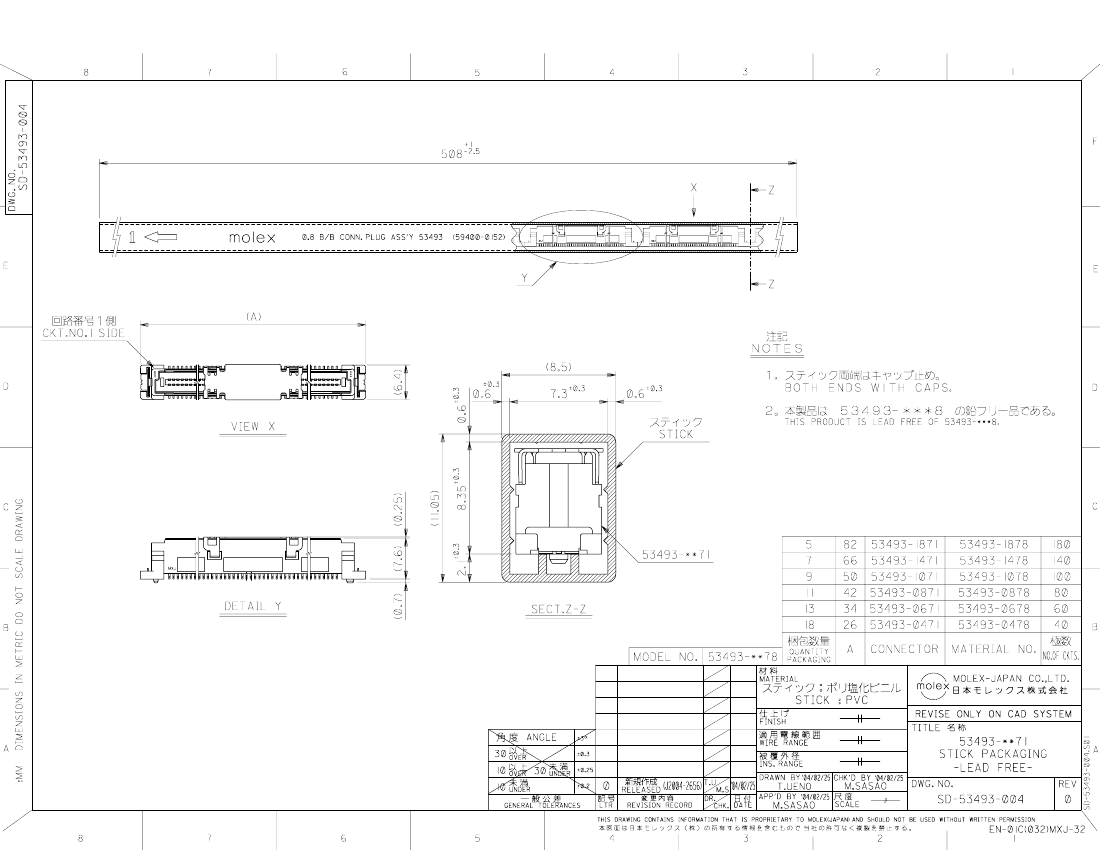

53493-0878: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE; CategoryThe connector The connector; File Size237KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53493-0878 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE

53493-0878 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53493
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

53493-0878 Related Products

	53493-0878	53493-1878	53493-0678	53493-1078	53493-0478
Description	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, LEAD FREE	Board Connector, 180 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE	Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	unknown	unknown	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	BRASS	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	53493	53493	53493	53493	53493
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	180	60	100	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	Molex	Molex	-	Molex	Molex
Other features	-	ROHS COMPLIANT & TUBE PACKAGE	ROHS COMPLIANT & TUBE PACKAGE	ROHS COMPLIANT & TUBE PACKAGE	ROHS COMPLIANT & TUBE PACKAGE
Board mount options	-	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	-	0.252 inch	0.252 inch	0.252 inch	0.252 inch
subject depth	-	0.299 inch	0.299 inch	0.299 inch	0.299 inch
body length	-	3.228 inch	1.339 inch	1.969 inch	1.024 inch
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	-	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	-	LEAF	LEAF	LEAF	LEAF
Dielectric withstand voltage	-	500VAC V	500VAC V	500VAC V	500VAC V
Durability	-	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	-	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	-	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	-	WHITE	WHITE	WHITE	WHITE
insulator material	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	-	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING
Number of connectors	-	ONE	ONE	ONE	ONE
PCB row number	-	2	2	2	2
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	-	4.572 mm	4.572 mm	4.572 mm	4.572 mm
Plating thickness	-	8u inch	8u inch	8u inch	8u inch
polarization key	-	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	-	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	-	UL	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Evacuation force-minimum value	-	.0973 N	.0973 N	.0973 N	.0973 N
ECCN code	-	-	EAR99	EAR99	EAR99
