53729-0508: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53729-0508 Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug

53729-0508 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53729
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

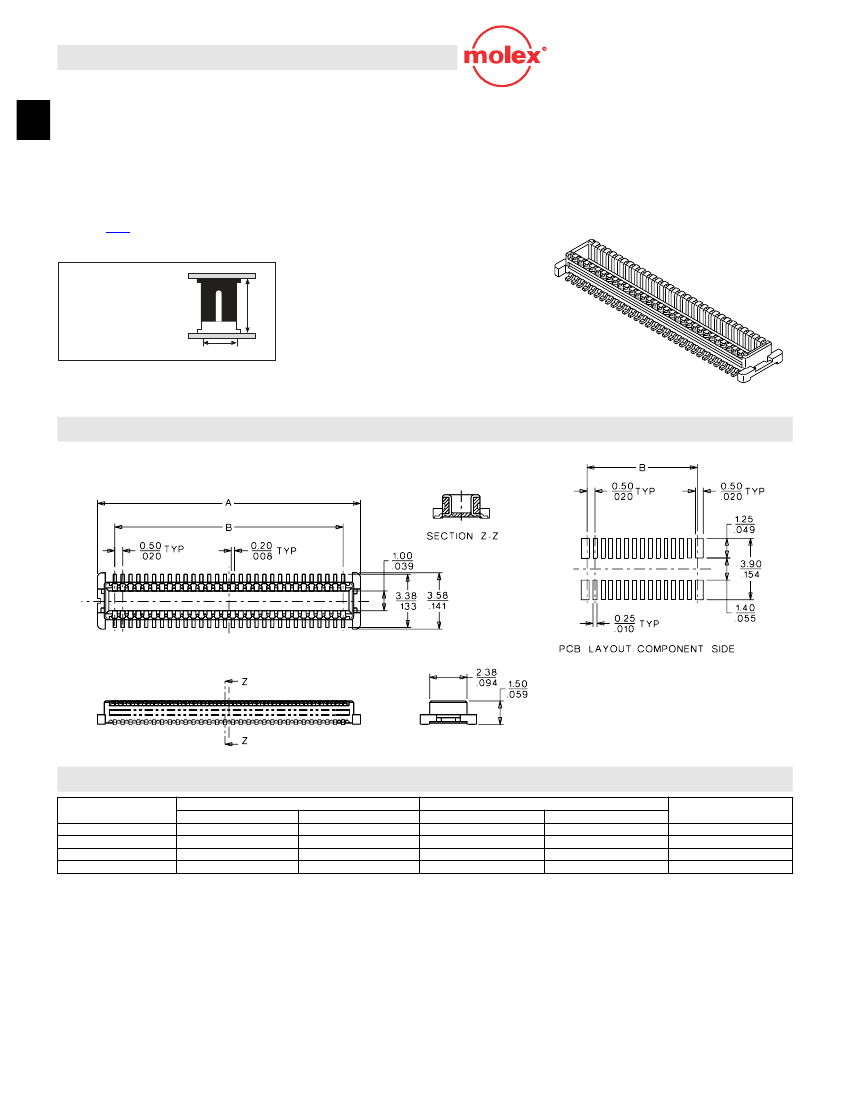

FEATURES AND SPECIFICATIONS

s

A

0.40 to 1.60mm (.016 to .063") Pitch

Features and Beneﬁts

Stacking height: 2.0mm

Sizes 40 to 80 circuits

High temperature housing

Durable blade on beam contact interface

Anti-ﬂux design

Electrical

Voltage: 50V

Current: 0.5A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: White glass-filled LCP, UL 94V-0

Contact: Brass

Vacuum Pick-Up Tape: Polyimide

Plating: Gold over Nickel

Operating Temperature: -40 to +105˚C

0.50mm (.020") Pitch

Board-to-Board

Plug

53729

SMT, Dual Row

Vertical Stacking

Reference Information

Packaging: Embossed tape (tube packaging available,

contact Molex)

Mates With:

52974

Designed In: Millimeters

Mating Dimensions

53729 • 52974

H=2.0mm W=5.4mm

H

W

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

40

50

60

80

Order No.

With Vacuum Pick-Up Tape

Without

53729-0404

53729-0504

53729-0604

53729-0804

Dimension

Vacuum Pick-Up Tape

53729-0408

53729-0508

53729-0608

53729-0808

A

11.70 (.460)

14.20 (.559)

16.70 (.657)

21.70 (.854)

B

9.50 (.374)

12.00 (.472)

14.50 (.570)

19.50 (.767)

Carrier

Tape Width

24.00

32.00

(.945)

(1.260)

Note: Contact Molex for embossed tape speciﬁcations

Note: Use only one connector per daughterboard in order to insure proper mating alignment

A-14

MX01

53729-0508 Related Products

	53729-0508	53729-0808	53729-0408	53729-0504	53729-0608
Description	Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	53729	53729	53729	53729	53729
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	80	40	50	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
