TS79M08CZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TS79M08CZ

TS79M08CZ: Description5 V FIXED NEGATIVE REGULATOR, PSSO2; CategoryPower/power management The power supply circuit; File Size167KB，7 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

TS79M08CZ Overview

5 V FIXED NEGATIVE REGULATOR, PSSO2

TS79M08CZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	, SIP3,.1TB
Reach Compliance Code	compli
Adjustability	FIXED
Nominal dropback voltage 1	2 V
Maximum absolute input voltage	35 V
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.16%
Humidity sensitivity level	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi
Maximum output current 1	0.2 A
Nominal output voltage 1	-8 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.1TB
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	3.75%
Base Number Matches	1

Preview

Download Datasheet

View All

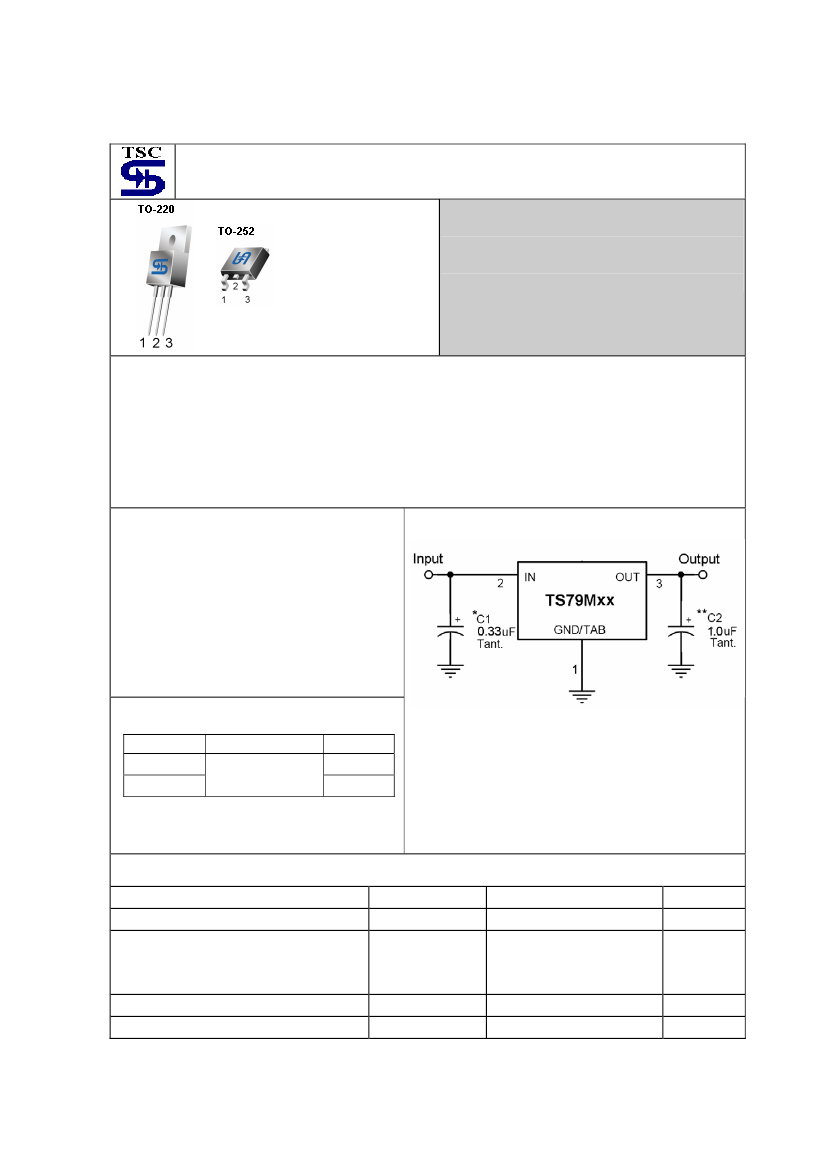

TS79M00 series

3-Terminal Medium Current Negative Voltage Regulator

Pin assignment:

1. Ground

2. Input

Output

(Heatsink surface

connected to Pin 2)

Voltage Range - 5V to - 24V

Output Current up to 0.5A

General Description

The TS79M00 Series negative voltage regulators are identical to the popular TS7900 Series devices, except that they are

specified for only half the output current. Like the TS7900 devices, the TS79M00 Series 3-Terminal regulators are

intended for local, on-card voltage regulation.

Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine

to make these devices remarkably rugged under most operating conditions. Maximum output current with adequate

heatsink is 500mA

This series is offered in 3-pin TO-220, TO-252 package.

Features

Output current up to 0.5A

No external components required

Internal thermal overload protection

Internal short-circuit current limiting

Output transistor safe-area compensation

Output voltage offered in 4% tolerance

Standard Application

Ordering Information

Part No.

TS79MxxCZ

TS79MxxCP

Operating Temp.

-20 ~ +125 C

Package

TO-220

TO-252

Note: Where xx denotes voltage option.

A common ground is required between the input and the

output voltages. The input voltage must remain typically 2.0V

above the output voltage even during the low point on the

Input ripple voltage.

XX = these two digits of the type number indicate voltage.

* = Cin is required if regulator is located an appreciable

distance from power supply filter.

** = Co is not needed for stability; however, it does improve

transient response.

Absolute Maximum Rating

Input Voltage

Power Dissipation

TO-220

TO-252

Operating Junction Temperature Range

Storage Temperature Range

Note :

* TS79M05 to TS79M18

** TS79M24

*** Follow the derating curve

Vin *

Vin **

Without heatsink

Pt ***

Without heatsink

STG

- 35

- 40

-20 ~ +125

-65 ~ +150

TS79M00 series

1-7

2003/12 rev. A
