PCB Accessories
R600 Edge Connectors
This section contains parts and accessories for Vectorbord products. They are useful for board-level
prototyping and breadboarding. Prototypes are created in various ways; by computer design or by hand
- but with one thing in common: sooner or later, you have to make a physical board. It is at this stage
that Vectorbord and these parts and accessories may be useful to you. They are selected for conven-
ience and utility and they are readily available from your Vector distributors.

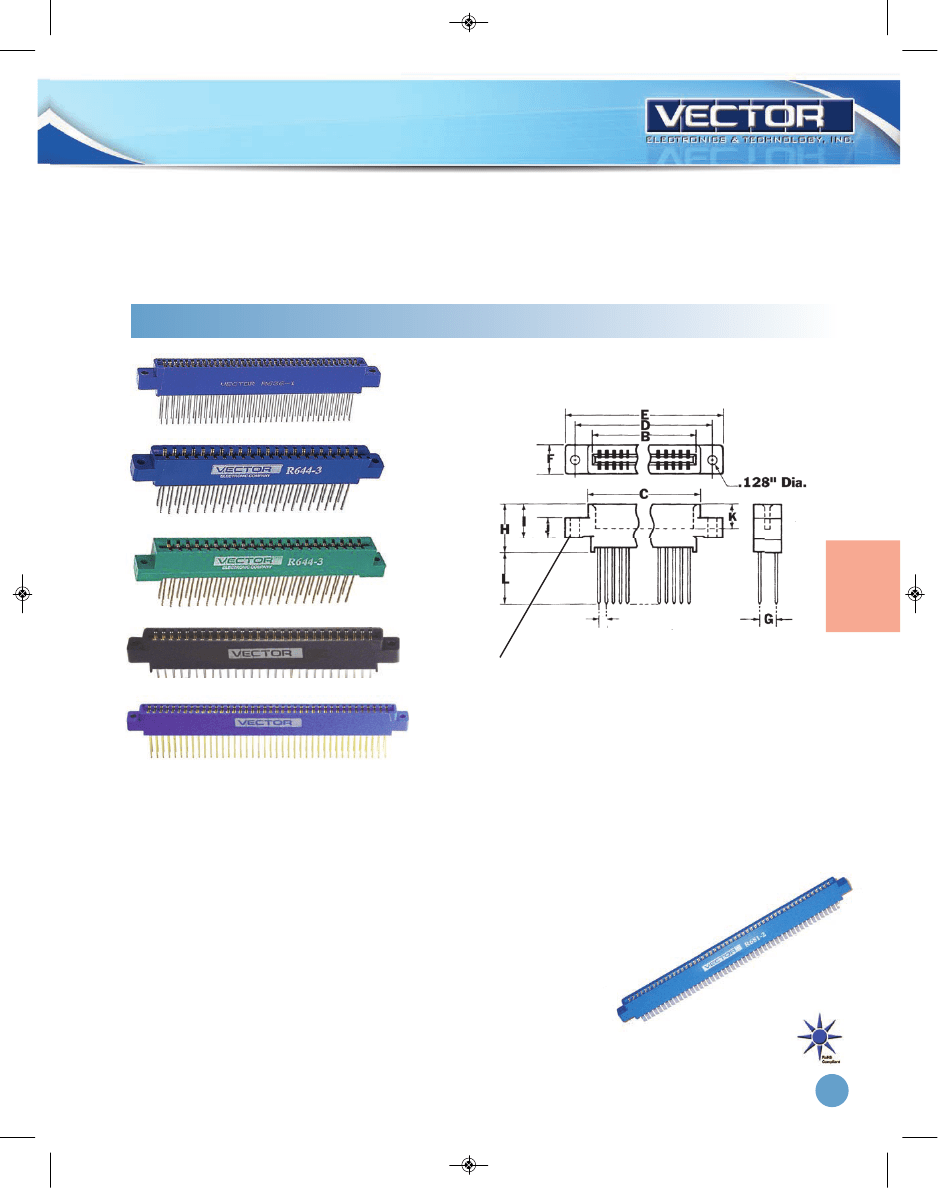

Style 1
R636-1
R644-3C
Connectors
R644-3F
R656-2
(Dimension table next page)
Centermount
R680-1
•
•
•
•
•
Wire-Wrap .025” Sq. Posts
Allows 3 level wraps
Center Mount
Use 28 to 32 AWG wire
STD bus
Specifications
Solder Type Insulator Material:
Wire-Wrap Type Insulator:
Phenolic, UL-94V-0 or glass filled Diallylphthalate UL-94V-1
or Ryton R10 or equivalent
Phenolic, UL-94V-0 or glass filled Diallylphthalate UL-94V-1
or Polyester (VALOX) or equivalent
UL-94V-0.
Phosphor bronze QQ-B-750
.000010” gold over .000050” nickel
650 VAC
3 AMPS
30 mV Max. @ rated current
5000 megohms nominal @ 500 VDC
-65 to +105 degrees C
Contact Material:
Contact Plating:
Test Voltage:
Rated Current:
Contact Res. Drop:
Insulation Resistance:
Operating Temperature:
www.vectorelect.com
800-423-5659
69
CATALOG 128_CATALOG 128.qxd 5/2/2014 12:48 PM Page 70
PCB Accessories
R600 Edge Connectors

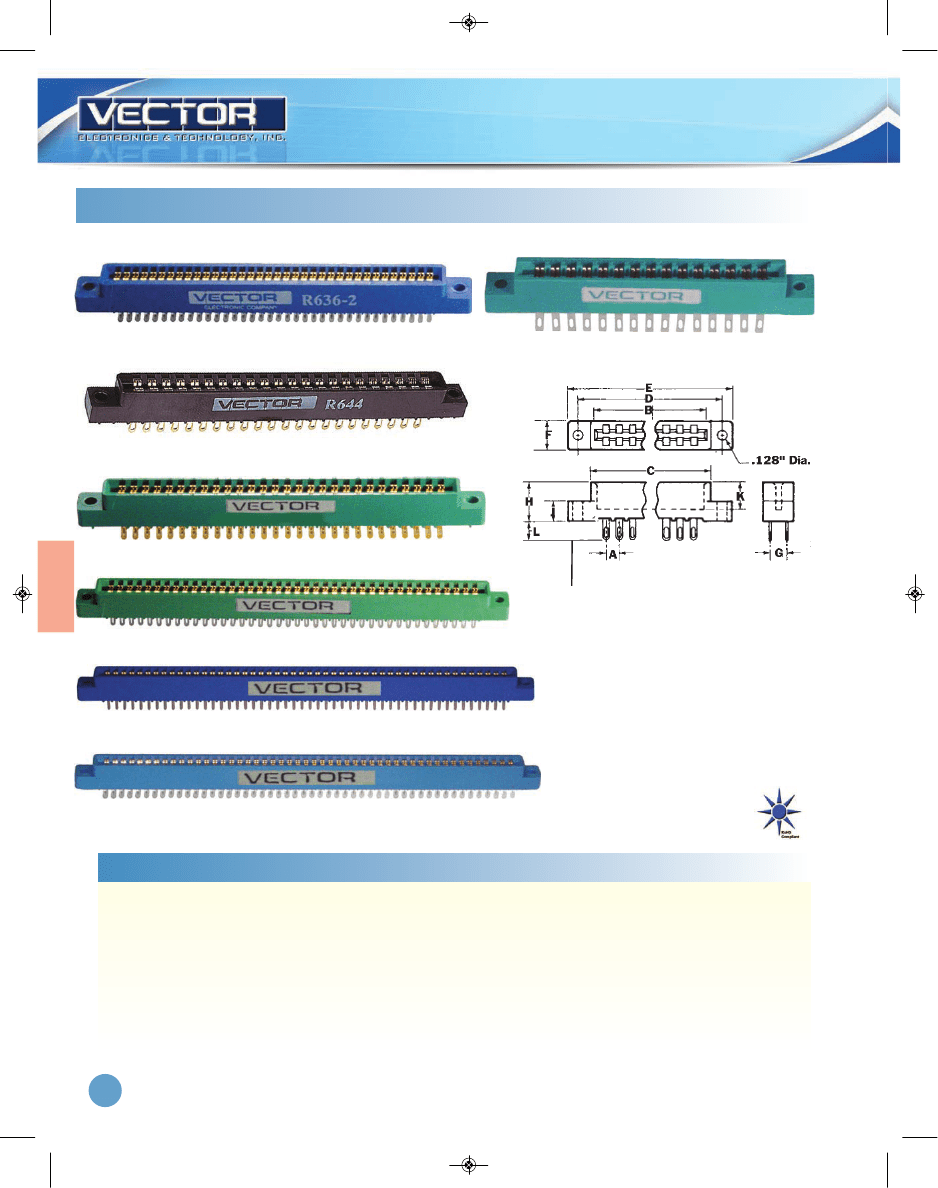

Style 2
R636-2
R630
R644
R656-1
Connectors
Flushmount
R680-2
• Solder tail (with eyelet) R656-1 Solder
• Solder eyelet type
• Flush Mount
R681
R681-3
Ordering Information
Part No. No. of
Termination Mounting
Contacts Type
Ears
R630
R636-1
R636-2
R644
R644-2
R644-3C
R644-3F
R656-1
R656-2
R680-1
R680-2
R681-2
R681-3
30
72
72
44
44
44
44
56
56
80
80
100
100
Solder Tail
Wire-Wrap
Solder Tail
Solder Tail
Wire-Wrap
Wire-Wrap
Wire-Wrap
Solder Tail
Wire-Wrap
Wire-Wrap
Solder Tail
Wire-Wrap
Solder Tail
Flush
Center
Flush
Flush
Center
Center
Flush
Flush
Center
Center
Center
Center
Center
Style
#
2
1
2
2
1
1
1
2
1
1
2
1
2
A
B
C
D
E
F
G
H
I
J
K
L
.156”
.100”
.100”
.156”
.100”
.156”
.156”
.125”
.125”
.125”
.125”
.125”
.125”
2.504”
3.707”
3.707”
3.596”
2.300”
3.596”
3.596”
3.625”
3.625”
5.125”
5.125”
6.375”
6.375”
2.65”
3.88”
3.88”
3.75”
2.55”
3.75”
3.75”
3.79”
3.79”
5.29”
5.29”
6.54”
6.54”
2.938”
4.175”
4.175”
4.032”
2.850”
4.032”
4.032”
4.045”
4.045”
5.545”
5.545”
6.795”
6.795”
3.270”
4.475”
4.475”
4.360”
3.120”
4.360”
4.360”
4.336”
4.325”
5.805”
5.805”
7.065”
7.065”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.41”
.200”
.200”
.200”
.200”
.200”
.200”
.200”
.200”
.250”
.250”
.200”
.250”
.200”
.47”
.62”
.47”
.47”
.62”
.62”
.62”
.47”
.62”
.62”
.62”
.47”
.47”
n/a
.55”
n/a
.25”
.55”
.55”
.55”
n/a
.55”
.55”
.55”
.55”
n/a
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.25”
.34”
.34”
.34”
.265”
.297”
.384”
.384”
.34”
.34”
.34”
.34”
.34”
.34”
.25”
.65”
.25”
.25”
.65”
.65”
.65”
.25”
.22”
.65”
.65”
.22”
.25”
