CR70U-040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CR70U-040

CR70U-040: Description70 A, 400 V, SILICON, RECTIFIER DIODE, DO-5; CategoryDiscrete semiconductor diode; File Size319KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CR70U-040 Overview

70 A, 400 V, SILICON, RECTIFIER DIODE, DO-5

CR70U-040 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	DO-5
package instruction	DO-5, 1 PIN
Contacts	1
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JEDEC-95 code	DO-5
JESD-30 code	O-MUPM-D1
JESD-609 code	e0
Maximum non-repetitive peak forward current	800 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	70 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

CR70U-010 SERIES

70 AMP ULTRA FAST

RECOVERY SILICON RECTIFIER

100 THRU 800 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CR70U-010

Series types are 70 Amp stud mounted ultra fast

recovery silicon rectifiers which are high quality, well

constructed, highly reliable components designed

for use in all types of military, commercial, industrial,

entertainment, computer, and automotive applications.

MARKING: FULL PART NUMBER

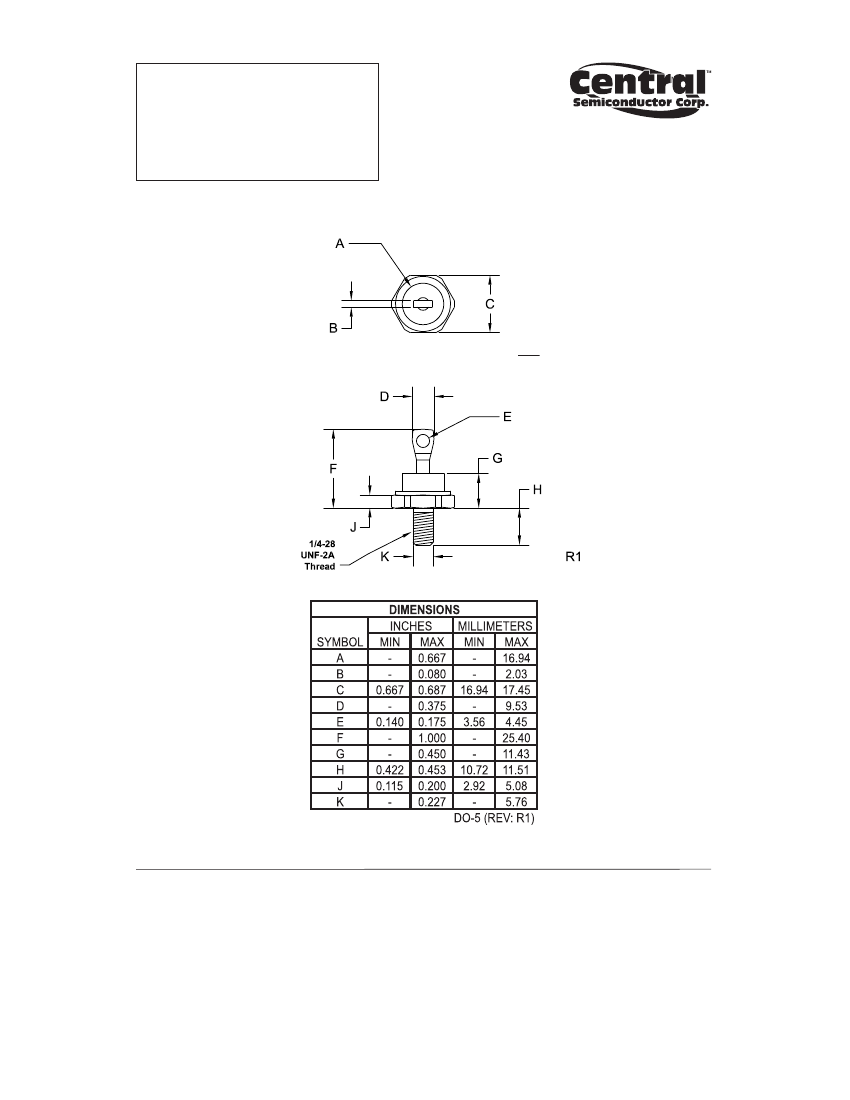

DO-5 CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

SYMBOL -010

Peak Repetitive Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Peak Forward Surge Current (8.3ms)

Average Forward Current, TC=120°C

Operating and Storage

Junction Temperature

Thermal Resistance

VRRM

VR(RMS)

IFSM

TJ, Tstg



100

1000

-015

150

105

1000

CR70U

-020

-040

200

140

1000

-65 to +175

0.8

400

280

800

-060

600

420

700

-080

800

560

700

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

CR70U-010

CR70U-020

CR70U-015

CR70U-040

SYMBOL

TEST CONDITIONS

MIN MAX MIN MAX

trr

VR=Rated VRRM

VR=Rated VRRM, TC=125°C

IF=70A

IF=0.5A, IR=1.0A, Rec. to 0.25A

3.0

0.975

3.0

1.30

CR70U-060

CR70U-080

MIN MAX

3.0

1.35

100

UNITS

µA

R3 (23-November 2009)

CR70U-040 Related Products

	CR70U-040	CR70U-010	CR70U-015	CR70U-060	CR70U-080
Description	70 A, 400 V, SILICON, RECTIFIER DIODE, DO-5	70 A, 100 V, SILICON, RECTIFIER DIODE, DO-5	70 A, 150 V, SILICON, RECTIFIER DIODE, DO-5	70 A, 600 V, SILICON, RECTIFIER DIODE, DO-5	70 A, 100 V, SILICON, RECTIFIER DIODE, DO-5
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DO-5	DO-5	DO-5	DO-5	DO-5
package instruction	DO-5, 1 PIN	DO-5, 1 PIN	O-MUPM-D1	DO-5, 1 PIN	O-MUPM-D1
Contacts	1	1	1	1	1
Reach Compliance Code	unknow	_compli	_compli	unknow	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V	0.98 V	0.975 V	0.98 V	0.98 V
JEDEC-95 code	DO-5	DO-5	DO-5	DO-5	DO-5
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	800 A	1000 A	1000 A	700 A	700 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	70 A	70 A	70 A	70 A	70 A
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	100 V	150 V	600 V	800 V
Maximum reverse recovery time	0.075 µs	0.05 µs	0.05 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Central Semiconductor	Central Semiconductor	-	Central Semiconductor	Central Semiconductor
