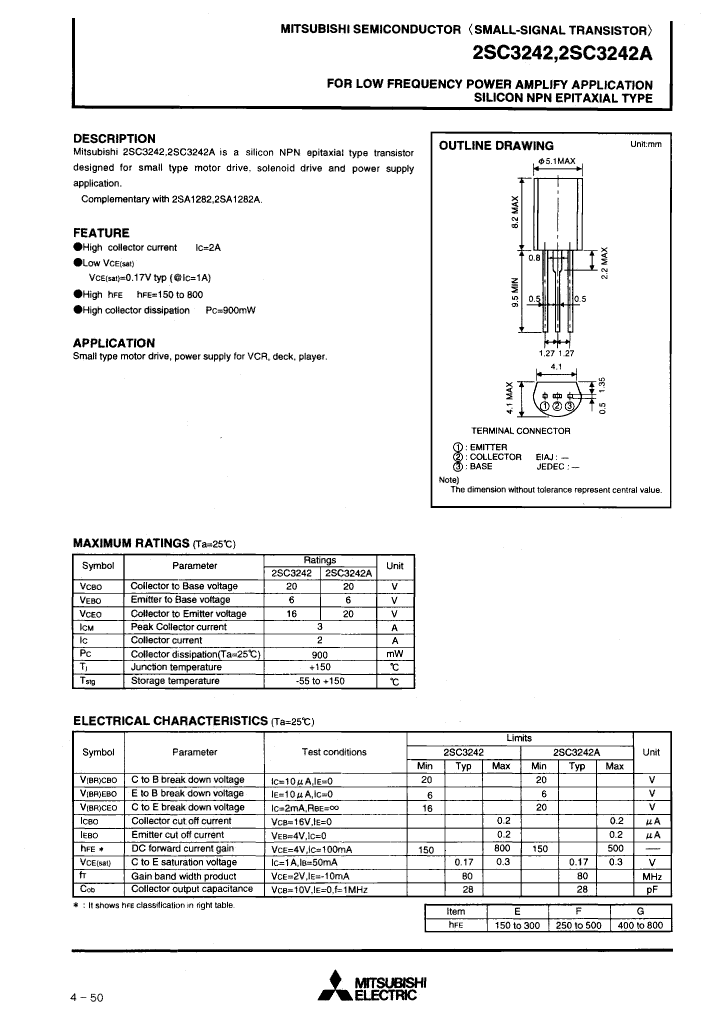

2SC3242-11-G datasheet, PDF - EEWORLD Datasheet

2SC3242-11-G: DescriptionSmall Signal Bipolar Transistor, 2A I(C), 16V V(BR)CEO, 1-Element, NPN, Silicon, TO-92L, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size101KB，3 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

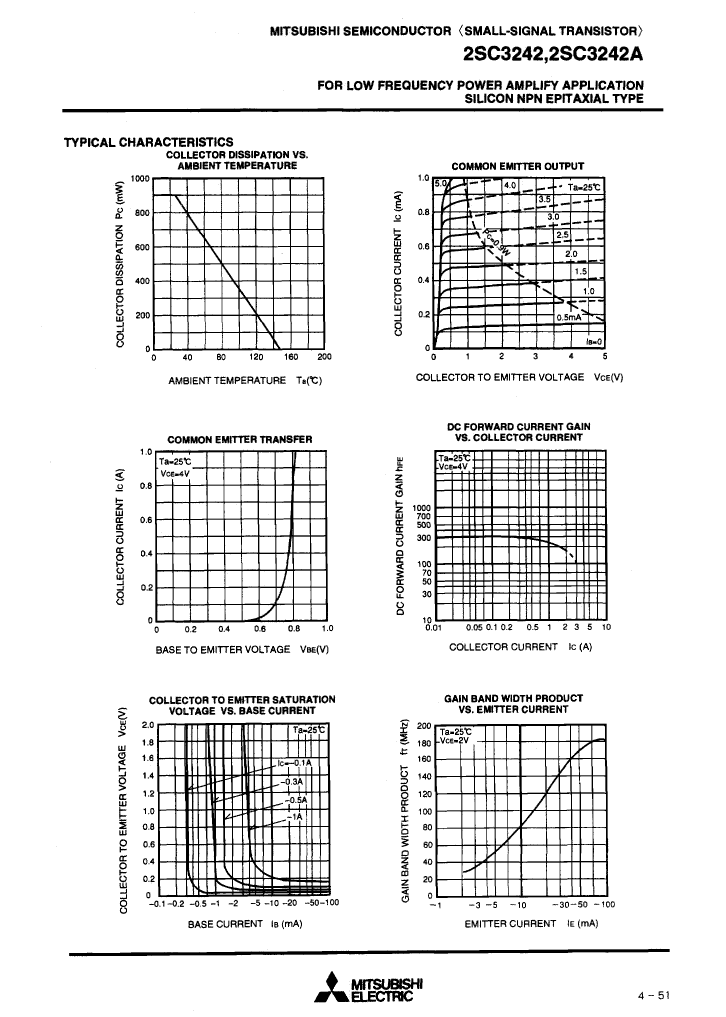

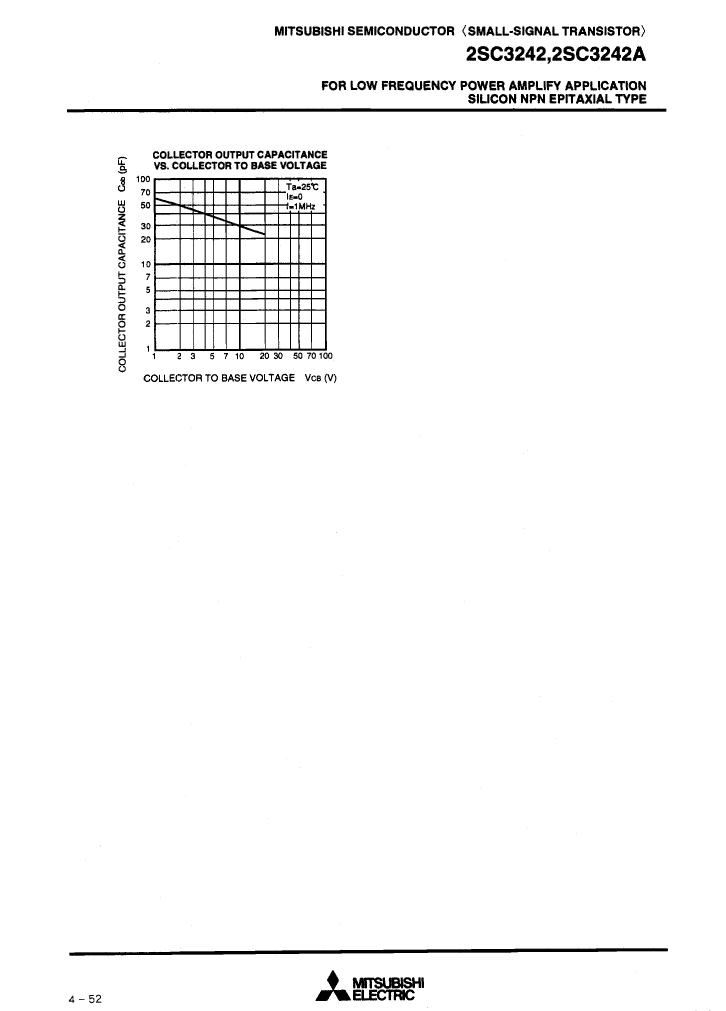

2SC3242-11-G Overview

Small Signal Bipolar Transistor, 2A I(C), 16V V(BR)CEO, 1-Element, NPN, Silicon, TO-92L, 3 PIN

Parameter Name	Attribute value
Parts packaging code	TO-92L
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	16 V
Configuration	SINGLE
Minimum DC current gain (hFE)	400
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	80 MHz
Base Number Matches	1
