BH6176GU_11: DescriptionSilicon Monolithic Integrated Circuit Power Management LSI for MultiMedia LSI on Cellular; File Size174KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet View All

BH6176GU_11 Overview

Silicon Monolithic Integrated Circuit Power Management LSI for MultiMedia LSI on Cellular

Preview

Download Datasheet

View All

1/4

Structure

Product

Type

Functions

Silicon Monolithic Integrated Circuit

Power Management LSI for MultiMedia LSI on Cellular

BH6176GU

・1ch

500mA, high efficiency Step-down Converter. (16 steps adjustable VO by I2C)

・5-channel

CMOS-type LDOs. (16 steps adjustable VO by I2C, 150mA×3, 300mA×2)

・LDO

and Stepdown converter Power ON/OFF control enabled by I2C interface or external pin

・I

2C compatible Interface. (Device address is “1001111”)

・Wafer

Level CSP package(2.6mm×2.6mm) for space-constrained applications.

Absolute Maximum Ratings（Ta=25C）

Parameter

Symbol

Rating

Unit

Maximum Supply Voltage (VBAT, PBAT)

Maximum Supply Voltage (VUSB)

Maximum Supply Voltage (DVDD)

Maximum Input Voltage 1

(LX, FB, OUT1, OUT2, OUT3, OUT4, OUT5, OUT6,

EN_LD1, EN_LD2, EN_LD3, EN_LD4)

Maximum Input Voltage 2

(NRST, CLK, DATA)

Power Dissipation

VBATMAX

VUSBMAX

DVDDMAX

VINMAX1

VINMAX2

6.0

4.5

VBAT + 0.3

DVDD + 0.3

900*

℃

Operating Temperature Range

Topr

-35

+85

Storage Temperature Range

Tstg

-55

+125

*1 This is the allowable loss of when it is mounted on a ROHM specification board 60mm×60mm.

To use at temperature higher than 25C , derate 1% per 1C.

Recommended Operating Conditions (Ta=25C)

Parameter

VBAT, PBAT Voltage

VUSB Voltage

DVDD Voltage

Symbol

VBAT

VUSB

VDVDD

Range

2.20

5.50

2.20

5.50

1.70

4.20

Unit

*2 Whenever the VBAT or PBAT or VUSB voltage is under the LDO, SWREG output voltage,

the LDO and SWREG output is not guaranteed to meet its published specifications.

*3 The DVDD Voltage must be under the Battery Voltage VBAT, PBAT at any times.

REV. A

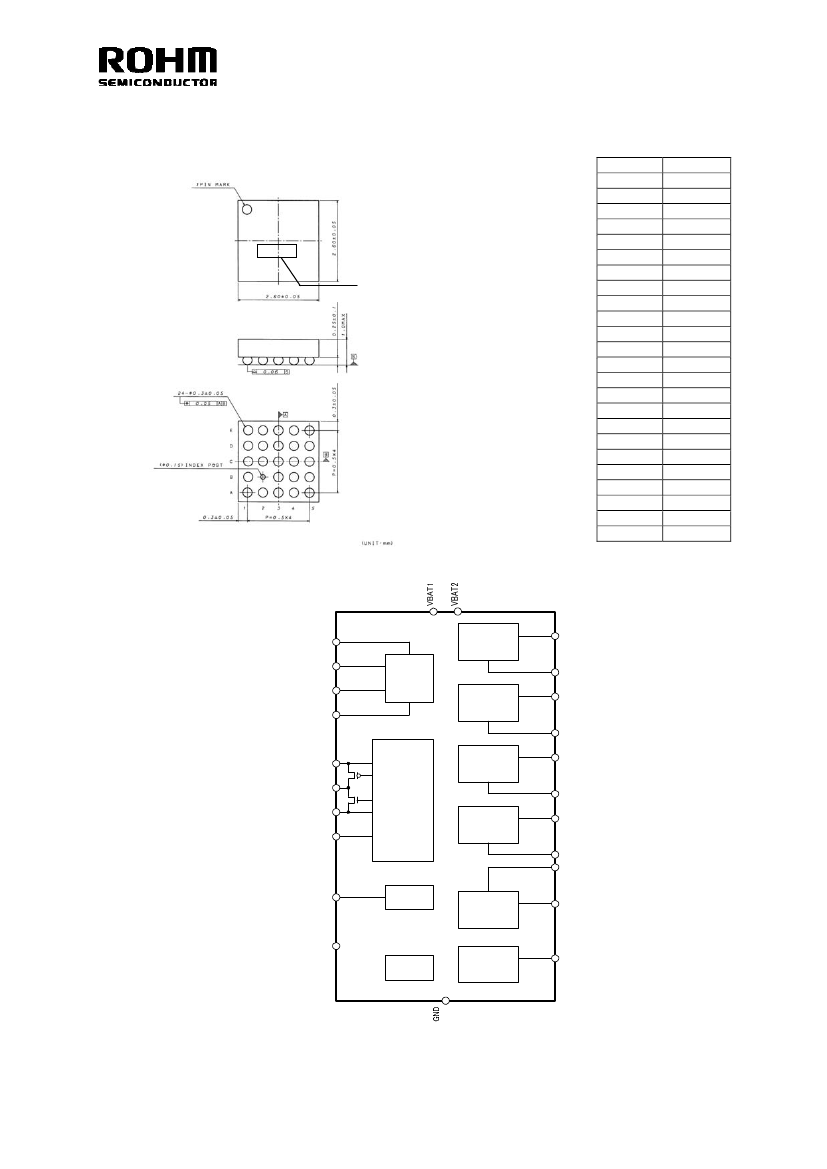

4/4

●Use-related

Cautions

(1) Absolute maximum ratings

If applied voltage (VBAT, VADP, VUSB), operating temperature range (Topr), or other absolute maximum ratings are exceeded, there is a

risk of damage. Since it is not possible to identify short, open, or other damage modes, if special modes in which absolute maximum ratings

are exceeded are assumed, consider applying fuses or other physical safety measures.

(2) Recommended operating range

This is the range within which it is possible to obtain roughly the expected characteristics. For electrical characteristics, it is those that are

guaranteed under the conditions for each parameter. Even when these are within the recommended operating range, voltage and

temperature characteristics are indicated.

(3) Reverse connection of power supply connector

There is a risk of damaging the LSI by reverse connection of the power supply connector. For protection from reverse connection, take

measures such as externally placing a diode between the power supply and the power supply pin of the LSI.

(4) Power supply lines

In the design of the board pattern, make power supply and GND line wiring low impedance.

When doing so, although the digital power supply and analog power supply are the same potential, separate the digital power supply

pattern and analog power supply pattern to deter digital noise from entering the analog power supply due to the common impedance of the

wiring patterns. Similarly take pattern design into account for GND lines as well.

Furthermore, for all power supply pins of the LSI, in conjunction with inserting capacitors between power supply and GND pins, when using

electrolytic capacitors, determine constants upon adequately confirming that capacitance loss occurring at low temperatures is not a problem

for various characteristics of the capacitors used.

(5) GND voltage

Make the potential of a GND pin such that it will be the lowest potential even if operating below that. In addition, confirm that there are no

pins for which the potential becomes less than a GND by actually including transition phenomena.

(6) Shorts between pins and misinstallation

When installing in the set board, pay adequate attention to orientation and placement discrepancies of the LSI.

If it is installed erroneously, there is a risk of LSI damage. There also is a risk of damage if it is shorted by a foreign substance getting

between pins or between a pin and a power supply or GND.

(7) Operation in strong magnetic fields

Be careful when using the LSI in a strong magnetic field, since it may malfunction.

(8) Inspection in set board

When inspecting the LSI in the set board, since there is a risk of stress to the LSI when capacitors are connected to low impedance LSI

pins, be sure to discharge for each process. Moreover, when getting it on and off of a jig in the inspection process, always connect it after

turning off the power supply, perform the inspection, and remove it after turning off the power supply. Furthermore, as countermeasures

against static electricity, use grounding in the assembly process and take appropriate care in transport and storage.

(9) Input pins

Parasitic elements inevitably are formed on an LSI structure due to potential relationships. Because parasitic elements operate, they

give rise to interference with circuit operation and may be the cause of malfunctions as well as damage. Accordingly, take care not to apply

a lower voltage than GND to an input pin or use the LSI in other ways such that parasitic elements operate. Moreover, do not apply a voltage

to an input pin when the power supply voltage is not being applied to the LSI. Furthermore, when the power supply voltage is being applied,

make each input pin a voltage less than the power supply voltage as well as within the guaranteed values of electrical characteristics.

(10) Ground wiring pattern

When there is a small signal GND and a large current GND, it is recommended that you separate the large current GND pattern and small

signal GND pattern and provide single point grounding at the reference point of the set so that voltage variation due to resistance components

of the pattern wiring and large currents do not cause the small signal GND voltage to change. Take care that the GND wiring pattern of

externally attached components also does not change.

(11) Externally attached capacitors

When using ceramic capacitors for externally attached capacitors, determine constants upon taking into account a lowering of the

rated capacitance due to DC bias and capacitance change due to factors such as temperature.

(12) Thermal shutdown circuit (TSD)

When the junction temperature becomes 160°C (typ) or higher, the thermal shutdown circuit operates and turns the switch OFF.

The thermal shutdown circuit, which is aimed at isolating the LSI from thermal runaway as much as possible, is not aimed at the protection

or guarantee of the LSI. Therefore, do not continuously use the LSI with this circuit operating or use the LSI assuming its operation.

(13) Thermal design

Perform thermal design in which there are adequate margins by taking into account the permissible dissipation (Pd) in actual states of use.

(14) Rush Current

Extra care must be taken on power coupling, power, ground line impedance, and PCB design while excess amount of rush current might

instantly flow through the power line when powering-up a LSI which is equipped with several power supplies, depending on on/off sequence

and ramp delays.
