FMW-4304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FMW-4304

FMW-4304: DescriptionSchottky Barrier Rectifier; CategoryDiscrete semiconductor diode; File Size249KB，4 Pages; ManufacturerSANKEN; Websitehttp://www.sanken-ele.co.jp/en/; Environmental Compliance

Download Datasheet Parametric View All

FMW-4304 Overview

Schottky Barrier Rectifier

FMW-4304 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SANKEN
package instruction	TO-3PF, 3 PIN
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW LEAKAGE CURRENT, LOW NOISE
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	1500 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

http://www.sanken-ele.co.jp

SANKEN ELECTRIC

FMW-4304

Schottky Barrier Rectifier

Dec. 2011

General Description

FMW-4304 is a Schottky Barrier Diode, and has

achieved low leakage current and low VF by selecting

the best barrier metal.

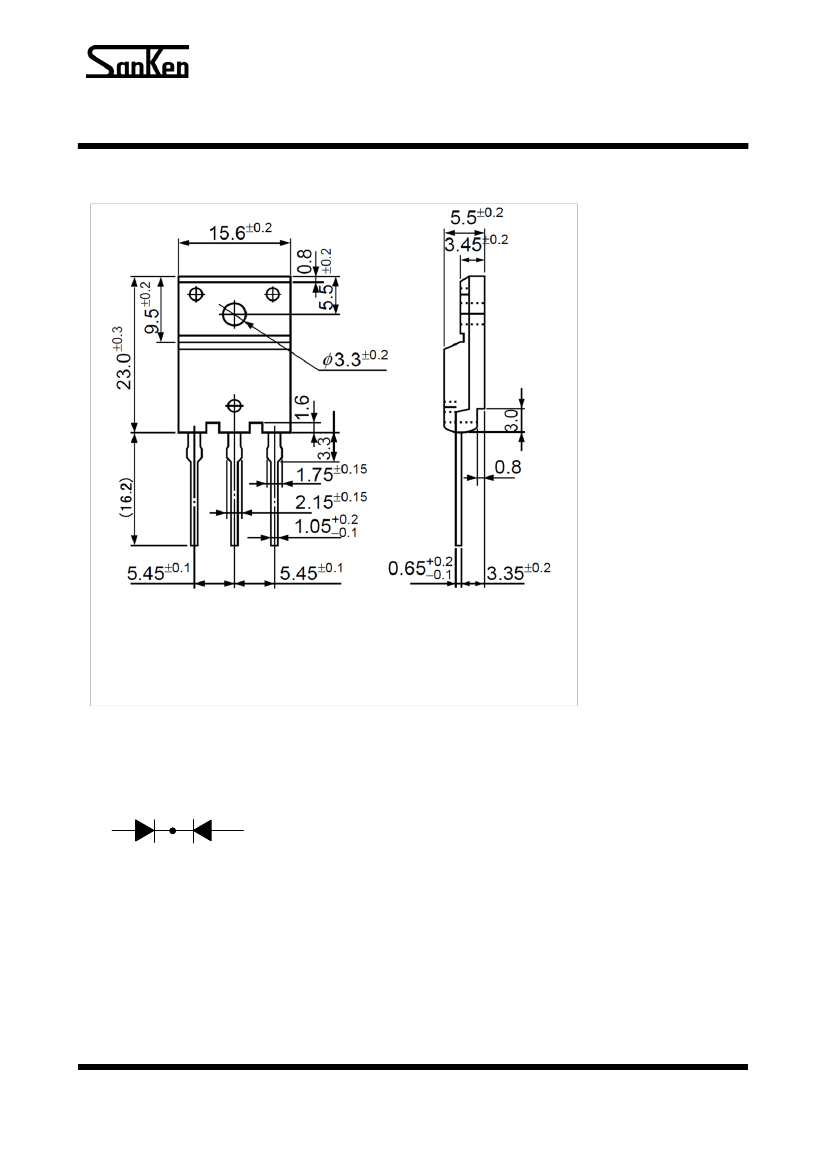

Package

TO-3PF

Applications

- DC-DC converters

- AC adapter

- High frequency rectification circuit

Key Specifications

Item

Unit

Rating

0.55

=15A

Conditions

Features

- Super-high speed & low noise switching.

- Low forward voltage drop.

F(AV)

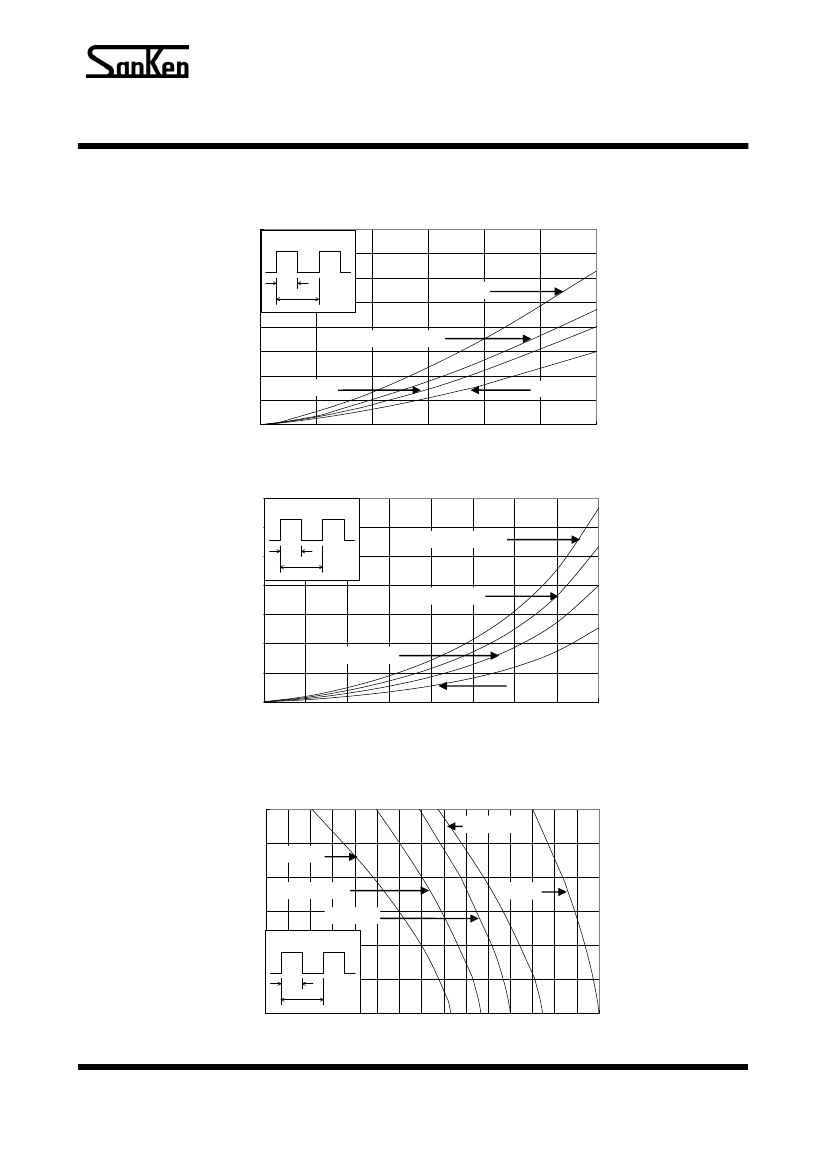

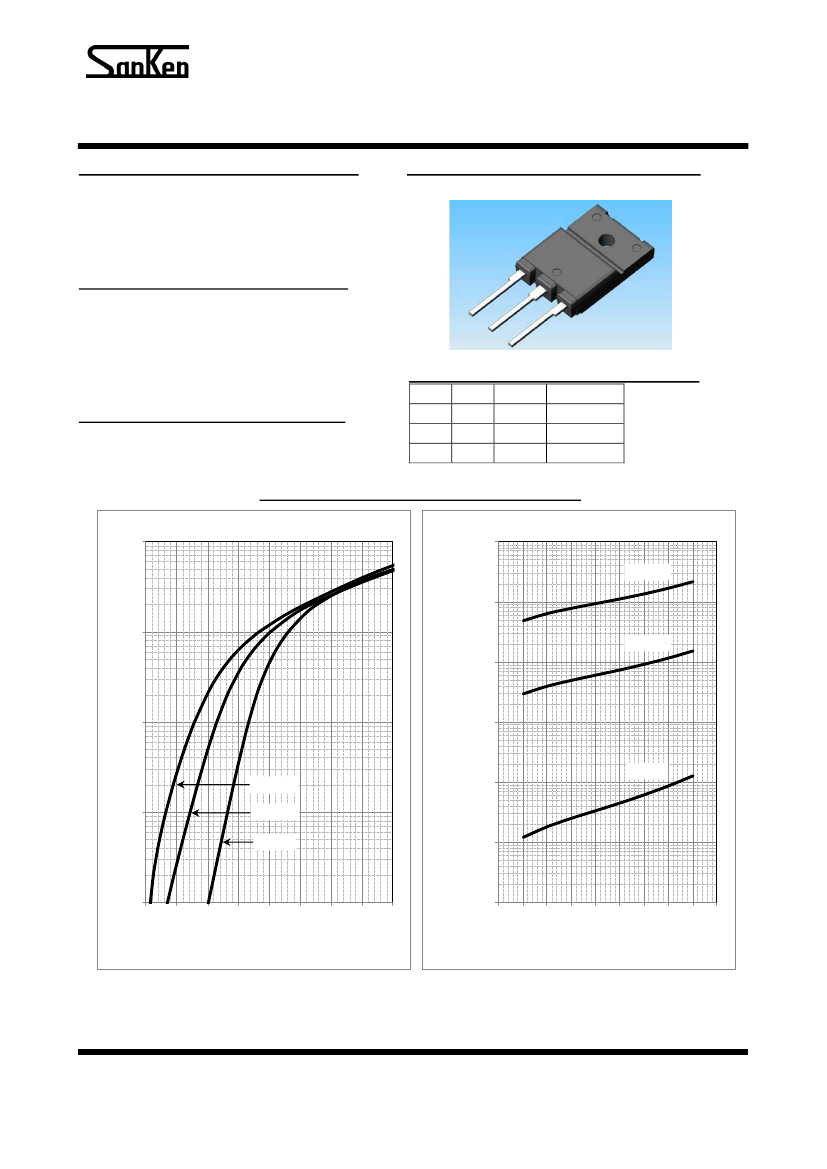

Typical Characteristics

100

VF-IF Characteristics

1.0E+00

VR-IR Characteristics

Tj=150℃

1.0E-01

Tj=100℃

1.0E-02

IF [A]

IR [A]

1.0E-03

Tj=25℃

Tj=150℃

1.0E-04

0.1

Tj=100℃

Tj=25℃

1.0E-05

0.01

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

1.0E-06

VF [V]

VR [V]

The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no

responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.

Copy Right: SANKEN ELECTRIC CO.,LTD.

Page 1
