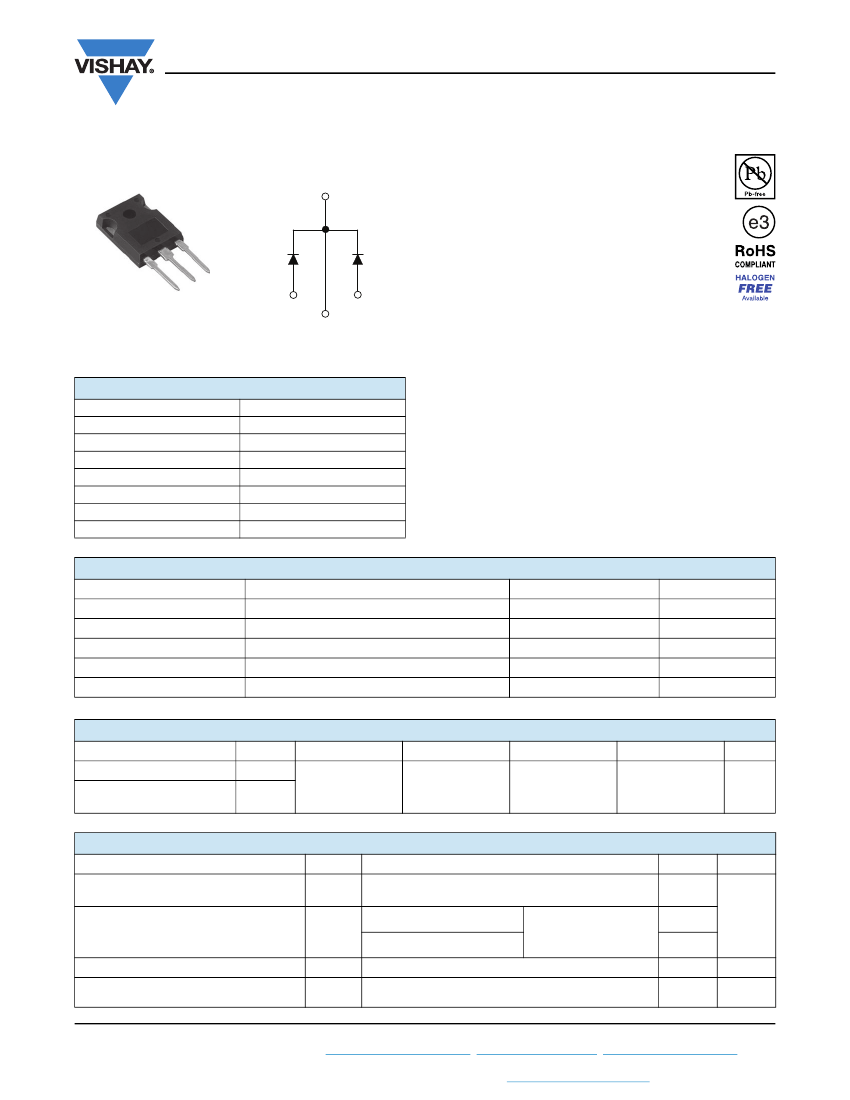

VS-30CPQ0.0PbF, VS-30CPQ0.0-N3
www.vishay.com
Vishay Semiconductors
Schottky Rectifier, 2 x 15 A
Base
common
cathode
2
FEATURES
• 150 °C T
J
operation
• Very low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
TO-247AC
1
3
Anode
Anode
2
1
2
Common
cathode
• Guard ring for enhanced ruggedness and long
term reliability
• Compliant to RoHS Directive 2002/95/EC
• Designed and qualified according to JEDEC-JESD47
• Halogen-free according to IEC 61249-2-21 definition
(-N3 only)
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
I
RM
max.
T
J
max.
Diode variation
E
AS
TO-247AC
2 x 15 A
50 V, 60 V
0.56 V
45 mA at 125 °C
150 °C
Common cathode
13 mJ
DESCRIPTION
The VS-30CPQ... center tap Schottky rectifier has been
optimized for very low forward voltage drop, with moderate
leakage. The proprietary barrier technology allows for
reliable operation up to 150 °C junction temperature. Typical
applications are in switching power supplies, converters,
freewheeling diodes, and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
t
p
= 5 μs sine
15 Apk, T
J
= 125 °C (per leg)
CHARACTERISTICS
Rectangular waveform
VALUES
30
50/60
1020
0.56
- 55 to 150
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak
reverse voltage
SYMBOL
V
R
V
RWM
50
50
60
60
V
VS-30CPQ050PbF
VS-30CPQ050-N3
VS-30CPQ060PbF
VS-30CPQ060-N3
UNITS
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
See fig. 5
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 112 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
VALUES
30
1020
265
13
1.50
mJ
A
A
UNITS
T
J
= 25 °C, I
AS
= 1.50 A, L = 11.5 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Revision: 01-Sep-11
Document Number: 94183
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30CPQ0.0PbF, VS-30CPQ0.0-N3
www.vishay.com
Vishay Semiconductors
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
15 A
Maximum forward voltage drop per leg
See fig. 1
V
FM (1)
30 A
15 A
30 A
Maximum reverse leakage current per leg
See fig. 2
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
I
RM (1)
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
V
R
= Rated V
R
VALUES
0.60
0.80
0.56
0.70
0.80
45
720
7.5
10 000
mA
pF
nH
V/µs
V
UNITS
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Maximum thermal resistance,
junction to case per leg
Maximum thermal resistance,
junction to case per package
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
SYMBOL
T
J
, T
Stg
DC operation
See fig. 4
DC operation
R
thCS
Mounting surface, smooth and greased
TEST CONDITIONS
VALUES
- 55 to 150
2.20
1.10
0.24
6
0.21
Non-lubricated threads
6 (5)
12 (10)
g
oz.
kgf
cm
(lbf
in)
°C/W
UNITS
°C
R
thJC
Mounting torque
Marking device
Case style TO-247AC (JEDEC)
30CPQ050
30CPQ060
Revision: 01-Sep-11
Document Number: 94183
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30CPQ0.0PbF, VS-30CPQ0.0-N3
www.vishay.com
Vishay Semiconductors
1000
I
F
- Instantaneous Forward Current (A)
1000
I
R
- Reverse Current (mA)
100
10
T
J
= 150 °C
100
T
J
= 125 °C
1
0.1
0.01
0.001
10
T
J
= 100 °C
T
J
= 75 °C
T
J
= 50 °C
T
J
= 25 °C
0
10
20
30
40
50
60
1
T
J
=150 °C
T
J
=125 °C
T
J
= 25 °C
0.1
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
V
FM
- Forward Voltage Drop (V)

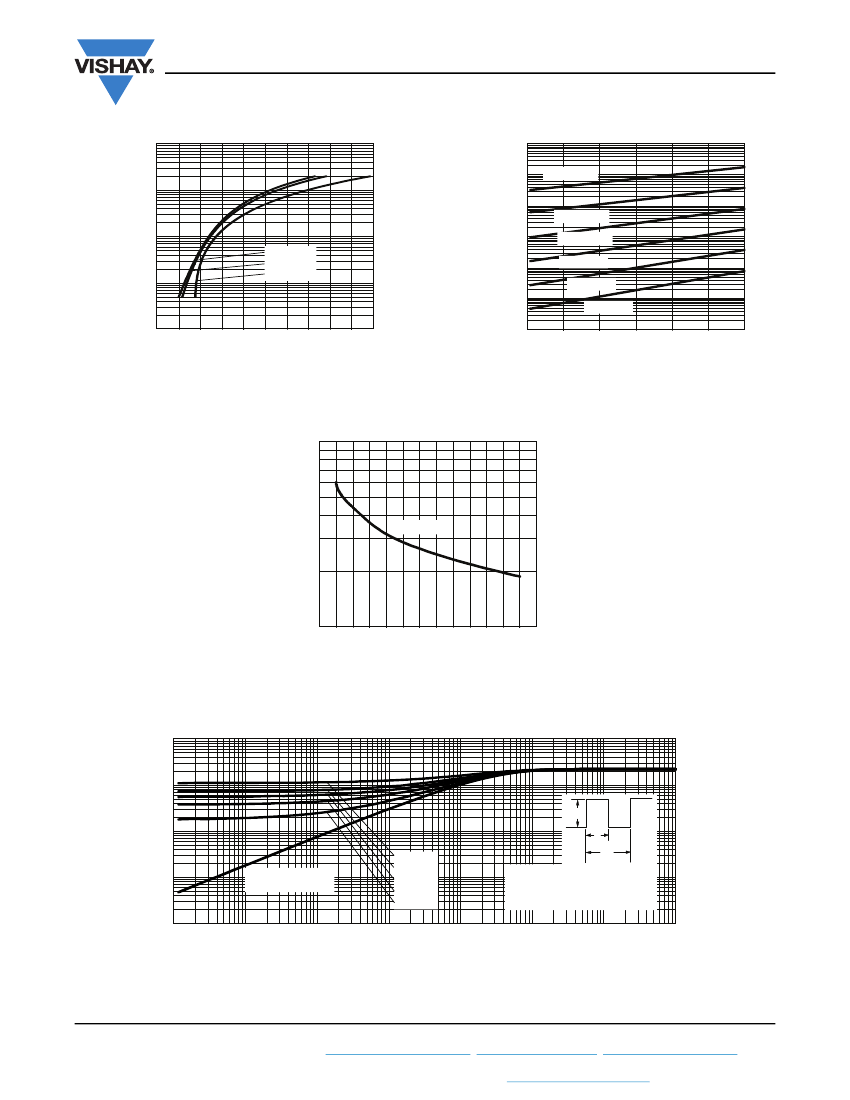

Fig. 1 - Maximum Forward Voltage Drop Characteristics
(Per Leg)
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
1000
C
T
- Junction Capacitance (pF)
T
J
= 25 °C
100
0
5 10 15 20 25 30 35 40 45 50 55 60 65
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)
Z
thJC
- Thermal Impedance (°C/W)
10
1
P
DM
0.1
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
0.01
0.1
t
1
t
2
0.01
Single pulse
(thermal resistance)
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.001
0.00001
0.0001
0.001
1
10
100
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics (Per Leg)
Revision: 01-Sep-11
Document Number: 94183
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30CPQ0.0PbF, VS-30CPQ0.0-N3
www.vishay.com
Vishay Semiconductors
14
Allowable Case Temperature (°C)
155
145
Average Power Loss (W)
R
thJC
(DC) = 220 °C/W
12
10
8
6
4
2
0
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
RMS limit
135
DC
125
DC
115
0
2
4
6
8
10 12 14 16 18 20 22
0
2
4
6
8
10 12 14 16 18 20 22
I
F(AV)
- Average Forward Current (V)

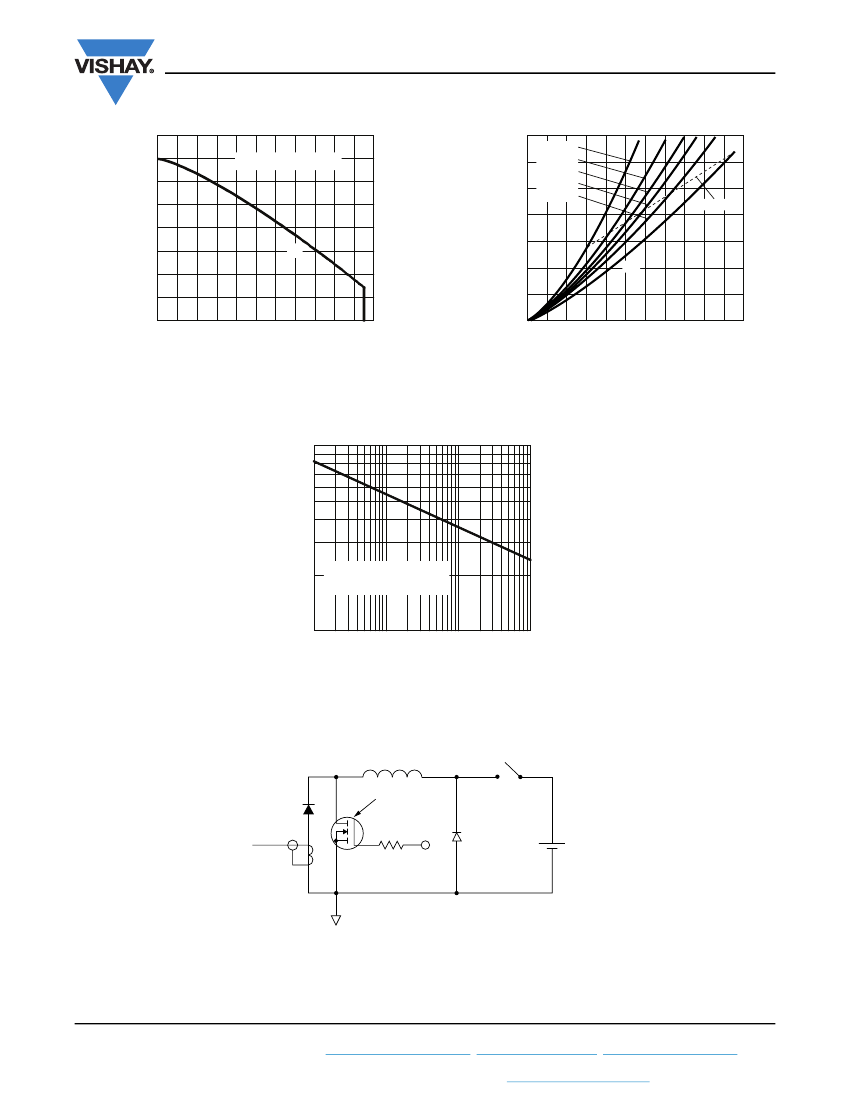

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current (Per Leg)
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics (Per Leg)
I
FSM
- Non-Repetitive Surge Current (A)
1000
At any rated load condition
and
with
rated
V
RRM
applied
following surge
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
L
High-speed
switch
Freewheel
diode
40HFL40S02
+
V
d
= 25
V
D.U.T.
IRFP460
R
g
= 25
Ω
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
Revision: 01-Sep-11
Document Number: 94183
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30CPQ0.0PbF, VS-30CPQ0.0-N3
www.vishay.com
ORDERING INFORMATION TABLE
Vishay Semiconductors
Device code
VS-
1
1
2
3
4
5
6
7
-
-
-
-
-
-
30
2
C
3
P
4
Q
5
060 PbF
6
7
Vishay Semiconductors product
Current rating (30 = 30 A)
Circuit configuration:
C = Common cathode
Package:
P = TO-247
Schottky “Q” series
Voltage code
Environmental digit
PbF = Lead (Pb)-free and RoHS compliant
-N3 = Halogen-free, RoHS compliant, and totally lead (Pb)-free
050 = 50 V
060 = 60 V
-
ORDERING INFORMATION
(Example)
PREFERRED P/N
VS-30CPQ050PbF
VS-30CPQ050-N3
VS-30CPQ060PbF
VS-30CPQ060-N3
QUANTITY PER T/R
25
25
25
25
MINIMUM ORDER QUANTITY
500
500
500
500
PACKAGING DESCRIPTION
Antistatic plastic tube
Antistatic plastic tube
Antistatic plastic tube
Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
TO-247AC PbF
TO-247AC -N3
www.vishay.com/doc?95223
www.vishay.com/doc?95226
www.vishay.com/doc?95007
Revision: 01-Sep-11
Document Number: 94183
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
