614-93-964-31-007 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 614-93-964-31-007

Preview

614-93-964-31-007: DescriptionIC Socket, DIP64, 64 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Solder; CategoryThe connector socket; File Size130KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

614-93-964-31-007 Overview

IC Socket, DIP64, 64 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Solder

614-93-964-31-007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DIP SOCKET
body width	1 inch
subject depth	0.098 inch
body length	3.2 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP64
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Manufacturer's serial number	614
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	64
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.9 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

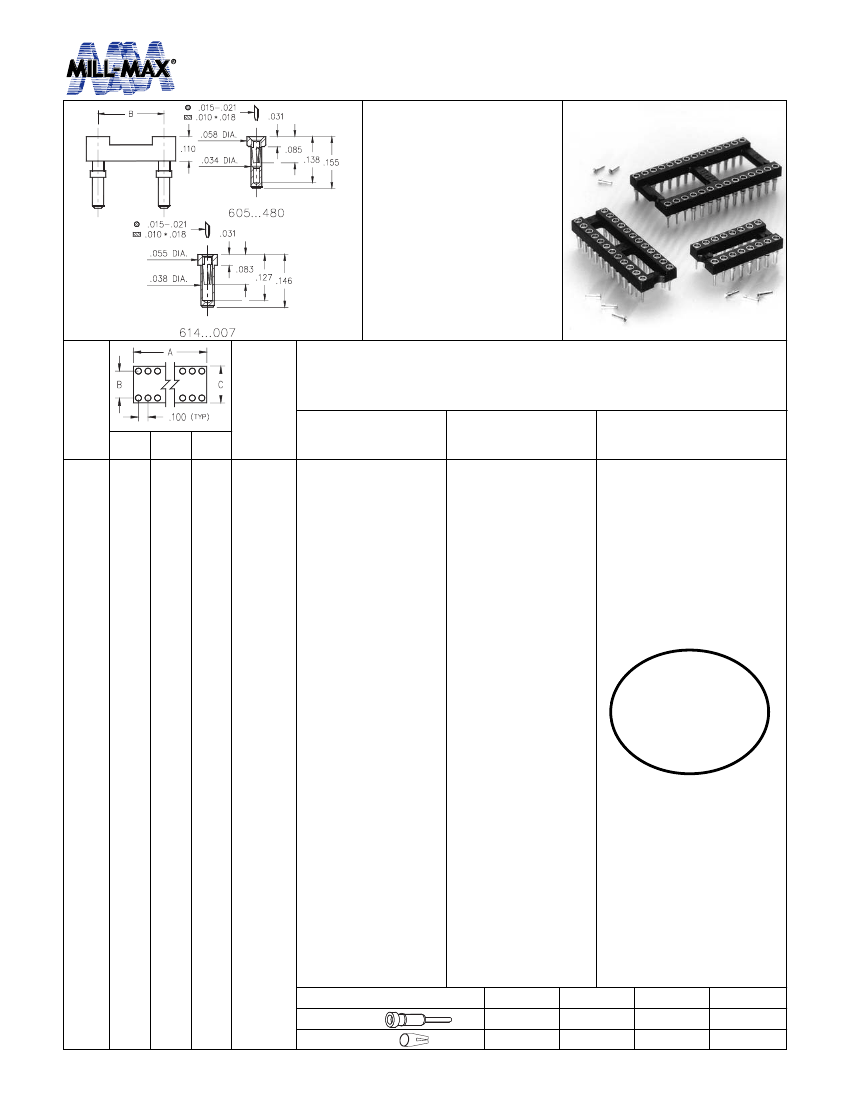

DUAL-IN-LINE SOCKETS

Carrier Type

Low Profile

•

Low profile receptacles

sit only .031” high above

the board.

•

Removable plastic carri-

ers can be returned for

reloading.

•

Hi-Rel, 3-finger #11 BeCu

contact is rated at 3 amps.

See page 206 for details.

•

Uses M-M#1407 & 0548

receptacles.

See page 126 for details.

Series 605, 614

Total number

of pins

Quantity

per tube

Ordering Information

Length = .146

614-XX-210-31-007

614-XX-304-31-007

614-XX-306-31-007

614-XX-308-31-007

614-XX-310-31-007

614-XX-314-31-007

614-XX-316-31-007

614-XX-318-31-007

614-XX-320-31-007

614-XX-322-31-007

614-XX-324-31-007

614-XX-328-31-007

614-XX-420-31-007

614-XX-422-31-007

614-XX-424-31-007

614-XX-428-31-007

614-XX-432-31-007

614-XX-624-31-007

614-XX-628-31-007

614-XX-632-31-007

614-XX-636-31-007

614-XX-640-31-007

614-XX-642-31-007

614-XX-648-31-007

614-XX-650-31-007

614-XX-652-31-007

614-XX-950-31-007

614-XX-952-31-007

614-XX-964-31-007

Sleeve (Pin)

Contact (Clip)

Length = .155

605-XX-210-11-480

605-XX-304-11-480

605-XX-306-11-480

605-XX-308-11-480

605-XX-310-11-480

605-XX-314-11-480

605-XX-316-11-480

605-XX-318-11-480

605-XX-320-11-480

605-XX-322-11-480

605-XX-324- 11-480

605-XX-328-11-480

605-XX-420-11-480

605-XX-422-11-480

605-XX-424-11-480

605-XX-428-11-480

605-XX-432-11-480

605-XX-624-11-480

605-XX-628-11-480

605-XX-632-11-480

605-XX-636-11-480

605-XX-640-11-480

605-XX-642-11-480

605-XX-648-11-480

605-XX-650-11-480

605-XX-652-11-480

605-XX-950-11-480

605-XX-952-11-480

605-XX-964-11-480

93

30µ” Au

99

200µ”Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

A

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

B

0.2

0.3

0.4

0.6

0.9

C

0.3

0.4

0.5

0.7

1.0

40

102

67

50

40

28

25

22

20

18

16

14

20

18

16

14

12

16

14

12

11

10

9

8

7

8

7

6

(.039 Min. Mounting Hole) (.035 Min. Mounting Hole)

10

4

6

8

10

14

16

18

20

22

24

28

20

22

24

28

32

24

28

32

36

40

42

48

50

52

50

52

64

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

w w w. m i l l - m a x . c o m

34

516-922-6000
