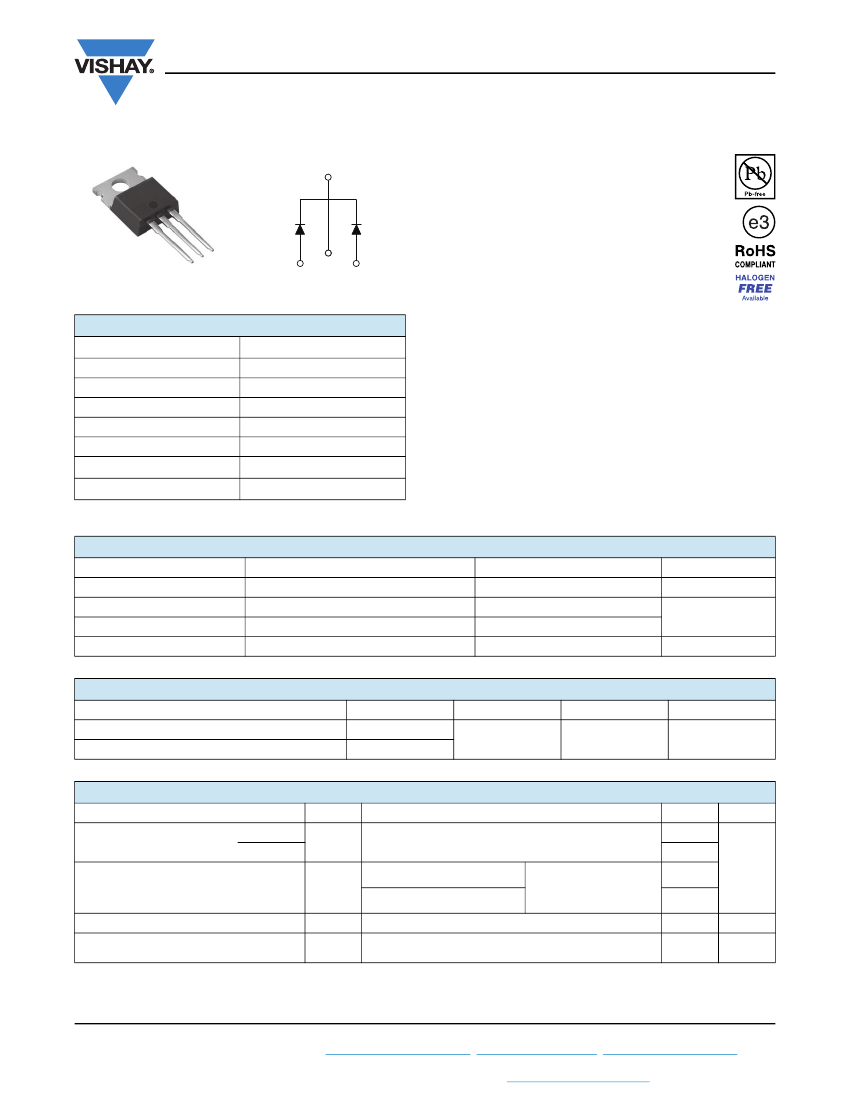

VS-30L30CTPbF, VS-30L30CT-N3
www.vishay.com
Vishay Semiconductors
Schottky Rectifier, 2 x 15 A
Base 2
common
cathode
FEATURES
• 150 °C T
J
operation
• Very low forward voltage drop
• High frequency operation
• High
purity,
high
temperature
epoxy
encapsulation for enhanced mechanical strength
and moisture resistance
• Guard ring for enhanced ruggedness and long
term reliability
• Compliant to RoHS Directive 2002/95/EC
• Designed and qualified according to JEDEC-JESD47
• Halogen-free according to IEC 61249-2-21 definition
(-N3 only)
Anode
TO-220AB
Anode
2
1 Common 3
cathode
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
I
RM
max.
T
J
max.
Diode variation
E
AS
TO-220AB
2 x 15 A
30 V
0.37 V
350 mA at 125 °C
150 °C
Common cathode
15 mJ
DESCRIPTION
This center tap Schottky rectifier has been optimized for
very low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation
up to 150 °C junction temperature. Typical applications are
in switching power supplies, converters, freewheeling
diodes, and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
V
F
T
J
15 A
pk
, T
J
= 125 °C (per leg)
Range
CHARACTERISTICS
Rectangular waveform
VALUES
30
30
0.37
- 55 to 150
UNITS
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
VS-30L30CTPBF
30
VS-30L30CT-N3
30
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average
forward current
Maximum peak one cycle
non-repetitive surge current
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
per device
per leg
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 140 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
T
J
= 25 °C, I
AS
= 2 A, L = 7.5 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Following any rated load
condition and with rated
V
RRM
applied
VALUES
30
15
1450
220
15
2
mJ
A
A
UNITS
Revision: 26-Aug-11
Document Number: 94195
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30L30CTPbF, VS-30L30CT-N3
www.vishay.com
Vishay Semiconductors
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
15 A
Maximum forward voltage drop per leg
V
FM (1)
30 A
15 A
30 A
Maximum reverse leakage current per leg
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
I
RM (1)
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
V
R
= Rated V
R
VALUES
0.46
0.57
0.37
0.50
1.50
350
1500
8.0
10 000
mA
pF
nH
V/μs
V
UNITS
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Maximum thermal resistance,
junction to case per leg
Maximum thermal resistance,
junction to case per package
Approximate weight
minimum
maximum
Case style TO-220AB
SYMBOL
T
J
, T
Stg
TEST CONDITIONS
VALUES
- 55 to 150
1.5
R
thJC
DC operation
0.8
2.0
0.07
6 (5)
12 (10)
g
oz.
kgf · cm
(lbf · in)
30L30CT
°C/W
UNITS
°C
Mounting torque
Marking device
Revision: 26-Aug-11
Document Number: 94195
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30L30CTPbF, VS-30L30CT-N3
www.vishay.com
Vishay Semiconductors
1000
I
F
- Instantaneous Forward Current (A)
1000
T
J
= 150 °C
I
R
- Reverse Current (mA)
100
100
T
J
= 125 °C
10
T
J
= 150 °C
T
J
= 100 °C
T
J
= 75 °C
1
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 25 °C
0.1
T
J
= 50 °C
0.01
1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0
5
10
15
20
25
30
V
FM
- Forward Voltage Drop (V)

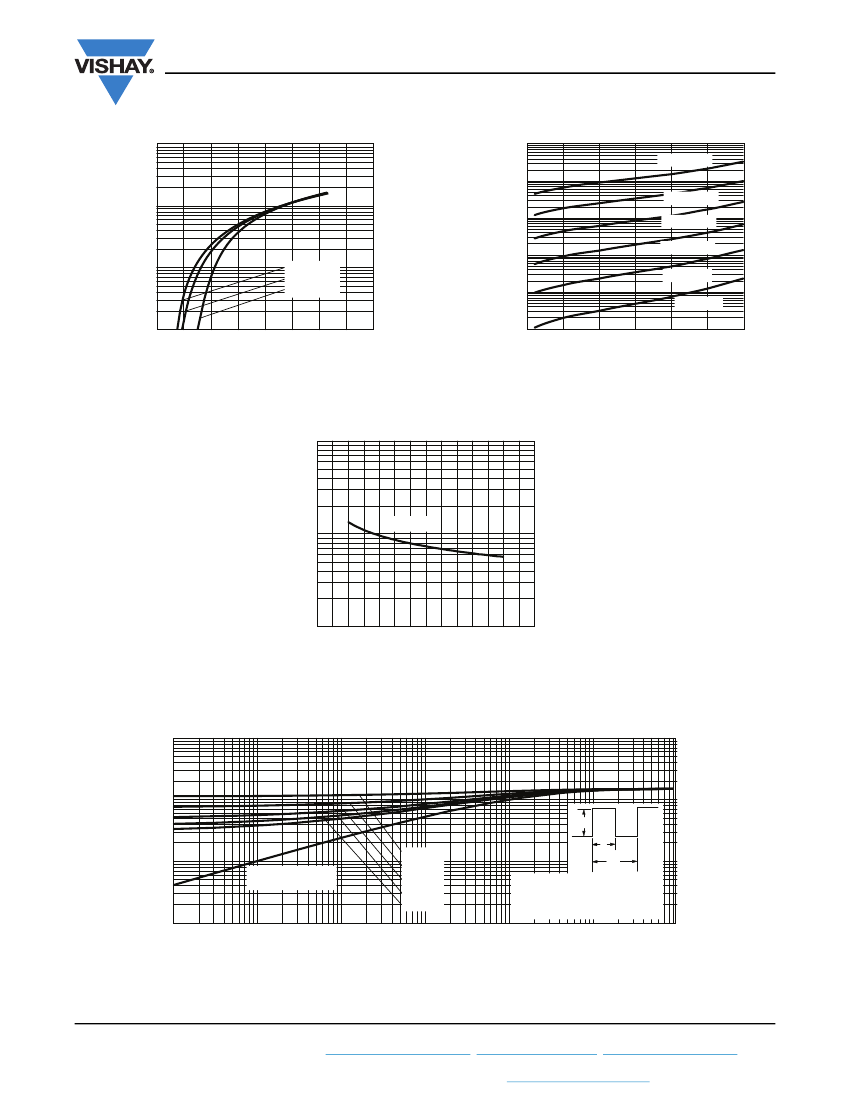

Fig. 1 - Maximum Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
10 000
C
T
- Junction Capacitance (pF)
1000
T
J
= 25 °C
100
0
5
10
15
20
25
30
35
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
1
P
DM
t
1
0.1
Single pulse
(thermal resistance)
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
0.01
0.1
t
2
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
1
10
0.01
0.00001
0.0001
0.001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Revision: 26-Aug-11
Document Number: 94195
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30L30CTPbF, VS-30L30CT-N3
www.vishay.com
Vishay Semiconductors
10
Allowable Case Temperature (°C)
150
Average Power Loss (W)
8
145
RMS limit
DC
DC
6
140
Square
wave
(D = 0.50)
4
135
2
DC = 0.20
DC = 0.25
DC = 0.33
DC = 0.50
DC = 0.75
See note (1)
130
0
0
5
10
15
20
25
0
5
10
15
20
25
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
I
FSM
- Non-Repetitive Surge Current (A)
10 000
At any rated load condition
and
with
rated
V
RRM
applied
following surge
1000
100
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
Note
(1)
Formula used: T = T - Pd x R
C
J
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6)
Revision: 26-Aug-11
Document Number: 94195
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30L30CTPbF, VS-30L30CT-N3
www.vishay.com
ORDERING INFORMATION TABLE
Device code
Vishay Semiconductors
VS-
1
1
2
3
4
5
6
7
-
-
-
-
-
-
-
30
2
L
3
30
4
C
5
T
6
PbF
7
Vishay Semiconductors product
Current rating (30 = 30 A)
Schottky “L” series
Voltage rating (30 = 30 V)
C = Common cathode
Package:
T = TO-220
Environmental digit
PbF = Lead (Pb)-free and RoHS compliant
-N3 = Halogen-free, RoHS compliant, and totally lead (Pb)-free
ORDERING INFORMATION
(Example)
PREFERRED P/N
VS-30L30CTPbF
VS-30L30CT-N3
QUANTITY PER T/R
50
50
MINIMUM ORDER QUANTITY
1000
1000
PACKAGING DESCRIPTION
Antistatic plastic tube
Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
SPICE model
TO-220AB PbF
TO-220AB -N3
www.vishay.com/doc?95222
www.vishay.com/doc?95225
www.vishay.com/doc?95028
www.vishay.com/doc?95287
Revision: 26-Aug-11
Document Number: 94195
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
