VS-30WQ04FNPbF
Vishay Semiconductors
Schottky Rectifier, 3.5 A
Base
cathode
4, 2
FEATURES
• Popular D-PAK outline
• Small foot print, surface mountable
• Low forward voltage drop
D-PAK (TO-252AA)
1
Anode
3
Anode
• High frequency operation
• Guard ring for enhanced ruggedness and long term
reliability
• Compliant to RoHS Directive 2002/95/EC
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
I
RM
T
J
max.
Diode variation
E
AS
D-PAK (TO-252AA)
3.5 A
40 V
See Electrical table
24 mA at 125 °C
150 °C
Single die
8 mJ
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
DESCRIPTION
The VS-30WQ04FNPbF surface mount Schottky rectifier
has been designed for applications requiring low forward
drop and small foot prints on PC board. Typical applications
are in disk drives, switching power supplies, converters,
freewheeling diodes, battery charging, and reverse battery
protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
t
p
= 5 μs sine
3 Apk, T
J
= 125 °C
CHARACTERISTICS
Rectangular waveform
VALUES
3.5
40
500
0.49
- 40 to 150
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
VS-30WQ04FNPbF
40
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
See fig. 5
Maximum peak one cycle
non-repetitive surge current
See fig. 7
Non-repetitive avalanche energy
Repetitive avalanche current
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 135 °C, rectangular waveform
5 μs sine or 3 μs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
T
J
= 25 °C, I
AS
= 1 A, L = 16 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Following any rated load
condition and with rated
V
RRM
applied
VALUES
3.5
500
80
8.0
1.0
mJ
A
A
UNITS
Document Number: 94198
Revision: 14-Jan-11
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
1
VS-30WQ04FNPbF
Vishay Semiconductors
Schottky Rectifier, 3.5 A
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
3A
Maximum forward voltage drop
See fig. 1
V
FM (1)
6A
3A
6A
Maximum reverse leakage current
See fig. 2
Threshold voltage
Forward slope resistance
Typical junction capacitance
Typical series inductance
Maximum voltage rate of change
Note
(1)
Pulse width < 300 μs, duty cycle < 2 %
I
RM (1)
V
F(TO)
r
t
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
T
J
= T
J
maximum
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz), 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
V
R
= Rated V
R
VALUES
0.53
0.67
0.49
0.62
2
24
0.34
37.33
189
5.0
10 000
mA
V
m
pF
nH
V/μs
V
UNITS
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Maximum thermal resistance,
junction to case
Approximate weight
Marking device
Note
(1)
SYMBOL
T
J (1)
, T
Stg
R
thJC
DC operation
See fig. 4
TEST CONDITIONS
VALUES
- 40 to 150
4.7
0.3
0.01
UNITS
°C
°C/W
g
oz.
Case style D-PAK (similar to TO-252AA)
30WQ04FN
dP
tot
1
------------ < -------------
thermal runaway condition for a diode on its own heatsink
-
-
dT
J
R
thJA
www.vishay.com
2
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Document Number: 94198
Revision: 14-Jan-11
VS-30WQ04FNPbF
Schottky Rectifier, 3.5 A
Vishay Semiconductors
I
F
- Instantaneous Forward Current (A)
100
100
I
R
- Reverse Current (mA)
T
J
= 150 °C
10
T
J
= 125 °C
1
T
J
= 100 °C
T
J
= 75 °C
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 25 °C
0.1
T
J
= 50 °C
0.01
T
J
= 25 °C
1
0.001
0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
0
5
10
15
20
25
30
35
40
V
FM
- Forward Voltage Drop (V)

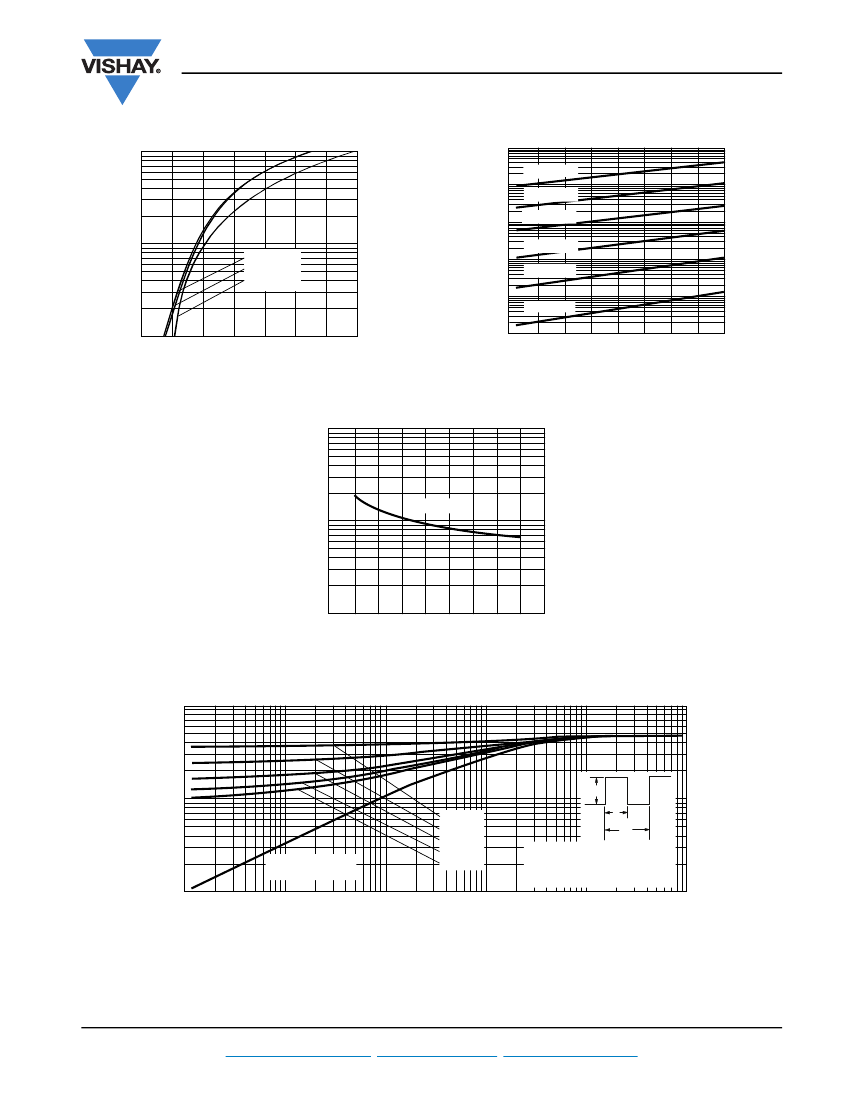

Fig. 1 - Maximum Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
C
T
- Junction Capacitance (pF)
T
J
= 25 °C
100
10
0
5
10
15
20
25
30
35
40
45
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
P
DM
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
t
1
t
2
Single pulse
(thermal resistance)
0.1
0.00001
0.0001
0.001
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
1
0.01
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Document Number: 94198
Revision: 14-Jan-11
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
3
VS-30WQ04FNPbF
Vishay Semiconductors
155
150
Schottky Rectifier, 3.5 A
Allowable Case Temperature (°C)
3.0
Average Power Loss (W)
2.5
2.0
1.5
1.0
0.5
0
145
140
135
130
125
120
115
110
DC
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS limit
Square wave (D = 0.50)
80 % rated V
R
applied
DC
See note (1)
0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
I
F (AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F (AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
I
FSM
- Non- Repetitive Surge Current (A)
1000
100
At any rated load condition
and with rated V
RRM
applied
following surge
10
10
100
1000
10 000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current
Note
(1)
Formula used: T = T - (Pd + Pd
C
J
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= 80 % rated V
R
www.vishay.com
4
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Document Number: 94198
Revision: 14-Jan-11
VS-30WQ04FNPbF
Schottky Rectifier, 3.5 A
Vishay Semiconductors
ORDERING INFORMATION TABLE
Device code
VS-
1
1
2
3
4
5
6
7
-
-
-
-
-
-
-
30
2
W
3
Q
4
04
5
FN
6
TRL PbF
7
8
Vishay Semiconductors product
Current rating (3.5 A)
Package identifier:
W = D-PAK
Schottky “Q” series
Voltage rating (04 = 40 V)
FN = TO-252AA (D-PAK)
None = Tube (50 pieces)
TR = Tape and reel
TRL = Tape and reel (left oriented)
TRR = Tape and reel (right oriented)
8
-
PbF = Lead (Pb)-free
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
Packaging information
SPICE model
www.vishay.com/doc?95016
www.vishay.com/doc?95059
www.vishay.com/doc?95033
www.vishay.com/doc?95288
Document Number: 94198
Revision: 14-Jan-11
For technical questions within your region, please contact one of the following:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
www.vishay.com
5
