Varicon
®
Series 8017
75/100/130 CONTACTS
Plug with
Actuating Screw 001
Plug with
Fixed Screw 002
75 CONTACTS
Plug
Receptacle
100 CONTACTS
Plug
Receptacle
Receptacle with
Fixed Nut 007
Receptacle with
Actuating Nut 008
130 CONTACTS
Plug
Receptacle
ORDERING CODE
00
Prefix
8017
Series
Number
XXX
Number of
Positions
75, 100, 130
XXX
0XX
See
Variation
Code
Contact Code
217 = Solder 0.098" x 2.49mm –
60 8017 0513 00 339
218 = Wire Wrap –
0.025 x 0.050 x 0.567" / 0.64 x 1.27 x 14.4mm
60 8017 0613 00 339
750 = Wire Wrap –
0.025 x 0.050 x 0.760" / 0.64 x 1.27 x 19.3mm
60 8017 0623 00 339
296 = Wire Wrap –
0.025 x 0.026 x 0.579" / 0.64 x 0.66 x 14.7mm
60 8017 0633 00 339
313 = Wire Crimp (Contacts Loose) –
Must be ordered separately
60 8017 0313 00 339
323 = Wire Crimp (1800 Contacts on a Reel) –
60 8017 0323 99 339
Must be ordered separately

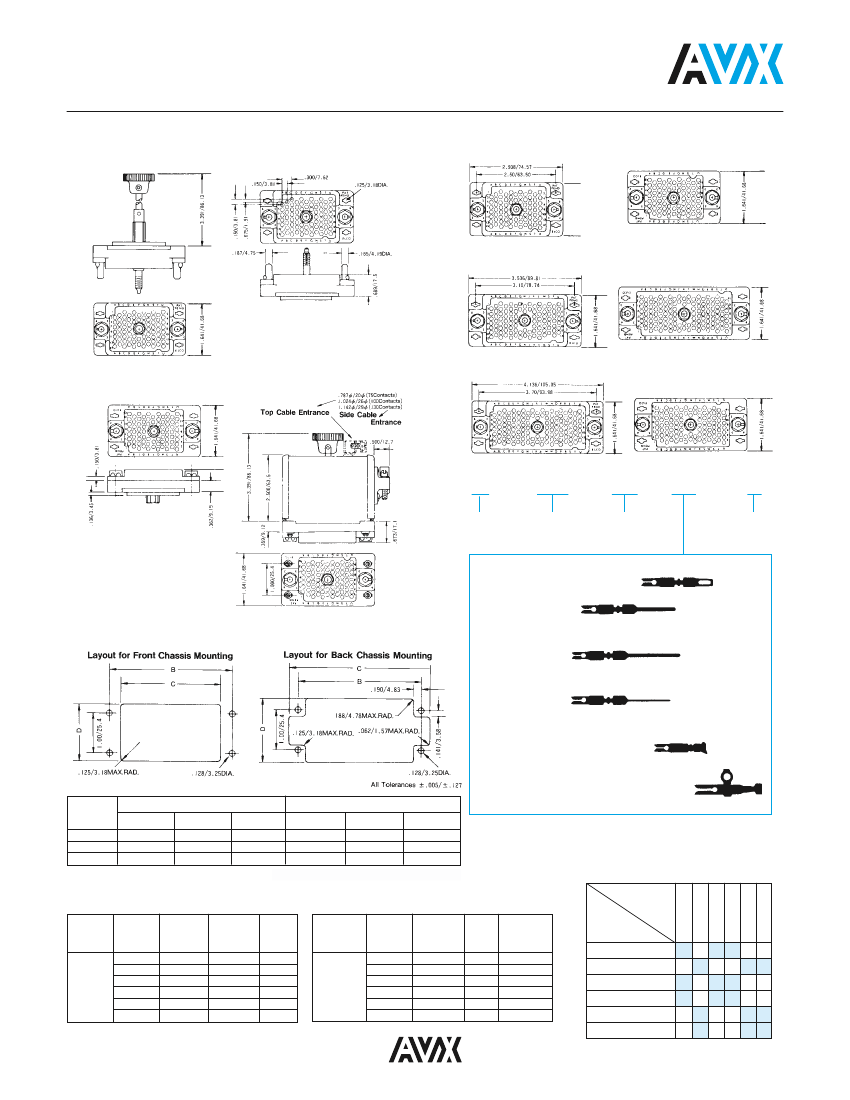

RECOMMENDED CHASSIS LAYOUT
No. of
Pos.
75
100
130
Front Chassis Mtg.
B
C
D
B
Back Chassis Mtg.
C
D
2.500/63.50 1.953/49.61 1.437/36.50 2.500/63.50 2.953/75.00 1.656/42.06
3.100/78.74 2.546/64.67 1.437/36.50 3.100/78.74 3.562/90.47 1.656/42.06
3.700/93.98 3.156/80.16 1.437/36.50 3.700/93.98 4.156/105.56 1.656/42.06
Dimensions inches/mm
CONNECTOR PLUG
AND RECEPTACLE
COMBINATIONS
Receptacle
007
008
009
010
011
Insulator Variation Cover &
Body
Code
Cable Actuating Fixed
Type
No.
Entrance Screw Screw
001
No
Yes
No
002
No
No
Yes
003
Top
Yes
No
Plug
004
Side
Yes
No
005
Top
No
Yes
006
Side
No
Yes
Insulator Variation Cover &
Body
Code
Cable
Fixed Actuating
Type
No.
Entrance Nut
Nut
007
No
Yes
No
008
No
No
Yes
009
Top
Yes
No
Receptacle
010
Side
Yes
No
011
Top
No
Yes
012
Side
No
Yes
Plug
001
002
003
004
005
006
24
012

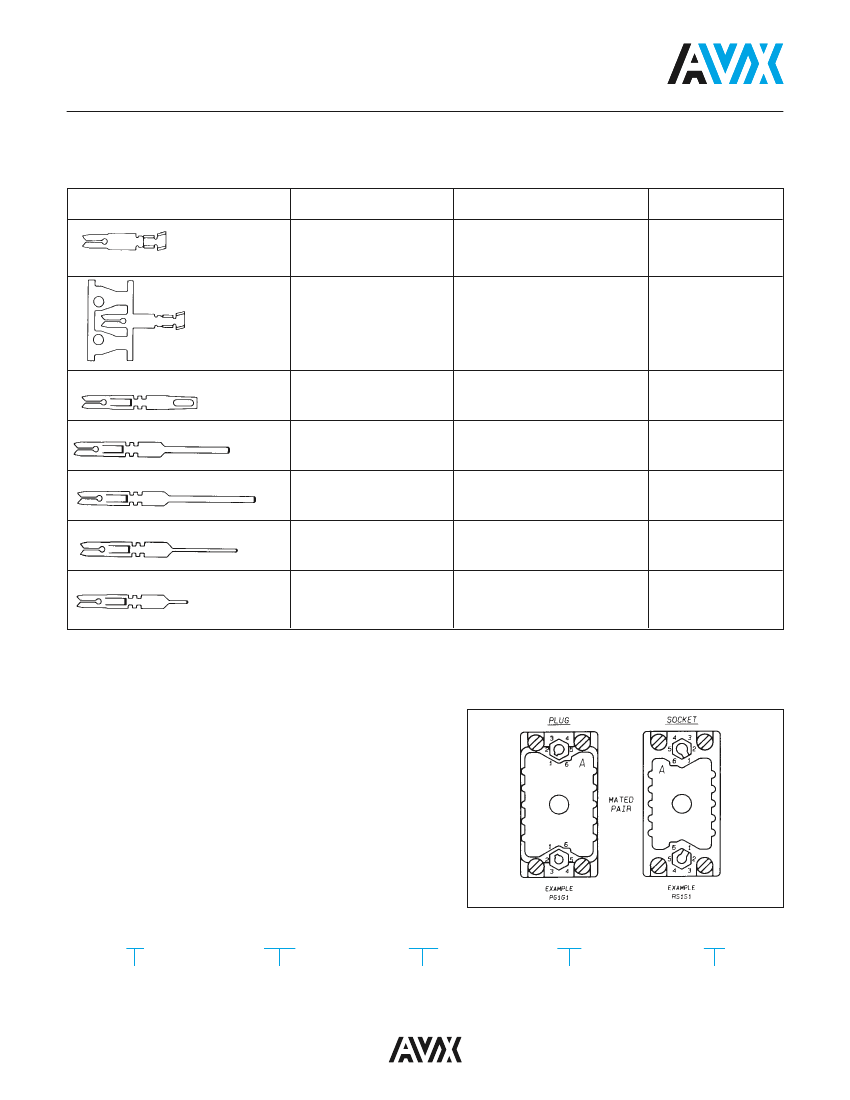

VARIATION CODE
Varilok
®
Loose Contacts
Varilok
®
connectors can be specified as either fully loaded, to
include the connector body and a variety of pre-loaded
contact termination types or the empty body and a selection
of separately specified and ordered contacts. The table
below details the various loose contacts available.
Contact Style
Description
Crimp Contact
Loose
Plating Specification
0.25µM Gold All Over (Standard)
0.25µM Gold Nose & Tail (Optional)
Order Code
60 8017 0313 00 339
60 8017 0313 00 042
*
Ordered separately
Crimp Contact End Carrier
(1800 Contacts per reel)
Ordered separately
Tail Section –
2.49 x 0.61 (0.098 x 0.024)
If fitted type 217
Tail Section –
1.27 x 0.63 (0.025 x 0.005)
14.4mm Maxiwrap Contact
If fitted type 218
Tail Section – 1.27 x 0.63 (0.025 x 0.005)
19.3mm Maxiwrap Contact
If fitted type 750
Tail Section –
0.635 x 0.63 (0.025 x 0.005)
14.0 Miniwrap Contact
If fitted type 296
Tail Section –
0.635 x 0.63 (0.025 x 0.005)
4.3mm PC Solder Contact
for ø 1.00 mm P.T.H.
0.25µM Gold All Over (Standard)
0.25µM Gold Nose & Tail (Optional)
0.25µM Gold All Over (Standard)
0.25µM Gold Nose & Tail (Optional)
60 8017 0323 99 339
60 8017 0323 99 042
60 8017 0323 00 339**
60 8017 0323 00 042**
*
Solder Tag Contact
0.25µM Gold All Over (Standard)
60 8017 0513 00 339
0.25µM Gold All Over (Standard)
60 8017 0613 00 339
0.25µM Gold All Over (Standard)
60 8017 0623 00 339
0.25µM Gold All Over (Standard)
60 8017 0633 00 339
*
If fitted type 504
* Indicates standard contact
0.25µM Gold All Over (Standard)
60 8017 0663 00 339
Plating code 343 = 0.50 µm Gold all over
** Order code to be used when purchasing through a USA source.
CONNECTOR POLARIZATION
Varicon
®
8016 Series connectors are designed with an integral polar-
izing system to ensure in high density environments that the correct
halves are mated together.
As a factory standard, male plugs are set to the code
P-G-1-G-1, with the female receptacles being set to the opposite
matching code R-S-1-S-1.
Customers who need to use this feature can either configure the polar-
ization codes themselves using hand tool 06-1989-02-000-0000, or
for an additional charge provide AVX with the required polarization
codes for presetting by the factory, which will be supplied as a
special part 58-8016-XXX-000-XXX.
ORDERING CODE
P
Type of Connector Half
Plug = P
Socket = R
G
Location Side
(Large Dia.)
Guide Pin = G
Guide Socket = S
1
Positions
1 through 6
G
Location Side
(Small Dia.)
Guide Pin = G
Guide Socket = S
1
Positions
1 through 6
