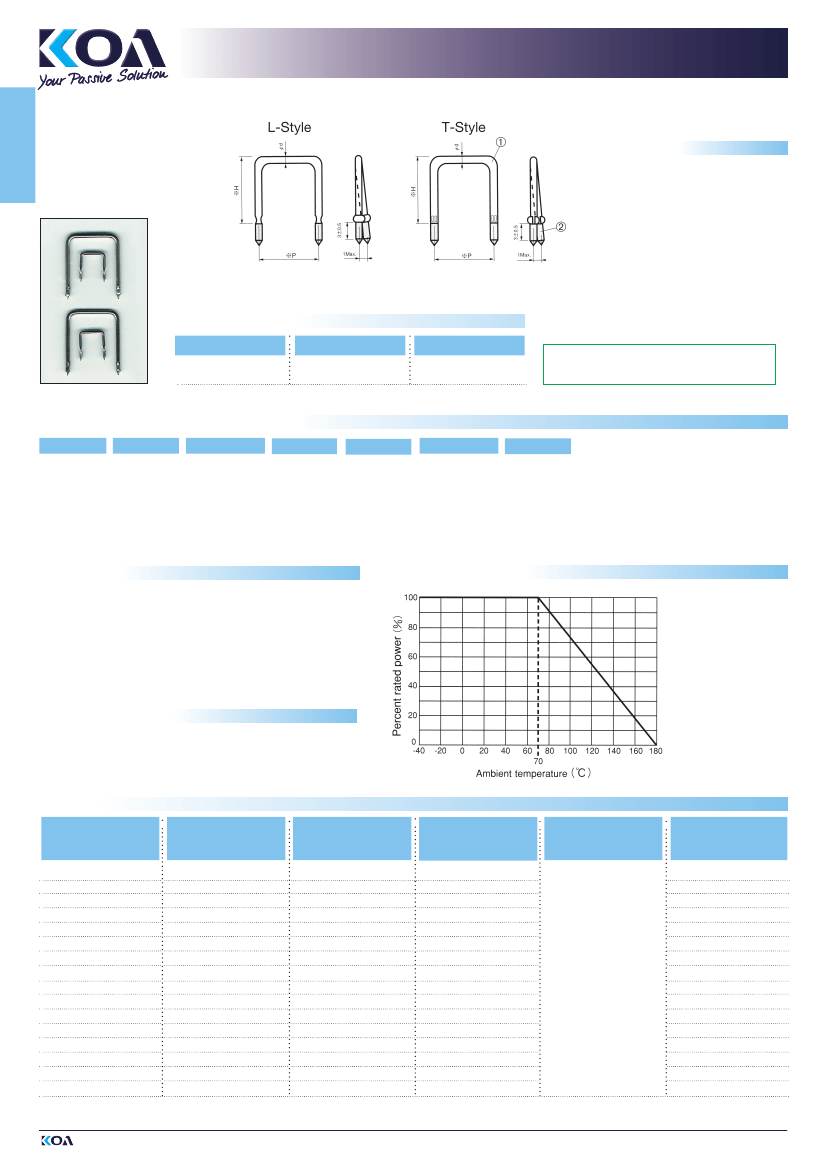

RESISTORS
RESISTORS
METAL PLATE
CUSTOM MILLIOHM
U-WIRE
LR
STRUCTURE
1
Resistive wire (copper nickel alloy)
2
Solder coating
IDEnTIFICaTIOn
PRODUCT CODE
LR
COaTIng COLOR
No coating
MaRKIng
No
all these products have Pb-free terminations and
meet EU-RoHS and China-RoHS requirements
TYPE DESIgnaTIOn (HOW TO ORDER)
PRODUCT
CODE
SYMBOL
06….20: L-STYLE
20… 29: T-STYLE
TERMINATION
SURFACE
MATERIAL
D: SnAgCu
STYLE
L or T
TERMINAL
PITCH
(Insertion Pitch)
NOMINAL
RESISTANCE
3 digits
RESISTANCE
TOLERANCE
H: (±3%)
J: (±5%)
'Blank': No surface treatment
FEaTURES
■
■
■
■
■
■
■
All custom-made products
Low resistance (3mΩ) is suitable for high power current detection
Various pitch and height dimensions are available
Easy soldering
Non-inductive type
Rated ambient temperature: +70°C
Operating temperature range: -40°C ... +180°C
DERaTIng CURVE
For resistors operated in
ambient temperature over
+70°C, power rating shall
derated like shown in
“DERATING CURVE”.
DIMEnSIOnS (mm)
Please see below for examples of wire diameters (ød)
Please consult with us about dimensions „P“ and „H“
T Style is applied for the diameter of ø 2.0 mm or above
RaTIng
TYPE
LR 06
LR 07
LR 08
LR 09
LR 10
LR 11
LR 12
LR 13
LR 14
LR 15
LR 16
LR 18
LR 20
LR 23
LR 26
LR 29
SYMBOL
06
07
08
09
10
11
12
13
14
15
16
18
20
23
26
29
DIaMETER (mm)
ød
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.8
2.0
2.3
2.6
2.9
MaXIMUM CURREnT
RaTIng
3.0 A
4.0 A
4.5 A
5.0 A
5.5 A
6.0 A
7.0 A
7.5 A
8.0 A
9.0 A
9.5 A
11 A
12 A
14 A
18 A
21 A
T.C.R.
(ppm/K)
±100
RESISTanCE RangE
H(±3%) • J(±5%)
50 mΩ ... 100 mΩ
30 mΩ ... 70 mΩ
20 mΩ ... 50 mΩ
20 mΩ ... 40 mΩ
15 mΩ ... 30 mΩ
15 mΩ ... 20 mΩ
10 mΩ ... 20 mΩ
10 mΩ ... 20 mΩ
10 mΩ ... 20 mΩ
10 mΩ ... 20 mΩ
10 mΩ ... 15 mΩ
5 mΩ ... 10 mΩ
5 mΩ ... 10 mΩ
3 mΩ ... 10 mΩ
3 mΩ ... 5 mΩ
3 mΩ ... 5 mΩ
Other diameters and resistances are also available on request.
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
114
Revision: 14. Dec. 2009
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order/or use.
Contact our sales representatives before you use our products for applications including
automotives, medical equipment and aerospace equipment. Malfunction or failure of the
products in such applications may cause loss of human life or serious damage .
LR
09
D
L
10
20L
J
Contact us when you have control request
for environmental hazardous material other
than the substance specified by EU-RoHS．
