CR0402TT100Y232K+/-1% datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CR0402TT100Y232K+/-1%

CR0402TT100Y232K+/-1%: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.0625W, 232000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size207KB，2 Pages; ManufacturerPrecision Resistive Products Inc; Environmental Compliance

Download Datasheet Parametric View All

CR0402TT100Y232K+/-1% Overview

Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 232000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE

CR0402TT100Y232K+/-1% Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Precision Resistive Products Inc
package instruction	CHIP, LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Manufacturer's serial number	CR
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	1 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.5 mm
method of packing	TR
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	232000 Ω
Resistor type	FIXED RESISTOR
series	CR
size code	0402
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

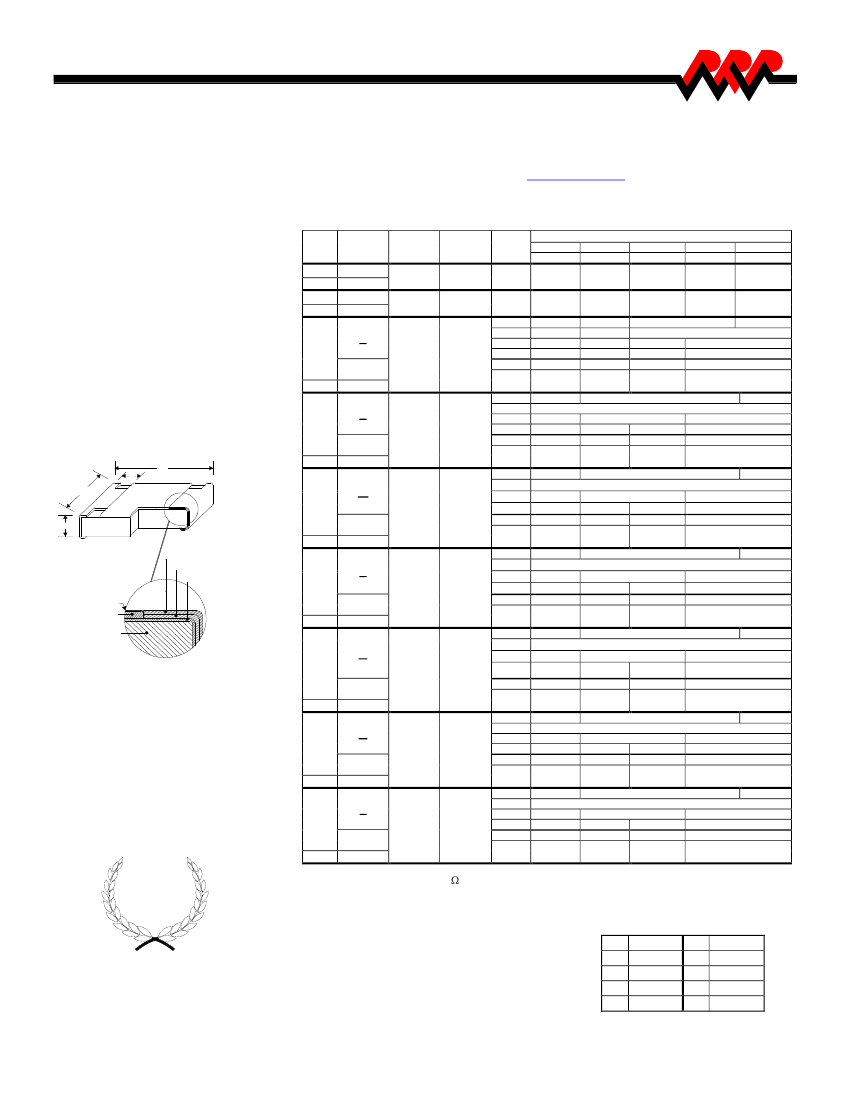

CR-SERIES

SURFACE MOUNT RESISTORS



Thick Film

Standard Industry Case Sizes

01005, 0201, 0402, 0603, 0805,

1206, 1210, 2010, 2512

Power Ratings

1/33W, 1/20W,

1/16W, 1/10W, 1/8W, 1/4W, 1/3W,

1/2W, 3/4W, 1W & 2W

PRECISION RESISTIVE PRODUCTS, INC.

202 MACK LANE, MEDIAPOLIS, IA 52637

(319)394-9131 FAX (319)394-9280

E-Mail

info@prpinc.com

PRP HOME PAGE http://www.prpinc.com

Specifications

Part

Size

Wattage

@ 70°C

Working

Voltage

Operating

Temp

-55°C to

+125°C

-55°C to

+125°C

Tolerance @ 25°C

±300

±200

±50

±100

±200

±400

±100

±200

±50

±100

±200

±400

±100

±200

±50

±100

±200

±400

±100

±200

±50

±100

±200

±400

±100

±200

±50

±100

±200

±0.1%

±0.25%

±0.5%

±1%

E-96 & E-24 E-96 & E-24 E-96 & E-24 E-96 & E-24

10R – 1M

10R - 1M

1R– 10M

±5%

E-24

10R - 1M

1R– 10M

01005

Jumper

1/32

0.5A

0201

Jumper

1/20

Temperature Coefficients

50PPM/°C

Resistance Tolerances

0.1%, 0.25%, 0.5%, 1%, & 5%

0402

Jumper

-55°C to

+155°C

100R-1M

10R-1M

1.02M-10M

1R - 9.76R, 1.02M - 20M

20.5M - 100M

10R - 1M

1R - 9.76R

1R – 9.76R, 1.02M – 20M

20.5M – 100M

10R-1M

1R – 9.76R

1R – 9.76R, 1.02M – 20M

20.5M – 100M

10R-1M

1R – 9.76R

1R – 9.76R, 1.02M – 20M

20.5M – 100M

10R-1M

1R – 9.76R

1R – 9.76R, 1.02M – 20M

20.5M – 39M

10R – 1M

1R – 9.76R

1R – 9.76R, 1.02M – 20M

20.5M – 100M

10R – 1M

1R – 9.76R

1R – 9.76R, 1.02M – 20M

20.5M – 100M

10R – 1M

1R – 9.76R

Packaging is Tape & Reel

Zero Ohm/Jumper Chips

0603

Jumper

-55°C to

+155°C

10R – 10M

10R – 1M

1.02M-10M

0805

150

Jumper

Termination

(Outer)

Termination

(Barrier)

Termination

(Inner)

-55°C to

+155°C

10R – 10M

10R – 1M

1.02M-10M

1206

O, U

Jumper

200

-55°C to

+155°C

Protective

Coating

Resistive

Element

Alumina

Substrate

10R – 10M

10R – 1M

1.02M-10M

10R – 10M

10R – 1M

1.02M-10M

1210

U, Q

Jumper

200

2.5A

-55°C to

+155°C

±400

±100

±200

±50

±100

±200

±400

±100

±200

±50

±100

±200

±400

±100

±200

2010

Jumper

200

3.5A

-55°C to

+155°C

10R – 10M

10R – 1M

1.02M-10M

2512

Jumper

250

-55°C to

+155°C

10R – 10M

10R – 1M

1.02M-10M

(Jumper Chips – resistance value ≤ 0.05 , load current to be derated in accordance with figure 1 power derating curve)

Power Ratings

DEDICATION TO EXCELLENCE

Subject to change without notice

1/16W

1/10W

1/8W

1/6W

1/5W

1/4W

1/3W

1/2W

3/4W

Rev. H 10/7/13
