LY61L20498A
Rev 1.0
2048K X 8 BIT HIGH SPEED CMOS SRAM
REVISION HISTORY
Revision
Rev. 1.0
Description
Initial Issue
Issue Date
Oct.21.2014
2F, No. 17, Industry E. Rd. II, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
0
®
LY61L20498A
Rev 1.0
2048K X 8 BIT HIGH SPEED CMOS SRAM
GENERAL DESCRIPTION
The LY61L20498A is a 16M-bit high speed CMOS
static random access memory organized as 2048K
words by 8 bits. It is fabricated using very high
performance, high reliability CMOS technology. Its
standby current is stable within the range of
operating temperature.
The LY61L20498A operates from a single power
supply of 3.3V and all inputs and outputs are fully
TTL compatible
FEATURES
Fast access time : 10ns
Low power consumption:
Operating current : 70mA (TYP.)
Standby current : 4mA(TYP.)
Single 3.3V power supply
All inputs and outputs TTL compatible
Fully static operation
Tri-state output
Data retention voltage : 1.5V (MIN.)
Green package available
Package : 54-pin 400 mil TSOP-II
48-ball 6mm x 8mm TFBGA
PRODUCT FAMILY
Product
Family
LY61L20498A
LY61L20498A(I)
Operating
Temperature
0 ~ 70℃
-40 ~ 85℃
V
CC
Range
2.7 ~ 3.6V
2.7 ~ 3.6V
Speed
10ns
10ns
Power Dissipation
Standby(I
SB1
,
TYP.) Operating(I
CC
,TYP.)
4mA
70mA
4mA
70mA
FUNCTIONAL BLOCK DIAGRAM
PIN DESCRIPTION
SYMBOL
DESCRIPTION
Address Inputs
Data Inputs/Outputs
Chip Enable Inputs
Write Enable Input
Output Enable Input
Power Supply
Ground
No Connection
Vcc
Vss
A0 – A20
DQ0 – DQ7
DECODER
2048Kx8
MEMORY ARRAY
CE#, CE2
WE#
OE#
V
CC
V
SS
NC
A0-A20
DQ0-DQ7
I/O DATA
CIRCUIT
COLUMN I/O
CE#
CE2
WE#
OE#
CONTROL
CIRCUIT
2F, No. 17, Industry E. Rd. II, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
1
®
LY61L20498A
Rev 1.0
2048K X 8 BIT HIGH SPEED CMOS SRAM

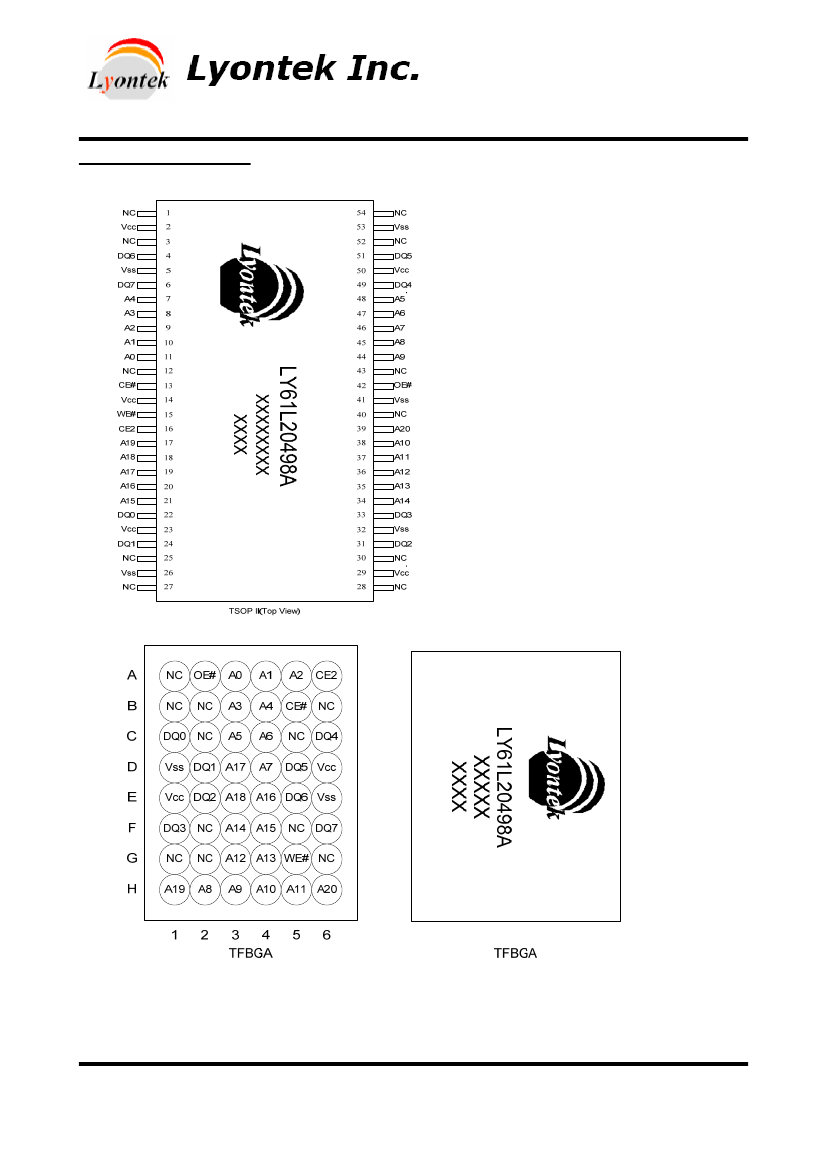

PIN CONFIGURATION
2F, No. 17, Industry E. Rd. II, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
2
®
LY61L20498A
Rev 1.0
2048K X 8 BIT HIGH SPEED CMOS SRAM
ABSOLUTE MAXIMUN RATINGS*
PARAMETER
Voltage on V
CC
relative to V
SS
Voltage on any other pin relative to V
SS
Operating Temperature
Storage Temperature
Power Dissipation
DC Output Current
SYMBOL
V
T1
V
T2
T
A
T
STG
P
D
I
OUT
RATING
-0.5 to 4.6
-0.5 to V
CC
+0.5
0 to 70(C grade)
-40 to 85(I grade)
-65 to 150
1
50
UNIT
V
V
℃
℃
W
mA
*Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress
rating only and functional operation of the device or any other conditions above those indicated in the operational sections of this
specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect device reliability.
TRUTH TABLE
MODE
Standby
Output Disable
Read
Write
Note:
CE#
H
X
L
L
L
CE2
X
L
H
H
H
OE#
X
X
H
L
X
WE#
X
X
H
H
L
I/O OPERATION
High-Z
High-Z
High-Z
D
OUT
D
IN
SUPPLY CURRENT
I
SB1
I
SB1
I
CC
I
CC
I
CC
H = V
IH
, L = V
IL
, X = Don't care.
DC ELECTRICAL CHARACTERISTICS
PARAMETER
Supply Voltage
Input High Voltage
Input Low Voltage
Input Leakage Current
Output Leakage
Current
Output High Voltage
Output Low Voltage
Average Operating
Power supply
Current
Standby Power
Supply Current
SYM.
TEST CONDITION
V
CC
*1
V
IH
*2
V
IL
I
LI
V
CC
≧
V
IN
≧
V
SS
V
CC
≧
V
OUT
≧
V
SS
,
I
LO
Output Disabled
V
OH
I
OH
= -4mA
V
OL
I
OL
= 8mA
CE#
≤0.2V
and CE2≧ V
CC
-0.2V, -10
I
CC
other pins at 0.2V or V
CC
-0.2V,
-12
I
I/O
= 0mA; f=max.
CE#
≧
V
CC
- 0.2V;
I
SB1
other pins at 0.2V or V
CC
-0.2V.
MIN.
2.7
2.2
- 0.3
-1
-1
2.4
-
-
-
-
TYP.
3.3
-
-
-
-
-
-
70
65
4
*4
MAX.
3.6
V
CC
+0.3
0.8
1
1
-
0.4
120
110
40
UNIT
V
V
V
µA
µA
V
V
mA
mA
mA
Notes:
1. V
IH(MAX)
= V
CC
+ 2.0V for pulse width less than 6ns.
2. V
IL(MIN)
= V
SS
- 2.0V for pulse width less than 6ns.
3. Over/Undershoot specifications are characterized on engineering evaluation stage, not for mass production test.
4. Typical values are included for reference only and are not guaranteed or tested.
Typical valued are measured at V
CC
= V
CC(TYP.)
and T
A
= 25℃
2F, No. 17, Industry E. Rd. II, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
3
®
LY61L20498A
Rev 1.0
2048K X 8 BIT HIGH SPEED CMOS SRAM
CAPACITANCE
(T
A
= 25
℃
, f = 1.0MHz)
PARAMETER
Input Capacitance
Input/Output Capacitance
SYMBOL
C
IN
C
I/O
MIN.
-
-
MAX
8
10
UNIT
pF
pF
Note : These parameters are guaranteed by device characterization, but not production tested.
AC TEST CONDITIONS
speed
Input Pulse Levels
Input Rise and Fall Times
Input and Output Timing Reference Levels
Output Load
10/12ns
0.2V to Vcc-0.2V
3ns
V
CC
/2
C
L
= 30pF + 1TTL, I
OH
/I
OL
= -4mA/8mA
AC ELECTRICAL CHARACTERISTICS
(1) READ CYCLE
PARAMETER
Read Cycle Time
Address Access Time
Chip Enable Access Time
Output Enable Access Time
Chip Enable to Output in Low-Z
Output Enable to Output in Low-Z
Chip Disable to Output in High-Z
Output Disable to Output in High-Z
Output Hold from Address Change
(2) WRITE CYCLE
PARAMETER
Write Cycle Time
Address Valid to End of Write
Chip Enable to End of Write
Address Set-up Time
Write Pulse Width
Write Recovery Time
Data to Write Time Overlap
Data Hold from End of Write Time
Output Active from End of Write
Write to Output in High-Z
SYM.
t
RC
t
AA
t
ACE
t
OE
t
CLZ
*
t
OLZ
*
t
CHZ
*
t
OHZ
*
t
OH
LY61L20498A-10
MIN.
MAX.
10
-
-
10
-
10
-
4.5
2
-
0
-
-
4
-
4
2
-
LY61L20498A-12
MIN.
MAX.
12
-
-
12
-
12
-
5
3
-
0
-
-
5
-
5
2
-
UNIT
ns
ns
ns
ns
ns
ns
ns
ns
ns
SYM.
t
WC
t
AW
t
CW
t
AS
t
WP
t
WR
t
DW
t
DH
t
OW
*
t
WHZ
*
LY61L20498A-10
MIN.
MAX.
10
-
8
-
8
-
0
-
8
-
0
-
6
-
0
-
2
-
-
4
LY61L20498A-12
MIN.
MAX.
12
-
10
-
10
-
0
-
10
-
0
-
7
-
0
-
2
-
-
5
UNIT
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
*These parameters are guaranteed by device characterization, but not production tested.
2F, No. 17, Industry E. Rd. II, Science-Based Industrial Park, Hsinchu 300, Taiwan.
TEL: 886-3-6668838
FAX: 886-3-6668836
Lyontek Inc.
reserves the rights to change the specifications and products without notice.
4
