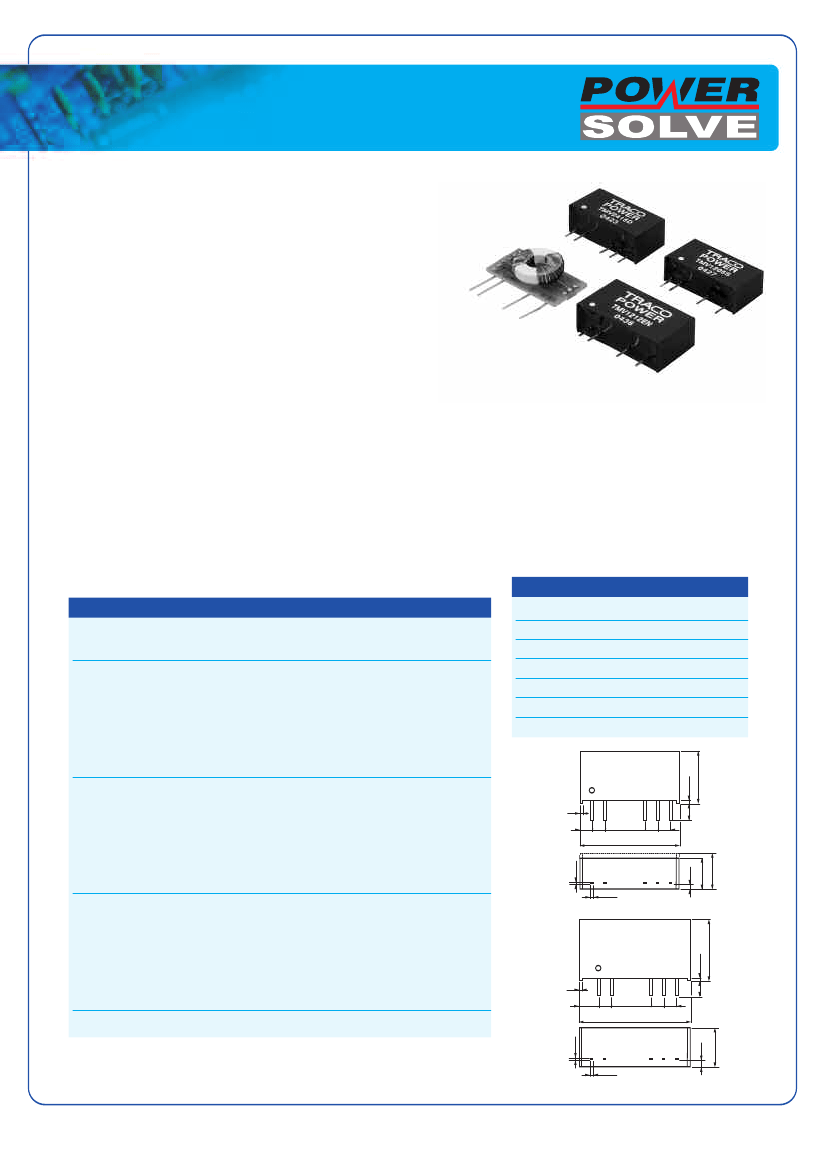

DC/DC Converters,

TMV/TMV-EN Series, 1 Watt

Single-in-Line (SIL) Package

Single and Dual Output Models

I/O Isolation Voltage 3000 VDC (TMV-EN 3000 VAC)

Operating Temperature Range –40°C to +85°C

High Isolation

www.powersolve.co.uk

Supplementary Insulation rated for 250 VAC Working Voltage (TMV-EN)

Safety Barrier 100% Production tested (TMV-EN)

100% Burn-in

Line regulation:

Load regulation:

Ripple & Noise:

Short circuit protection:

Efficiency:

Operating temperature range:

I/O isolation voltage:

I/O isolation capacitance:

I/O isolation resistance:

Safety standards / approvals:

Case:

non regulated

±10% max.

<100 mVpk-pk (20 MHz BW)

limited 1 sec.

– TMV: 77% typ.

– TMV-EN: 67% typ.

–40°C … +85°C (no derating)

– TMV: 3000 VDC

– TMV-EN: 3000 VACrms

– TMV: 60 pF typ.

– TMV-EN: 10 pF typ.

>1000 Mohm

TMV-EN: IEC/EN 60950 (rated for 250 VAC working voltage)

plastic (UL 94V-0 rating)

Pin-Out

Models

Order Code

Input voltage

Output voltage

Output current

max.

200 mA

80 mA

65 mA

±100 mA

±40 mA

0.5 (0.02)

0.5

(0.02)

2.3 2.54

(0.09) (0.1)

7.62

(0.3)

19.5 (0.77)

Bottom view

2.54 2.54

(0.1) (0.1)

Single output

+ Vin (Vcc)

– Vin (GND)

– Vout

No pin

+ Vout

Dual output

+ Vin (Vcc)

– Vin (GND)

– Vout

Common

+ Vout

TMV 0505S TMV 0505 EN

TMV 0512S TMV 0512 EN

TMV 0515S TMV 0515 EN

TMV 0505D TMV 0505D EN

TMV 0512D TMV 0512D EN

TMV 0515D TMV 0515D EN

TMV 1205S TMV 1205 EN

TMV 1212S TMV 1212 EN

TMV 1215S TMV 1215 EN

TMV 1205D TMV 1205D EN

TMV 1212D TMV 1212D EN

TMV 1215D TMV 1215D EN

TMV 2405S

TMV 2412S

TMV 2415S

TMV 2405D

TMV 2412D

TMV 2415D

24 VDC ± 10%

12 VDC ± 10%

5 VDC ± 10%

5 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

5 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

5 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

200 mA

80 mA

65 mA

±100 mA

3.2

(0.13)

±40 mA

±30 mA

200 mA

80 mA

65 mA

±100 mA

±40 mA

±30 mA

TMV-EN

0.5 (0.02)

0.5

(0.02)

3.5

(0.14)

2.54

(0.1)

7.62

(0.3)

22.0 (0.87)

Bottom view

2.54 2.54

(0.1) (0.1)

0.25 (0.01)

7.5 (0.30)

1.75 (0.07)

3.2

(0.13)

0.5 (0.02)

12.5 (0.49)

7.0 (0.28)

24 V Models

0.25 (0.01)

6.0 (0.24)

1.25 (0.05)

10.2 (0.4)

±30 mA

TMV

0.5 (0.02)

() = Inches

Powe

rsolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
