EPM5130WM883B-2 datasheet, PDF

EPM5130WM883B-2: DescriptionUV PLD, 45ns, 128-Cell, CMOS, CQFP100, WINDOWED, CERAMIC, QFP-100; CategoryProgrammable logic devices Programmable logic; File Size261KB，10 Pages; ManufacturerAltera (Intel)

Download Datasheet Parametric View All

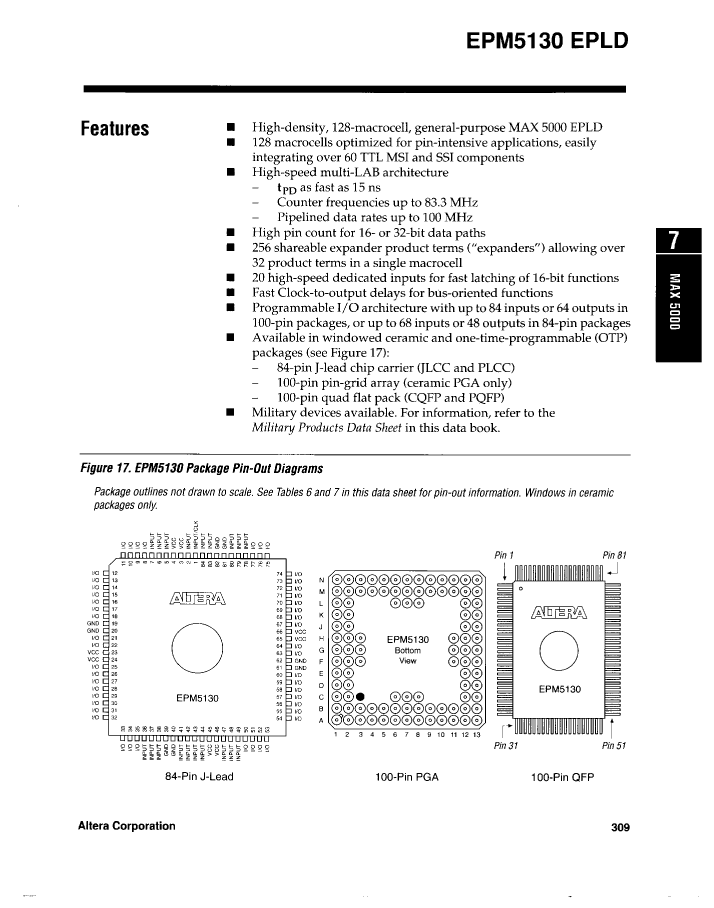

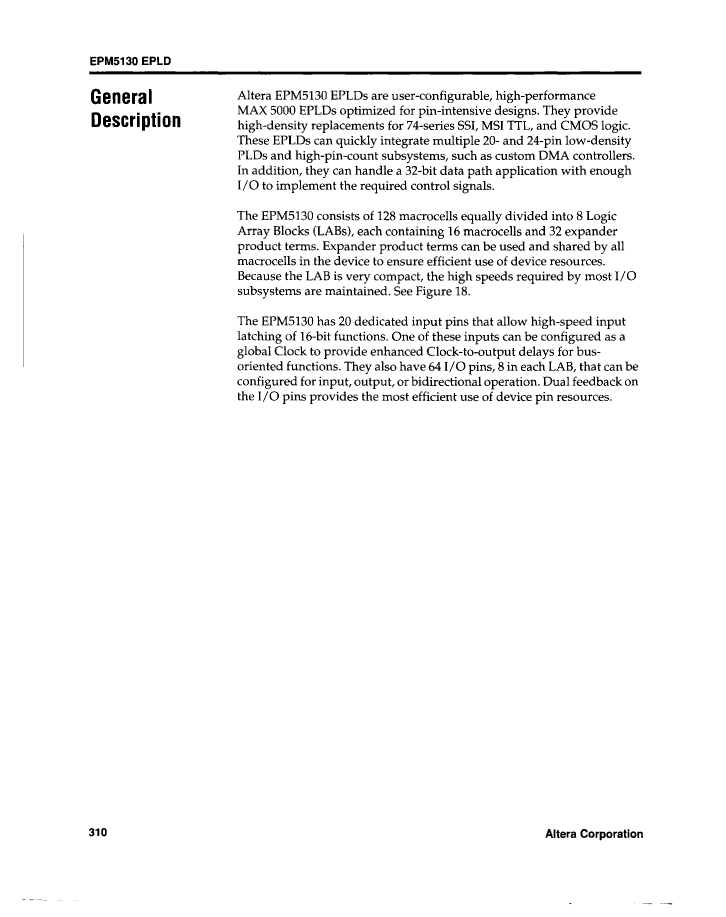

EPM5130WM883B-2 Overview

UV PLD, 45ns, 128-Cell, CMOS, CQFP100, WINDOWED, CERAMIC, QFP-100

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Altera (Intel)
Parts packaging code	QFP
package instruction	WQFP, QFP100,.7X.9
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

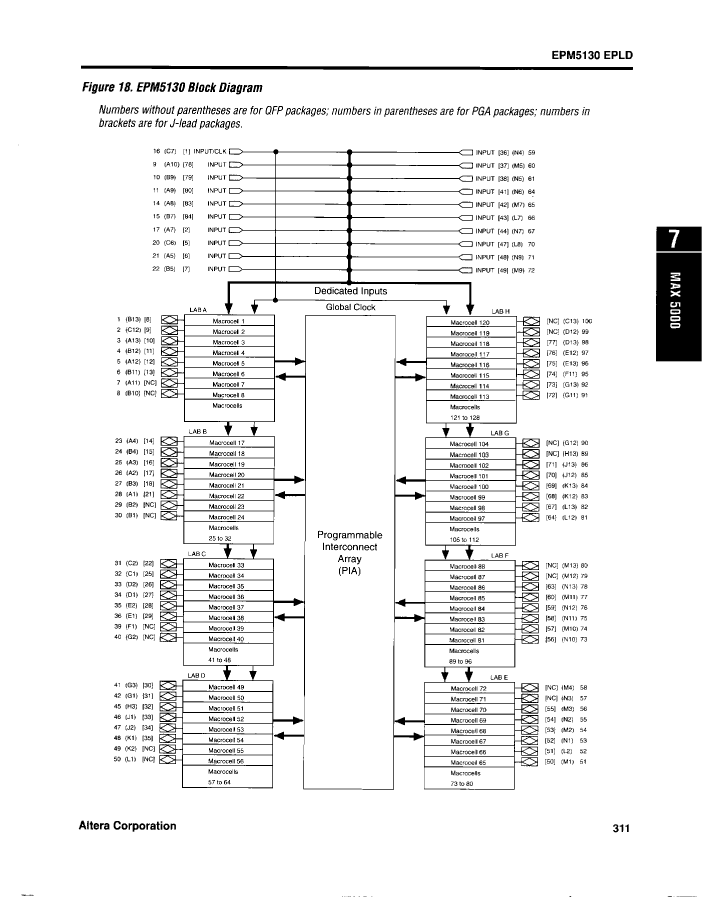

Other features	LABS INTERCONNECTED BY PIA; 8 LABS; 128 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	40 MHz
In-system programmable	NO
JESD-30 code	R-CQFP-G100
JESD-609 code	e0
JTAG BST	NO
length	19.2 mm
Dedicated input times	19
Number of I/O lines	64
Number of macro cells	128
Number of terminals	100

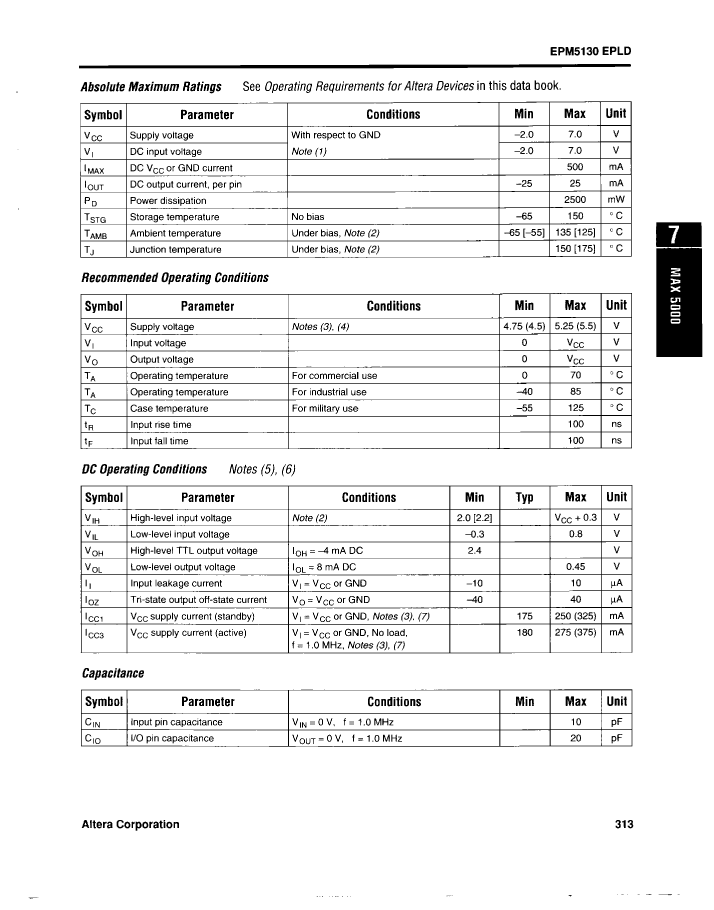

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	19 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQFP
Encapsulate equivalent code	QFP100,.7X.9
Package shape	RECTANGULAR
Package form	FLATPACK, WINDOW
power supply	5 V
Programmable logic type	UV PLD
propagation delay	45 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.99 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
