64Kx16 Bit High-Speed CMOS Static RAM(5.0V Operating).
Operated at Commercial and Industrial Temperature Ranges.
CMOS SRAM
Revision History
Rev. No.
Rev. 0.0
Rev. 1.0
History
Initial release with preliminary.
Relax DC characteristics.
Item
I
CC
12ns
15ns
20ns
Add 48-fine pitch BGA.
Changed device part name for FP-BGA.
Item
Previous
Symbol
Z
ex) K6R1016C1C-Z -> K6R1016C1C-F
Changed device ball name for FP-BGA.
Previous
I/O1 ~ I/O8
I/O9 ~ I/O16
Added Data Retention Characteristics.
Add 10ns part.
Delete 20ns speed bin
Draft Data
Aug. 5. 1998
Sep. 7. 1998
Previous
90mA
88mA
85mA
Changed
95mA
93mA
90mA
Sep. 17. 1998
Nov. 5. 1998
Changed
F
Preliminary
Final
Remark
Preliminary
Preliminary
Rev. 2.0
Rev. 2.1
Rev. 2.2
Dec. 10. 1998
Changed
I/O9 ~ I/O16
I/O1 ~ I/O8
Mar. 3. 1999
Mar. 3. 2000
Sep.24. 2001
Final
Rev. 3.0
Rev. 3.1
Rev. 4.0
Final
Final
Final
The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions on the parameters of this device. If you have any questions,
please contact the SAMSUNG branch office near your office, call or contact Headquarters.
-1-
Revision 4.0
September 2001
K6R1016C1C-C/C-L, K6R1016C1C-I/C-P
64K x 16 Bit High-Speed CMOS Static RAM
FEATURES
• Fast Access Time 10,12,15ns(Max.)
• Low Power Dissipation
Standby (TTL)
: 30mA(Max.)
(CMOS) : 5mA(Max.)
0.5mA(Max.) L-ver. only
Operating K6R1016C1C-10 : 105mA(Max.)
K6R1016C1C-12 : 95mA(Max.)
K6R1016C1C-15 : 93mA(Max.)
• Single 5.0V±10% Power Supply
• TTL Compatible Inputs and Outputs
• I/O Compatible with 3.3V Device
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• 2V Minimum Data Retention: L-ver. only
• Center Power/Ground Pin Configuration
• Data Byte Control: LB: I/O
1
~ I/O
8
, UB: I/O
9
~ I/O
16
• Standard Pin Configuration:
K6R1016C1C-J : 44-SOJ-400
K6R1016C1C-T: 44-TSOP2-400BF
K6R1016C1C-F: 48-Fine pitch BGA with 0.75 Ball pitch
CMOS SRAM
GENERAL DESCRIPTION
The K6R1016C1C is a 1,048,576-bit high-speed Static Random
Access Memory organized as 65,536 words by 16 bits. The
K6R1016C1C uses 16 common input and output lines and has
at output enable pin which operates faster than address access
time at read cycle. Also it allows that lower and upper byte
access by data byte control (UB, LB). The device is fabricated
using SAMSUNG′s advanced CMOS process and designed for
high-speed circuit technology. It is particularly well suited for
use in high-density high-speed system applications. The
K6R1016C1C is packaged in a 400mil 44-pin plastic SOJ or
TSOP2 forward or 48-Fine pitch BGA.
FUNCTIONAL BLOCK DIAGRAM
Clk Gen.
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
I/O
1
~I/O
8
I/O
9
~I/O
16
ORDERING INFORMATION
K6R1016C1C-C10/C12/C15
Commercial Temp.
Industrial Temp.
K6R1016C1C-I10/I12/I15
Pre-Charge Circuit
Row Select
Memory Array
512 Rows
128x16 Columns
PIN FUNCTION
Pin Name
Data
Cont.
Data
Cont.
Gen.
CLK
A
9
A
10
A
11
A
12
A
13
A
14
A
15
Pin Function
Address Inputs
Write Enable
Chip Select
Output Enable
Lower-byte Control(I/O
1
~I/O
8
)
Upper-byte Control(I/O
9
~I/O
16
)
Data Inputs/Outputs
Power(+5.0V)
Ground
No Connection
I/O Circuit &
Column Select
A
0
- A
15
WE
CS
OE
LB
UB
I/O
1
~ I/O
16
WE
OE
UB
LB
CS
V
CC
V
SS
N.C
-2-
Revision 4.0
September 2001
K6R1016C1C-C/C-L, K6R1016C1C-I/C-P

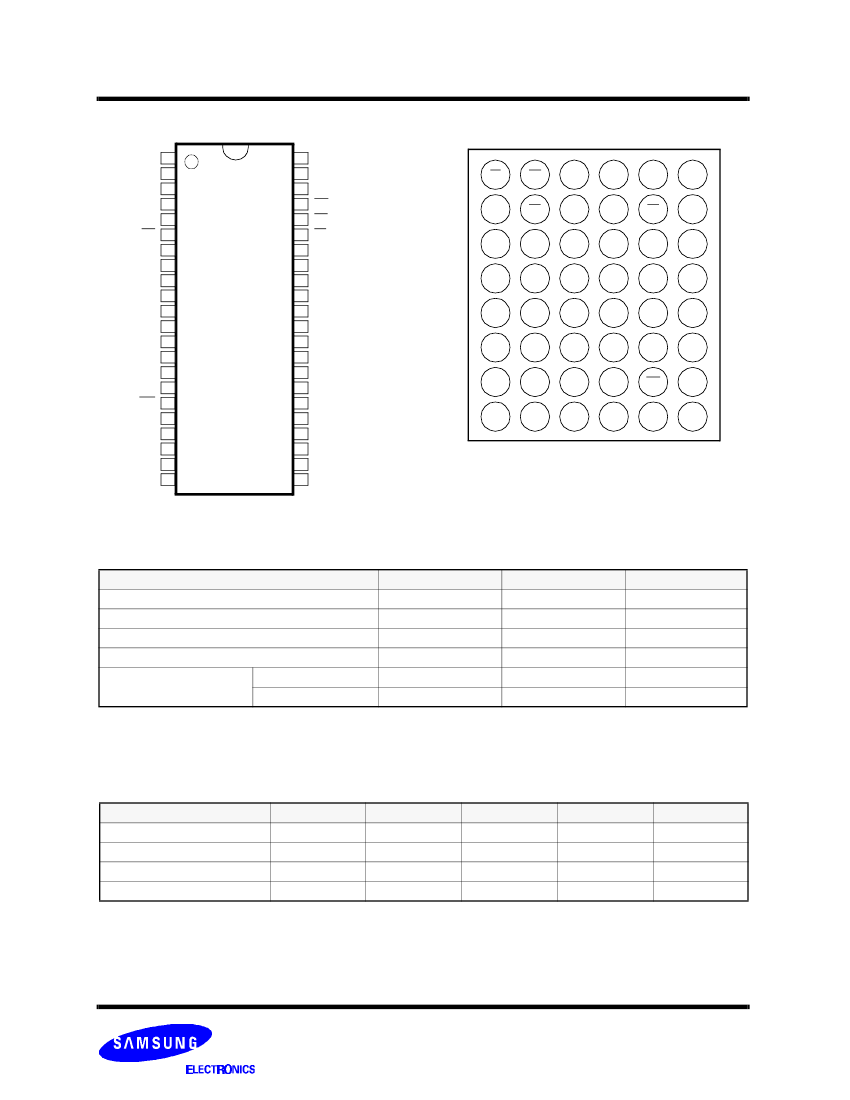

PIN CONFIGURATION(TOP
VIEW)
1
2
3
CMOS SRAM
4
5
6
A
0
A
1
A
2
A
3
A
4
CS
I/O
1
I/O
2
I/O
3
1
2
3
4
5
6
7
8
9
44 A
15
43 A
14
42 A
13
41 OE
40 UB
39 LB
38 I/O
16
37 I/O
15
36 I/O
14
D
Vss
I/O4
N.C
A7
I/O12
Vcc
C
I/O2
I/O3
A5
A6
I/O11
I/O10
B
I/O1
UB
A3
A4
CS
I/O9
A
LB
OE
A0
A1
A2
N.C
I/O
4
10
Vcc 11
Vss 12
I/O
5
13
I/O
6
14
I/O
7
15
I/O
8
16
WE 17
A
5
18
A
6
19
A
7
20
A
8
21
N.C 22
SOJ/
TSOP2
35 I/O
13
34 Vss
33 Vcc
32 I/O
12
31 I/O
11
30 I/O
10
29 I/O
9
28 N.C
27 A
12
26 A
11
25 A
10
24 A
9
23 N.C
H
N.C
A8
A9
A10
A11
N.C
G
I/O8
N.C
A12
A13
WE
I/O16
F
I/O7
I/O6
A14
A15
I/O14
I/O15
E
Vcc
I/O5
N.C
N.C
I/O13
Vss
48-CSP
ABSOLUTE MAXIMUM RATINGS*
Parameter
Voltage on Any Pin Relative to V
SS
Voltage on V
CC
Supply Relative to V
SS
Power Dissipation
Storage Temperature
Operating Temperature
Commercial
Industrial
Symbol
V
IN
, V
OUT
V
CC
P
d
T
STG
T
A
T
A
Rating
-0.5 to V
CC
+0.5
-0.5 to 7.0
1
-65 to 150
0 to 70
-40 to 85
Unit
V
V
W
°C
°C
°C
*
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may affect reliability.
RECOMMENDED DC OPERATING CONDITIONS*
(TA= to 70°C)
Parameter
Supply Voltage
Ground
Input High Voltage
Input Low Voltage
Symbol
V
CC
V
SS
V
IH
V
IL
Min
4.5
0
2.2
-0.5**
Typ
5.0
0
-
-
Max
5.5
0
V
CC
+0.5***
0.8
Unit
V
V
V
V
* The above parameters are also guaranteed at industrial temperature range.
**
V
IL
(Min) = -2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA.
***
V
IH
(Max) = V
CC +
2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA.
-3-
Revision 4.0
September 2001
K6R1016C1C-C/C-L, K6R1016C1C-I/C-P
CMOS SRAM
DC AND OPERATING CHARACTERISTICS*
(T
A
=0 to 70°C, Vcc=5.0V±10%, unless otherwise specified)
Parameter
Input Leakage Current
Output Leakage Current
Operating Current
Symbol
I
LI
I
LO
I
CC
Test Conditions
V
IN
=V
SS
to V
CC
CS=V
IH
or OE=V
IH
or WE=V
IL
V
OUT
=V
SS
to V
CC
Min. Cycle, 100% Duty
CS=V
IL,
V
IN
= V
IH
or V
IL,
I
OUT
=0mA
10ns
12ns
15ns
Standby Current
I
SB
I
SB1
Min. Cycle, CS=V
IH
f=0MHz, CS
≥V
CC
-0.2V,
V
IN
≥V
CC
-0.2V or V
IN
≤0.2V
I
OL
=8mA
I
OH
=-4mA
I
OH1
=-0.1mA
Normal
L-Ver.
Min
-2
-2
-
-
-
-
-
-
-
2.4
-
Max
2
2
105
95
93
30
5
0.5
0.4
-
3.95
V
V
V
mA
mA
Unit
µA
µA
mA
Output Low Voltage Level
Output High Voltage Level
V
OL
V
OH
V
OH1
**
* The above parameters are also guaranteed at industrial temperature range.
** V
CC
=5.0V±5%, Temp.=25°C
CAPACITANCE*
(T
A
=25°C, f=1.0MHz)
Item
Input/Output Capacitance
Input Capacitance
* Capacitance is sampled and not 100% tested.
Symbol
C
I/O
C
IN
Test Conditions
V
I/O
=0V
V
IN
=0V
MIN
-
-
Max
8
6
Unit
pF
pF
AC CHARACTERISTICS
(T
A
=0 to 70°C, V
CC
=5.0V±10%, unless otherwise noted.)
TEST CONDITIONS*
Parameter
Input Pulse Levels
Input Rise and Fall Times
Input and Output timing Reference Levels
Output Loads
* The above test conditions are also applied at industrial temperature range.
Value
0V to 3V
3ns
1.5V
See below
Output Loads(A)
Output Loads(B)
for t
HZ
, t
LZ
, t
WHZ
, t
OW
, t
OLZ
& t
OHZ
R
L
= 50Ω
+5.0V
D
OUT
V
L
= 1.5V
Z
O
= 50Ω
30pF*
D
OUT
480Ω
255
Ω
5pF*
* Capacitive Load consists of all components of the
test environment.
* Including Scope and Jig Capacitance
-4-
Revision 4.0
September 2001
K6R1016C1C-C/C-L, K6R1016C1C-I/C-P
READ CYCLE*
Parameter
Read Cycle Time
Address Access Time
Chip Select to Output
Output Enable to Valid Output
UB, LB Access Time
Chip Enable to Low-Z Output
UB, LB Enable to Low-Z Output
Output Enable to Low-Z Output
Chip Disable to High-Z Output
Output Disable to High-Z Output
UB, LB Disable to High-Z Output
Output Hold from Address Change
Chip Selection to Power Up Time
Chip Selection to Power DownTime
Symbol
t
RC
t
AA
t
CO
t
OE
t
BA
t
LZ
t
BLZ
t
OLZ
t
HZ
t
OHZ
t
BHZ
t
OH
t
PU
t
PD
K6R1016C1C-10
Min
10
-
-
-
-
3
0
0
0
0
0
3
0
-
Max
-
10
10
5
5
-
-
-
5
5
5
-
-
10
K6R1016C1C-12
Min
12
-
-
-
-
3
0
0
0
0
0
3
0
-
Max
-
12
12
6
6
-
-
-
6
6
6
-
-
12
CMOS SRAM
K6R1016C1C-15
Min
15
-
-
-
-
3
0
0
-
-
-
3
0
-
Max
-
15
15
7
7
-
-
-
7
7
7
-
-
15
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
WRITE CYCLE*
Parameter
Write Cycle Time
Chip Select to End of Write
Address Set-up Time
Address Valid to End of Write
Write Pulse Width(OE High)
Write Pulse Width(OE Low)
UB, LB Valid to End of Write
Write Recovery Time
Write to Output High-Z
Data to Write Time Overlap
Data Hold from Write Time
End Write to Output Low-Z
Symbol
t
WC
t
CW
t
AS
t
AW
t
WP
t
WP1
t
BW
t
WR
t
WHZ
t
DW
t
DH
t
OW
K6R1016C10-12
Min
10
7
0
7
7
10
7
0
0
5
0
3
Max
-
-
-
-
-
-
-
-
5
-
-
-
K6R1016C1C-12
Min
12
8
0
8
8
12
8
0
0
6
0
3
Max
-
-
-
-
-
-
-
-
6
-
-
-
K6R1016C1C-15
Min
15
9
0
9
9
15
9
0
0
7
0
3
Max
-
-
-
-
-
-
-
-
7
-
-
-
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
The program I wrote stores the data after AD conversion directly. After checking the contents of the off-chip SRAM, I found that the data was stored twice. Could someone please give me some advice? Th...
Hey, the dormitory has been intelligently limited in electricity~~The washing machine can only be turned on for washing, but not for rinsing and drying. The circuit breaker trips when it reaches the r...
Has anyone used Samsung 6410 + DDR + OneNand (WinCE)? The BSP provided by Samsung only supports NAND. There is no OneNand. Does Samsung have a corresponding BSP?...
[i=s]This post was last edited by Jacktang on 2017-6-21 20:58[/i] [size=3][color=#333333]Constant current diodes and constant current transistors are semiconductor constant current devices that have b...
I now want to implement the IAP of STM8S207RB. By modifying the .icf file, I have to burn two programs. First burn a boot program, and then burn a formal program, and I found that it can be used norma...
Single-chip industrial control board Single-chip control board 20-point control board: JMDM-20DIO control board manual Features: 1: 8-bit high-performance single-chip microcomputer as the main control...
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guang...[Details]
In recent years, the market for mobile/portable devices such as smartphones and laptops has continued to grow rapidly. While these products continue to integrate more new features to enhance the ...[Details]
1. Introduction
Light control circuit plays a vital role in urban street lamps or corridor lighting. With light control circuit, the lights can be automatically turned on and off according to ...[Details]
Images in science fiction movies often break through the limits of reality, such as in the movie "Minority Report." Tom Cruise uses a multi-touch screen to browse information. Capacitive sensing te...[Details]
1 Introduction
As an emerging microfabrication technology, micro-electromechanical system (MEMS) technology has begun to be applied in various fields. It can integrate functions such as inform...[Details]
We know that microcontroller development tools generally include real-time online emulators and programmers. Among them, online emulators are very good tools, but they are also more expensive...[Details]
AD8205 is
a single-supply high-performance differential
amplifier
launched by
Analog
Devices of the United States
. The typical single-supply voltage is 5V, and its common-mode volta...[Details]
Xiaomi, a well-known Internet phone in mainland China, won a million-unit order contract from China Unicom on November 20 last year, which made Xiaomi famous in mainland China. In April this year...[Details]
LED lamps and bulbs are now rapidly replacing incandescent, halogen and CFL (compact fluorescent lamp) light sources in many general lighting applications. Flyback DC/DC converters are the power su...[Details]
Flooded Batteries
This battery developed in Germany can be used to power flashlights, strobe lights and toys as long as it is filled with water. This battery can be stored for 50 years and can...[Details]
Introduction
Liquid crystal, as a display device, is widely used in low-power products such as instruments, meters, and electronic equipment with its unique advantages. In the past, the displ...[Details]
At present, how various communication technologies will evolve after 3G is a focus of great concern in the industry. Especially for TD-SCDMA, whether it can achieve smooth evolution to the next gen...[Details]
1 Introduction to LED
With the development of science and technology, people have higher and higher requirements on automobile light sources. LED (Light Emitting Diode) has gradually attracted...[Details]
1 Introduction
With the rapid economic development, my country's electricity demand has been growing at a rate of more than 20% per year. According to the current economic development trend an...[Details]
Leakage current is generated by parasitic resistance paths between the measurement circuit and a nearby voltage source. This current can significantly reduce the accuracy of low current measurement...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
