Power Bipolar Transistor, 2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220E, 3 PIN

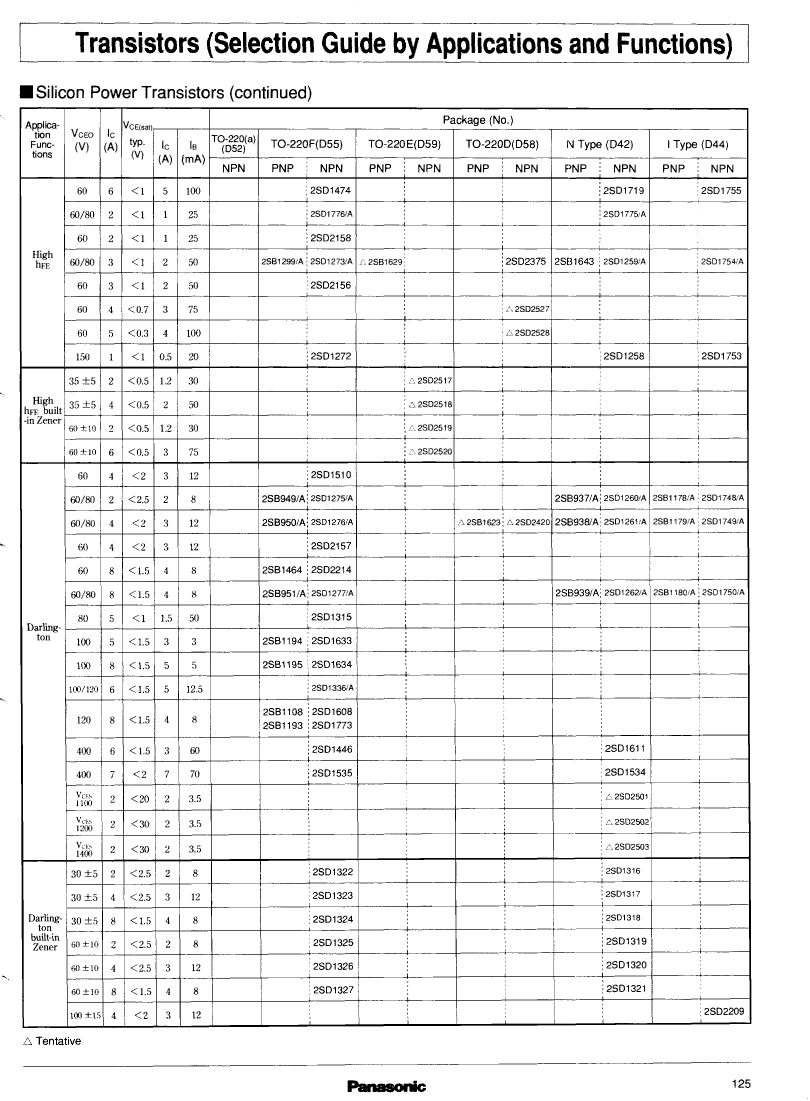

| Parameter Name | Attribute value |
| Parts packaging code | TO-220E |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Maximum collector current (IC) | 2 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| JEDEC-95 code | TO-220AB |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2SD2519 | 2SD2517 | 2SD2520 | 2SD2502 | 2SD2518 | 2SD2503 | 2SD2501 | |
|---|---|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220E, 3 PIN | Power Bipolar Transistor, 2A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220E, 3 PIN | Power Bipolar Transistor, 6A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220E, 3 PIN | Power Bipolar Transistor, 2A I(C), 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin | Power Bipolar Transistor, 4A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220E, 3 PIN | Power Bipolar Transistor, 2A I(C), 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin | Power Bipolar Transistor, 2A I(C), 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | IN-LINE, R-PSIP-T3 | FLANGE MOUNT, R-PSFM-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| Maximum collector current (IC) | 2 A | 2 A | 6 A | 2 A | 4 A | 2 A | 2 A |
| Configuration | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | DARLINGTON | SINGLE WITH BUILT-IN DIODE | DARLINGTON | DARLINGTON |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSIP-T3 | R-PSFM-T3 | R-PSIP-T3 | R-PSIP-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | IN-LINE | FLANGE MOUNT | IN-LINE | IN-LINE |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Parts packaging code | TO-220E | TO-220E | TO-220E | - | TO-220E | - | - |
| Contacts | 3 | 3 | 3 | - | 3 | - | - |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | - | - |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | - | ISOLATED | - | - |
| Collector-emitter maximum voltage | 50 V | 30 V | 50 V | - | 30 V | - | - |
| JEDEC-95 code | TO-220AB | TO-220AB | TO-220AB | - | TO-220AB | - | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - |
