GOLDFISH Technical Characteristics
Materials And Finishes:
Insulator:
Contacts:
Glass-filled nylon, UL 94V-0
Precision machined copper
alloy with gold over nickel plate
Mechanical Characteristics
Blind Mating System: Male and female connector molded-in guides
allow for misalignment to 2.00mm (0.079 inch).
Polarization:
Provided by connector body design.
Removable Contacts: Insert contact from rear of insulator;
release from front of insulator.
Female removable crimp contacts
feature “Closed Entry” 1000 cycles design.
Removable Contact Retention in Connector Body:
Power Contacts:
45 N (10lbs).
Signal Contacts:
27 N (6lbs).
Fixed Contacts:
Printed board terminations, both straight & right
angle, size 12 and 16 female contacts feature
“Closed-Entry” 1000 cycles design.
Fixed Contact Retention in Connector Body: 45 N (10lbs), min.
2 and 3 level systems available.
Sequential Mating:
Consult technical sales for application
assistance with contact sequencing.
Electrical Characteristics:
Contact Current Ratings:
Size 12 Contacts:
35 amperes, continuous.
50 amperes, continuous
(Super conductive material).
Size 16 Contacts:
20 amperes, continuous.
Size 20 Contacts:
5 amperes, nominal.
Size 22 Contacts:
3 amperes, nominal.
Initial Contact Resistance: Max.(per IEC 512-2, Test 2b)
Size 12 Contacts:
0.0007 ohms
(Super conductive material).
Size 22 Contacts:
0.012 ohms.
Size 20 Contacts:
0.007 ohms.
Size 12 & 16 Contacts: 0.005 ohms.
Insulator Resistance: 5 G ohms per IEC 512-2, Test 3b.
Voltage Proof:
Power Contacts:
1500 V rms..
Signal Contacts:
1000 V rms..
Working Voltage:
Power Contacts:
Signal Contacts:
500 V rms..
333 V rms..
Climatic Characteristics:
Working temperature: -55 to +125
Agency Approvals:
C-UL:
RWTUV:
File reference E49351
File reference E006089
Hot Pluggable (50 couplings per UL 1977, paragraph 15):
Size 12 Contacts:
250 VAC at 25 amperes.
Size 16 Contacts:
Consult factory.
(For TUV, first-mate contacts are not designed for use as
protective earthing terminals)

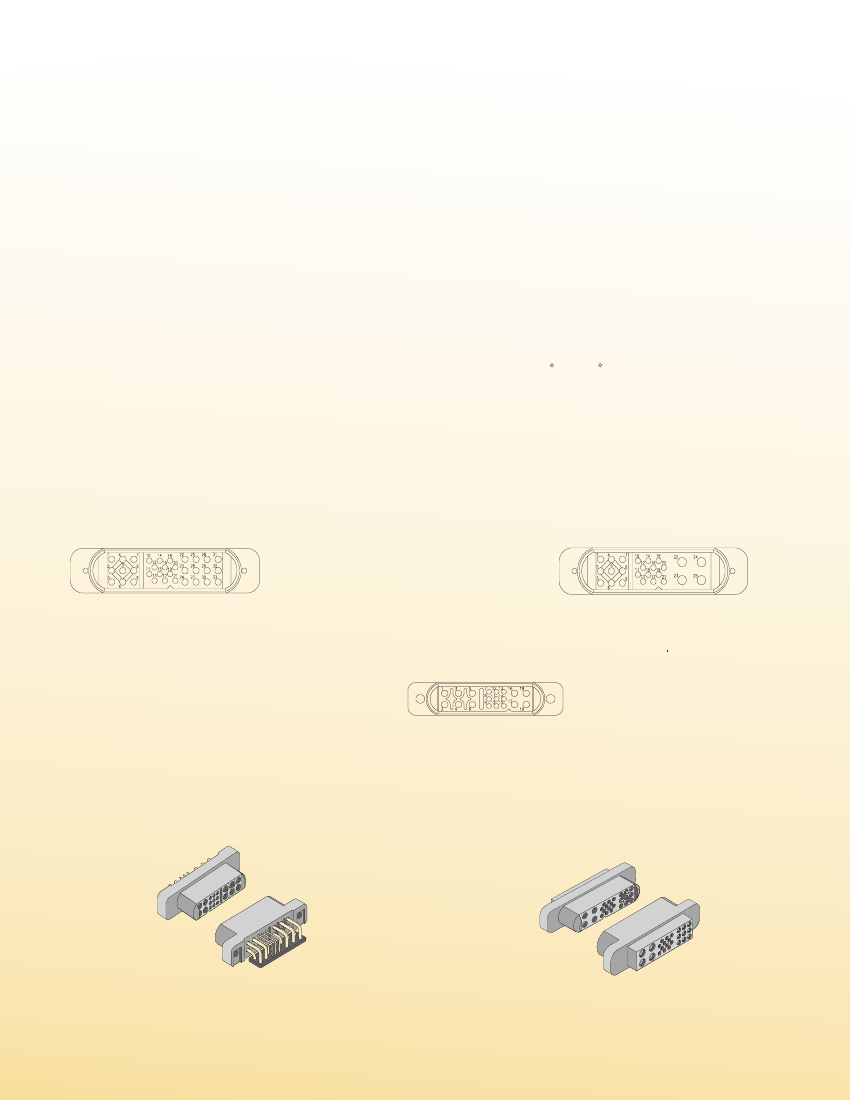

CONNECTOR ARRANGEMENTS
VERSION 01 and 02
(See Step 2 - Ordering Information)
FACE
VIEW
OF
MALE
VERSION 01:
PARTIALLY POPULATED WITH
4 SIZE 16 ”A.C.” POWER CONTACTS (POSITION
1, 3, 7 & 9), 12 SIZE 16 “D.C.” POWER CONTACTS
(POSITION 22 THRU 33) AND 9 SIZE 20 SIGNAL
CONTACTS (POSITION 12 THRU 21). POWER
POSITIONS 7 AND 9 ARE “FIRST-MATE”
SEQUENTIAL CONTACTS.
VERSION 02:
FULLY POPULATED CONNECTOR
WITH 21 SIZE 16 POWER CONTACTS & 12 SIZE
20 SIGNAL CONTACTS. FOR CUSTOMIZED
REQUIREMENTS USE VERSION 02.
VERSION 435:
CONNECTOR FULLY POPULATED WITH
9 SIZE 16 POWER CONTACTS, 4 SIZE 12 POWER
CONTACTS AND 12 SIZE 20 SIGNAL CONTACTS.
VERSION 435
VERSION 109 (BABY GOLDFISH)
VERSION 109:
CONNECTOR FULLY POPULATED
WITH 10 SIZE 16 POWER CONTACTS AND 9 SIZE
#22 SIGNAL CONTACTS.
TYPICAL GOLDFISH CONNECTION SYSTEMS
GFSH109F3N
GFSH109M4H
GFSH435F182
GFSH435M1H
Straight Solder Board Mount
to
Right Angle Solder Board Mount
CATALOG NO.: A-001 Rev. NC
Panel Mount/ Cable Connector
to
Panel Mount/ Cable Connector
Hey: For those of you who are curious. The
Goldfish is a symbol of Good Luck in Asia!
Page 1

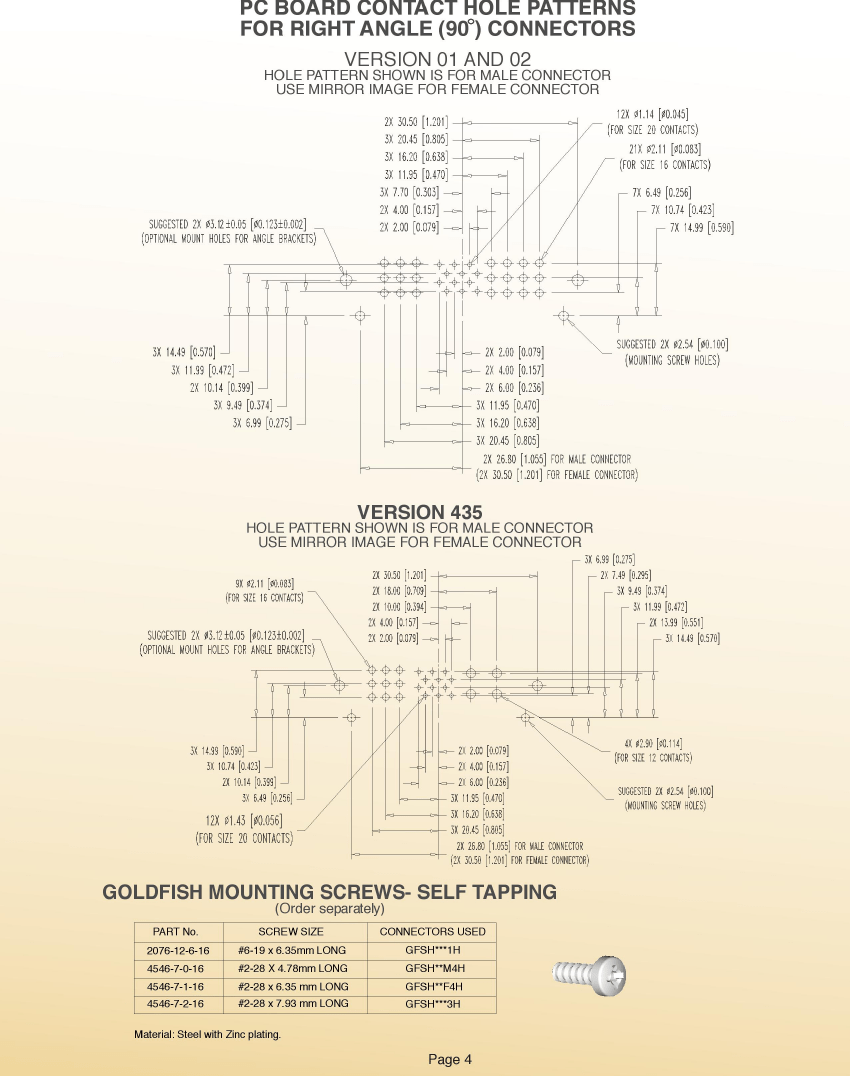

RIGHT ANGLE (90 ) PCB MOUNT CONNECTORS
VERSION 01, 02 AND 435
(Specify “4” in step 4 of ordering information)

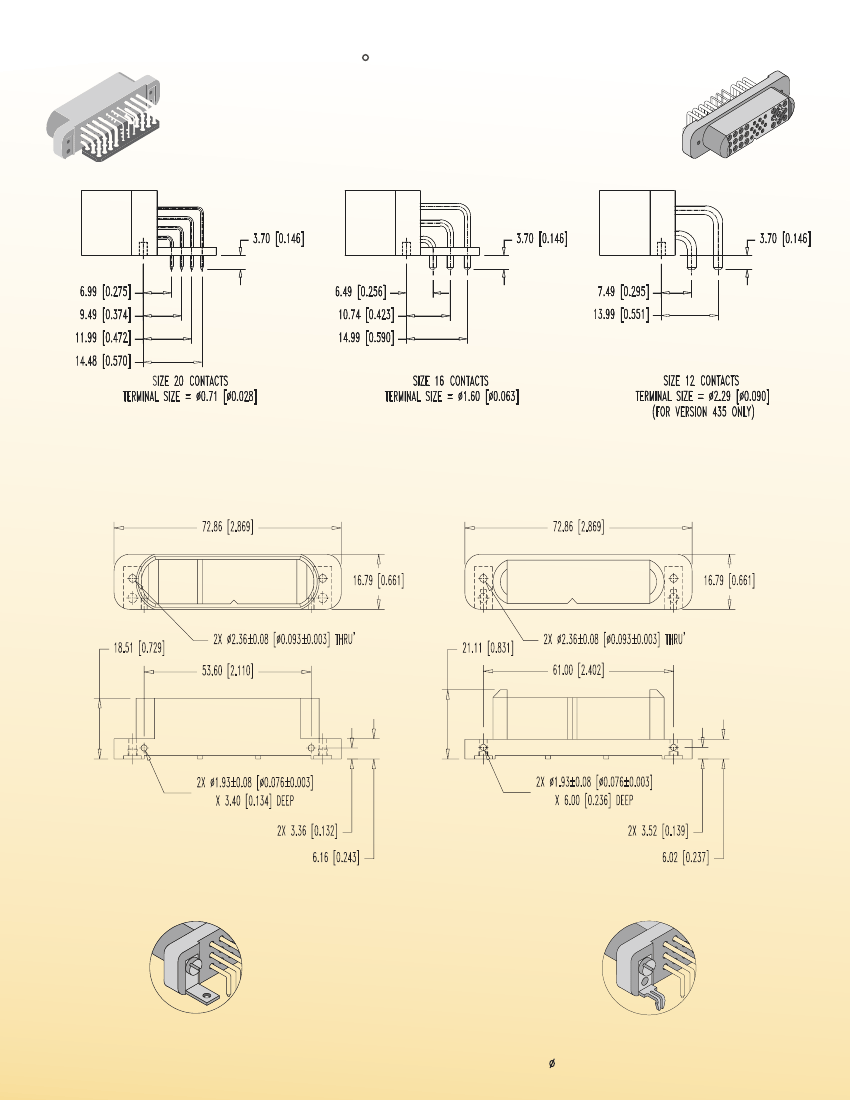

CONTACT TERMINAL EXTENSIONS
Note: Contacts extensions are the same for both male and female connectors.
Only male connector shown.
OUTLINE DIMENSIONS
MALE CONNECTOR
FEMALE CONNECTOR
OPTIONAL RIGHT ANGLE CONNECTOR
MOUNTING HARDWARE
(See step 5 of ordering information)
“B” MOUNTING BRACKET
(Specify”B” in step 5 of ordering information)
Material: Brass with Tin Plating
“LN” MOUNTING BRACKET WITH BOARD LOCK
(Specify”LN” in step 5 of ordering information)
Material: Brass with Tin Plating
_
_
Suggest 2 x 3.12 + 0.05 (0.123 + 0.002) holes in printed board.
Page 2
