2SB817: Description12 A, 140 V, NPN, Si, POWER TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size61KB，1 Pages; ManufacturerTiger Electronic Co.,Ltd.; Websitehttp://www.tgselec.com/

Download Datasheet Parametric Compare View All

2SB817 Overview

12 A, 140 V, NPN, Si, POWER TRANSISTOR

2SB817 Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	12 A
Maximum Collector-Emitter Voltage	140 V
Processing package description	Plastic, TO-3PB, 3 PIN
state	DISCONTINUED
packaging shape	Rectangle
Package Size	Flange mounting
Terminal form	THROUGH-hole
Terminal location	single
Packaging Materials	Plastic/Epoxy
structure	single
Number of components	1
transistor applications	amplifier
Transistor component materials	silicon
Transistor type	universal power supply
Minimum DC amplification factor	20
Rated crossover frequency	15 MHz

Preview

Download Datasheet

View All

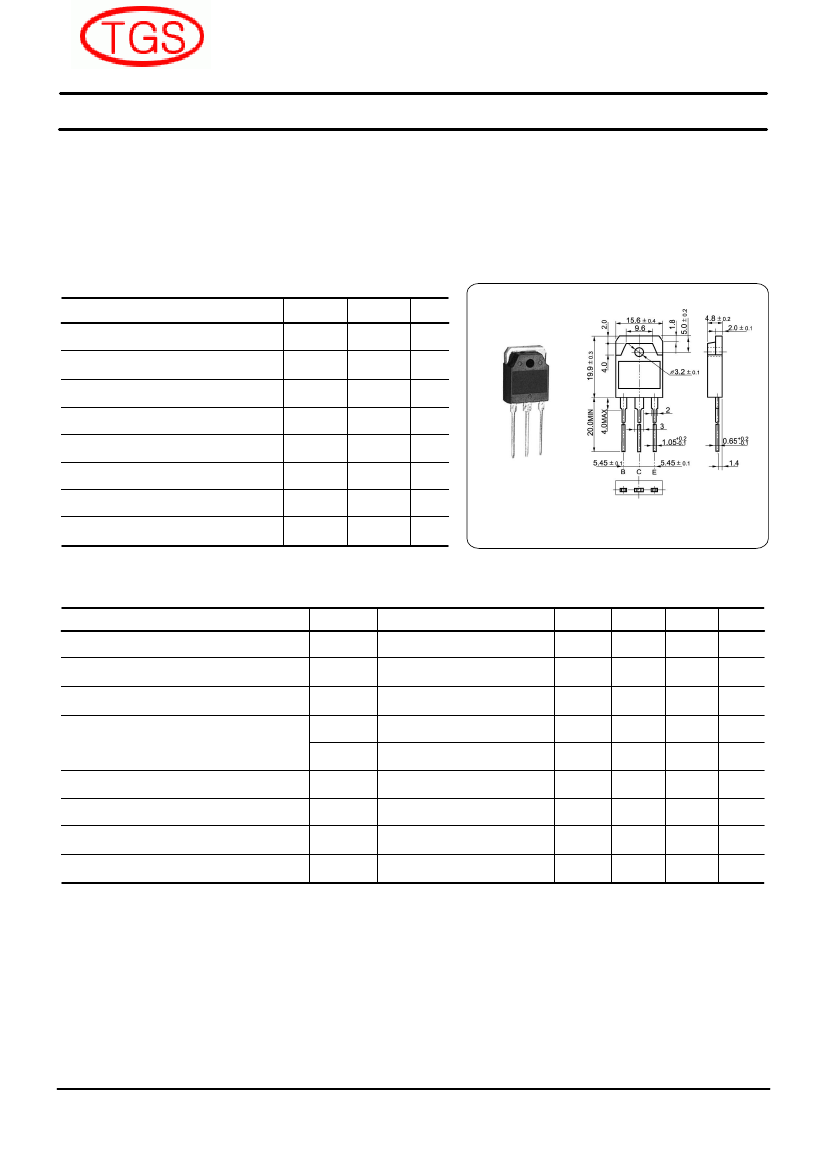

TIGER ELECTRONIC CO.,LTD

Product specification

Complementary Silicon Power Ttransistors

2SD1047 / 2SB817

DESCRIPTION

It is intented for use in power

amplifier and switching applications.

ABSOLUTE MAXIMUM RATINGS ( Ta = 25 C)

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current

Base Current

Total Dissipation at

Max. Operating Junction Temperature

O

Symbol

V

CBO

V

CEO

V

EBO

I

C

I

B

P

tot

T

j

T

stg

Value

160

140

6.0

12

1.2

100

150

-55~150

Unit

V

A

W

o

C

Storage Temperature

o

TO-3PN

ELECTRICAL CHARACTERISTICS ( Ta = 25 C)

Parameter

Collector Cut-off Current

Emitter Cut-off Current

Collector-Emitter Sustaining Voltage

DC Current Gain

Collector-Emitter Saturation Voltage

Base-Emitter Voltage

Current Gain Bandwidth Product

Collector Output Capacitance

Symbol

Test Conditions

V

CB

=140V, I

E

=0

V

EB

=6V, I

C

=0

I

C

=30mA, I

B

=0

V

CE

=5.0V, I

C

=1.0A

V

CE

=5.0V, I

C

=6.0A

Min.

—

140

60

20

—

Typ.

—

15

300

Max.

10

—

200

—

2.5

1.5

—

V

MHz

pF

Unit

uA

V

O

I

CEO

I

EBO

V

CEO

h

FE1

h

FE2

V

BE

f

T

C

OB

V

CE(sat)

I

C

=5.0A,I

B

=0.5A

V

CE

=5.0V,I

C

=1.0A

V

CE

=5.0V,I

C

=1.0A

V

CB

=-10V, I

E

=0, f=1MHz

Note : hfe1 Classification D: 60~120, E: 100~200

2SB817 Related Products

	2SB817	2SD1047
Description	12 A, 140 V, NPN, Si, POWER TRANSISTOR	12 A, 140 V, NPN, Si, POWER TRANSISTOR
Number of terminals	3	3
Transistor polarity	NPN	NPN
Maximum collector current	12 A	12 A
Maximum Collector-Emitter Voltage	140 V	140 V
Processing package description	Plastic, TO-3PB, 3 PIN	Plastic, TO-3PB, 3 PIN
state	DISCONTINUED	DISCONTINUED
packaging shape	Rectangle	Rectangle
Package Size	Flange mounting	Flange mounting
Terminal form	THROUGH-hole	THROUGH-hole
Terminal location	single	single
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy
structure	single	single
Number of components	1	1
transistor applications	amplifier	amplifier
Transistor component materials	silicon	silicon
Transistor type	universal power supply	universal power supply
Minimum DC amplification factor	20	20
Rated crossover frequency	15 MHz	15 MHz
