PLC-0760-120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PLC-0760-120

PLC-0760-120: DescriptionGeneral Purpose Inductor, 12uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size178KB，3 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PLC-0760-120 Overview

General Purpose Inductor, 12uH, 20%, 1 Element, SMD, ROHS COMPLIANT

PLC-0760-120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.042 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PLC-0760
Number of functions	1
Number of terminals	2
Maximum operating temperature	120 °C
Minimum operating temperature	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED AT 1MA DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

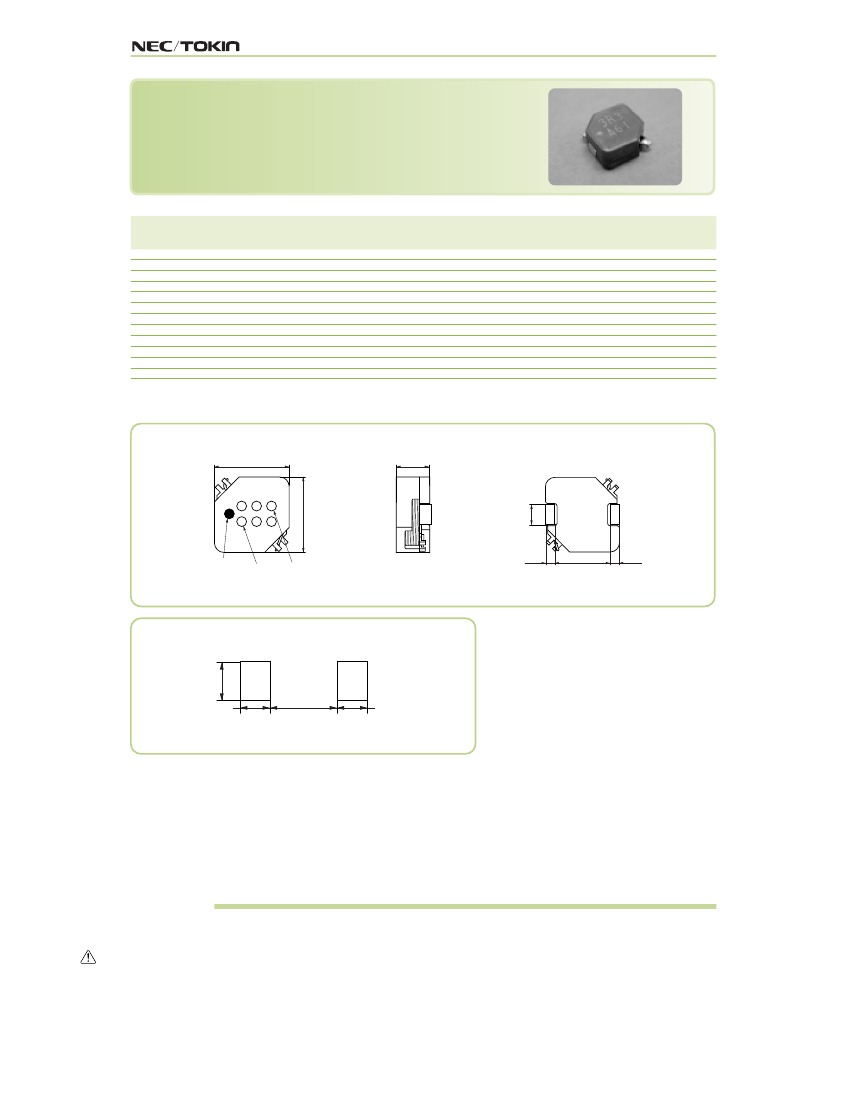

SMD Type

Leadless Power Inductors

PLC-0760 Series

[RoHS Compliant]

Model

PLC-0760-2R0

PLC-0760-3R3

PLC-0760-4R7

PLC-0760-5R6

PLC-0760-6R8

PLC-0760-8R2

PLC-0760-100

PLC-0760-120

PLC-0760-150

PLC-0760-180

PLC-0760-220

PLC-0760-330

Inductance

at 100kHz, 1mA

（μH）

2.0± 30%

3.3± 30%

4.7± 30%

5.6± 30%

6.8± 30%

8.2± 30%

10.0± 20%

12.0± 20%

15.0± 20%

18.0± 20%

22.0± 20%

33.0± 20%

DC resistance

RDC

（mΩ）

max.

130

Rated current A）

（

Isat Ref.）

（

Irms*1

at 20℃

at 100℃

6.5

7.0

5.3

5.8

5.4

4.1

5.2

4.6

3.5

4.9

4.1

3.1

4.7

3.9

3.0

4.4

3.5

2.5

4.1

3.2

2.4

3.6

2.9

2.1

3.1

2.5

1.8

2.9

2.4

1.7

2.7

2.2

1.6

1.9

1.8

1.3

※1 T=40K rise at rated current. ※2 Inductance drop 30% at rated current.

●Operating temperature range：−25to+120℃(without self-temperature rise)

Shape and Dimensions

7.5±0.5

6.0 MAX

Dot mark

Lot No. Inductance

8.0±0.5

2.0±0.2

1.0±0.3

(5.5)

1.0±0.3

[mm]

Rcecommended Land Pattern

2.3

1.6

5.5

1.6

[mm]

Choke Coils VOL.04

●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC Tokin for updated product data.

●Please request for a specification sheet for detailed product data prior to the purchase.

●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.

2006.03.22 P0718MCCC10VOL04E

PLC-0760-120 Related Products

	PLC-0760-120	PLC-0760-100	PLC-0760-6R8	PLC-0760-8R2	PLC-0760-5R6	PLC-0760-3R3	PLC-0760-330
Description	General Purpose Inductor, 12uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 8.2uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 5.6uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 30%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 33uH, 20%, 1 Element, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.042 Ω	0.037 Ω	0.031 Ω	0.034 Ω	0.023 Ω	0.018 Ω	0.13 Ω
Nominal inductance(L)	12 µH	10 µH	6.8 µH	8.2 µH	5.6 µH	3.3 µH	33 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PLC-0760	PLC-0760	PLC-0760	PLC-0760	PLC-0760	PLC-0760	PLC-0760
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
special characteristics	INDUCTANCE MEASURED AT 1MA DC CURRENT	INDUCTANCE MEASURED AT 1MA DC CURRENT	INDUCTANCE MEASURED AT 1MA DC CURRENT	INDUCTANCE MEASURED AT 1MA DC CURRENT	INDUCTANCE MEASURED AT 1MA DC CURRENT	INDUCTANCE MEASURED AT 1MA DC CURRENT	INDUCTANCE MEASURED AT 1MA DC CURRENT
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	30%	30%	30%	30%	20%
