TK10446MCBX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> TK10446MCBX

TK10446MCBX: DescriptionAnalog Circuit, 1 Func, PDSO8, MFP-8; CategoryAnalog mixed-signal IC The signal circuit; File Size85KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

TK10446MCBX Overview

Analog Circuit, 1 Func, PDSO8, MFP-8

TK10446MCBX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TOKO, INC.
package instruction	LSOP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	0.9 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

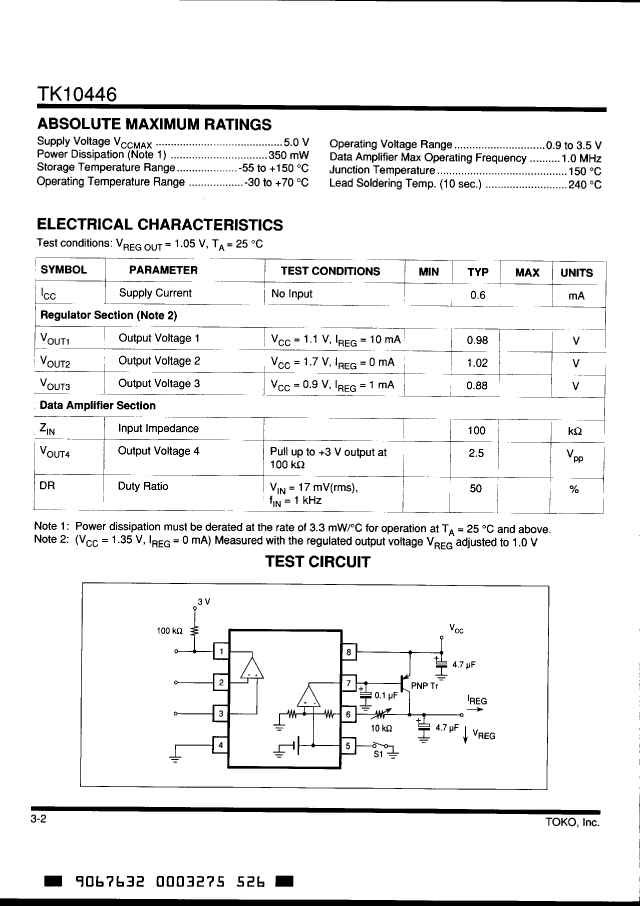

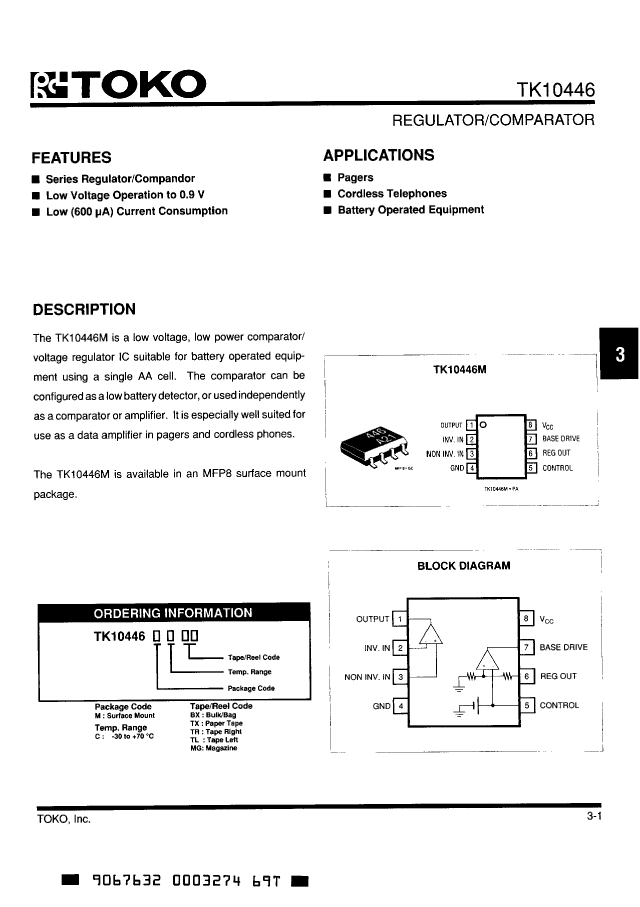

Preview

Download Datasheet

View All

TK10446MCBX Related Products

	TK10446MCBX	TK10446MCMG	TK10446MCTL	TK10446MCTR
Description	Analog Circuit, 1 Func, PDSO8, MFP-8	Analog Circuit, 1 Func, PDSO8, MFP-8	Analog Circuit, 1 Func, PDSO8, MFP-8	Analog Circuit, 1 Func, PDSO8, MFP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
package instruction	LSOP,	LSOP,	LSOP,	LSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	5 mm	5 mm	5 mm	5 mm
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm
Maximum supply voltage (Vsup)	3.5 V	3.5 V	3.5 V	3.5 V
Minimum supply voltage (Vsup)	0.9 V	0.9 V	0.9 V	0.9 V
surface mount	YES	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm
