MADS-003000-1292 Series
Surface Mount Schottky Dual Crossover Quad
Features
•
Designed for High Volume Applications
•
Dual Crossover Quad Configuration
•
Lead Free and RoHS* Compliant with 260°C
Reflow Capability
•
100% Matte Tin Plating
•
Available in SOT-26 (ODS-1292)
•
Tape and Reel Deliverable
M/A-COM Products
Rev. V3
SOT-26 Package (Top View)
4
5
6
Description
M/A-COM’s MADS-003000-1292LT and MADS-
003000-1292HT are high performance silicon
Schottky dual crossover quads. These parts are
usable for a variety of mixer applications. The
closely matched junctions minimize variation in ca-
pacitance, forward voltage and dynamic resistance
within the four diodes in the quad. These diodes
are available in a small profile surface mount pack-
age SOT-26 (ODS-1292). They are available in
tape and reel for automatic pick and place assem-
bly.
1
2
3

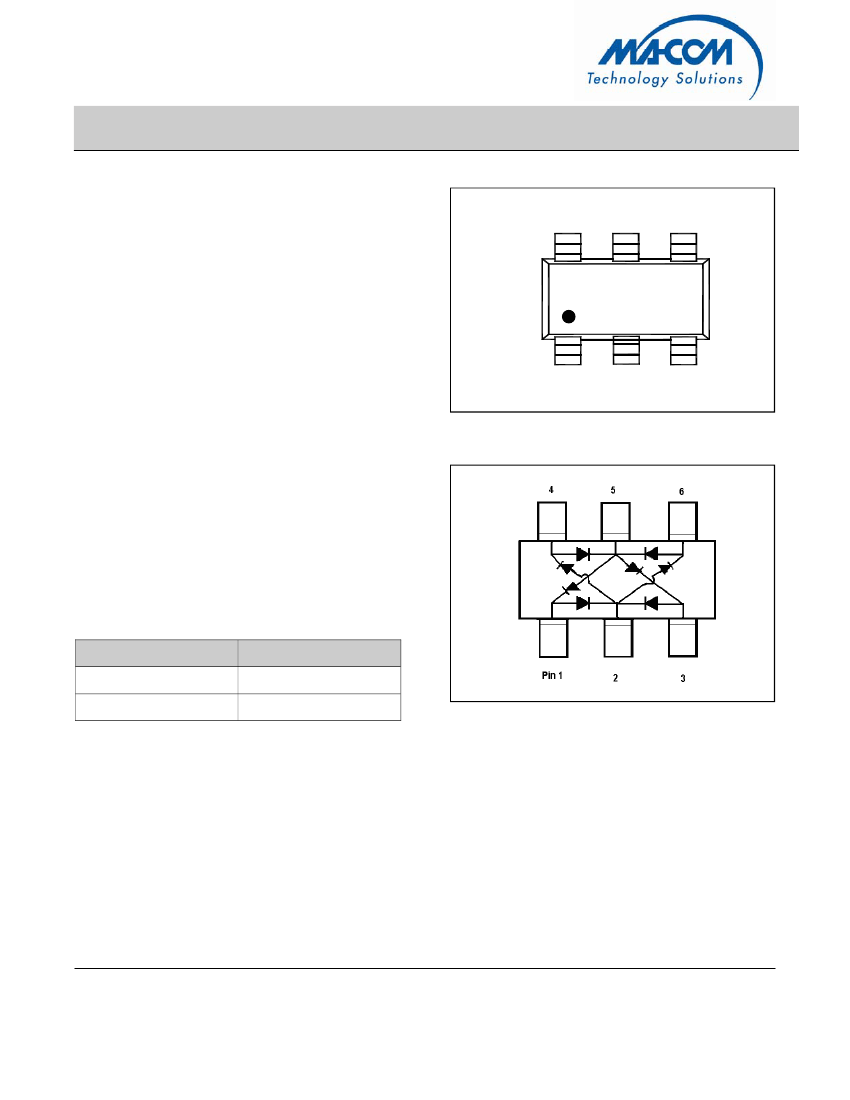

Configuration (Top View)
Associated Application Note
M538 - Surface Mount Instructions
Ordering Information
Model Number
MADS-003000-1292LT
MADS-003000-1292HT
Package
Tape and Reel
Tape and Reel
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
Visit www.macom.com for additional data sheets and product information.
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
MA-COM Technical Solutions and its affiliates reserve the right to make changes to
volume is not guaranteed.
MADS-003000-1292 Series
Surface Mount Schottky Dual Crossover Quad
Electrical Specifications @ +25°C
Part Number
Vf
Min.
(mV)
MADS-003000-1292HT
MADS-003000-1292LT
515
200
M/A-COM Products
Rev. V3
Forward Voltage
1
Vf
Max.
(mV)
600
245
Junction Capacitance
2
Delta Vf
Max.
(mV)
10
10
Dynamic Resistance
3
Rd
Max.
(ohms)
6.0
7.0
Cj
Typical
(pF)
.5
.5
1. Forward voltage is measured at If = 1 mA
2. Cj is measured at Vr = 0 volts and f = 1 MHz
3. Rd is measured @ If = 9.5 - 10.5 mA
Absolute Maximum Ratings @ 25°C
4,5
Parameter
Operating Temperature
Storage Temperature
Junction Temperature
RF Incident Power (CW)
Soldering Temperature
Absolute Maximum
-65°C to +125°C
-65°C to +125°C
+150°C
75 mW
+260°C
4. Exceeding these limits may cause permanent damage.
5. ESD Precautions - Schottky diodes are ESD sensitive and
can be damaged by static electricity. Proper ESD techniques
must be used when handling these devices.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
Visit www.macom.com for additional data sheets and product information.
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
MA-COM Technical Solutions and its affiliates reserve the right to make changes to
volume is not guaranteed.
MADS-003000-1292 Series
Surface Mount Schottky Dual Crossover Quad

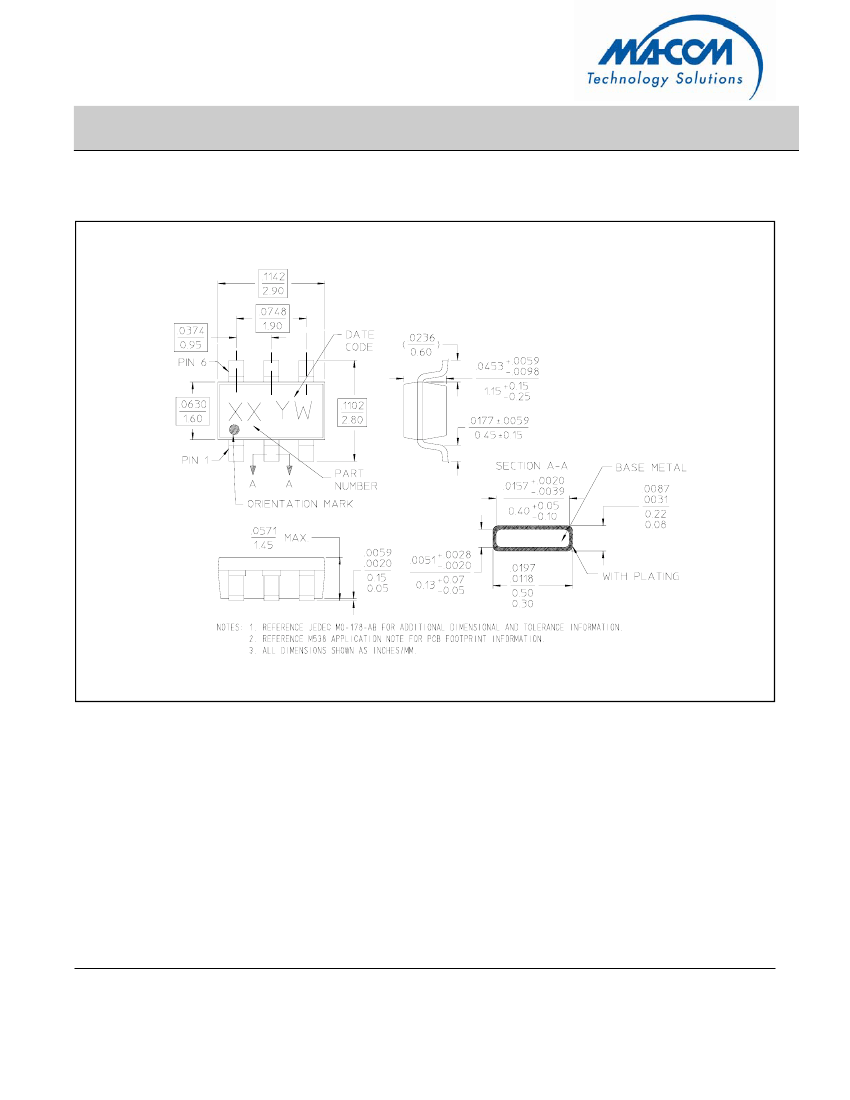

Package Outline (SOT-26)
