TS8542VA
www.vishay.com
Vishay Semiconductors

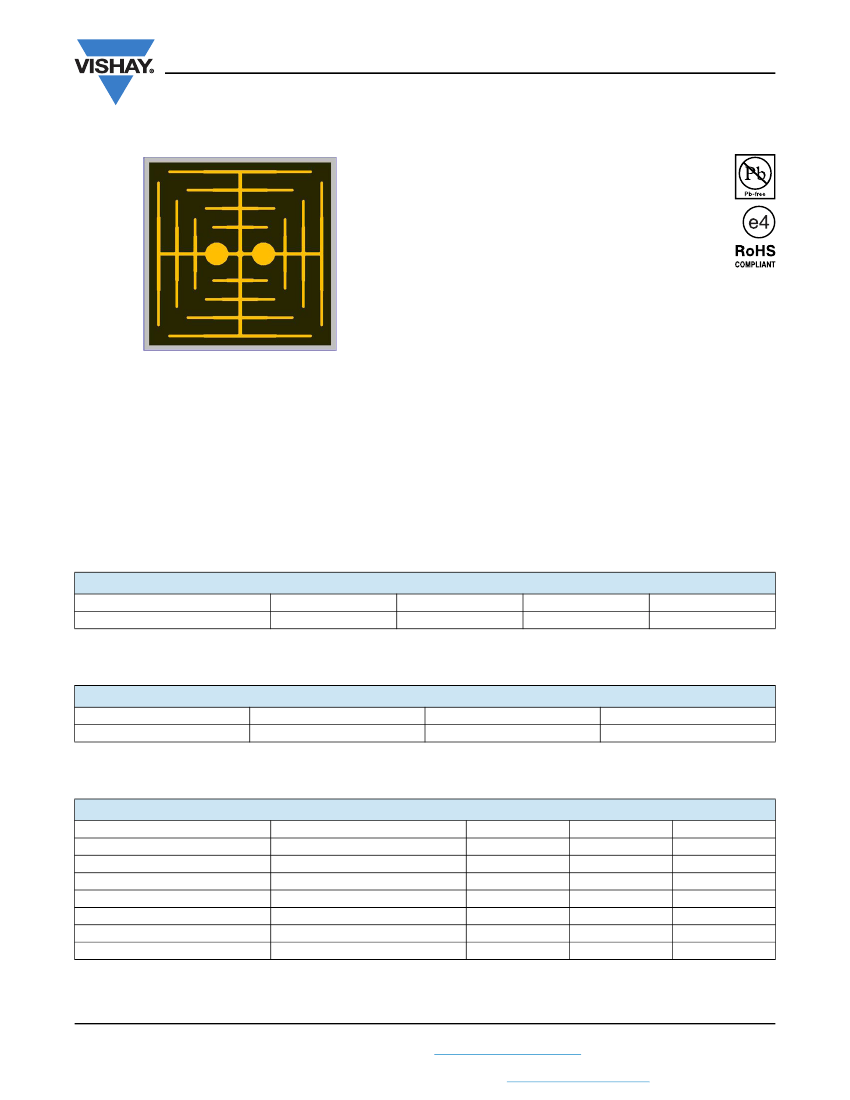

Specification of High Power IR Emitting Diode Chip
FEATURES
• Package type: chip
• Package form: single chip
• Technology: surface emitter
• Dimensions chip (L x W x H in mm):
1.066 x 1.066 x 0.17
• Peak wavelength:
λ
= 850 nm
• Compliant to RoHS Directive 2011/65/EU and in
accordance to WEEE 2002/96/EC
GENERAL INFORMATION
DESCRIPTION
TS8542VA is a high power infrared, 850 nm surface emitting
diode in GaAlAs technology with high radiant power and
high speed. Polarity Confoguration is “n-up”.
The datasheet is based on Vishay optoelectronics sample
testing under certain predetermined and assumed
conditions, and is provided for illustration purpose only.
Customers are encouraged to perform testing in actual
proposed packaged and used conditions. Vishay
optoelectronics die products are tested using Vishay
optoelectronics based quality assurance procedures and
are manufactured using Vishay optoelectronics established
processes. Estimates such as those described and set forth
in this datasheet for semiconductor die will vary depending
on a number of packaging, handling, use, and other factors.
Therefore sold die may not perform on an equivalent basis
to standard package products.
PRODUCT SUMMARY
COMPONENT
TS8542VA
f
e
(mW)
350
ϕ
(deg)
55
λ
p
(nm)
850
t
r
(ns)
15
Note
• Test condition see table “Basic Characteristics”
ORDERING INFORMATION
ORDERING CODE
TS8542VA-SF-F
Note
• MOQ: minimum order quantity
PACKAGING
Wafer sawn on foil
REMARKS
MOQ: 5000 pcs
PACKAGE FORM
Chip
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Forward current
Reverse voltage
Surge forward current
Junction temperature
Storage temperature range chip
Storage temperature range on foil
Temperature during packaging
t
p
< 10 s
t
p
= 100 μs
TEST CONDITION
SYMBOL
I
F
V
R
I
FSM
T
j
T
stg1
T
stg2
VALUE
1
5
5
140
- 40 to + 125
- 20 to + 65
280
UNIT
A
V
A
°C
°C
°C
°C
Rev. 1.1, 20-Feb-12
Document Number: 83474
1
For technical questions, contact:
optochipsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TS8542VA
www.vishay.com
Vishay Semiconductors
TEST CONDITION
I
F
= 100 mA
I
F
= 1 A
I
F
= 100 mA
I
F
= 1000 mA
SYMBOL
V
F
V
F
φ
e
φ
e
I
e
V
R
ϕ
λ
p
λ
0.5
t
r
, t
f
32
350
7.5
10
50
830
55
850
30
15
60
870
MIN.
TYP.
1.3
2.0
MAX.
1.5
2.5
UNIT
V
V
mW
mW
mW/sr
V
deg
nm
nm
ns

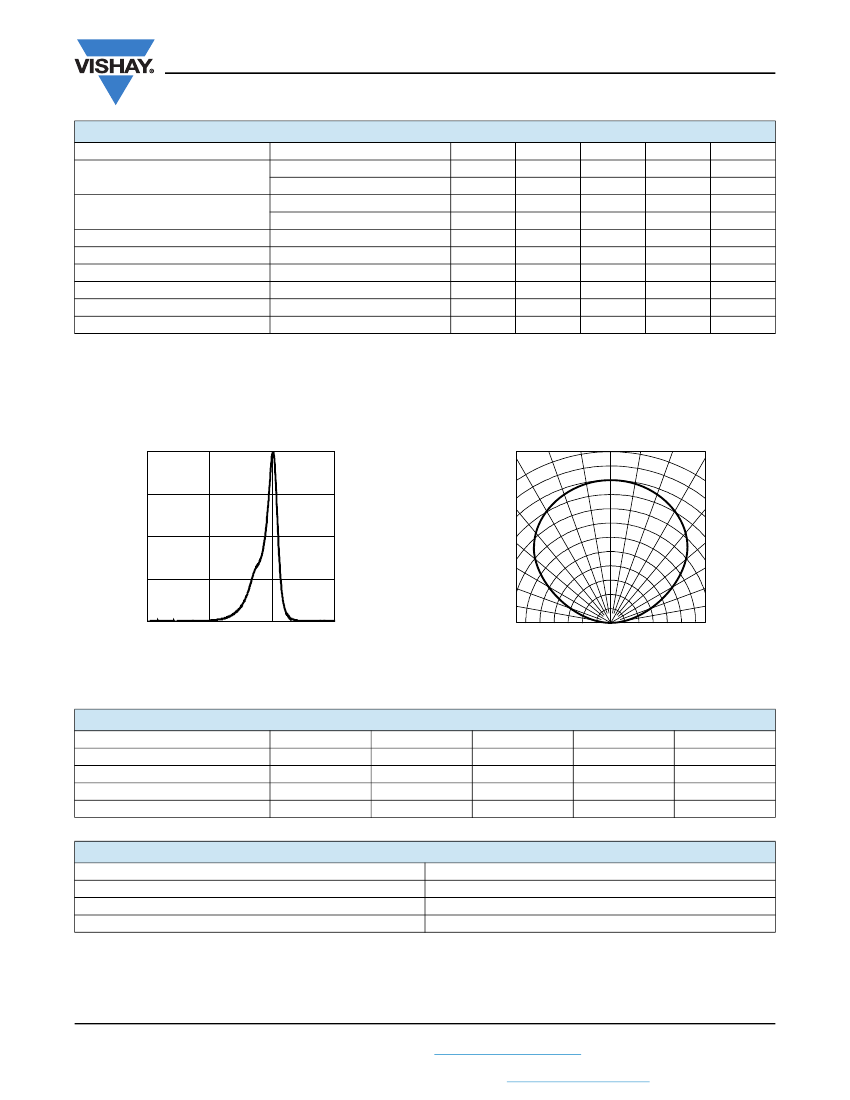

BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Forward voltage
Radiant power
(1)
Radiant intensity
Reverse voltage
Angle of half intensity
Peak wavelength
Spectral bandwidth
Rise time/fall time
(2)
I
F
= 100 mA
I
R
= 10 μA
I
F
= 100 mA
I
F
= 1 A
I
F
= 1 A
I
F
= 1 A, R
L
= 50
Ω
Notes
(1)
The measurements are based on samples of die which are mounted on a TO-18 gold header without resin coating
(2)
The radiant intensity, I , is measured on the geometric axis of the TO-18 header
e
BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
0°
1
10°
20°
30°
Φ
e, rel
- Relative Radiant Power
I
e, rel
- Relative Radiant Sensitivity
0.75
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
0.5
0.25
0
650
21776
750
850
950
94 8013
λ-
Wavelength (nm)
Fig. 1 - Relative Spectral Emission
φe
rel
= f (λ)
Fig. 2 - Radiant Characteristics
I
rel
= f(ϕ)
MECHANICAL DIMENSIONS
PARAMETER
Length of chip edge (x-direction)
Length of chip edge (y-direction)
Die height
Diameter of bondpad
SYMBOL
L
x
L
y
H
d
MIN.
TYP.
1.066
1.066
0.17
0.127
MAX.
UNIT
mm
mm
mm
mm
ADDITIONAL INFORMATION
Frontside metallization, anode
Backside metallization, cathode
Dicing
Die bonding technology
Gold alloy
Gold alloy
Sawing
Epoxy bonding
Note
• All chips are checked in accordance with the Vishay Semiconductor, specification of visual inspection FVOV6870.
The visual inspection shall be made in accordance with the “specification of visual inspection as referenced”. The visual inspection of chip
backside is performed with stereo microscope with incident light and 40x to 80x magnification.
The quality inspection (final visual inspection) is performed by production. An additional visual inspection step as special release procedure
by QM is not installed.
Rev. 1.1, 20-Feb-12
Document Number: 83474
2
For technical questions, contact:
optochipsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ϕ
- Angular Displacement
TS8542VA
www.vishay.com
HANDLING AND STORAGE CONDITIONS
• The hermetically sealed shipment lots shall be opened in temperature and moisture controlled cleanroom environment only.
It is mandatory to follow the rules for disposition of material that can be hazardous for humans and environment.
• Product must be handled only at ESD safe workstations. Standard ESD precautions and safe work environments are as
defined in MIL-HDBK-263.
• Singulated die are not to be handled with tweezers. A vacuum wand with non metallic ESD protected tip should be used.
Vishay Semiconductors
PACKING
Chips are fixed on adhesive foil. Upon request the foils can be mounted on plastic frame or disco frame. For shipment, the
wafers are arranged to stacks and hermetically sealed in plastic bags to ensure protection against environmental influence
(humidity and contamination).
Use for recycling reliable operators only. We can help getting in touch with your nearest sales office. By agreement we will take
back packing material, if it is sorted. You will have to bear the costs of transport. We will invoice you for any costs incurred for
packing material that is returned unsorted or which we are not obliged to accept.
Rev. 1.1, 20-Feb-12
Document Number: 83474
3
For technical questions, contact:
optochipsupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
