TS68000CP16 datasheet, PDF - EEWORLD Datasheet

TS68000CP16: DescriptionHMOS 16/32-BIT MICROPROCESSOR; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，76 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

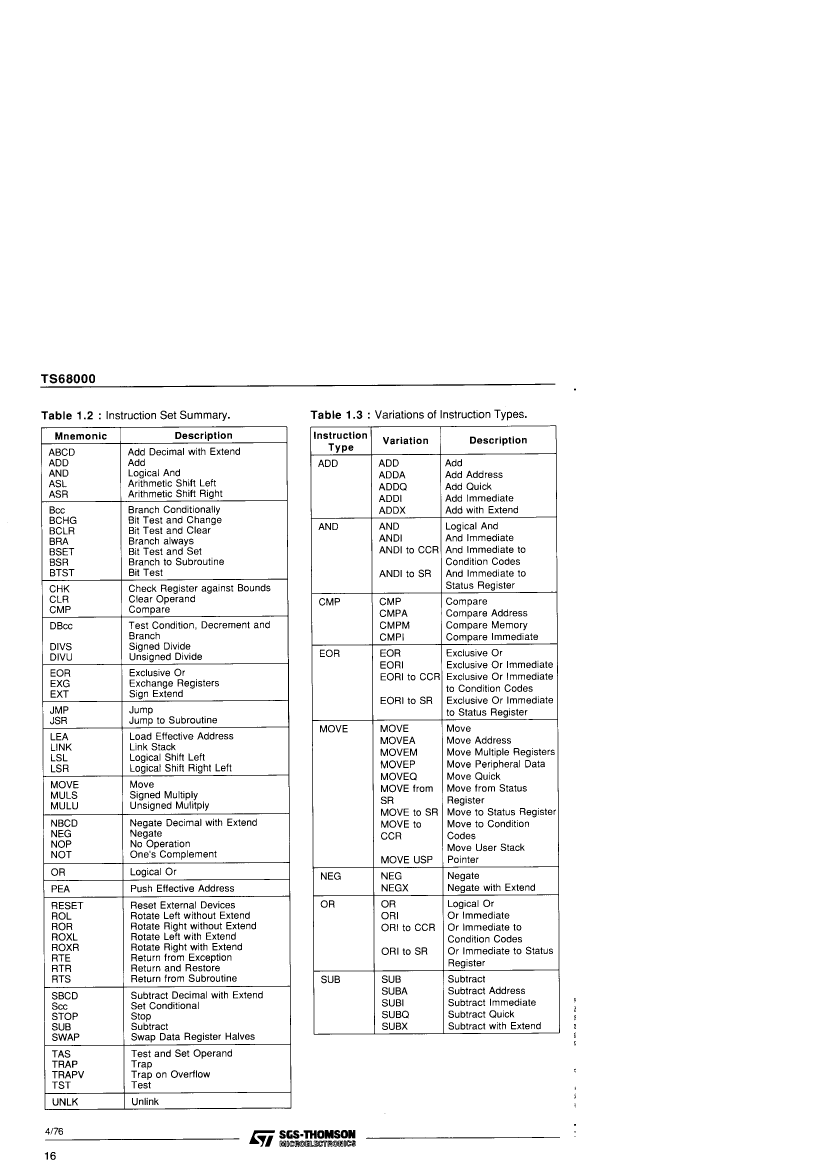

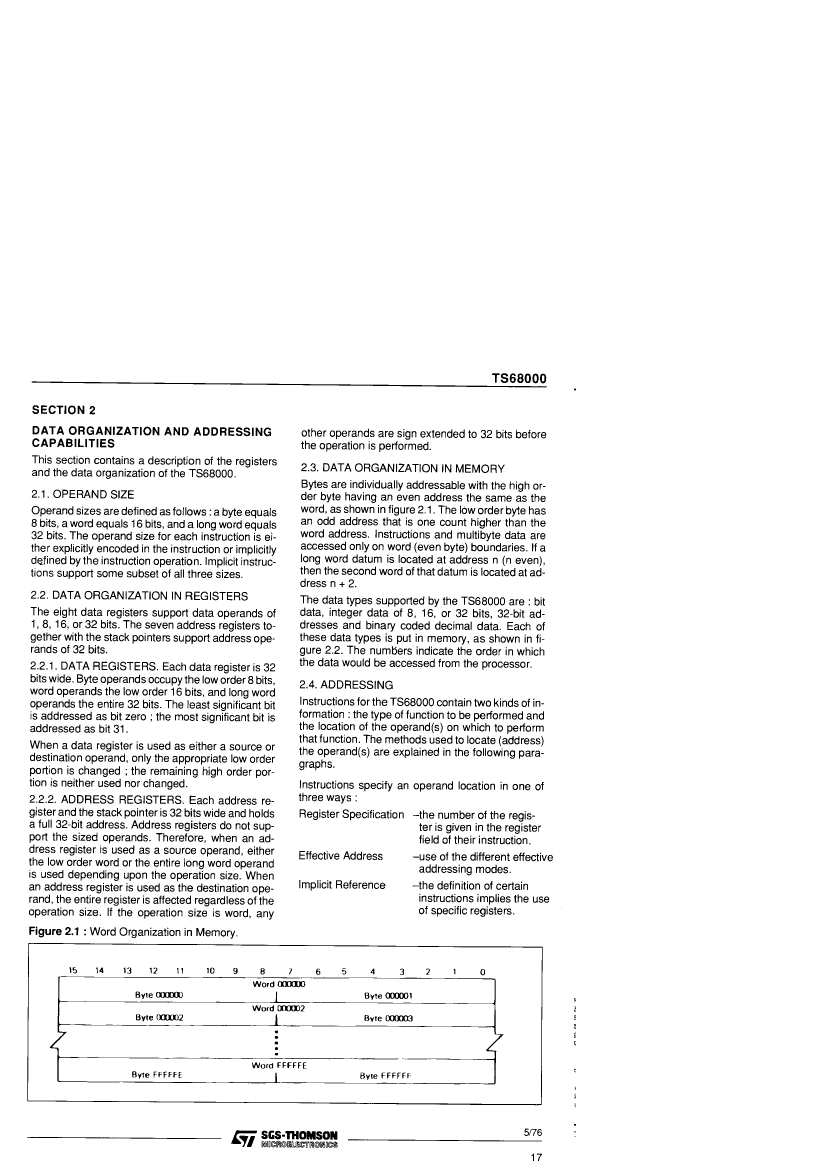

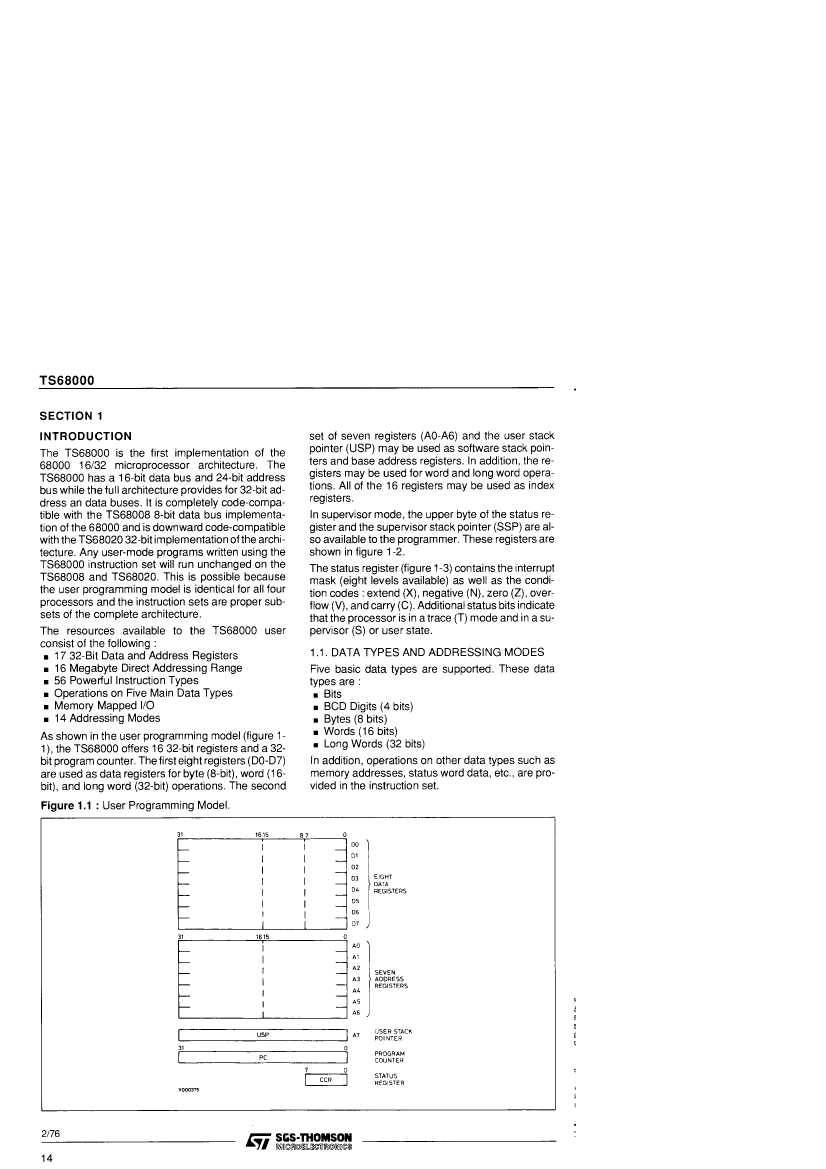

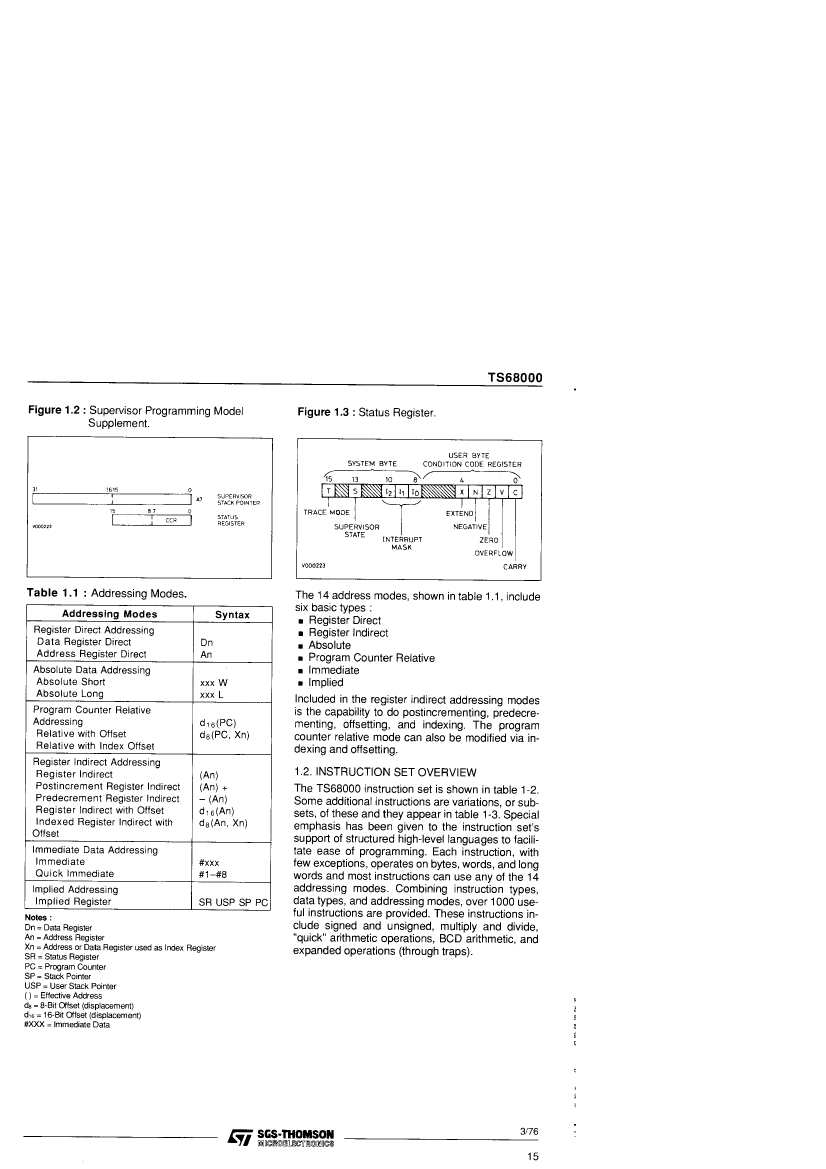

TS68000CP16 Overview

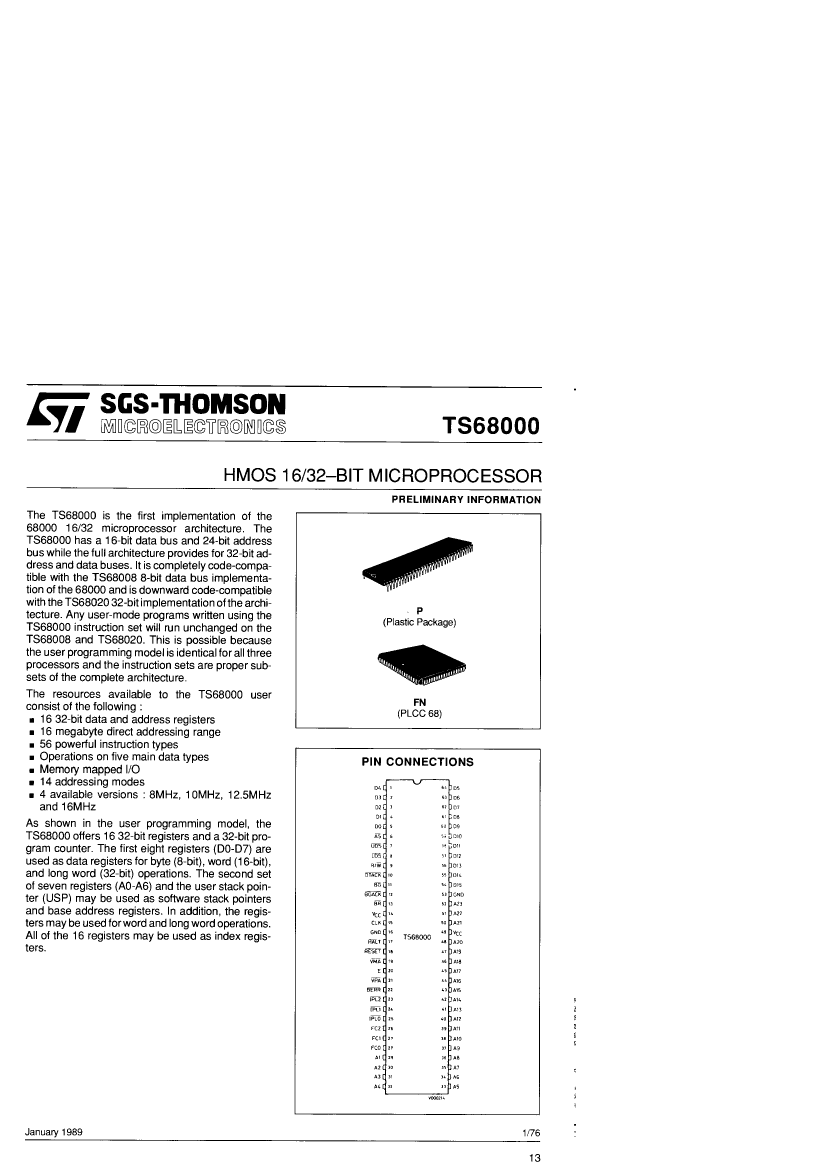

HMOS 16/32-BIT MICROPROCESSOR

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	PLASTIC, DIP-64
Contacts	64
Reach Compliance Code	_compli
Address bus width	24
bit size	16
boundary scan	NO
maximum clock frequency	16.7 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T64
JESD-609 code	e0
length	81.535 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	7
Number of serial I/Os
Number of terminals	64
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP64,.9
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.59 mm
speed	16.7 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	22.86 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1
