D Microminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,

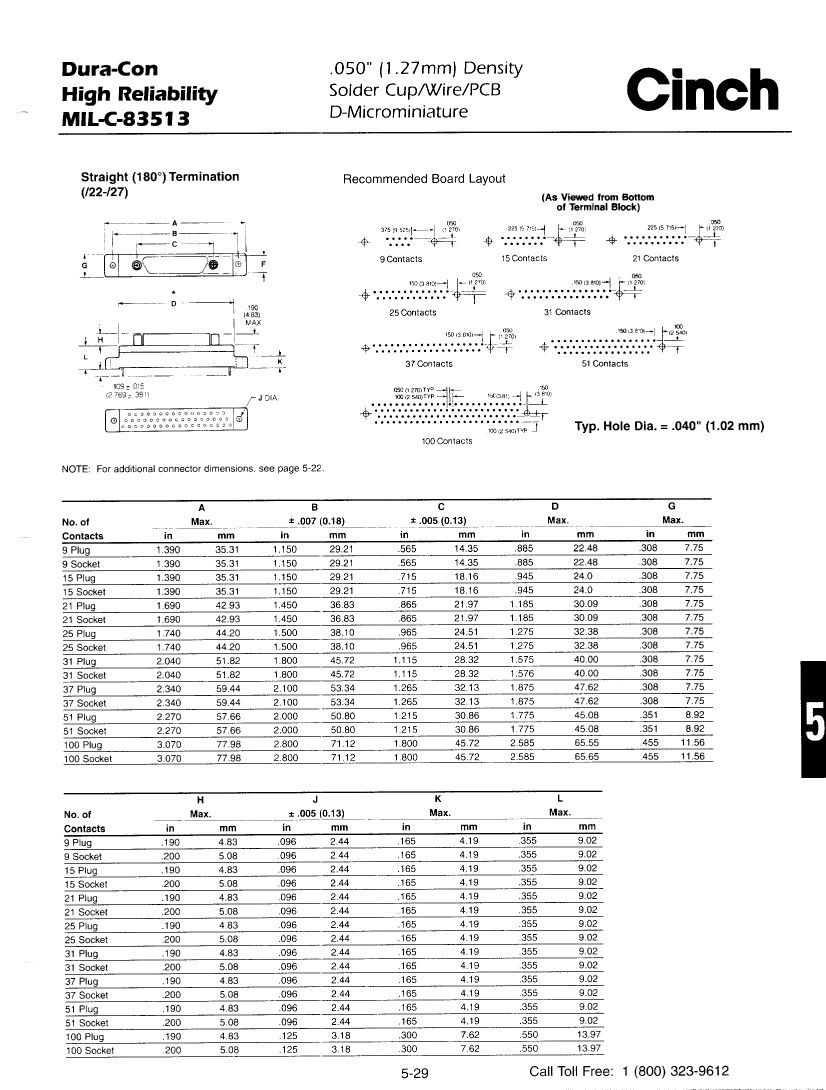

| Parameter Name | Attribute value |
| Maker | Cinch Connectivity Solutions |
| Reach Compliance Code | compliant |
| Other features | STANDARD: MIL-DTL-83513 |
| body width | 0.325 inch |
| subject depth | 0.42 inch |
| body length | 1.185 inch |
| Body/casing type | PLUG |
| Connector type | D MICROMINIATURE CONNECTOR |

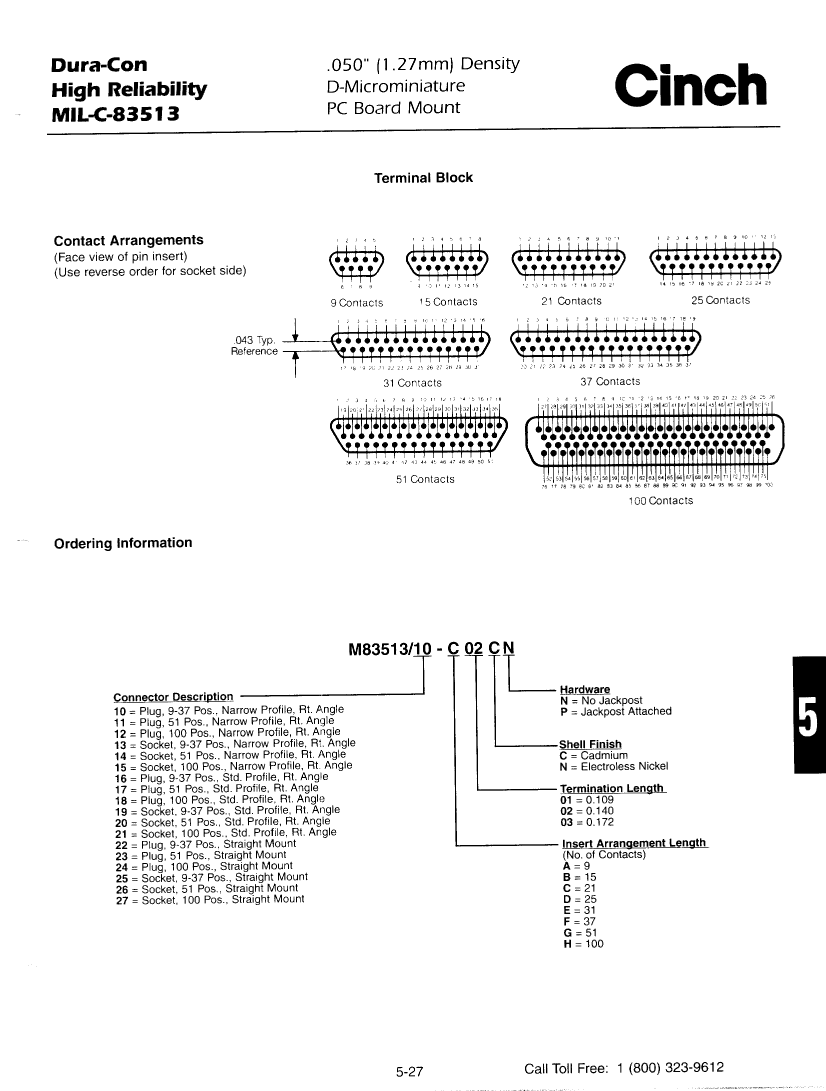

| Contact arrangement | S25P0 |
| Contact to complete cooperation | GOLD (50) |
| Contact completed and terminated | GOLD (50) |
| Contact point gender | MALE |
| contact mode | STAGGERED |
| Contact resistance | 8 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 600VAC V |
| Durability | 500 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.78 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC |
| JESD-609 code | e4 |
| MIL compliance | YES |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.043 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | #2-56UNC |

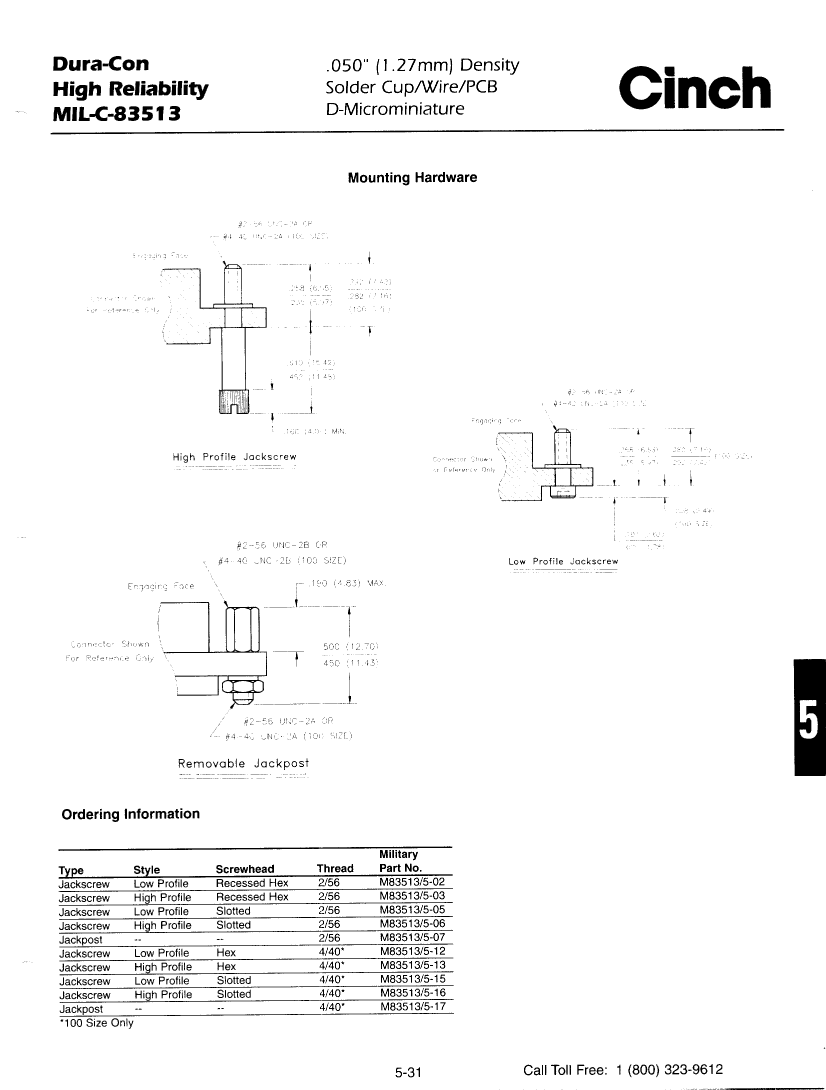

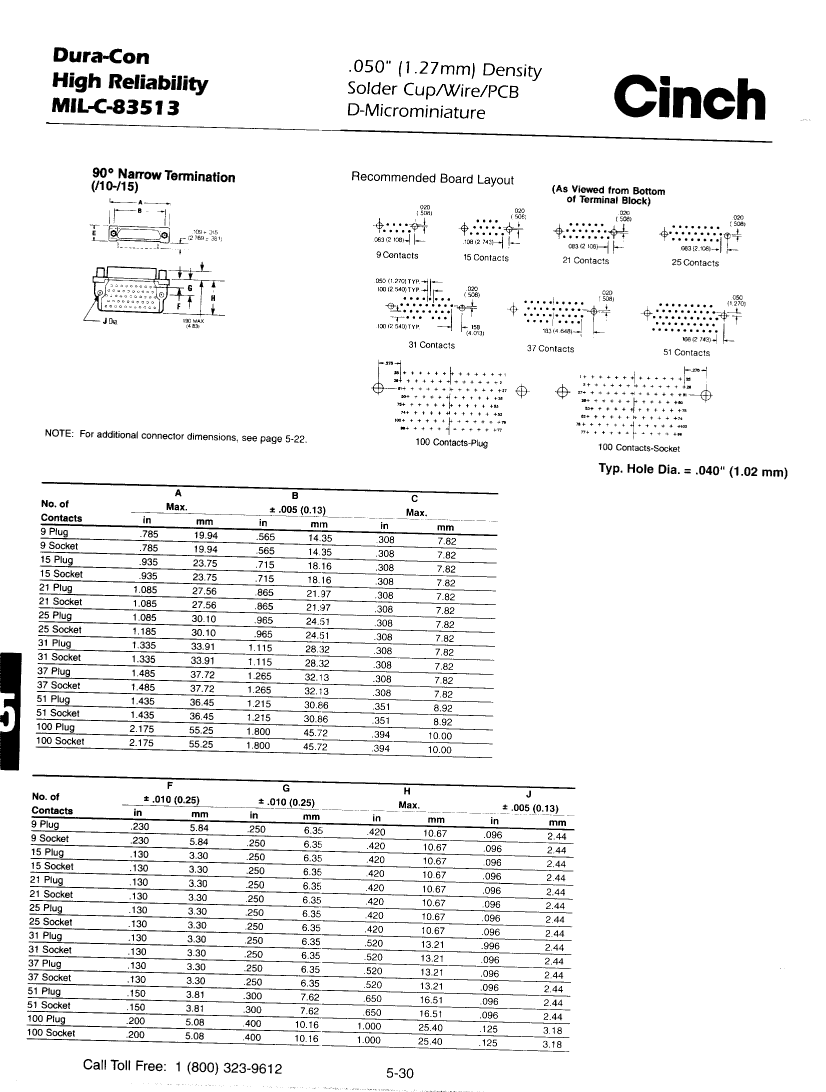

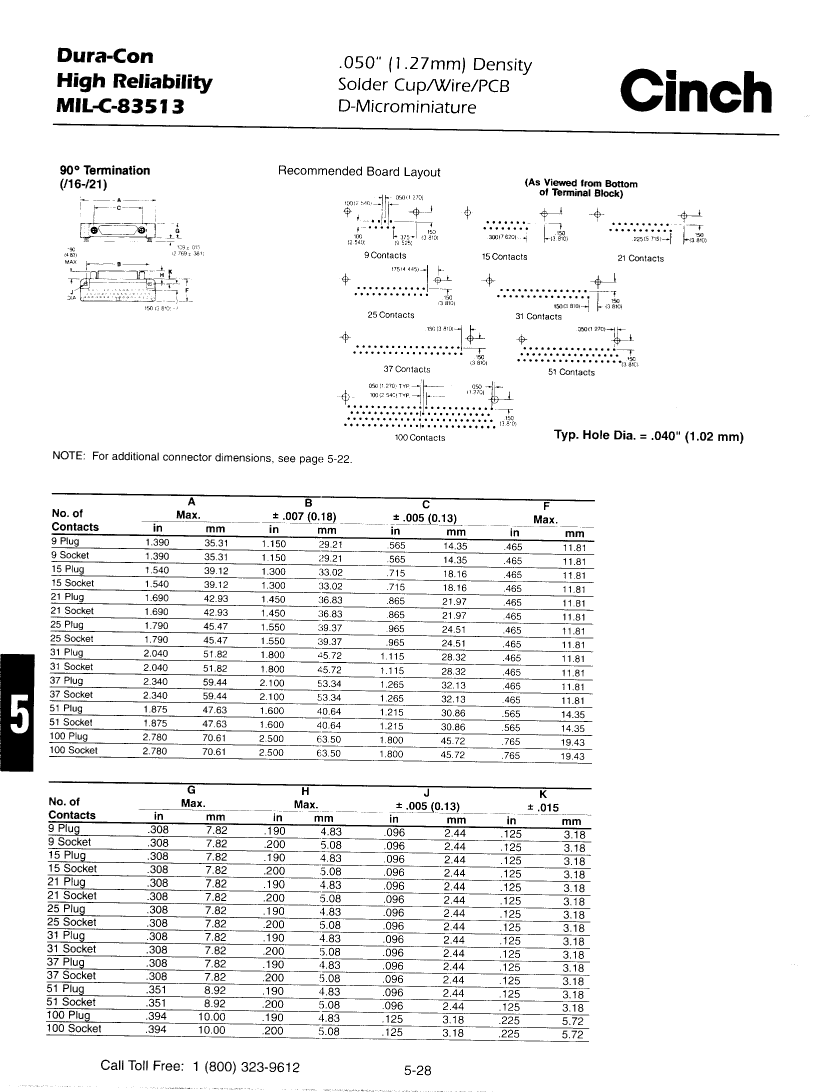

| Installation option 2 | JACKPOST |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 3 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 50u inch |
| Rated current (signal) | 3 A |
| Guideline | MIL |
| Shell surface | CADMIUM |
| Shell material | METAL |
| Housing size | D |
| Terminal length | 0.172 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 0.139 N |
