82-6165: DescriptionRF N Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size148KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

82-6165 Overview

RF N Connector, Male, Cable Mount, Crimp Terminal, Plug

82-6165 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 10 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	N
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	HERMETIC
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

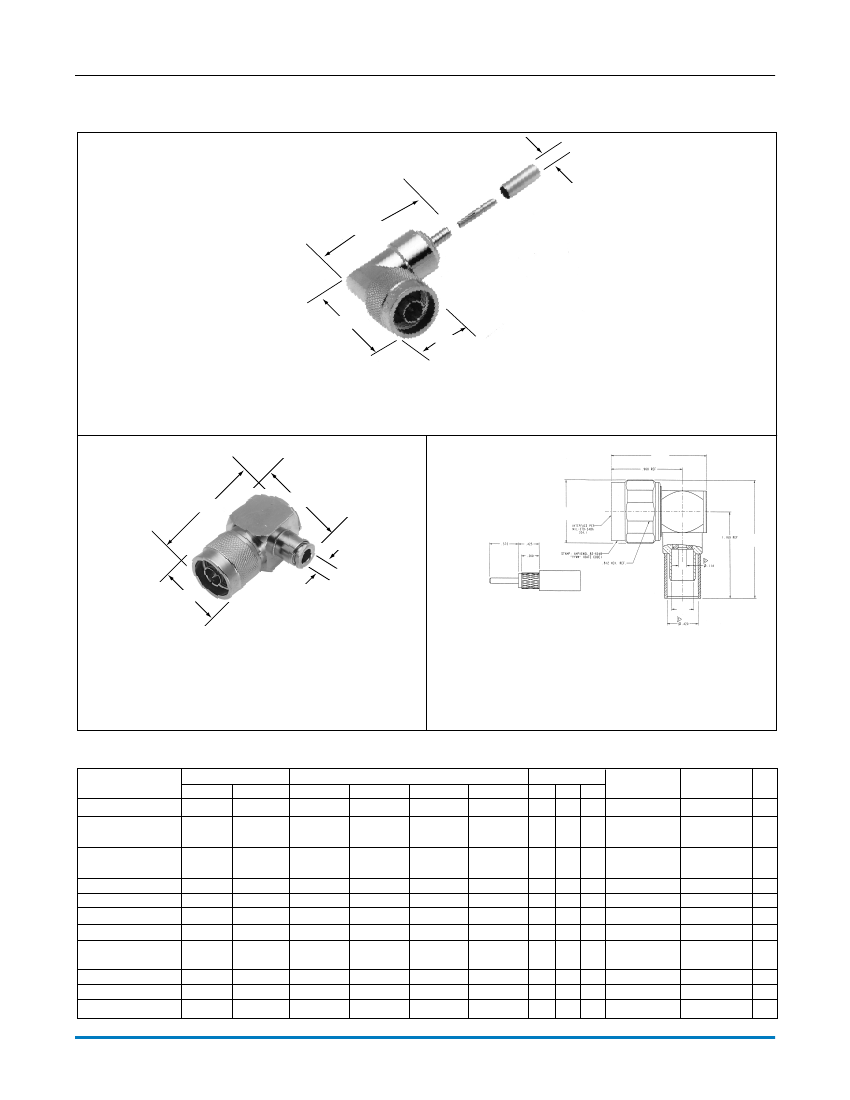

Type N

Right Angle Plugs

Fig. 1

c•

Amphenol

®

d

s

a

b

Crimp N Angle Plugs

82-4440-1001

82-5995

82-5374

82-4440

Fig. 2

Fig. 3

a

d

b

d

c•

b

c

Clamp N Angle Plug

Cubic Body

18750

82-5988-1000

Crimp N Angle Plug

Cubic Body

82-6048-1000

82-5989-1004

82-6157

82-6165

82-6166

N RIGHT ANGLE PLUGS

Cable RG-/U

9, 214, 225, 393

55, 142, 223

58, 141, 142

214, 225, 393

214, 393

LMR 600, TWB 6001

Amph TWB 4001,

LMR 400, Belden 9913

LMR 240, 8X

q

Cable Attachment

Outer

Inner

Crimp

Clamp

Crimp

Solder

Crimp

Solder

Crimp

a

1.40(35.5)

1.41(35.7)

1.63(41.3)

1.40(35.5)

Dimensions, inches (millimeters)

b

c

q

.827(21.0)

.850(21.6)

.827(21.0)

.437(11.1)

.220(5.6)

.210(5.3)

.438(11.1)

.625(15.9)

.298(7.57)

.259(6.6)

d

Notes

CAI Plt. Ins.

C11 P28 D1

C11 P11 D1

C8

P1

D1

Military

Number

—

Amphenol

Number

82-4440-1001

82-5374

18750

Fig.

1

2

1

2

3

1

3

v

1.95(49.5)

s

1.98(50.2)

s

1.22(31.0)

1.95(49.5)

s

1.62(4.1)

s

C11 P33 D1

C11 P33 D9

M39012/05-0501

82-4440

—

Hex Coupling

—

Nickel Body

Silver Body

82-5988-1000

82-5988-1004

82-5995

82-6048-1000

82-6157

82-6165

82-6166

1.195(30.4)

1.32(33.5)

1.291(32.8)

1.43(36.5)

1.62(4.1)

s

1.61(40.9)

s

C11 P34 D9

1.594(40.5)

s

C11 P33 D9

1.07(27.2)

C11 P7

D1

C11 P33 D1

accommodates cable diameter

s

includes outer ferrule

v

Distributor stocked

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

228

82-6165 Related Products

	82-6165	82-4440-1001	82-5988-1004	82-6048-1000	M39012/05-0501	82-6157	82-6166	82-5995
Description	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Terminal, Plug	RF N Connector, Male, Cable Mount, Crimp Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS MAX AT 10 GHZ	APPLICABLE CABLES: RG-9/U; RG-214/U; RG-225/U; RG-393/U, INSERTION LOSS MAX AT 10 GHZ	APPLICABLE CABLES: RG-214/U; RG-393/U, INSERTION LOSS MAX AT 10 GHZ	INSERTION LOSS MAX AT 10 GHZ	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-214/U; RG-225/U; RG-393/U, INSERTION LOSS MAX AT 10 GHZ	INSERTION LOSS MAX AT 10 GHZ	INSERTION LOSS MAX AT 10 GHZ	INSERTION LOSS MAX AT 10 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB	0.15 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUOROETHYLENE
MIL compliance	NO	NO	NO	NO	YES	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz
Options	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP SOLDER	CRIMP SOLDER	CRIMP	CRIMP	CRIMP	CRIMP/SOLDER
voltage standing wave ratio	1.35	1.35	1.35	1.35	1.35	1.35	1.35	1.35
Manufacturer's serial number	N	-	N	N	N	N	N	-
