DE3101/2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DE3101/2

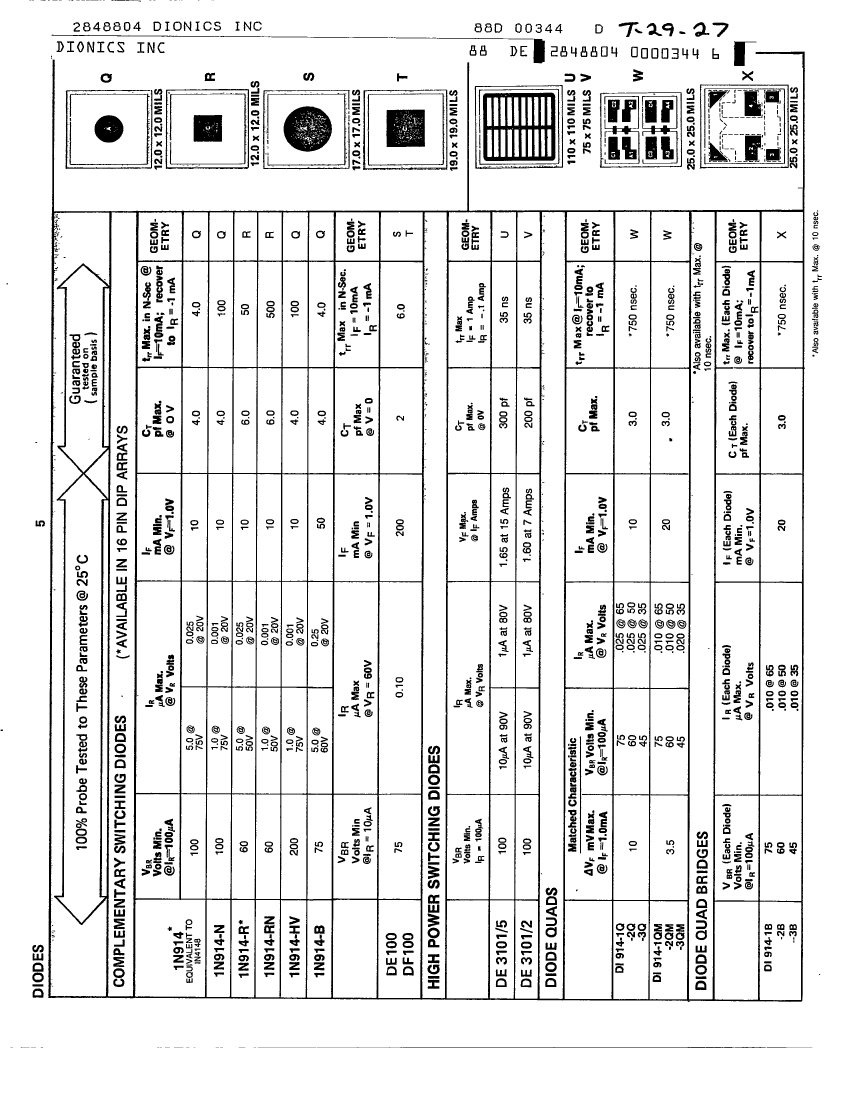

DE3101/2: DescriptionRectifier Diode, 1 Element, 7A, 100V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size63KB，1 Pages; ManufacturerDionics Inc

Download Datasheet Parametric Compare View All

DE3101/2 Overview

Rectifier Diode, 1 Element, 7A, 100V V(RRM), Silicon

DE3101/2 Parametric

Parameter Name	Attribute value
Maker	Dionics Inc
package instruction	S-XUUC-N1
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V
JESD-30 code	S-XUUC-N1
Number of components	1
Number of terminals	1
Maximum output current	7 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DE3101/2 Related Products

	DE3101/2	1N914-HV	DI914-1Q	DI914-1QM	DI914-3Q	1N914-B	DE3101/5	DE100
Description	Rectifier Diode, 1 Element, 7A, 100V V(RRM), Silicon	Rectifier Diode, 1 Element, 0.01A, 200V V(RRM), Silicon	Rectifier Diode, 4 Element, 75V V(RRM), Silicon	Rectifier Diode, 4 Element, 75V V(RRM), Silicon	Rectifier Diode, 4 Element, 45V V(RRM), Silicon	Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon	Rectifier Diode, 1 Element, 15A, 100V V(RRM), Silicon	Rectifier Diode, 1 Element, 0.2A, 75V V(RRM), Silicon
package instruction	S-XUUC-N1	R-XUUC-N1	S-XUUC-N8	S-XUUC-N8	S-XUUC-N8	R-XUUC-N1	S-XUUC-N1	S-XUUC-N1
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V	1 V	1 V	1 V	1 V	1 V	1.65 V	1 V
JESD-30 code	S-XUUC-N1	R-XUUC-N1	S-XUUC-N8	S-XUUC-N8	S-XUUC-N8	R-XUUC-N1	S-XUUC-N1	S-XUUC-N1
Number of components	1	1	4	4	4	1	1	1
Number of terminals	1	1	8	8	8	1	1	1
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	200 V	75 V	75 V	45 V	100 V	100 V	75 V
Maximum reverse current	10 µA	1 µA	0.025 µA	0.01 µA	0.025 µA	5 µA	10 µA	0.1 µA
Maximum reverse recovery time	0.035 µs	0.1 µs	0.75 µs	0.75 µs	0.75 µs	0.004 µs	0.035 µs	0.006 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Dionics Inc	-	Dionics Inc	Dionics Inc	Dionics Inc	Dionics Inc	Dionics Inc	-
Maximum output current	7 A	0.01 A	-	-	-	0.15 A	15 A	0.2 A
