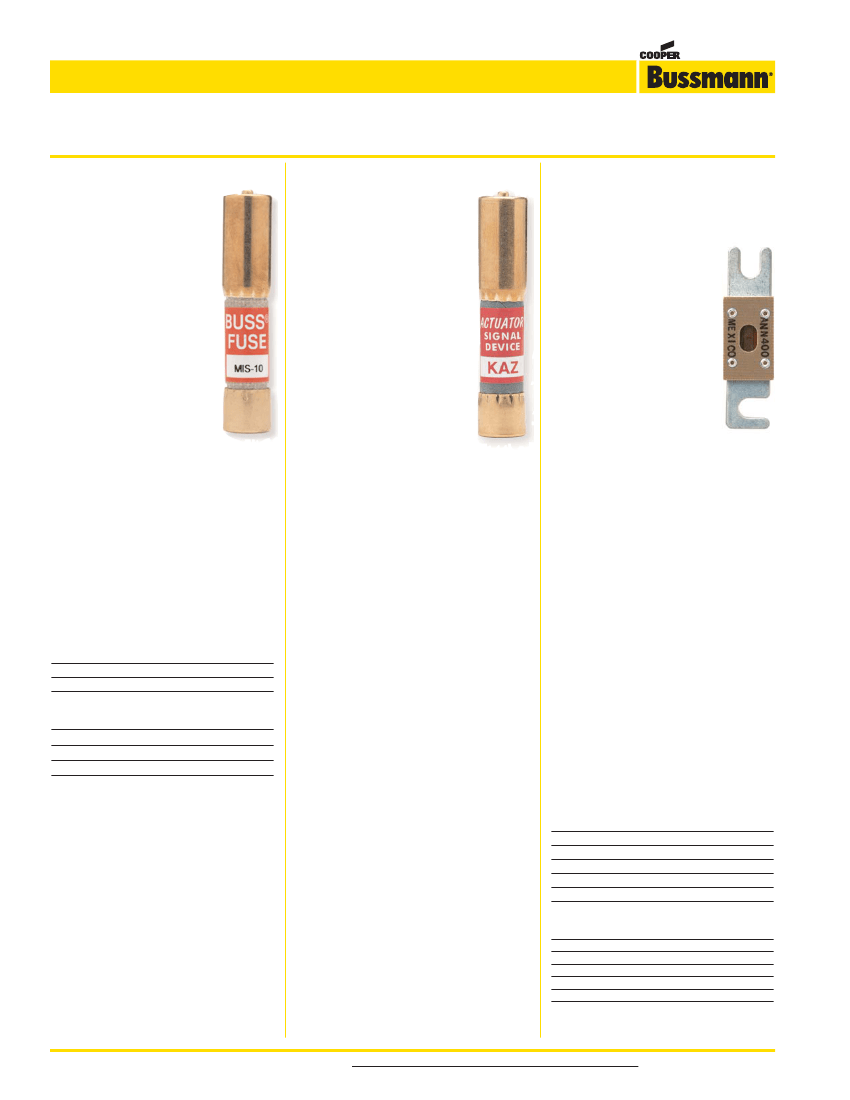

Low Voltage Supplementary Fuses
Pin indication fuse and actuator, and limiters
MIS
Specifications
Class:
Supplemental
Description:
Non time-
delay pin indication fuse.
Dimensions:
13
⁄
32
” x 2”
(10.3 x 50.8mm).
Construction:
Melamine tube.
Ratings:
Volts — 600Vac
Amps — 1-12A
IR — 200,000A
Features and Benefits
• Type MIS has a pin indica-
tor providing visual identifi-
cation of failed circuits,
resulting in
faster troubleshooting (reduced
circuit downtime).
• Type MIS can be used in circuits
rated 600V or less.
• Type MIS has an interrupting
rating of 200,000A.
Typical Applications
• 480V Control Circuits
• PLC Circuits
Catalog Numbers (Amps)
MIS-1
MIS-2
MIS-3
MIS-4
MIS-5
MIS-8
MIS-10
MIS-12
KAZ
Specifications
Description:
Non-Fuse actu-
ator.
Dimensions:
13
⁄
32
” x 2”
(10.3 x 50.8mm).
Construction:
Melamine
tube.
Ratings:
Volts — 600Vac
Amps — N/A
IR — 200,000A
Agency Information:
CE,
UL Listed, Guide JDVS, File
E58836.
Features and Benefits
• Bussmann signal blocks 2778,
2837 or 2838 with KAZ actuators
mounted in parallel with fuses having a
rating of 50A or larger to provide blown
fuse dropout of shunt-trip fused
switches.
• Type KAZ can be used in circuits rated
600V or less.
• Type KAZ has an interrupting rating of
200,000A.
Typical Applications
• Large, Shunt-Trip Fused Switches
• Fuse Protected Circuits Rated 50A or
Larger With Shunt-Trip Devices.
Catalog Number: KAZ
ANN & ANL Limiters
Specifications
Description:
Circuit limiters.
ANN:
Very fast-acting limiter.
ANL:
Time-delay limiter.
Dimensions:
7
⁄
8
” x 3
3
⁄
16
”
(22.2 x 81.0mm).
Ratings:
ANN:
Volts — 125Vac
— 80Vdc
Amps — 10-800A
IR — 2500A @ 125Vac
— 2700A @ 80Vdc
ANL:
Volts — 80Vdc
Amps — 35-750A
IR — 2700A @ 80Vdc
Agency Information:
ANN:
35-400A @ 125Vac, IR=2500A
and 500A @ 80Vdc, IR=2700A: UL
Recognized Guide JFHR2, File
E56412; CSA Certified Class 1422-30,
File 53787, CE for 35-400A.
ANL:
UL Recognized, CSA Certified,
35-750A @ 80Vdc, IR = 2700A, Guide
JFHR2, File E56412, Class 1422-30,
File 53787, SAE J1171.
Features and Benefits
• Fast-acting circuit protection (ANN).
• Time-delay sizing for inductive circuits
(ANL).
• Small footprint saves space.
• Window shows limiter status.
Typical Applications
• Fork lifts, Marine, Aviation
ANN Catalog Numbers (Amps)
ANN-10
ANN-35
ANN-40
ANN-50
ANN-60
ANN-80
ANN-90
ANN-100
ANN-125
ANN-150
ANN-175
ANN-200
ANN-225
ANN-250
ANN-275
ANN-300
ANN-325
ANN-350
ANN-400
ANN-500
ANN-600
ANN-700
ANN-800
Test Specifications
Fuse
All
1-5A
6-12A
Load
110%
150%
150%
Opening Time
0 4 hrs. (min.)
0 6 min. (max.)
12 min. (max.)
Recommended signal block for
13
⁄
32
” x 2” indicating fuses
Recommended signal block for
13
⁄
32
” x 2” indicating fuses
• Page 41
• Page 41
ANL Catalog Numbers (Amps)
ANL-35
ANL-40
ANL-50
ANL-60
ANL-80
ANL-100
ANL-125
ANL-130
ANL-150
ANL-175
ANL-200
ANL-225
ANL-250
ANL-275
ANL-300
ANL-325
ANL-350
ANL-400
ANL-500
ANL-600
ANL-675
ANL-750
Recommended block for ANN/ANL Limiters
• Page 40
Data Sheet: 2021
Data Sheets: 2023 (ANN), 2024 (ANL)
48
For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
