P80CE559EFB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P80CE559EFB

P80CE559EFB: DescriptionIC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size93KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

P80CE559EFB Overview

IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller

P80CE559EFB Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFP
Contacts	80
Reach Compliance Code	compliant
Has ADC	YES
Other features	CAPTURE/COMPARE UNIT; I2C SERIAL BUS INTERFACE
Address bus width	16
bit size	8
boundary scan	NO
CPU series	8051
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G80
length	20 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	48
Number of serial I/Os	2
Number of terminals	80
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.7X.9,32
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1536
RAM (number of words)	1536
rom(word)	0
Maximum seat height	3.3 mm
speed	16 MHz
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

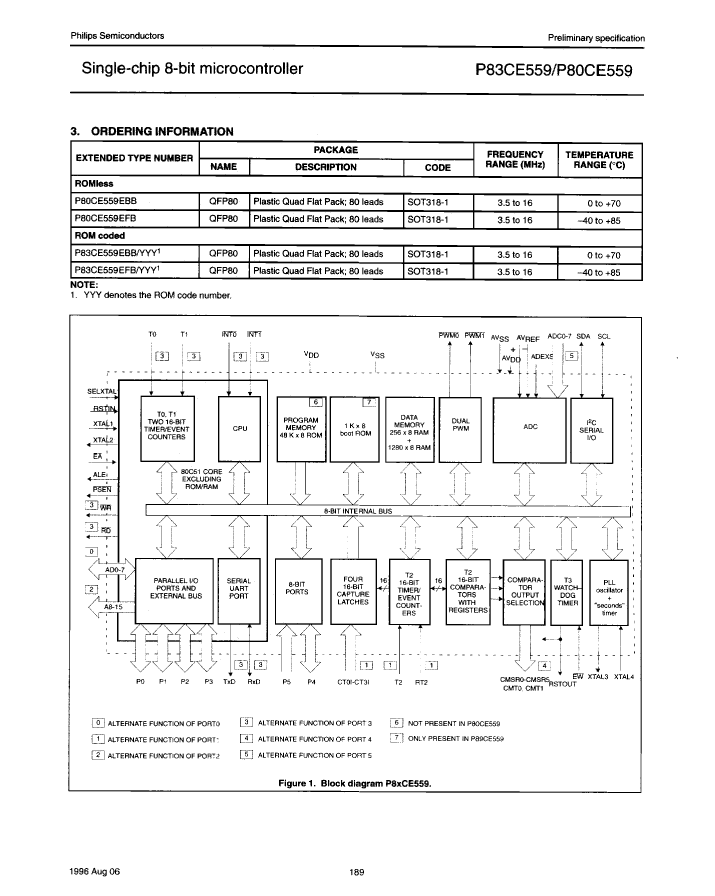

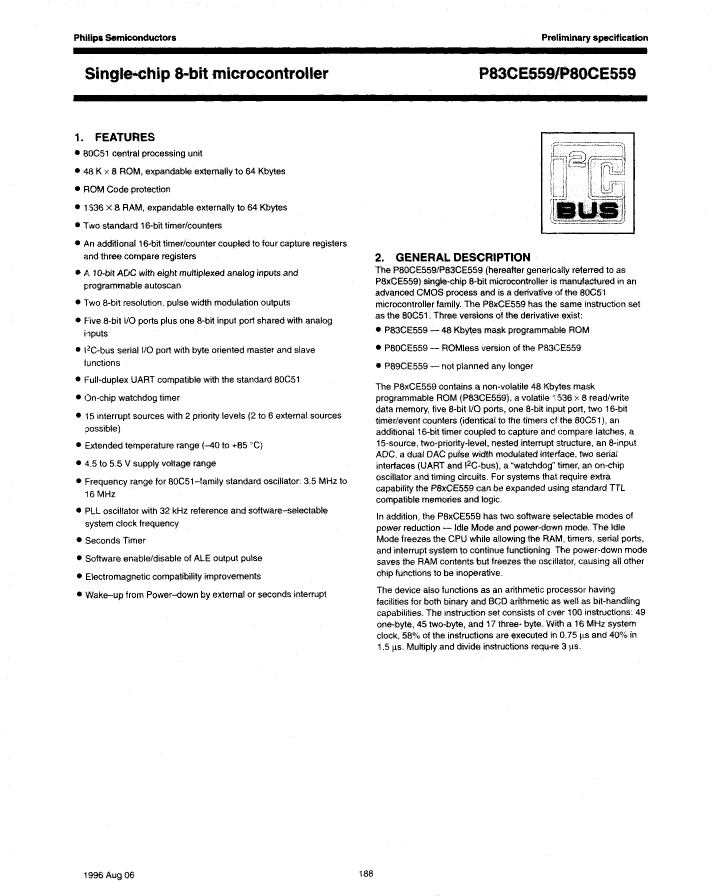

Preview

Download Datasheet

View All

P80CE559EFB Related Products

	P80CE559EFB	P80CE559EFB-T	P80CE559EBB-T	P80CE559EBB	P83CE559EBB/YYY-T	P83CE559EBB/YYY	P83CE559EFB/YYY	P83CE559EFB/YYY-T
Description	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQFP80, Microcontroller
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
Contacts	80	80	80	80	80	80	80	80
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80	R-PQFP-G80
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Number of I/O lines	48	48	48	48	48	48	48	48
Number of terminals	80	80	80	80	80	80	80	80
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm
speed	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Maximum slew rate	50 mA	50 mA	50 mA	50 mA	40 mA	40 mA	40 mA	40 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	NXP	-	NXP	NXP	NXP	NXP	NXP	NXP
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
