R573413945: DescriptionRF Coaxial Relay, SP9T, Momentary, 0.102A (Coil), 28VDC (Coil), 2856mW (Coil), 18000MHz, 100W (RF Input), DC Input, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size239KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R573413945 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R573413945	-	-	View	Buy Now

R573413945 Overview

RF Coaxial Relay, SP9T, Momentary, 0.102A (Coil), 28VDC (Coil), 2856mW (Coil), 18000MHz, 100W (RF Input), DC Input, Panel Mount, ROHS COMPLIANT

R573413945 Parametric

Parameter Name	Attribute value
Maker	Radiall
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days
Other features	SMA, BUILT-IN INDICATOR
body height	66 mm
Body length or diameter	63.5 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.102 A
Coil power	2856 mW
Coil resistance	274.51 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Electrical life	2000000 Cycle(s)
Maximum input power	100 W
Maximum insertion loss	0.7 dB
Maximum isolation	55 dB
Manufacturer's serial number	R573413945
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	MOMENTARY
Relay function	SP9T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.7

Preview

Download Datasheet

View All

Technical Data Sheet

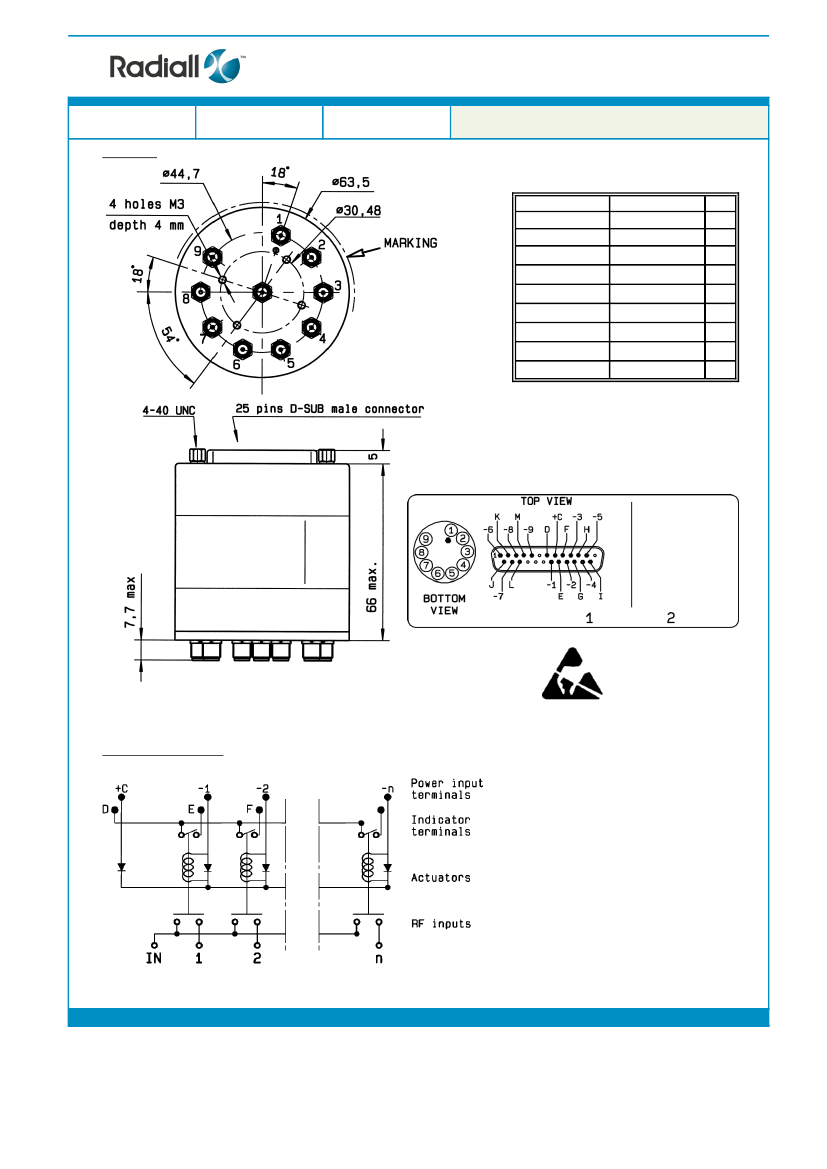

SP9T Ramses SMA 18GHz Normaly open Indicators 28Vdc Positive

common Diodes D-Sub connector

PAGE

1/2

ISSUE

16.06.13

SERIE :

SPnT

PART NUMBER :

R573413945

RF CHARACTERISTICS

Number of ways

Frequency range

Impedance

0 - 18 GHz

50 Ohms

Frequency (GHz)

VSWR max

Insertion loss max

Isolation min

Average power (*)

DC - 3

1,20

0.20 dB

80 dB

240 W

3-8

1,30

0.30 dB

70 dB

150 W

8 - 12.4

1,40

0.40 dB

60 dB

120 W

12.4 - 15.5

1,50

0.50 dB

60 dB

110 W

15.5 - 18

1,70

0.70 dB

55 dB

100 W

ELECTRICAL CHARACTERISTICS

Actuator

Nominal current **

Actuator voltage (Vcc)

Terminals

Indicator rating

NORMALLY OPEN

102 mA

28V (24 to 30V) / POSITIVE COMMON

25 pins D-SUB male connector

1 W / 30 V / 100 mA

MECHANICAL CHARACTERISTICS

Connectors

Life

Switching Time***

Construction

Weight

SMA female per MIL-C 39012

2.000.000 cycles per position

< 15 ms

Splashproof

< 360 g

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

Storage temperature range

-40°C to +85°C

-55°C to +85°C

(**

(***

Average power at 25°C per RF Path)

At 25° C ±10%)

Nominal voltage ; 25° C)

This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written

agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
