Tri Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT TRI PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS WHERE
EMI SHIELDING IS REQUIRED
Size 20 Contacts
Three Connectors Vertically
Stacked and Assembled
As a Single Connector Module
Professional Quality
Connectors
IEC Publication 807-2
Performance Level Two
Shielded Conductors

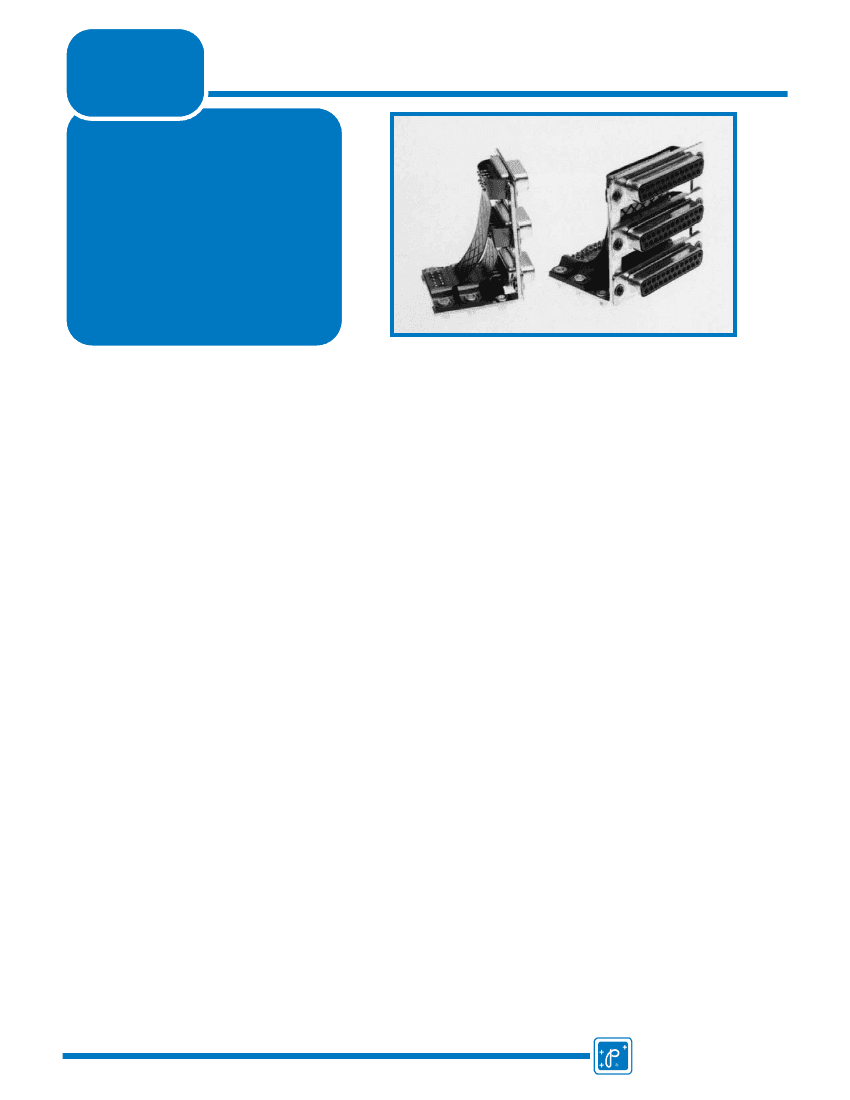

The connectors of the Tri Port Series are composed of three con-
nectors vertically stacked and assembled into a single module, which
permits saving of panel and printed board space. Final assembly costs
are reduced by the simplification of the mounting operations.
Tri Port Series connectors are professional quality connectors rec-
ommended for use in sheltered, non-corrosive indoor or outdoor envi-
ronments having normal ventilation but without temperature or humid-
ity controls.
Four connector contact variants of 9, 15, 25 and 37 contacts are
available. Connector genders may be mixed, i.e., two female connec-
tors and one male connector may compose a Tri Port assembly. The
three connectors may be spaced apart to two standard spacings to
accommodate various dimensions of discrete hoods or molded cable
assemblies.
Tri Port Series connectors are equipped with a multi-layer flexible
“stripline” circuit which conducts and shields the signal as it is transmit-
ted from the connector contacts to the printed board conductors.
Mounting angle brackets are riveted to the connectors by specifying
mounting options N7 or N8 in step four of the ordering system. These
options provide for labor saving ease of connector assembly mounting
to the printed board, and also permit rapid jackscrew installation.
Locking systems are available utilizing 4-40 threaded jackscrew sys-
tems, both polarized or non-polarized. A quick-release vibration lock-
ing system which permits either front or rear panel mounting of the con-
nector is also available.
Tri Port Series connectors comply with the dimensional and coupling
requirements of IEC 807-2 and MIL-DTL-24308. Tri Port connectors
also meet the interface requirements for EIA RS232 and RS449 and
the CCITT X.24 recommendation.
TRI PORT SERIES TECHNICAL CHARACTERISTICS
MATERIALS AND FINISHES:
Insulator:
Contacts:
Nylon resin, UL 94V-0, black color.
Male contacts – precision machined
brass alloy. Female contacts – precision
machined high tensile phosphor bronze.
Gold flash over nickel plate. Other finishes
available upon request.
Steel or brass with tin plate or zinc plate
with dichromate seal. Other materials and
finishes available upon request.
Steel or brass with tin plate or zinc with
dichromate seal.
Nylon resin, UL 94V-0, black color.
Beryllium copper with tin plate.
Steel with clear zinc plate or zinc plate
with dichromate seal.
Lock tabs, steel with zinc plate.
Copper conductors layered with kapton
plastic.
Shells:
Polarization:
Mounting Bracket
Riveted to Connector:
Mounting to Printed Board:
Locking Systems:
Working Voltage:
300 V r.m.s.
Stripline Multilayer Circuit:
EMI Shielding.
MECHANICAL CHARACTERISTICS:
Fixed Contacts:
Contact Retention
in Insulator:
Contact Terminations:
Size 20 contact, male contact - 0.040 inch
[1.0 mm] diameter. Female contact –
rugged open entry design.
6 lbs. [27 N].
Printed board mount with 90° termina-
tions supported in footprint pattern by a
plastic alignment bar having brass pins
of 0.028 inch [0.71 mm] diameter.
Male shells may be dimpled for EMI/ESD
ground paths.
Trapezoidally shaped shells and polar-
ized jackscrews.
Riveted fasteners with 4-40 threads or 4-
40 threads with nylon lock insert.
Rapid installation push-on fasteners.
Jackscrews and vibration locking system
for either front or rear panel mounted
connectors.
500 operations minimum per IEC 512-5.
-55°C to +125°C.
Contact Plating:
Shells:
Mounting Spacers
and Brackets:
Cross Bar:
Push-On Fasteners:
Jackscrew Systems:
Vibration Lock Systems:
“Stripline” Multi-Layer
Circuit:
ELECTRICAL CHARACTERISTICS:
Contact Current Rating:
7.5 amperes nominal.
Initial Contact Resistance:
0.008 ohms.
Proof Voltage:
Insulator Resistance:
Clearance and Creepage
Distance [minimum]:
1,000 V r.m.s.
5 G ohms.
0.039 inch [1.0 mm].
Mechanical Operations:
Temperature Range:
CLIMATIC CHARACTERISTICS:
Positronic
24
Industries, Inc.
Tri Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT TRI PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS WHERE
EMI SHIELDING IS REQUIRED

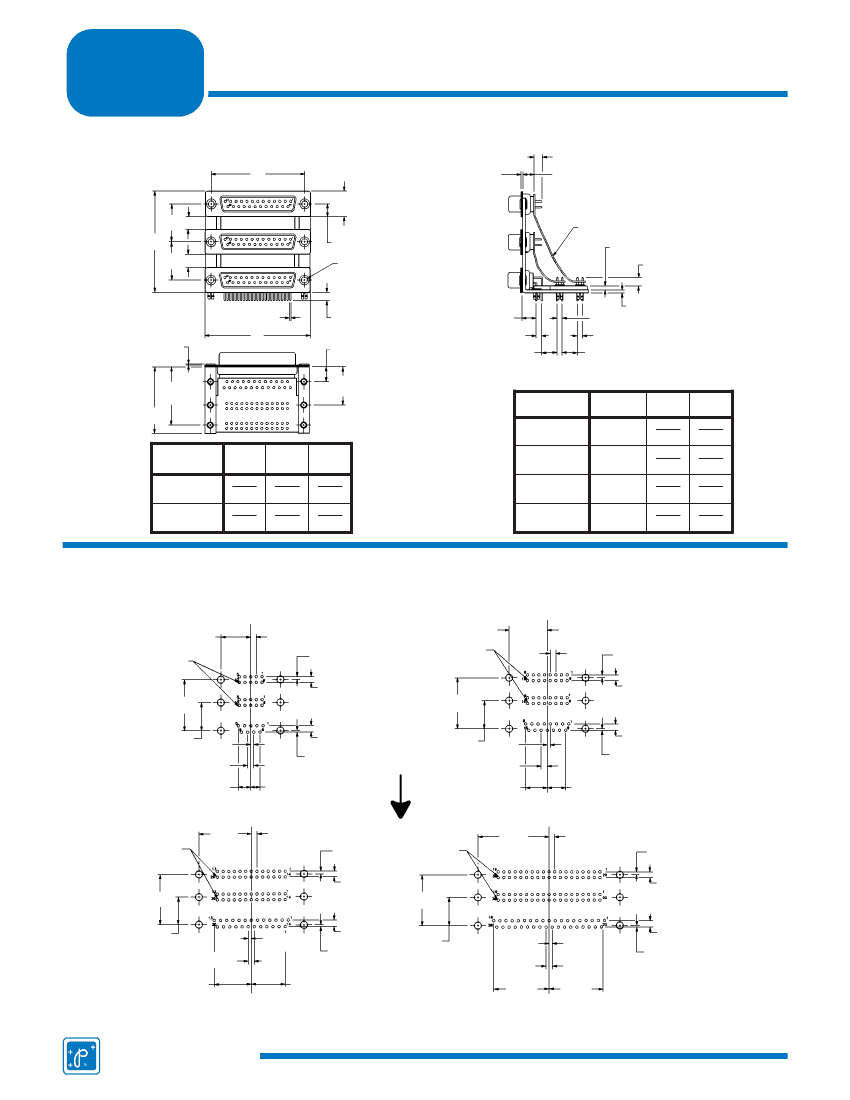

90° PRINTED BOARD MOUNT CONNECTOR
6 ROW CONNECTOR UNIT, 0.283 [7.19] CONTACT EXTENSION
B
0.494 [12.55] Typ.
C
D
C E
E
0.247 [6.27] Typ.
4-40 UNC
Typ. 6
0.028 [0.71]
Typ.
A
Typ.
±0.020
0.160 [4.06]
0.288 [7.32]
Shielded Flexible Circuit
0.080 [2.03]
0.150 [3.81] Nominal
±0.008
0.036 [0.91]
0.160 [4.06] Nominal
0.220 [5.59] Max.
0.283 [7.19] Typ.
0.112 [2.84] Typ.
0.300 [7.62] Typ.
0.062 [1.57]
0.100 [2.54] Typ.
0.100 [2.54] Typ.
0.300 [7.62] Typ.
0.020 [0.51]
Max. Rollover
1.144
[29.06]
1.311 [33.30]
0.744 [18.90]
Typical Part Number:
HTPB25FN7/FN7/FN7X
C
0.750
[19.05]
0.900
[22.88]
D
1.994
[50.65]
2.294
[58.27]
E
0.256
[6.50]
0.406
[10.31]
CONNECTOR
NO. OF
VARIANT
CONTACTS
9
15
25
37
27
45
75
111
A
1.213
[30.81]
1.541
[39.14]
2.088
[53.04]
2.729
[69.32]
B
0.984
[24.99]
1.312
[33.32]
1.852
[47.04]
2.500
[63.50]
CONNECTOR
DESIGNATION
HTPB
HTPC
90° PRINTED BOARD CONTACT HOLE PATTERN
Hole identification shown is for female connector, use mirror image for male connector.
Mount connector with mating face positioned to follow direction of arrow.
Sym.
0.492 [12.50]
Grounding Pin
0.100
[2.54]
0.050 [1.27] Typ.
0.100 [2.54] Typ.
0.856 [21.74]
0.856 [21.74]
0.112 [2.84] Typ.
0.005 [0.13] Typ.
0.324 [8.23]
Sym.
0.100
[2.54]
0.050 [1.27]
Typ.
Grounding Pin
1.250
[31.75]
0.100
[2.54]
0.050 [1.27] Typ.
0.100 [2.54] Typ.
Grounding Pin
Sym.
0.656
[16.66]
0.100
[2.54]
0.050 [1.27] Typ.
0.100 [2.54] Typ.
0.456 [11.58]
0.055
[1.40]
0.109 [2.77]
0.112 [2.84] Typ.
0.005 [0.13] Typ.
0.162 [4.11]
0.456 [11.58]
0.055
[1.40]
0.109 [2.77]
0.216 [5.49]
0.378 [9.60]
Sym.
Grounding Pin
0.926
[35.52]
0.856 [21.74]
0.100 [2.54]
Typ.
0.856 [21.74]
0.112 [2.84]
Typ.
0.005 [0.13]
Typ.
0.598 [15.19]
0.456 [11.58]
0.109 [2.77]
0.652 [16.56]
0.055
[1.40]
0.456
[11.58]
0.109
[2.77]
0.978
[24.84]
0.055
[1.40]
0.112 [2.84] Typ.
0.005 [0.13] Typ.
0.924
[23.47]
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
Suggest 0.045 [1.14] Ø hole for contact termination positions.
Suggest 0.123 ±0.003 [3.12] Ø hole for mounting connector with push-on fasteners.
25
Positronic
Industries, Inc.
Tri Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT TRI PORT
VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS WHERE
EMI SHIELDING IS REQUIRED
ORDERING INFORMATION – CODE NUMBERING SYSTEM
Specify Complete Connector By Following Steps 1 Through 10
Insert “0” When Step Is Not Used
Upper
Connector
Middle
Connector
Lower
Connector
STEP
1
HTPB
2
25
3
F
4
N7T
5
6
N7T
7
8
N7T
9
X
10
/
F
/
F
STEP 1 - Basic Series
HTPB Series
HTPC Series
Options are
the same
as for Upper
Connector
Steps 3 and 4.
STEP 10 - Special Options
Consult Sales Department.
STEP 2 - HTP Series Connector
Variants
9, 15, 25, 37
STEP 9 - Shell Options
0 - Zinc Plated with Dichromate Seal.
X - Tin Plated.
Z – Tin Plated and Dimpled - male
connector only
STEP 3 - Connector Gender
M - Male
F - Female
STEP 4 - Locking, Polarizing, Mounting and
Push-On Fastener Systems
N7 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Threads with Cross Bar and Push-on
Fastener.
N8 - Bracket, Mounting, 90° Metal, Swaged to Connector
with 4-40 Locknut with Cross Bar and Push-on
Fastener.
V3 - Lock Tab, connector front panel mounted.
V5 - Lock Tab, connector rear panel mounted.
T - Fixed Female Jackscrews.
T2 - Fixed Female Jackscrews.
T6 - Fixed Male and Female Polarized Jackscrews.
Positronic
26
Industries, Inc.
