RC4558M: DescriptionOperational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, PDSO8, SOIC-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size413KB，10 Pages; ManufacturerQP Semiconductor

Download Datasheet Parametric Compare View All

RC4558M Overview

Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, PDSO8, SOIC-8

RC4558M Parametric

Parameter Name	Attribute value
Maker	QP Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	6000 µV
JESD-30 code	R-PDSO-G8
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Nominal slew rate	0.8 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	3000 kHz

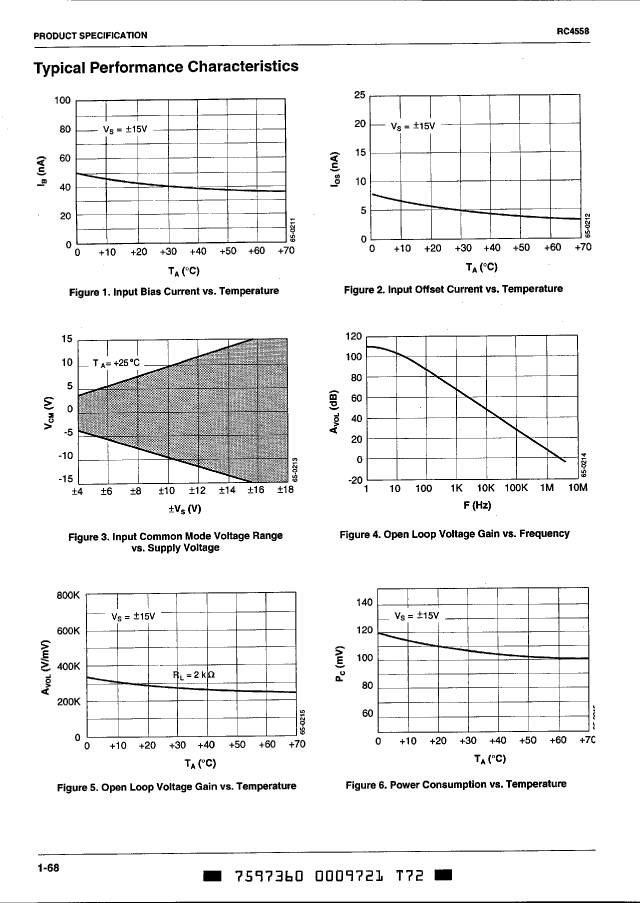

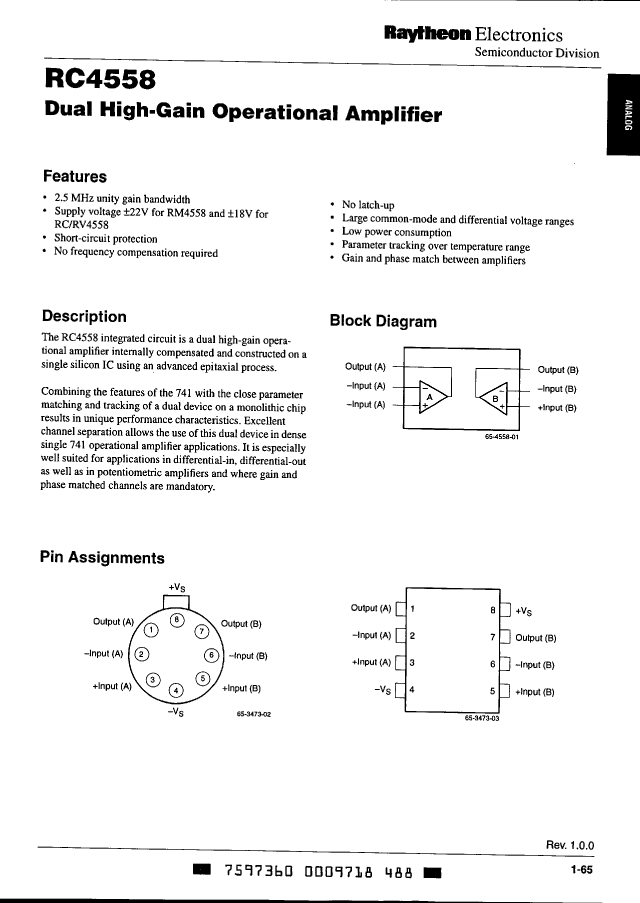

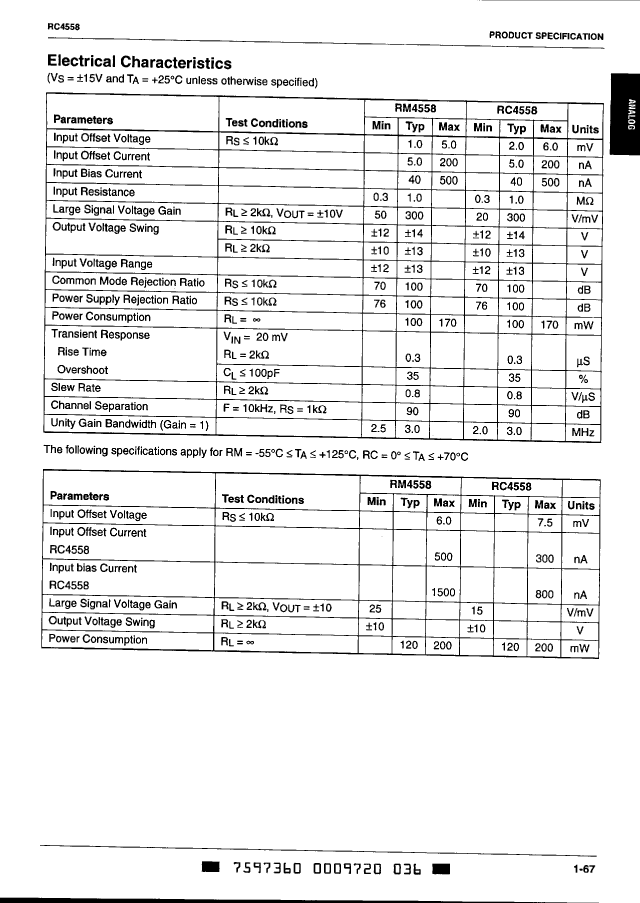

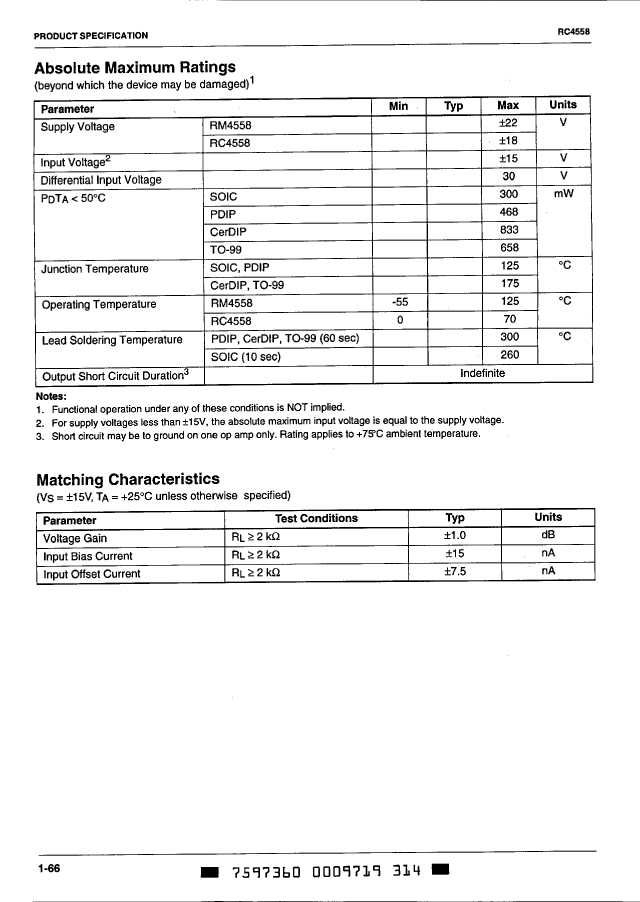

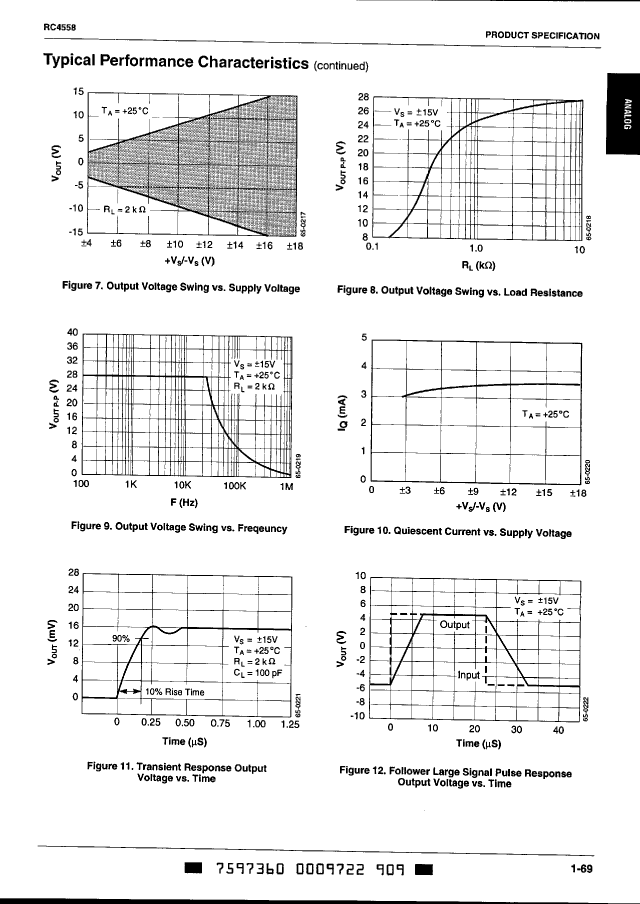

Preview

Download Datasheet

View All

RC4558M Related Products

	RC4558M	RM4558D/883B	RC4558N	RM4558D
Description	Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, PDSO8, SOIC-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8
Maker	QP Semiconductor	QP Semiconductor	QP Semiconductor	QP Semiconductor
Parts packaging code	SOIC	DIP	DIP	DIP
package instruction	SOP,	DIP,	DIP,	DIP,
Contacts	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA	0.5 µA	0.5 µA	0.5 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB
Maximum input offset voltage	6000 µV	5000 µV	6000 µV	5000 µV
JESD-30 code	R-PDSO-G8	R-CDIP-T8	R-PDIP-T8	R-CDIP-T8
Negative supply voltage upper limit	-18 V	-22 V	-18 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2
Number of terminals	8	8	8	8
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SOP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Nominal slew rate	0.8 V/us	0.8 V/us	0.8 V/us	0.8 V/us
Supply voltage upper limit	18 V	22 V	18 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	3000 kHz	3000 kHz	3000 kHz	3000 kHz
