BZY55C24

Description
10 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE
CategoryDiscrete semiconductor    diode
File Size233KB,5 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric View All

BZY55C24 Overview

10 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

BZY55C24 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiwan Semiconductor
package instructionR-PDSO-R2
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-R2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.5 W
Nominal reference voltage24 V
surface mountYES
technologyZENER
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal formWRAP AROUND
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5%
Working test current5 mA
BZY55C2V4 thru BZY55C36
Taiwan Semiconductor
Small Signal Product
5% Tolerance SMD Zener Diode
FEATURES
- Wide zener voltage range selection: 2.4V to 36V
- Surface device type mounting
- Moisture sensitivity level 1
- Matte Tin(Sn) lead finish with Nickel(Ni) underplate
- Pb free and RoHS compliant
- Halogen free
0805
MECHANICAL DATA
- Case: 0805
- High temperature soldering guaranteed: 260
o
C/10s
- Polarity: Indicated by cathode band
- Weight : 0.006 grams (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Power Dissipation
Forward Voltage
I
F
= 10 mA
(Note 1)
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
SYMBO
P
D
V
F
R
θJA
T
J
, T
STG
VALUE
500
1.5
300
- 55 to +150
o
UNIT
mW
V
C/W
o
C
Note 1: Valid provided that electrodes are kept at ambient temperature

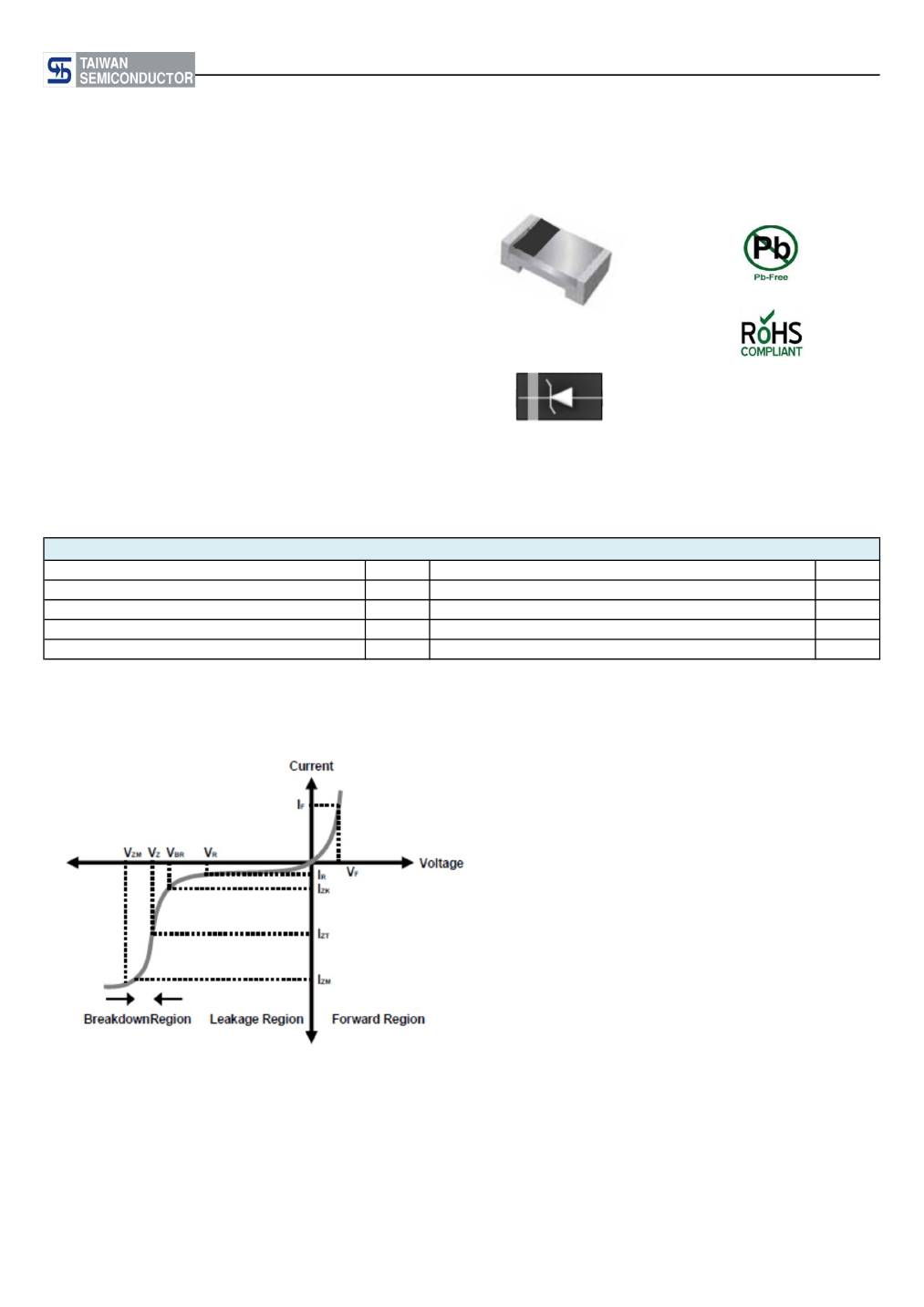

Zener I vs. V Characteristics
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
I
ZM
V
ZM
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
Document Number: DS_S1408017
Version: C14
