ECCM5B5DB-20-24.001MTR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM5B5DB-20-24.001MTR

PDF

ECCM5B5DB-20-24.001MTR: DescriptionQUARTZ CRYSTAL RESONATOR, 24.001 MHz, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size204KB，3 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM5B5DB-20-24.001MTR Overview

QUARTZ CRYSTAL RESONATOR, 24.001 MHz, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN

ECCM5B5DB-20-24.001MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	20 pF
Manufacturer's serial number	ECCM5B
Installation features	SURFACE MOUNT
Nominal operating frequency	24.001 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	L6.0XB3.5XH1.0 (mm)/L0.236XB0.138XH0.039 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

Marketing Bulletin

DATE:

TO:

FROM:

RE:

January 15

th

, 2008

All Sales Personnel

Isaac Gonzalez

Product Termination

To all concerned parties,

This bulletin is to notify all customers of the discontinuation of the following Ecliptek

series effective January 15

th

, 2008:

Series

ECCM5B

Description

3.5x6.0mm Ceramic 2Pad SMD Crystal

Recommended Replacement

ECCM5A Series

In compliance with our End of Life (EOL) policy, this will serve as advanced notice of

product termination. New orders will not be accepted after January 1

st

, 2009, with

delivery to conclude by April 1

st

, 2009.

If there are any questions pertaining to this bulletin, please feel free to contact me.

Thank you again for your cooperation.

Best Regards,

Isaac Gonzalez

Configuration Manager

Ecliptek Corporation

3545 CADILLAC AVENUE

•

COSTA MESA, CA 92626-1401

•

(714) 433-1200

•

Fax (714) 433-1234

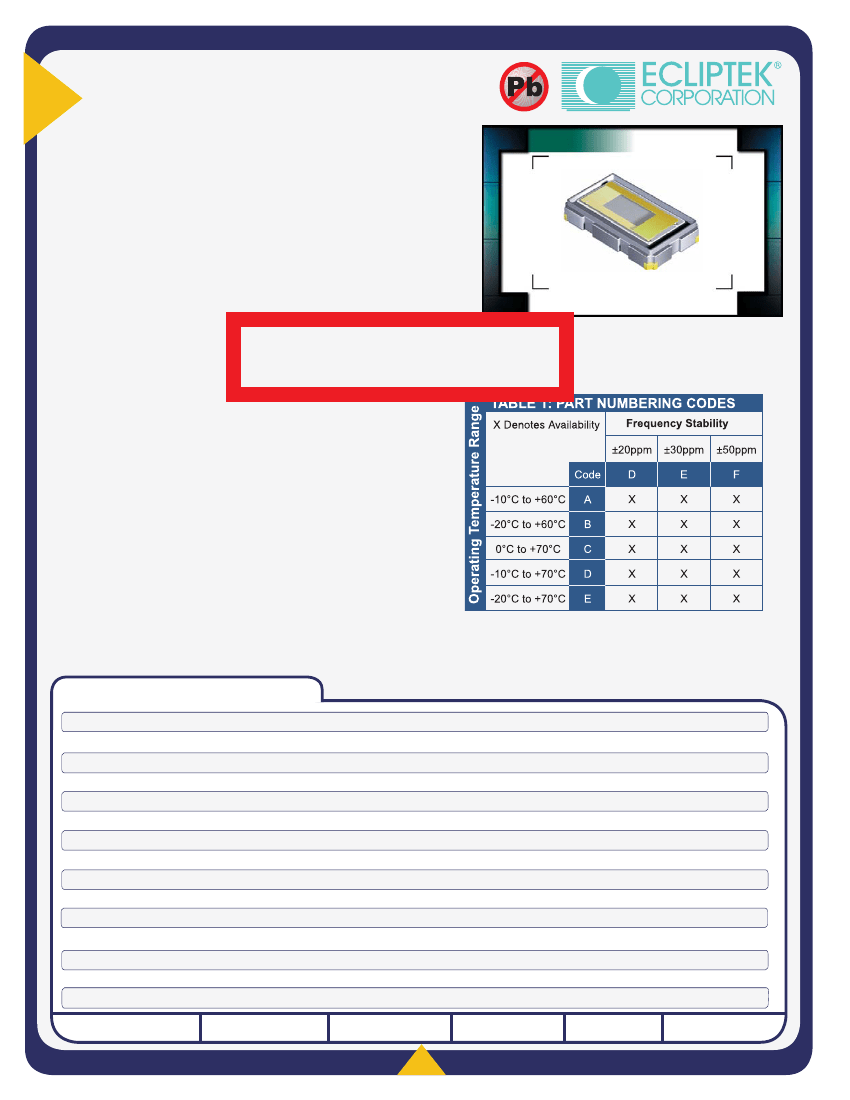

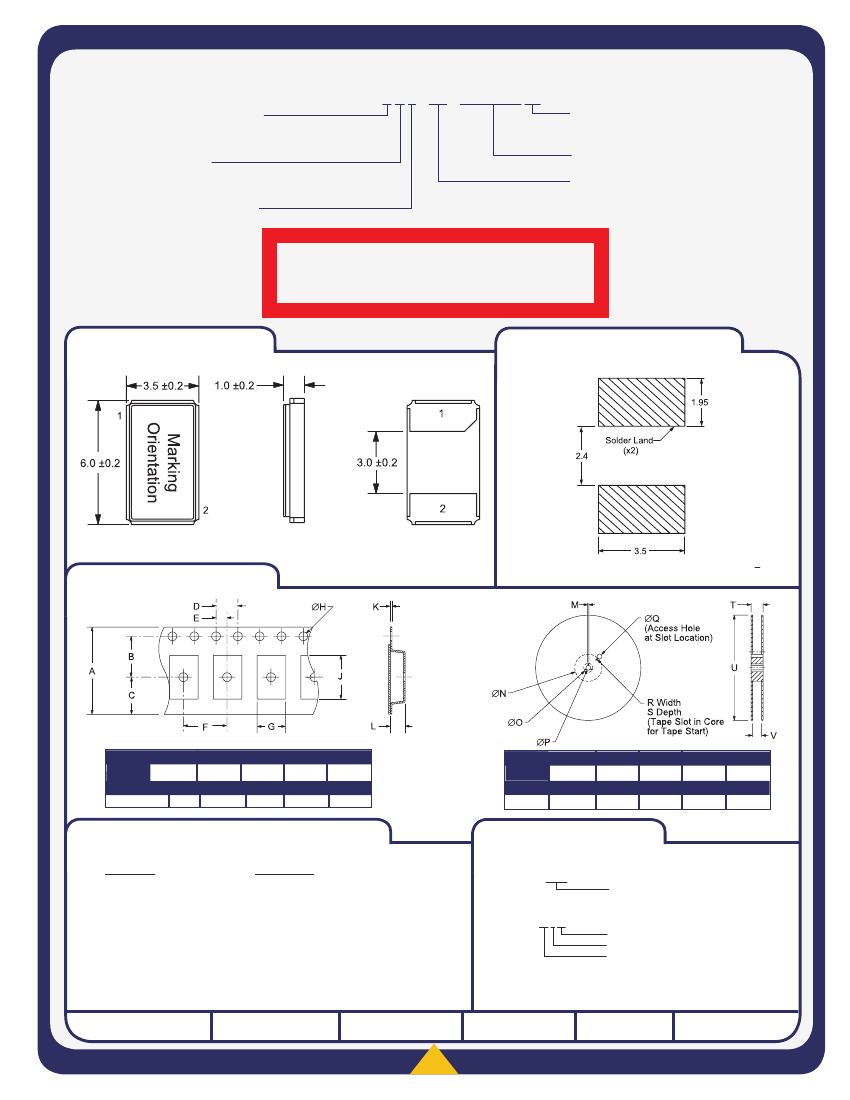

ECCM5B

Series

• RoHS Compliant (Pb-Free)

• Miniature two pad ceramic

surface mount package

• AT cut

• Tight tolerance/stability

• Frequencies to 32.000MHz available

• Tape and reel available

NOTES

H

L

W

ECCM5B

1.0

6.0

3.5

CRYSTAL

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

OBSOLETE

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

_______________________________________________________________________________________________

_______________________________________________________________________________________________

______________________________________________________________________________________________

______________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Aging (at 25°C)

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Drive Level

Load Capacitance (C

L

)

Spurious Response

Frequency Range

11.0592MHz to 24.000MHz

24.001MHz to 32.000MHz

MANUFACTURER

CATEGORY

11.0592MHz to 32.000MHz

±30ppm, or ±50ppm

Per Table 1

Per Table 1

±2ppm / year Maximum

-40°C to 85°C

5pF Maximum

500 Megaohms Minimum at 100V

DC

100 µWatts Maximum

18pF (Standard), C

L

≥10pF,

or Series Resonant

-3dB Minimum; F

0

to F

0

+5000ppm

ESR (Ω)

50 Maximum

40 Maximum

SERIES

PACKAGE

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Mode / Cut

Fundamental / AT

Fundamental / AT

CLASS

REV

.

DATE

ECLIPTEK CORP.

CRYSTAL

ECCM5B

CERAMIC

CR39

09/03

800-ECLIPTEK www.ecliptek.com for latest revision

38

Specifications subject to change without notice.
