BBRF550S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BBRF550S

BBRF550S: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size31KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

BBRF550S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BBRF550S	-	-	View	Buy Now

BBRF550S Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

BBRF550S Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RESISTANCE RANGE(MIN-MAX): 0.8-1.3
JESD-609 code	e3
Manufacturer's serial number	BBRF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Package shape	DISK PACKAGE
method of packing	BULK
Rated (AC) voltage (URac)	99 V
Rated power dissipation(P)	1.5 W
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal surface	TIN
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING

Preview

Download Datasheet

View All

PolySwitch®

PTC Devices

308 Constitution Drive

Menlo Park, CA 94025-1164

Phone: 800-227-4856

www.circuitprotection.com

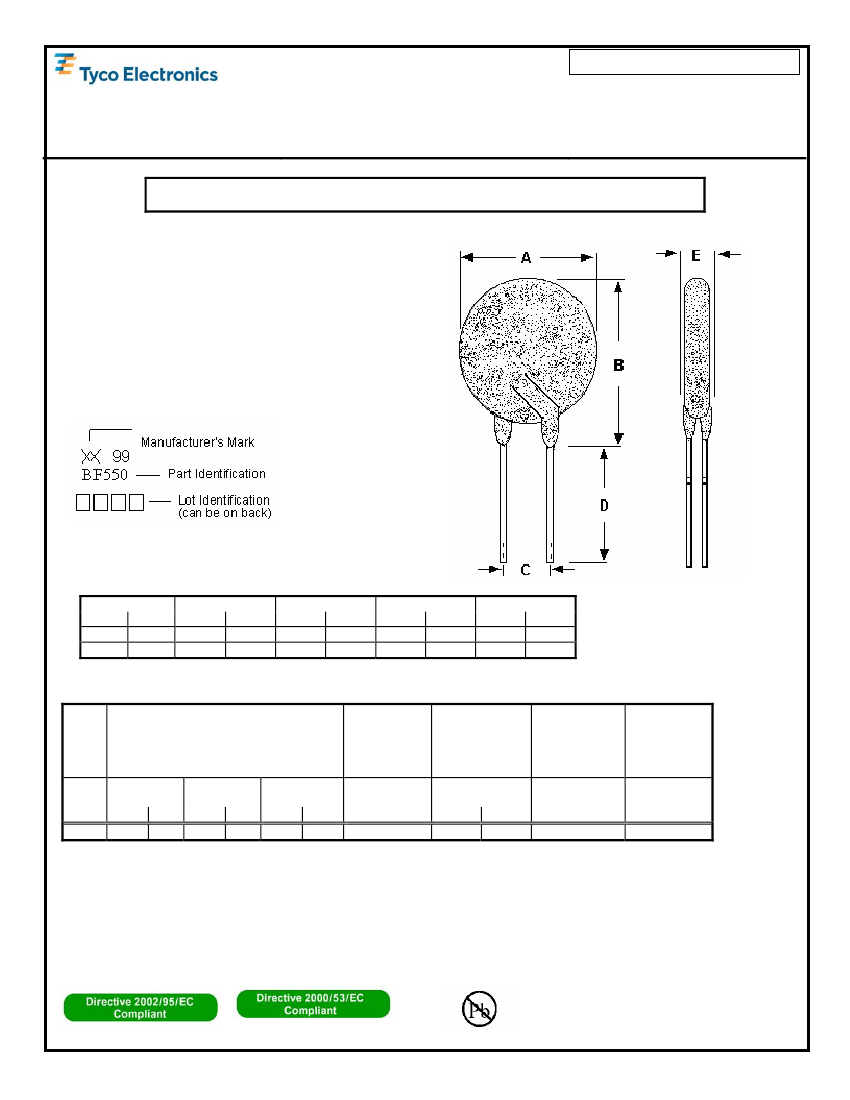

PRODUCT: BBRF550S

DOCUMENT: SCD 25840

PCN: D06997

REV LETTER: C

REV DATE: JULY 19, 2007

PAGE NO.: 1 OF 1

Overcurrent Protection Device

Raychem Circuit Protection Products

Specification Status:

Released

Electrical Rating

Voltage: 99V

MAX

Current: 20A MAX

Insulating Material:

Cured, Flame Retardant Epoxy Polymer

meets UL94 V-0 Requirements

Lead Material:

20 AWG Tin Plated Copper

Marking:

TABLE I. DIMENSIONS:

MIN

MAX

MIN

MAX

10.9

14.4

(0.43)

(0.57)

*Rounded off approximation

MIN

4.3

(0.17)

MAX

5.8

(0.23)

MIN

2.4

(0.09)

MAX

MIN

MAX

3.6

(0.14)

mm:

in*:

TABLE II. PERFORMANCE RATINGS:

I HOLD

CURRENT RATINGS

TIME TO

TRIP

RESISTANCE

NOMINAL

ONE-HOUR

TRIPPED

POST-TRIP

POWER

RESISTANCE

STANDARD DISSIPATION

TRIP

OHMS

WATTS AT

AT 20°C

20°C

MAX

1.95

1.5

AMPS

SECONDS AT

20°C

AT 0°C

AT 20°C

AT 60°C

20°C, 1.6A

HOLD HOLD TRIP HOLD TRIP HOLD TRIP

MAX

0.55 0.65 1.3 0.55 1.1 0.35 0.79

Agency Recognitions:

Reference Documents:

Precedence:

Effectivity:

CAUTION:

OHMS

AT 20°C

MIN

MAX

0.8

1.30

UL, CSA

PS300

This specification takes precedence over documents referenced herein.

Reference documents shall be the issue in effect on the date of invitation for bid.

Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.

Materials Information

ROHS Compliant

ELV Compliant

Pb-Free
